3MACross_AlertWarnSigOnlyNoShift

Author:
3MACross_AlertWarnSigOnlyNoShift

This script is designed to serve as a visual and audible monitoring tool for traders who use Moving Averages (MA) to identify trends. It specifically tracks the interactions between three different moving averages: a Fast, a Medium, and a Slow average.

Core Functionality

The primary purpose of this tool is to detect "crosses." In trading, a cross occurs when a faster-moving average moves from below a slower one to above it (a bullish signal), or vice versa (a bearish signal). Because this script tracks three different averages, it identifies three distinct types of interactions:

  1. Fast vs. Medium: Captures rapid shifts in short-term momentum.
  2. Fast vs. Slow: Captures very immediate price movements relative to long-term trends.
  3. Medium vs. Slow: Captures intermediate trend changes.

How the Logic Works

  • Movement Tracking: The script constantly calculates the mathematical distance between these averages. It looks for the exact moment the relationship between two lines flips (e.g., when the gap changes from a negative value to a positive value).

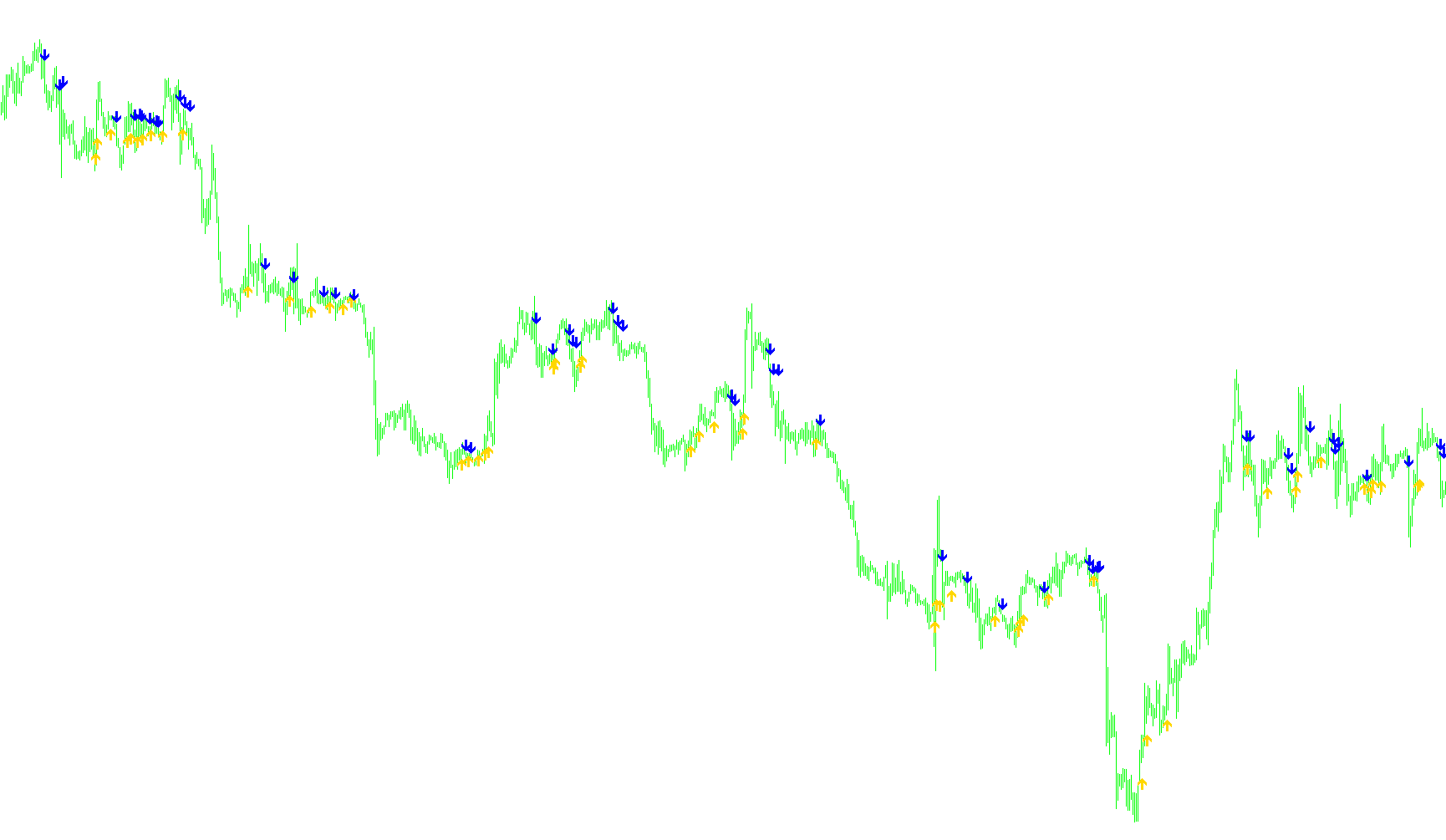

  • Visual Signals: When a cross is detected, the script places an arrow on your chart.
    • The direction of the arrow depends on whether the faster average is moving "Up" over the slower one or "Down" under it.
    • The placement of these arrows is adjusted dynamically based on the recent price range (volatility) to ensure they are clearly visible and not overlapping with the price bars.
  • Smart Alerting: To prevent your workspace from being flooded with repetitive notifications, the script includes a verification system. It ensures that an alert is only triggered once per candle for any specific type of cross.
  • Notification Options: You can choose how you receive these signals. The script is capable of providing:
    • On-Screen Pop-ups: Visual alerts within the trading platform.
    • Email Notifications: Sending a summary of the cross, the asset name, and the current price to your registered email.
    • Audio Alerts: Playing a sound file to notify you of a change immediately.

Key User Features

  • Customizable Speed: You can define exactly how many periods each moving average covers (e.g., 5, 13, and 34) and which type of calculation method to use (SMA, EMA, etc.).
  • Real-Time vs. Confirmed Crosses: You can toggle the settings to see alerts as they happen in real-time (on the current forming candle) or wait until the candle closes to confirm the cross has officially happened.
  • Dynamic Range Adjustment: The script automatically calculates the recent "Range" of price movement to ensure that the visual arrows are placed at a professional distance from the price candles.
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emailsIt plays sound alerts
16 Views
0 Downloads
0 Favorites
3MACross_AlertWarnSigOnlyNoShift
//+--------------------------------------------------------------------------+
//| 2008forextsd mladen                       MA_Cross_3MACross_AlertWarnSig |
//+--------------------------------------------------------------------------+
#property copyright ""
#property link      ""

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 Yellow
#property indicator_color4 Gold
#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 1
#property indicator_width4 1

//
//
//
//
//

extern int FasterMA       =    5;
extern int FasterMode     =    1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int MediumMA       =   13;
extern int MediumMode     =    1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int SlowerMA       =   34;
extern int SlowerMode     =    1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern bool crossesOnCurrent = true;
extern bool alertsOn         = true;
extern bool alertsMessage    = true;
extern bool alertsSound      = false;
extern bool alertsEmail      = false;
extern string   MA_Shift ="all MA_Shift = 0";
extern string   MA_Mode = "SMA0 EMA1 SMMA2 LWMA3";


//
//
//
//
//

double CrossUp[];
double CrossDown[];
double CrossWUp[];
double CrossWDown[];


//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//
//

int init()
{
   SetIndexBuffer(0, CrossUp);    SetIndexStyle(0, DRAW_ARROW); SetIndexArrow(0, 233);
   SetIndexBuffer(1, CrossDown);  SetIndexStyle(1, DRAW_ARROW); SetIndexArrow(1, 234);
   SetIndexBuffer(2, CrossWUp);   SetIndexStyle(2, DRAW_ARROW); SetIndexArrow(2, 233);
   SetIndexBuffer(3, CrossWDown); SetIndexStyle(3, DRAW_ARROW); SetIndexArrow(3, 234);
   return(0);
}
int deinit()
{
   return(0);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//
//

int start()
{
   int    limit, i;
   int    counted_bars=IndicatorCounted();
   double fasterMAnow, fasterMAprevious, fasterMAafter;
   double mediumMAnow, mediumMAprevious, mediumMAafter;
   double slowerMAnow, slowerMAprevious, slowerMAafter;


   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
           limit=Bars-counted_bars;

   //
   //
   //
   //
   //
   //

   for(i = limit; i >=0; i--)
   {
      double Range = 0.0;
      for (int counter=i ;counter<=i+9;counter++) Range += MathAbs(High[counter]-Low[counter]);
                                              Range /= 10;

      //
      //
      //
      //
      //

         fasterMAnow      = iMA(NULL, 0, FasterMA, 0,FasterMode, PRICE_CLOSE, i);
         fasterMAprevious = iMA(NULL, 0, FasterMA, 0,FasterMode, PRICE_CLOSE, i+1);
         mediumMAnow      = iMA(NULL, 0, MediumMA, 0,MediumMode, PRICE_CLOSE, i);
         mediumMAprevious = iMA(NULL, 0, MediumMA, 0,MediumMode, PRICE_CLOSE, i+1);
         slowerMAnow      = iMA(NULL, 0, SlowerMA, 0,SlowerMode, PRICE_CLOSE, i);
         slowerMAprevious = iMA(NULL, 0, SlowerMA, 0,SlowerMode, PRICE_CLOSE, i+1);

      //
      //
      //    avoid current bar if not allowed to check crosses on current (i==0)
      //
      //

         if (crossesOnCurrent==false && i==0) continue;

      //
      //
      //
      //
      //

      int    crossID=0;
      double curr;
      double prev;
      double point;
      while (true)
         {
            curr  =  fasterMAnow      - mediumMAnow;
            prev  =  fasterMAprevious - mediumMAprevious;
            point = (fasterMAnow      + fasterMAprevious)/2;
                  if (curr*prev<=0) { crossID=1; break; }
            curr  =  fasterMAnow      - slowerMAnow;
            prev  =  fasterMAprevious - slowerMAprevious;
                  if (curr*prev<=0) { crossID=2; break; }
            curr  =  mediumMAnow      - slowerMAnow;
            prev  =  mediumMAprevious - slowerMAprevious;
            point = (mediumMAnow      + mediumMAprevious)/2;
                  if (curr*prev<=0) { crossID=3; break; }
                                                 break;
         }

         //
         //
         //    the interesting thing is the direction of the crossing
         //    which MA is the primary and which one the secondary
         //    if you do not know that you can not determine the "direction"
         //    of the cross
         //
         //
         //

         CrossUp[i]    = EMPTY_VALUE;
         CrossDown[i]  = EMPTY_VALUE;
         CrossWUp[i]   = EMPTY_VALUE;
         CrossWDown[i] = EMPTY_VALUE;
         if (crossID>0)
         {
            if (alertsOn)
            if ((i==0 && crossesOnCurrent==true) || (i==1 && crossesOnCurrent==false))
            {
               switch (crossID)
               {
                  case 1:
                        if(curr>0) doAlert(" 3MACross: Fast MA crossed Medium MA UP");
                        else       doAlert(" 3MACross: Fast MA crossed Medium MA DOWN");
                        break;
                  case 2:
                        if(curr>0) doAlert(" 3MACross: Fast MA crossed Slow MA UP");
                        else       doAlert(" 3MACross: Fast MA crossed Slow MA DOWN");
                        break;
                  case 3:
                        if(curr>0) doAlert(" 3MACross: Medium MA crossed Slow MA UP");
                        else       doAlert(" 3MACross: Medium MA crossed Slow MA DOWN");
                        break;
               }
            }

            //
            //
            //
            //
            //


            if (i==0)
            {
               if (curr>0)
                     CrossWUp[i]   = point - Range*0.5;
               else  CrossWDown[i] = point + Range*0.5;
            }
            else
            {
               if (curr>0)
                     CrossUp[i]   = point - Range*0.5;
               else  CrossDown[i] = point + Range*0.5;
            }
         }
   }
   return(0);
 }


//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//

void doAlert(string doWhat)
{
   static string   previousAlert="nothing";
   static datetime previousTime;
   string message;

      if (previousAlert != doWhat || previousTime != Time[0]) {
          previousAlert  = doWhat;
          previousTime   = Time[0];

          //
          //
          //
          //
          //
//        if time needed :
//        message =  StringConcatenate(Symbol()," at ",TimeToStr(TimeLocal(),TIME_SECONDS)," @",Bid," ", doWhat);
//

          message =  StringConcatenate(Symbol()," at ",Bid," ", doWhat);
             if (alertsMessage) Alert(message);
             if (alertsEmail)   SendMail(StringConcatenate(Symbol()," 3MACross:"," M",Period()),message);
             if (alertsSound)   PlaySound("alert2.wav");
      }
}
