Batfink Signal (Line 1 and 2)
Download script
This script is designed to identify specific trading opportunities by monitoring price movements relative to set time zones and predetermined price boundaries. Instead of relying on standard lagging indicators, it uses a structural approach to analyze how the market behaves during different parts of the trading day.
Core Logic Overview
The tool divides each trading day into three distinct chronological periods. It systematically tracks price action during these windows to establish "zones." By identifying these zones, the script helps traders visualize where the market has established significant levels and where a breakout might occur.
Key Functional Components
1. Time Zone Synchronization The logic includes a built-in mechanism to handle different time zones. This ensures that the "start of the day" and specific trading periods align correctly with the user's local time or the specific market's exchange time, regardless of where the trading platform is hosted.
2. Dynamic Period Analysis The script monitors three specific segments of the day:
- An initial opening period.
- A secondary middle period.
- The remainder of the trading day.
As the market moves through these periods, the script calculates the high and low points reached. Once a period is completed, the logic "carries forward" these values to create horizontal boundaries (upper and lower zones) for the rest of the day.
3. Breakout Detection The primary objective of the script is to identify when the price "breaks out" of the established zone. It looks for specific price behaviors:
- Buy Signals: Triggered when the price moves upward and crosses above the calculated upper boundary.
- Sell Signals: Triggered when the price moves downward and crosses below the calculated lower boundary.
The logic is precise enough to detect these crossings even if they occur within a single candle, ensuring that signals are captured as soon as the breakout happens.
4. Visual Alerts and Notifications To assist the user in real-time trading, the script provides two types of feedback:

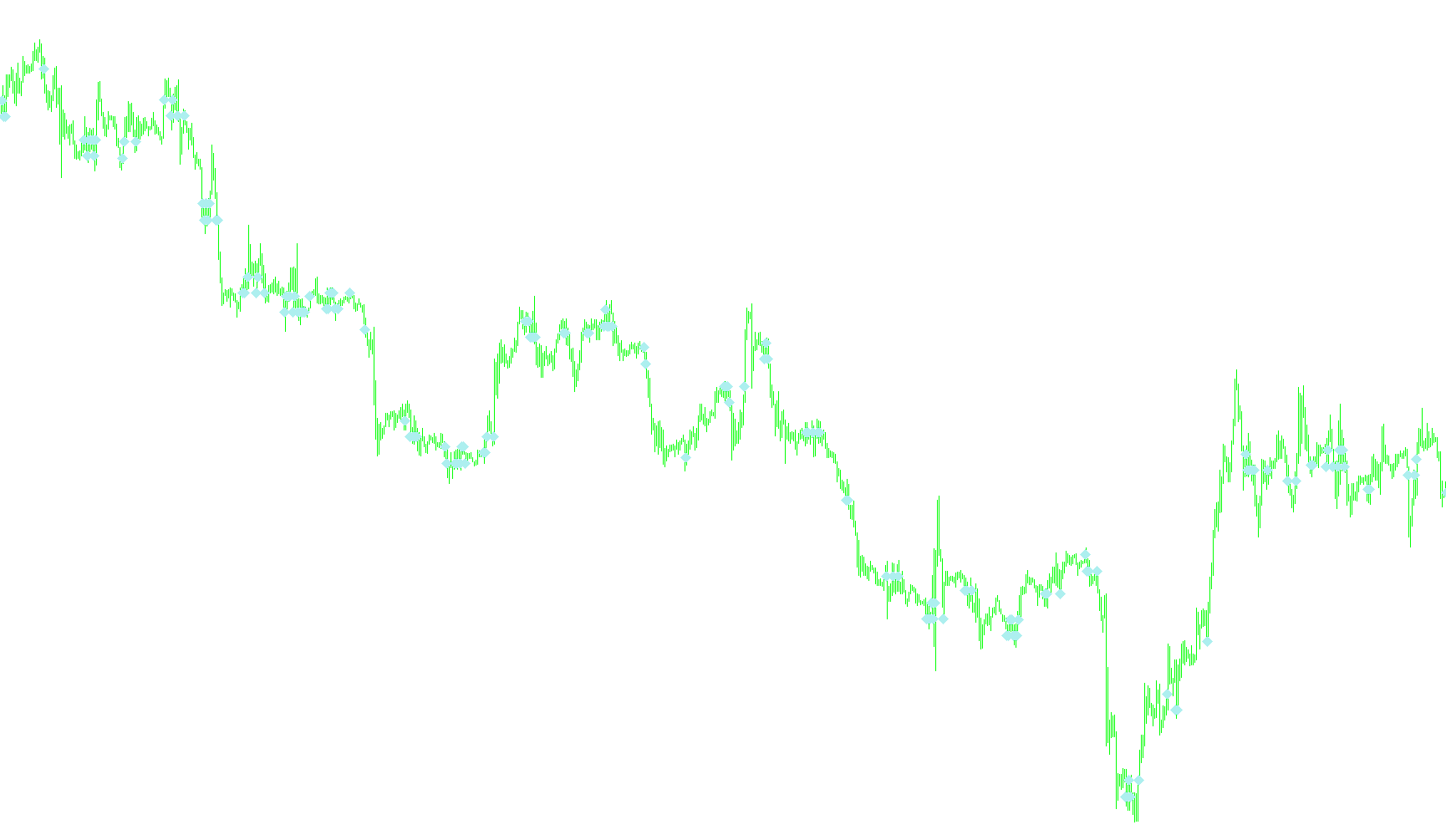

- Visual Markers: It places specific symbols (arrows) on the chart at the exact moment a breakout signal is confirmed.
- Push Alerts: If enabled, the script will generate a pop-up notification on the platform to notify the trader immediately when a zone has been breached.
Summary of Workflow
Essentially, the script "learns" the boundaries of the day based on the early morning price action. It then draws invisible lines (zones) based on those results and watches the market like a sentry. When the price finally breaks out of those established boundaries, it flags the movement as a potential entry point for a trade.
//+------------------------------------------------------------------+
//| Batfink Daily Range.MT4 |
//| |
//+------------------------------------------------------------------+
/* Introduction:
Draw Line at 00:00GMT + and - 55
TimeZONE Information - Indicator can be used for different Time Zones.
For Batfink settings set to -5 for MetaQuotes demo Server
This will place home line at 00:00GMT Time
*/
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Red
#property indicator_color2 Red
#property indicator_color3 DarkViolet
extern bool DoEntryAlerts= false;
extern int LocalTimeZone= 2;
extern int DestTimeZone= 0;
extern int PipsForEntry= 40;
double Zone1Upper[];
double Zone1Lower[];
double EntrySignalsBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,Zone1Upper);
SetIndexEmptyValue(0, 0.0);
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,Zone1Lower);
SetIndexEmptyValue(1, 0.0);
SetIndexStyle(2,DRAW_ARROW);
SetIndexArrow(2, 117);
SetIndexBuffer(2, EntrySignalsBuffer);
SetIndexEmptyValue(2, 0.0);
SetIndexLabel(2, "Zone Breakout Signal");
return(0);
}
int deinit()
{
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars= IndicatorCounted(),
lastbar, result;
if (Bars<=100)
return(0);
if (counted_bars>0)
counted_bars--;
lastbar= Bars - counted_bars;
BreakoutRanges(0, lastbar, LocalTimeZone, DestTimeZone);
//
// check alerts
//
static datetime lastalerttime;
static double lastalertprice;
if (DoEntryAlerts && lastalerttime!=Time[0] && EntrySignalsBuffer[0]!=0 && EntrySignalsBuffer[0]!=lastalertprice) {
Alert("ZoneBreakout signals entry!");
lastalerttime= Time[0];
lastalertprice= EntrySignalsBuffer[0];
}
else {
lastalerttime= 0;
lastalertprice= 0.0;
}
return(0);
}
//+------------------------------------------------------------------+
//| Compute index of first/last bar of yesterday and today |
//+------------------------------------------------------------------+
int BreakoutRanges(int offset, int lastbar, int tzlocal, int tzdest)
{
int i, j, k,
tzdiff= tzlocal - tzdest,
tzdiffsec= tzdiff*3600,
tidxstart[2]= { 0, 0},
tidxend[2]= { 0, 0 };
double topen[2]= { 0.0, 0.0 },
tclose[2]= { 99999.9, 99999.9 };
string tfrom[3]= { "07:00", "08:00" , /*rest of day: */ "12:00"},
tto[3]= { "08:00", "12:00", /*rest of day: */ "24:00" },
tday;
bool inperiod= -1;
datetime timet;
//
// search back for the beginning of the day
//
tday= TimeToStr(Time[lastbar]-tzdiffsec, TIME_DATE);
for ( ; lastbar<Bars; lastbar++) {
if (TimeToStr(Time[lastbar] - tzdiffsec, TIME_DATE)!=tday) {
lastbar--;
break;
}
}
//
// find the high/low for the two periods and carry them forward through the day
//
tday= "XXX";
for (i= lastbar; i>=offset; i--) {
timet= Time[i] - tzdiffsec; // time of this bar
string timestr= TimeToStr(timet, TIME_MINUTES), // current time HH:MM
thisday= TimeToStr(timet, TIME_DATE); // current date
EntrySignalsBuffer[i]= 0;
//
// for all three periods (first period, second period, rest of day)
//
for (j= 0; j<3; j++) {
if (tfrom[j]<=timestr && timestr<tto[j]) { // Bar[i] in this period
if (inperiod!=j) { // entered new period, so last one is completed
if (j>0) { // now draw high/low back over the recently completed period
for (k= tidxstart[j-1]; k>=tidxend[j-1]; k--) {
if (j-1==0) {
Zone1Upper[k]= tclose[j-1];
Zone1Lower[k]= tclose[j-1];
}
}
inperiod= j; // remember current period
}
// for the current period find idxstart, idxend and compute high/low
if (tidxstart[j]==0) {
tidxstart[j]= i;
tday= thisday;
}
tidxend[j]= i;
topen[j]= MathMax(topen[j], Open[i]);
tclose[j]= MathMin(tclose[j], Close[i]);
}
}
//------------------------------------------------------------------------
// carry forward the periods for which we have definite high/lows
//
if (inperiod>=1 && tday==thisday) { // first time period completed
Zone1Upper[i]= tclose[0] + PipsForEntry*Point;
Zone1Lower[i]= tclose[0] - PipsForEntry*Point;
}
CheckSignal(i, Zone1Upper[i], OP_BUY, EntrySignalsBuffer);
CheckSignal(i, Zone1Lower[i], OP_SELL, EntrySignalsBuffer);
}
{ // none yet to carry forward (zero to clear old values, e.g. from switching timeframe)
Zone1Upper[i]= 0;
Zone1Lower[i]= 0;
}
//
// at the beginning of a new day reset everything
//
if (tday!="XXX" && tday!=thisday) {
Print("#", i, "new day ", thisday, "/", tday);
tday= "XXX";
inperiod= -1;
for (j= 0; j<2; j++) {
tidxstart[j]= 0;
tidxend[j]= 0;
topen[j]= 0;
tclose[j]= 99999;
}
}
}
return (0);
}
//+------------------------------------------------------------------+
//| Check price break |
//+------------------------------------------------------------------+
bool CheckSignal(int shift, double price, int type, double &signalbuffer[])
{
bool signal= false;
if (type==OP_BUY && ((Open[shift]<price && High[shift]>price) || (Close[shift+1]<price && Open[shift]>price)) ) {
signalbuffer[shift]= price;
signal= true;
}
if (type==OP_SELL && (Open[shift]>price && Low[shift]<price) || (Close[shift+1]>price && Open[shift]<price)) {
signalbuffer[shift]= price;
signal= true;
}
return (signal);
}
