BPNN Predictor

This script functions as a predictive tool that uses Artificial Intelligence—specifically a Back Propagation Neural Network (BPNN)—to forecast future price movements in a financial market. Instead of using simple math formulas, it attempts to "learn" patterns from historical data, similar to how a human might study past trends to guess what happens next.

How the Logic Works

1. Data Collection and Preparation The script begins by looking at historical price data (specifically the "Open" prices). It doesn't just look at the very last price; it looks back at a specific window of time to gather various "inputs." To do this effectively, it uses a unique method called Fibonacci delays. This means it looks at prices from specific intervals in the past (based on the Fibonacci sequence) to identify recurring patterns or rhythms in the market.

2. The Training Phase Once the historical data is gathered, the script enters a "training" mode. During this phase:

  • It feeds the historical inputs into a neural network.
  • The network makes a guess about what the price should have been.
  • It compares that guess against the actual historical result.
  • It calculates the error (the difference between the guess and reality) and automatically adjusts its internal "weights" (its internal logic) to reduce that error.
  • This process repeats hundreds or thousands of times (epochs) until the network becomes proficient at recognizing the relationship between past price movements and future results.

3. Continuous Learning A key feature of this script is its ability to remember what it learned. Once it finishes training on a batch of data, it saves those "weights" (the knowledge it gained). When new data arrives, it uses that saved knowledge as a starting point rather than starting from scratch, allowing the tool to evolve as market conditions change.

4. Prediction and Forecasting After the network is trained, the script moves into the "Testing" or "Prediction" phase. It takes the most recent, real-time market data and feeds it into the trained network. The network then generates a sequence of predictions for future price points.

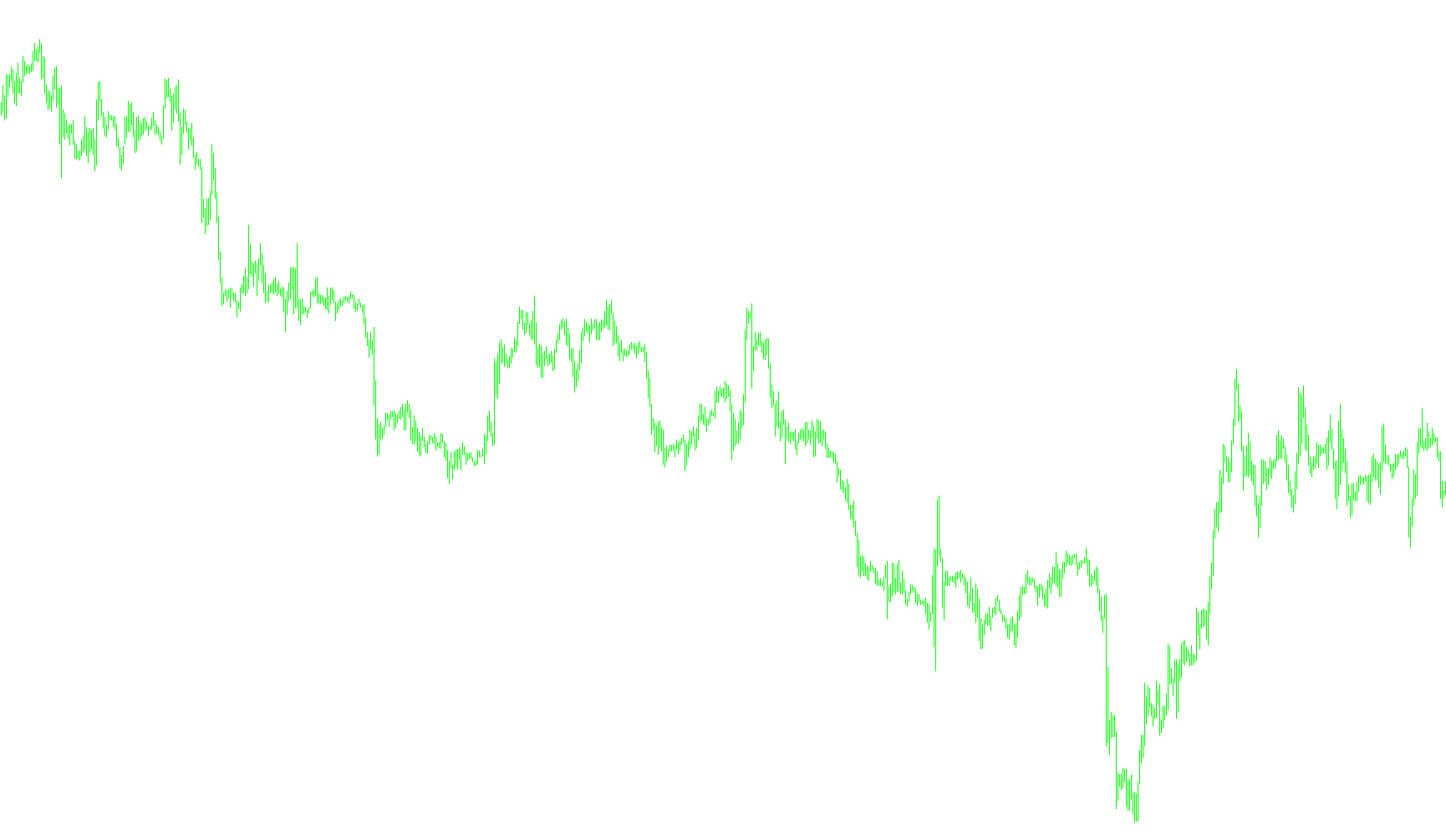

5. Visual Representation Finally, the script translates these complex mathematical calculations into visual lines on your trading chart. It displays:

  • The Predicted Path: What the AI thinks the price will do in the coming bars.
  • The Trained Output: A representation of the network's learned logic.
  • The Real Output: The actual historical data, allowing you to visually compare how accurately the AI's past predictions matched reality.

Summary for the User

In simple terms, this tool acts like a student. It studies the history of the market (the Training Phase), learns the "rules" of how prices move based on specific patterns (the Neural Network), and then uses those rules to project a path forward onto your chart so you can see potential future price movements.

Miscellaneous
Implements a curve of type %1
8 Views
0 Downloads
0 Favorites
BPNN Predictor
//+--------------------------------------------------------------------------------------+
//|                                                                   BPNN Predictor.mq4 |
//|                                                               Copyright © 2009, gpwr |
//|                                                                   vlad1004@yahoo.com |
//+--------------------------------------------------------------------------------------+
#property copyright "Copyright © 2009, gpwr"
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Red
#property indicator_width1 2
#property indicator_color2 Blue
#property indicator_width2 2
#property indicator_color3 Black
#property indicator_width3 2

//======================================= DLL ============================================
#import "BPNN.dll"
string Train(
   double inpTrain[], // Input training data (1D array carrying 2D data, old first)
   double outTarget[],// Output target data for training (2D data as 1D array, oldest 1st)
   double outTrain[], // Output 1D array to hold net outputs from training
   int    ntr,        // # of training sets
   int    UEW,        // Use Ext. Weights for initialization (1=use extInitWt, 0=use rnd)
   double extInitWt[],// Input 1D array to hold 3D array of external initial weights
   double trainedWt[],// Output 1D array to hold 3D array of trained weights
	int    numLayers,  // # of layers including input, hidden and output
	int    lSz[],      // # of neurons in layers. lSz[0] is # of net inputs
	int    AFT,        // Type of neuron activation function (0:sigm, 1:tanh, 2:x/(1+x))
	int    OAF,        // 1 enables activation function for output layer; 0 disables
	int    nep,        // Max # of training epochs
	double maxMSE      // Max MSE; training stops once maxMSE is reached
	);

string Test(
   double inpTest[],  // Input test data (2D data as 1D array, oldest first)
   double outTest[],  // Output 1D array to hold net outputs from training (oldest first)
   int    ntt,        // # of test sets
   double extInitWt[],// Input 1D array to hold 3D array of external initial weights
	int    numLayers,  // # of layers including input, hidden and output
	int    lSz[],      // # of neurons in layers. lSz[0] is # of net inputs
   int    AFT,        // Type of neuron activation function (0:sigm, 1:tanh, 2:x/(1+x))
	int    OAF         // 1 enables activation function for output layer; 0 disables
	);
#import

//===================================== INPUTS ===========================================

extern int    lastBar     =0;     // Last bar in the past data
extern int    futBars     =5;     // # of future bars to predict
extern int    numLayers   =3;     // # of layers including input, hidden & output (2..6)
extern int    numInputs   =12;    // # of inputs
extern int    numNeurons1 =5;     // # of neurons in the first hidden or output layer
extern int    numNeurons2 =1;     // # of neurons in the second hidden or output layer
extern int    numNeurons3 =0;     // # of neurons in the third hidden or output layer
extern int    numNeurons4 =0;     // # of neurons in the fourth hidden or output layer
extern int    numNeurons5 =0;     // # of neurons in the fifth hidden or output layer
extern int    ntr         =120;   // # of training sets
extern int    nep         =1000;  // Max # of epochs
extern int    maxMSEpwr   =-20;   // sets maxMSE=10^maxMSEpwr; training stops < maxMSE
extern int    AFT         =2;     // Type of activ. function (0:sigm, 1:tanh, 2:x/(1+x))

//======================================= INIT ===========================================
//Indicator buffers
double pred[],trainedOut[],realOut[];

//Global variables
int lb,nf,nin,nout,lSz[],prevBars;
double maxMSE;

int init()
{
// Create 1D array describing NN --------------------------------------------------------+
   ArrayResize(lSz,numLayers);
   lSz[0]=numInputs;
   lSz[1]=numNeurons1;
   if(numLayers>2)
   {
      lSz[2]=numNeurons2;
      if(numLayers>3)
      {
         lSz[3]=numNeurons3;
         if(numLayers>4)
         {
            lSz[4]=numNeurons4;
            if(numLayers>5) lSz[5]=numNeurons5;
         }
      }
   }

// Use shorter names for some external inputs -------------------------------------------+
   lb=lastBar;
   nf=futBars;
   nin=numInputs;
   nout=lSz[numLayers-1];
   maxMSE=MathPow(10.0,maxMSEpwr);
   prevBars=Bars-1;

// Set indicator properties -------------------------------------------------------------+
   IndicatorBuffers(3);
   SetIndexBuffer(0,pred);
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(1,trainedOut);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(2,realOut);
   SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,2);
   SetIndexShift(0,nf-lb); // future data vector i=0..nf; nf corresponds to bar=lb
   IndicatorShortName("BPNN");
   return(0);
}

//===================================== DEINIT ===========================================
int deinit(){return(0);}

//===================================== START ============================================
int start()
{
   if(prevBars<Bars){
   prevBars=Bars;
// Check NN and find the total number of weights ----------------------------------------+
   if(numLayers>6)
   {
      Print("The maximum number of layers is 6");
      return;
   }
   for(int i=0;i<numLayers;i++)
   {
      if(lSz[i]<=0)
      {
         Print("No neurons in layer # "+DoubleToStr(i,0)+
            ". Either reduce # of layers or add neurons to this layer");
         return;
      }
   }
   int nw=0; // total number of weights
   for(i=1;i<numLayers;i++)			   // for each layer except input
      for(int j=0;j<lSz[i];j++)			// for each neuron in current layer
         for(int k=0;k<=lSz[i-1];k++)	// for each input of current neuron including bias
				nw++;

// Prepare input data for training ------------------------------------------------------+
   double inpTrain[],outTarget[],extInitWt[];
   ArrayResize(inpTrain,ntr*nin);
   ArrayResize(outTarget,ntr*nout);
   ArrayResize(extInitWt,nw);

	// The input data is arranged as follows:
	//
	// inpTrain[i*nin+j]
	//------------------
	//      j= 0...nin-1
	//            |
	// i=0     <inputs>
	// ...     <inputs>
	// i=ntr-1 <inputs>
	//
	// outTarget[i*nout+j]
	//--------------------
	//      j= 0...nout-1
	//             |
	// i=0     <targets>
	// ...     <targets>
	// i=ntr-1 <targets>
   //
	// <inputs> start with the oldest value first

	// Fill in the input arrays with data; in this example nout=1
   for(i=ntr-1;i>=0;i--)
   {
      outTarget[i]=(Open[lb+ntr-1-i]/Open[lb+ntr-i]-1.0);
      int fd2=0;
      int fd1=1;
      for(j=nin-1;j>=0;j--)
      {
         int fd=fd1+fd2; // use Fibonacci delays: 1,2,3,5,8,13,21,34,55,89,144...
         fd2=fd1;
         fd1=fd;
         inpTrain[i*nin+j]=Open[lb+ntr-i]/Open[lb+ntr-i+fd]-1.0;
      }
   }

// Train NN -----------------------------------------------------------------------------+
   double outTrain[],trainedWt[];
   ArrayResize(outTrain,ntr*nout);
   ArrayResize(trainedWt,nw);

   // The output data is arranged as follows:
	//
	// outTrain[i*nout+j]
	//      j= 0...nout-1
	//             |
	// i=0     <outputs>
	// ...     <outputs>
	// i=ntr-1 <outputs>

   string status=Train(inpTrain,outTarget,outTrain,ntr,0,extInitWt,trainedWt,numLayers,
      lSz,AFT,0,nep,maxMSE);
   Print(status);
   // Store trainedWt[] as extInitWt[] for next training
   int iw=0;
   for(i=1;i<numLayers;i++)			// for each layer except input
      for(j=0;j<lSz[i];j++)			// for each neuron in current layer
         for(k=0;k<=lSz[i-1];k++)	// for each input of current neuron including bias
         {
				extInitWt[iw]=trainedWt[iw];
				//Print("w = "+DoubleToStr(extInitWt[iw],5));
				iw++;
		   }

   // Show how individual net outputs match targets
   for(i=0;i<ntr;i++)
   {
      realOut[lb+i]=Open[lb+i];
      trainedOut[lb+i]=(1.0+outTrain[ntr-1-i])*Open[lb+i+1];
      //Print("Net output: "+DoubleToStr(outTrain[i],5)
         //+", target: "+DoubleToStr(outTarget[i],5));
   }


// Test NN ------------------------------------------------------------------------------+
   double inpTest[],outTest[];
   ArrayResize(inpTest,nin);
   ArrayResize(outTest,nout);

   // The input data is arranged as follows:
	//
   // inpTest[i*nin+j]
	//-----------------
	//      j= 0...nin-1
	//            |
	// i=0     <inputs>
	// ...     <inputs>
	// i=ntt-1 <inputs>
	//
	// <inputs> start with the oldest value first
	//
   // The output data is arranged as follows:
	//
	// outTest[i*nout+j]
	//------------------
	//      j= 0...nout-1
	//             |
	// i=0     <outputs>
	// ...     <outputs>
	// i=ntt-1 <outputs>

	pred[nf]=Open[lb];
	for(i=0;i<nf;i++)
	{
      fd2=0;
      fd1=1;
      for(j=nin-1;j>=0;j--)
      {
         fd=fd1+fd2; // use Fibonacci delays: 1,2,3,5,8,13,21,34,55,89,144...
         fd2=fd1;
         fd1=fd;
         double o,od;
         if(i>0) o=pred[nf-i];
         else o=Open[lb-i];
         if(i-fd>0) od=pred[nf-i+fd];
         else od=Open[lb-i+fd];
         inpTest[j]=o/od-1.0;
      }
      status=Test(inpTest,outTest,1,extInitWt,numLayers,lSz,AFT,0);
      pred[nf-i-1]=pred[nf-i]*(outTest[0]+1.0); // predicted next open
      Print("Bar -"+DoubleToStr(i+1,0)+": predicted open = "+DoubleToStr(pred[nf-i-1],5));
   }
   }
   return;
}
