BtTrendTrigger-T-Signal

This script is designed to analyze market trends by calculating the relative "power" between buying and selling pressures. Instead of simply looking at price movement, it evaluates the relationship between recent highs and lows compared to older historical data to determine the underlying momentum of an asset.

Core Logic and Mechanism

1. Momentum Calculation (Buy vs. Sell Power) The tool identifies two distinct types of power:

  • Buy Power: Calculated by comparing the highest price reached in a very recent period against the lowest price from a slightly older period.
  • Sell Power: Calculated by comparing the highest price from an older period against the lowest price in the most recent period.

By subtracting these values and normalizing them into a percentage, the script generates a "Trend Trigger Factor." This tells you whether the market is currently leaning more toward aggressive buying or heavy selling.

2. Smoothing and Filtering Raw market data is often "noisy," which can lead to false signals. To counteract this, the script uses a multi-stage smoothing process (mathematically similar to an exponential moving average). It runs the raw trend data through several successive filters to eliminate minor fluctuations, ensuring that the final output reflects a sustained trend rather than a momentary spike.

3. Signal Generation (Arrows) The script monitors the smoothed trend line for specific "crossover" events. When the trend crosses predefined threshold boundaries (positive or negative), it triggers visual markers on the chart:

  • Bullish Signals: It looks for instances where the trend moves from a negative (selling) zone into a positive (buying) zone, or crosses a specific upward power threshold.
  • Bearish Signals: It identifies moments where the trend drops from a positive zone into a negative zone or breaks below a downward power threshold.

4. Visual Representation

  • Trend Line: The script plots a primary line that represents the processed Trend Trigger Factor.
  • Dynamic Thresholds: It creates a secondary visual indicator (usually appearing as levels) that helps define the "neutral zone." When the trend is positive, it stays at an upper limit; when negative, it sits at a lower limit.

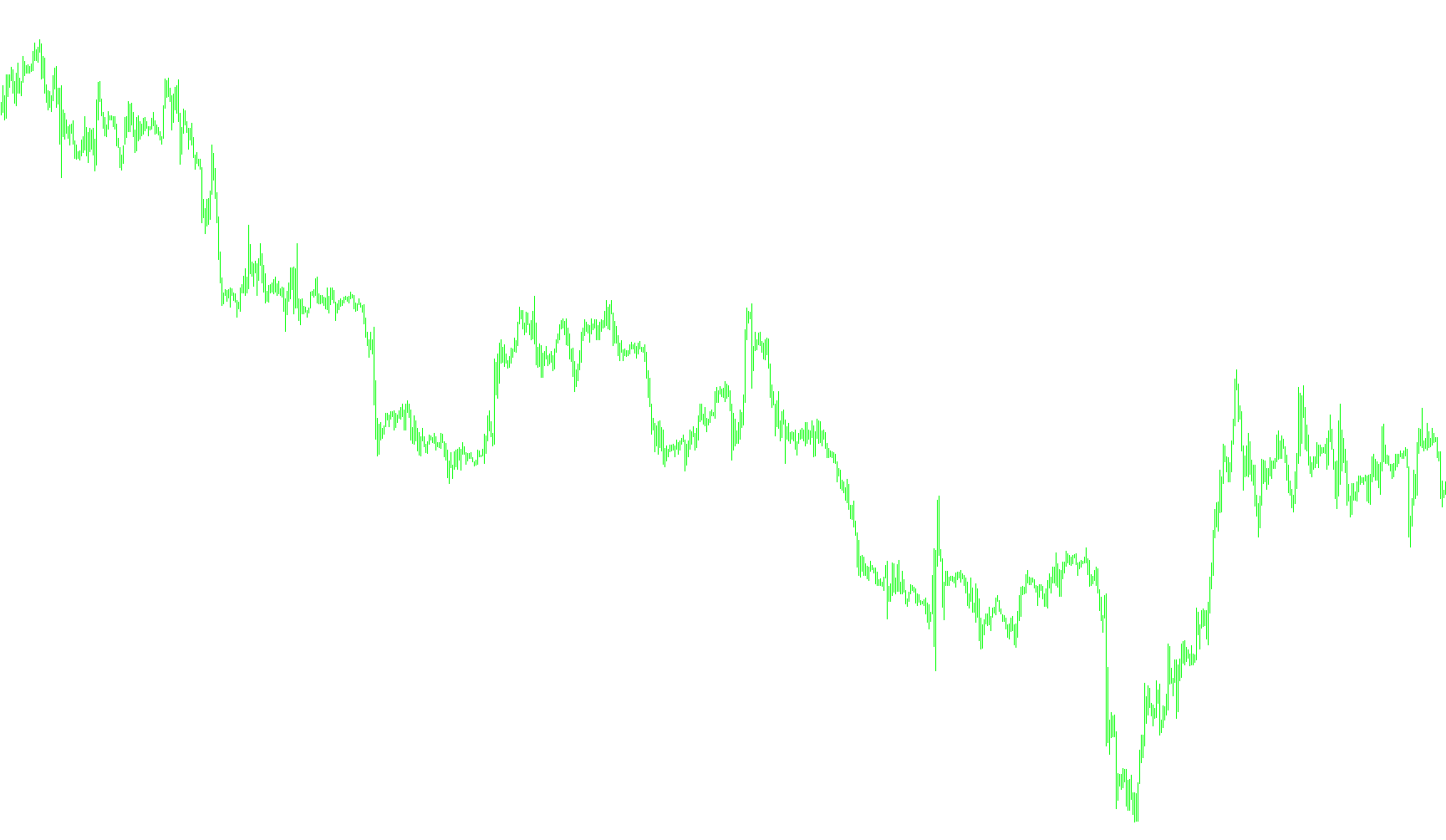

  • On-Chart Arrows: The script automatically places arrows at specific price points to alert the user to potential trend reversals or breakouts in real-time.

Summary for the User

In essence, this tool acts as a momentum filter. It strips away the "noise" of the market to show you the underlying strength of the current move. It tells you not just where the price is going, but how much strength is behind that movement, signaling potential entries or exits when the trend shifts from one dominant power (buying) to another (selling).

Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
13 Views
0 Downloads
0 Favorites
BtTrendTrigger-T-Signal
//+------------------------------------------------------------------------+
//| MQL to MQ4 by Maloma                              BtTrendTrigger-T.mq4 |
//| Modified version of Trend Trigger Factor by Tartan                     |
//| Technical Analysis of Stocks and Commodities, Dec. 2004,p.28. M.H. Pee |
//+------------------------------------------------------------------------+
#property copyright "Paul Y. Shimada"
#property  link     "PaulYShimada@Y..."

#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Gold
#property indicator_color2 Red

//---- indicator parameters
extern int    TTFbars=15; //15=default number of bars for computation.
extern int    t3_period=5;
extern double b=0.7;
extern int    ppor=50;
extern int    mpor=-50;
extern int    barBegin=1000; //<1000 recommended for faster speed, 0=All bars computed & plotted.
//---- indicator buffers
double Buffer1[];
double Buffer2[];
double ATTF[];

// Variable Specific:
string IndicatorName="py.TTF";
string Version="S01(MQL4 by maloma)";
double HighestHighRecent=0, HighestHighOlder=0, LowestLowRecent=0, LowestLowOlder=0;
double BuyPower=0, SellPower=0, TTF=0;
double t3=0, e1=0, e2=0, e3=0, e4=0, e5=0, e6=0, c1=0, c2=0, c3=0, c4=0, r=0, w1=0, w2=0, b2=0, b3=0;

// Variable Generic, mostly for module flow control:
int    shift=0, count=0;
bool   is_First=True;
int    loopBegin=0, prevBars=0, PrevTime=0, tick=0, prevShift=99999, firstPlotBar=0, badPlotBars=0; //Discarded first (old) bars with bad computed values
double CheckSum=0, CheckSumPrev=0;
string Msg="";
int    ks=0,kb=0,kss=0,ksb=0,m=0;

int init()
  {
//---- indicator buffers mapping
    SetIndexBuffer(0,Buffer1);
    SetIndexBuffer(1,Buffer2);
//---- drawing settings
    SetIndexStyle(0,DRAW_LINE,EMPTY,2);
    SetIndexArrow(0,217);
    SetIndexStyle(1,DRAW_LINE,EMPTY,2);
    SetIndexArrow(1,218);
//----
    SetIndexEmptyValue(0,0.0);
    SetIndexEmptyValue(1,0.0);
//---- name for DataWindow
    SetIndexLabel(0,"BTT1");
    SetIndexLabel(1,"BTT2");
//---- initialization done
    IndicatorShortName("BtTrendTrigger");
   return(0);
  }

void CreateArrow(datetime BTime, double Price, int Code, color Color)
{
 string AN=DoubleToStr(CurTime(),0);
 ObjectCreate(AN,OBJ_ARROW,0,BTime,Price,0,0,0,0);
 ObjectSet(AN,OBJPROP_ARROWCODE,Code);
 ObjectSet(AN,OBJPROP_COLOR,Color);
 return(0);
}

int start()
{
 ArrayResize(ATTF,barBegin);
 b2 = b * b;
 b3 = b2 * b;
 c1 = (-b3);
 c2 = (3 * (b2 + b3));
 c3 = (-3) * (2 * b2 + b + b3);
 c4 = (1 + 3 * b + b3 + 3 * b2);

 r = t3_period;

 if (r < 1) r = 1;
 r = 1 + 0.5 * (r - 1);
 w1 = 2 / (r + 1);
 w2 = 1 - w1;

 /*======================*/
 /* Begin Pre-Loop Setup */
 /*======================*/
 //Check for additional bars loading or total reloadng.
 if (Bars < prevBars || Bars - prevBars > 1) is_First = True;
 prevBars = Bars;

 //Have any Inputs changed?
 CheckSum = TTF + barBegin;

 if (CheckSum != CheckSumPrev) is_First = True;
 CheckSumPrev = CheckSum;
 //--------------------------------------------------------------------

 if (is_First)
  {/*This block executes ONLY First Time for each Attachment-To-Chart. If MT is closed or another Profile is selected,
   the values & parameters for this module are saved, and when MT or this Profile is restarted, it would not be the First
   Time Attachment-To-Chart. So this block would not execute unless the value of "Bars" has changed. */
   int SetLoopCount=0;

   /*==============*/
   /* Check Inputs */
   /*==============*/
   if (0 > TTFbars || TTFbars > 299)
    {
     Msg = IndicatorName + " **Input Error** :" + " TTFbars must be between 0 and 300. Cannot=" + TTFbars;
     Alert(Msg);
     return(0);
    }

   //BarIndexNumber=shift=Bars-1..0
   if (barBegin > 0 && barBegin < Bars - 1) {loopBegin = barBegin;} else {loopBegin = Bars - 1;}

   /*===================================*/
   /* Specific for particular indicator */
   /*===================================*/
   loopBegin = loopBegin - TTFbars; //Cannot compute early bars
  	/* end Specific */

   is_First = False;
  }

 /*======================*/
 /* end Pre-Loop Setup   */
 /*======================*/
 loopBegin = loopBegin + 1; //Replot previous bar
 m=0;ATTF[0]=0;
 for (shift = loopBegin; shift>=0; shift--)
  {
   m=m+1;
   /*=================================*/
   /* Standard Specific Computations */
   /*=================================*/
   HighestHighRecent = High[Highest(Symbol(),0,MODE_HIGH,TTFbars,shift-TTFbars+1)];
   HighestHighOlder = High[Highest(Symbol(),0,MODE_HIGH,TTFbars,shift+1)];
   LowestLowRecent = Low [Lowest(Symbol(),0,MODE_LOW,TTFbars,shift-TTFbars+1)];
   LowestLowOlder = Low [Lowest(Symbol(),0,MODE_LOW,TTFbars,shift+1)];
   BuyPower = HighestHighRecent - LowestLowOlder;
   SellPower = HighestHighOlder - LowestLowRecent;
   TTF = (BuyPower - SellPower) / (0.5 * (BuyPower + SellPower)) * 100;
   e1 = w1 * TTF + w2 * e1;
   e2 = w1 * e1 + w2 * e2;
   e3 = w1 * e2 + w2 * e3;
   e4 = w1 * e3 + w2 * e4;
   e5 = w1 * e4 + w2 * e5;
   e6 = w1 * e5 + w2 * e6;

   TTF = c1 * e6 + c2 * e5 + c3 * e4 + c4 * e3;
   Buffer1[shift-1]=TTF;

   ATTF[m]=TTF;
   if(ATTF[m-1]<ATTF[m] && ATTF[m]<ppor && ATTF[m-1]>0) kb=0;
   if(ATTF[m-1]>ATTF[m] && ATTF[m]>mpor && ATTF[m-1]<0) ks=0;
   if(ATTF[m-1]<0 && ATTF[m]>0) ksb=0;
   if(ATTF[m-1]>0 && ATTF[m]<0) kss=0;
   //Dual value trigger +/-100
   if(ATTF[m-1]<mpor && ATTF[m]>mpor && kb==0)
    {kb=1; CreateArrow(Time[shift], Low[shift]-6*Point, 242, Gold);}
   if(((ATTF[m-1]>ppor && ATTF[m]<ppor) || (ATTF[m-1]>0 && ATTF[m]<0)) && ksb==0)
    {ksb=1; CreateArrow(Time[shift], High[shift], 159, Gold);}

   if(ATTF[m-1]>ppor && ATTF[m]<ppor && ks==0)
    {ks=1; CreateArrow(Time[shift], High[shift]+6*Point, 241, Aqua);}
   if(((ATTF[m-1]<mpor && ATTF[m]>mpor) || (ATTF[m-1]<0 && ATTF[m]>0)) && kss==0)
    {kss=1; CreateArrow(Time[shift], Low[shift], 159, Aqua);}

   Comment("TTF=",TTF," ATTF[m]=",ATTF[m]," ATTF[m-1]=",ATTF[m-1]," kb=",kb," ksb=",ksb," ks=",ks," kss=",kss," m=",m);

   if (TTF >= 0) {Buffer2[shift-1]=ppor;} else {Buffer2[shift-1]=mpor;}
  }

 return(0);
}
