This script is designed to create a dynamic trading channel on your price chart. Unlike standard fixed channels, this tool automatically adjusts its width based on the actual volatility of the market by measuring how far the price moves away from a Moving Average (MA).
Core Logic Overview
The indicator functions by establishing a "center line" using a Moving Average. It then calculates the surrounding boundaries based on the historical distance between the market price and that average.
1. Distance Measurement The script looks back at a specific number of past bars (determined by the "Depth" setting). For each of those bars, it identifies the maximum distance reached by the price (the highest high or lowest low) relative to the Moving Average.
2. Channel Calculation Methods To decide how wide the channel should be at any given moment, the script offers four different mathematical methods for processing those historical distances:
- Maximum: The channel width is determined by the single largest price deviation found within the look-back period.
- Average: The width is based on the simple average of all price deviations in the period.
- Median: The width is based on the middle value of the sorted deviations (less sensitive to extreme outliers).
- Standard Deviation: This uses a statistical approach to determine the "normal" spread of price movement, which is often used to identify volatility.
3. Fibonacci Integration Once the primary "shift" (the width) is calculated using one of the methods above, the script applies four custom Fibonacci levels. Instead of just drawing one line, it projects these levels symmetrically above and below the Moving Average.
- The upper levels represent price targets or resistance zones.
- The lower levels represent support zones.

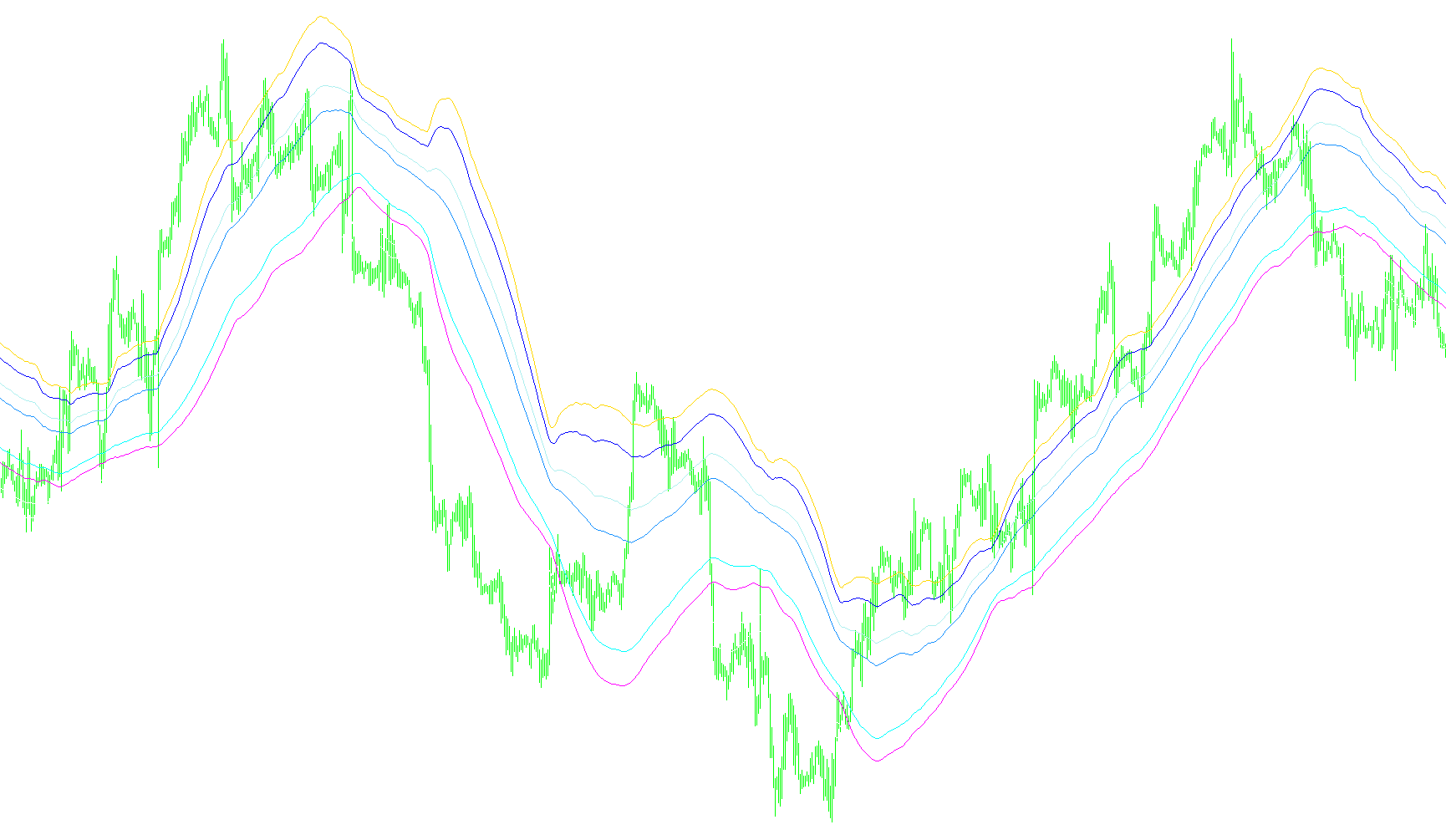

Visual Presentation
- Dynamic Drawing: As the market becomes more volatile (price moves further from the average), the channel expands. When the market calms down, the channel contracts.
- Labels: The script automatically places text labels on the chart to identify the specific Fibonacci percentages for each of the eight lines (four above the center and four below).
- Customization: Users can define the Moving Average type (e.g., Simple), the look-back depth, and the specific Fibonacci levels they wish to track.
Summary for the User
In plain terms, this tool creates a "breathing" envelope around the price. By combining a Moving Average with historical volatility measurements and Fibonacci ratios, it provides a visual representation of where the price is currently trading relative to its recent average behavior, helping you identify potential zones of support and resistance that adapt to current market conditions.
Price Data Components
Indicators Used
Miscellaneous
5
Views
0
Downloads
0
Favorites
channelsfibo_v2_ad
//+------------------------------------------------------------------+
//| ChannelsFIBO_v2_AD.mq4 |
//| Copyright 2016, Scriptong |
//| http://advancetools.net |
//+------------------------------------------------------------------+
#property copyright "Scriptong"
#property link "http://advancetools.net"
#property description "English: Dynamic channel, which is calculated based on the maximum distance between the price and MA.\nRussian: Äèíàìè÷åñêèé êàíàë, ðàññ÷èòàííûé íà îñíîâàíèè ìàêñèìàëüíîãî ðàññòîÿíèÿ ìåæäó öåíîé è MA."
#property strict
#property indicator_chart_window
#property indicator_buffers 8
#property indicator_color1 clrRed
#property indicator_color2 clrDarkOrange
#property indicator_color3 clrYellow
#property indicator_color4 clrAquamarine
#property indicator_color5 clrMagenta
#property indicator_color6 clrYellow
#property indicator_color7 clrDarkOrange
#property indicator_color8 clrRed
#property indicator_width4 2
#property indicator_width5 2
#property indicator_style1 STYLE_DOT
#property indicator_style2 STYLE_DOT
#property indicator_style3 STYLE_DOT
#property indicator_style6 STYLE_DOT
#property indicator_style7 STYLE_DOT
#property indicator_style8 STYLE_DOT
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
enum ENUM_SHIFT_METHOD
{
SHIFT_MAXIMUM, // By maximal shift / Ïî ìàêñèìàëüíîìó ñìåùåíèþ
SHIFT_AVERAGE, // By average shift / Ïî ñðåäíåìó ñìåùåíèþ
SHIFT_MEDIAN, // By median shift / Ïî ìåäèàííîìó ñìåùåíèþ
SHIFT_STD // By standart deviation / Ïî ÑÊÎ
};
input uint i_extremumDepth = 78; // Depth extremum search / Ãëóáèíà ïîèñêà ýêñòðåìóìà
input uint i_maPeriod = 100; // MA period / Ïåðèîä MA
input ENUM_MA_METHOD i_maMethod = MODE_SMA; // MA method / Ìåòîä ðàñ÷åòà ÌÀ
input ENUM_APPLIED_PRICE i_maPrice = PRICE_CLOSE; // MA price / Öåíà ðàñ÷åòà ÌÀ
input double i_fiboLevel1 = 61.8; // Fibo level 1 / Óðîâåíü Ôèáî 1
input double i_fiboLevel2 = 100.0; // Fibo level 2 / Óðîâåíü Ôèáî 2
input double i_fiboLevel3 = 161.8; // Fibo level 3 / Óðîâåíü Ôèáî 3
input double i_fiboLevel4 = 200.0; // Fibo level 4 / Óðîâåíü Ôèáî 4
input ENUM_SHIFT_METHOD i_shiftMethod = SHIFT_STD; // Channel calculate method / Ìåòîä ðàñ÷åòà êàíàëà
input int i_indBarsCount = 10000; // Number of bars to display / Êîë-âî áàðîâ îòîáðàæåíèÿ
#define PREFIX "CHAFIB2_"
#define FONT_NAME "Tahoma"
#define FONT_SIZE 8
bool g_activate;
double g_fiboLevel[4],
g_priceShifts[],
g_tempPriceShifts[],
g_point,
g_delta;
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
enum ENUM_MESSAGE_CODE
{
MESSAGE_CODE_WRONG_DEPTH,
MESSAGE_CODE_WRONG_MA_PERIOD,
MESSAGE_CODE_TERMINAL_FATAL_ERROR1,
MESSAGE_CODE_ENOUGH_MEMORY,
MESSAGE_CODE_FIBO_EQUALS,
MESSAGE_CODE_BIND_ERROR
};
// The indicator's buffers
double g_buffHigh1[];
double g_buffHigh2[];
double g_buffHigh3[];
double g_buffHigh4[];
double g_buffLow1[];
double g_buffLow2[];
double g_buffLow3[];
double g_buffLow4[];
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Custom indicator initialization function |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
int OnInit()
{
g_activate=false;
if(!TuningParameters())
return INIT_FAILED;
if(!BuffersBind())
return INIT_FAILED;
g_activate=true;
return INIT_SUCCEEDED;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Checking the correctness of values of tuning parameters |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
bool TuningParameters()
{
string name=WindowExpertName();
if(i_extremumDepth<1)
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_WRONG_DEPTH));
return false;
}
if(ArrayResize(g_priceShifts,i_extremumDepth)<0)
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_ENOUGH_MEMORY));
return false;
}
if(ArrayResize(g_tempPriceShifts,i_extremumDepth)<0)
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_ENOUGH_MEMORY));
return false;
}
if(i_maPeriod<1)
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_WRONG_MA_PERIOD));
return false;
}
g_point = Point;
g_delta = -g_point / 10;
if(g_point==0)
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_TERMINAL_FATAL_ERROR1));
return false;
}
g_fiboLevel[0] = i_fiboLevel1;
g_fiboLevel[1] = i_fiboLevel2;
g_fiboLevel[2] = i_fiboLevel3;
g_fiboLevel[3] = i_fiboLevel4;
if(!IsFiboLevelsUnique())
return false;
ArraySort(g_fiboLevel);
return true;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Are unique the specified fibo levels? |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
bool IsFiboLevelsUnique()
{
for(int i=0; i<3; i++)
for(int j=i+1; j<4; j++)
if(MathAbs(g_fiboLevel[i]-g_fiboLevel[j])<=DBL_EPSILON)
{
Alert(WindowExpertName(),GetStringByMessageCode(MESSAGE_CODE_FIBO_EQUALS));
return false;
}
return true;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void OnDeinit(const int reason)
{
ObjectsDeleteAll(0,PREFIX);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Binding of array and the indicator buffers |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
bool BuffersBind()
{
string name=WindowExpertName();
if(!SetIndexBuffer(0,g_buffHigh1) ||
!SetIndexBuffer(1,g_buffHigh2) ||
!SetIndexBuffer(2,g_buffHigh3) ||
!SetIndexBuffer(3,g_buffHigh4) ||
!SetIndexBuffer(4,g_buffLow1) ||
!SetIndexBuffer(5,g_buffLow2) ||
!SetIndexBuffer(6,g_buffLow3) ||
!SetIndexBuffer(7,g_buffLow4))
{
Alert(name,GetStringByMessageCode(MESSAGE_CODE_BIND_ERROR),GetLastError());
return false;
}
for(int i=0; i<8; i++)
{
SetIndexStyle(i,DRAW_LINE);
if(i<4)
SetIndexLabel(i,"Upper "+DoubleToString(g_fiboLevel[3-i],2)+"%");
else
SetIndexLabel(i,"Lower "+DoubleToString(g_fiboLevel[i-4],2)+"%");
}
return true;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Initialize of all indicator buffers |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void BuffersInitializeAll()
{
ArrayInitialize(g_buffHigh4,EMPTY_VALUE);
ArrayInitialize(g_buffHigh3,EMPTY_VALUE);
ArrayInitialize(g_buffHigh2,EMPTY_VALUE);
ArrayInitialize(g_buffHigh1,EMPTY_VALUE);
ArrayInitialize(g_buffLow1,EMPTY_VALUE);
ArrayInitialize(g_buffLow2,EMPTY_VALUE);
ArrayInitialize(g_buffLow3,EMPTY_VALUE);
ArrayInitialize(g_buffLow4,EMPTY_VALUE);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Determination of bar index which needed to recalculate |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
int GetRecalcIndex(int &total,const int ratesTotal,const int prevCalculated)
{
total=ratesTotal-int(i_extremumDepth+i_maPeriod);
if(i_indBarsCount>0 && i_indBarsCount<total)
total=MathMin(i_indBarsCount,total);
if(prevCalculated<ratesTotal-1)
{
BuffersInitializeAll();
return total;
}
return (MathMin(ratesTotal - prevCalculated, total));
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Calculate of price shift at the specified bar |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
double GetPriceShift(int barIndex)
{
double ma=iMA(NULL,0,i_maPeriod,0,i_maMethod,i_maPrice,barIndex);
double highShift= MathAbs(ma-iHigh(NULL,0,barIndex));
double lowShift = MathAbs(ma-iLow(NULL,0,barIndex));
return MathMax(highShift, lowShift);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Calculate of expectation value |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
double GetExpectation(double &expectationX2)
{
double summ=0.0,summX2=0.0;
for(int i=0; i<int(i_extremumDepth); i++)
{
summ+=g_priceShifts[i];
summX2+=g_priceShifts[i]*g_priceShifts[i];
}
expectationX2=summX2/i_extremumDepth;
return summ / i_extremumDepth;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Calculation of median value |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
double CalculateMedian(void)
{
ArrayCopy(g_tempPriceShifts,g_priceShifts);
if(!ArraySort(g_tempPriceShifts))
return 0.0;
int middleElement=(int)i_extremumDepth/2;
if(i_extremumDepth%2==1)
return g_tempPriceShifts[middleElement];
return (g_tempPriceShifts[middleElement] + g_tempPriceShifts[middleElement - 1]) / 2;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Calculation of channel shift value |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
double GetChannelShiftValue()
{
int i=0;
double expect=0.0,expectX2=0.0;
switch(i_shiftMethod)
{
case SHIFT_MAXIMUM: i=ArrayMaximum(g_priceShifts);
if(i>=0 && i<int(i_extremumDepth))
return g_priceShifts[i];
return 0.0;
case SHIFT_AVERAGE: return GetExpectation(expectX2);
case SHIFT_MEDIAN: return CalculateMedian();
case SHIFT_STD: expect=GetExpectation(expectX2);
return MathSqrt(expectX2 - expect * expect);
}
return 0.0;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Primary filling of array of price shifts |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void InitializePriceShifts(int limit)
{
for(int i=int(limit+i_extremumDepth-1); i>=limit; i--)
g_priceShifts[i-limit]=GetPriceShift(i);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Moving up the elements in array g_priceShifts |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void MovePriceShifts()
{
for(int i=int(i_extremumDepth)-1; i>0; i--)
g_priceShifts[i]=g_priceShifts[i-1];
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Îòîáðàæåíèå îáúåêòà "Òåêñò" |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void ShowText(string name,datetime time,double price,string text,color clr)
{
if(ObjectFind(0,name)<0)
{
ObjectCreate(0,name,OBJ_TEXT,0,time,price);
ObjectSetString(0,name,OBJPROP_FONT,FONT_NAME);
ObjectSetInteger(0,name,OBJPROP_FONTSIZE,FONT_SIZE);
ObjectSetString(0,name,OBJPROP_TEXT,text);
ObjectSetString(0,name,OBJPROP_TOOLTIP,"\n");
ObjectSetInteger(0,name,OBJPROP_COLOR,clr);
ObjectSetInteger(0,name,OBJPROP_ANCHOR,ANCHOR_LEFT);
ObjectSetInteger(0,name,OBJPROP_HIDDEN,true);
ObjectSetInteger(0,name,OBJPROP_SELECTABLE,false);
return;
}
ObjectMove(0,name,0,time,price);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Show the descriptions for each Fibo level |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void ShowDescriptions()
{
datetime time=iTime(NULL,0,0)+PeriodSeconds();
ShowText(PREFIX+"HIGH1",time,g_buffHigh1[0],DoubleToString(g_fiboLevel[3],2)+"%",indicator_color1);
ShowText(PREFIX+"HIGH2",time,g_buffHigh2[0],DoubleToString(g_fiboLevel[2],2)+"%",indicator_color2);
ShowText(PREFIX+"HIGH3",time,g_buffHigh3[0],DoubleToString(g_fiboLevel[1],2)+"%",indicator_color3);
ShowText(PREFIX+"HIGH4",time,g_buffHigh4[0],DoubleToString(g_fiboLevel[0],2)+"%",indicator_color4);
ShowText(PREFIX+"LOW1",time,g_buffLow1[0],DoubleToString(g_fiboLevel[0],2)+"%",indicator_color5);
ShowText(PREFIX+"LOW2",time,g_buffLow2[0],DoubleToString(g_fiboLevel[1],2)+"%",indicator_color6);
ShowText(PREFIX+"LOW3",time,g_buffLow3[0],DoubleToString(g_fiboLevel[2],2)+"%",indicator_color7);
ShowText(PREFIX+"LOW4",time,g_buffLow4[0],DoubleToString(g_fiboLevel[3],2)+"%",indicator_color8);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Show the channels values at the specified bar |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void ShowChannel(int barIndex)
{
double ma=iMA(NULL,0,i_maPeriod,0,i_maMethod,i_maPrice,barIndex);
double shift=GetChannelShiftValue();
g_buffHigh1[barIndex] = ma + shift * g_fiboLevel[3] / 100.0;
g_buffHigh2[barIndex] = ma + shift * g_fiboLevel[2] / 100.0;
g_buffHigh3[barIndex] = ma + shift * g_fiboLevel[1] / 100.0;
g_buffHigh4[barIndex] = ma + shift * g_fiboLevel[0] / 100.0;
g_buffLow1[barIndex] = ma - shift * g_fiboLevel[0] / 100.0;
g_buffLow2[barIndex] = ma - shift * g_fiboLevel[1] / 100.0;
g_buffLow3[barIndex] = ma - shift * g_fiboLevel[2] / 100.0;
g_buffLow4[barIndex] = ma - shift * g_fiboLevel[3] / 100.0;
if(barIndex==0)
ShowDescriptions();
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Calculation of indicators values |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
void CalcIndicatorData(int limit,int total)
{
if(limit>1)
InitializePriceShifts(limit);
for(int i=limit; i>=0; i--)
{
g_priceShifts[0]=GetPriceShift(i);
ShowChannel(i);
if(i>0)
MovePriceShifts();
}
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Custom indicator iteration function |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
iTime(NULL,0,0);
if(GetLastError()!=ERR_NO_ERROR)
return prev_calculated;
int total;
int limit=GetRecalcIndex(total,rates_total,prev_calculated);
CalcIndicatorData(limit,total);
return rates_total;
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Getting string by code of message and terminal language |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
string GetStringByMessageCode(ENUM_MESSAGE_CODE messageCode)
{
string language=TerminalInfoString(TERMINAL_LANGUAGE);
if(language=="Russian")
return GetRussianMessage(messageCode);
return GetEnglishMessage(messageCode);
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Getting string by code of message for russian language |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
string GetRussianMessage(ENUM_MESSAGE_CODE messageCode)
{
switch(messageCode)
{
case MESSAGE_CODE_WRONG_DEPTH: return ": ïåðèîä ïîèñêà ýêñòðåìóìà äîëæåí áûòü áîëåå 0. Èíäèêàòîð îòêëþ÷åí.";
case MESSAGE_CODE_WRONG_MA_PERIOD: return ": ïåðèîä ðàñ÷åòà ÌÀ äîëæåí áûòü áîëåå 0. Èíäèêàòîð îòêëþ÷åí.";
case MESSAGE_CODE_TERMINAL_FATAL_ERROR1: return ": ôàòàëüíàÿ îøèáêà òåðìèíàëà - ïóíêò ðàâåí íóëþ. Èíäèêàòîð îòêëþ÷åí.";
case MESSAGE_CODE_ENOUGH_MEMORY: return ": îøèáêà ðàñïðåäåëåíèÿ ïàìÿòè äëÿ ìàññèâà. Èíäèêàòîð îòêëþ÷åí.";
case MESSAGE_CODE_FIBO_EQUALS: return ": ñðåäè óêàçàííûõ Ôèáî-óðîâíåé îáíàðóæåíû ïîâòîðåíèÿ çíà÷åíèé. Èíäèêàòîð îòêëþ÷åí.";
case MESSAGE_CODE_BIND_ERROR: return ": îøèáêà ñâÿçûâàíèÿ ìàññèâîâ ñ áóôåðàìè èíäèêàòîðà. Îøèáêà ¹";
}
return "";
}
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
//| Getting string by code of message for english language |
//+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
string GetEnglishMessage(ENUM_MESSAGE_CODE messageCode)
{
switch(messageCode)
{
case MESSAGE_CODE_WRONG_DEPTH: return ": the depth of extremum search must be greater than 0. The indicator is turned off.";
case MESSAGE_CODE_WRONG_MA_PERIOD: return ": MA calculation period must be greater than 0. The indicator is turned off.";
case MESSAGE_CODE_TERMINAL_FATAL_ERROR1: return ": terminal fatal error - point equals to zero. The indicator is turned off.";
case MESSAGE_CODE_ENOUGH_MEMORY: return ": not enough of memory for array. The indicator is turned off.";
case MESSAGE_CODE_FIBO_EQUALS: return ": two or more Fibo levels are equals. The indicator is turned off.";
case MESSAGE_CODE_BIND_ERROR: return ": error of binding of the arrays and the indicator buffers. Error N";
}
return "";
}
//+------------------------------------------------------------------+
Comments
