DeMark lines_v1
Download scriptThis script is a specialized technical analysis tool for the MetaTrader platform, designed to automate and visualize "DeMark Theory"—a price action strategy used by traders to identify potential trend reversals and price targets.
Instead of relying on standard mathematical averages, this logic focuses on specific "pivot points" (highs and lows) in the market to predict where the price might move next. Below is a breakdown of how the logic functions for a non-technical user:
Core Logic: DeMark Pivot Identification

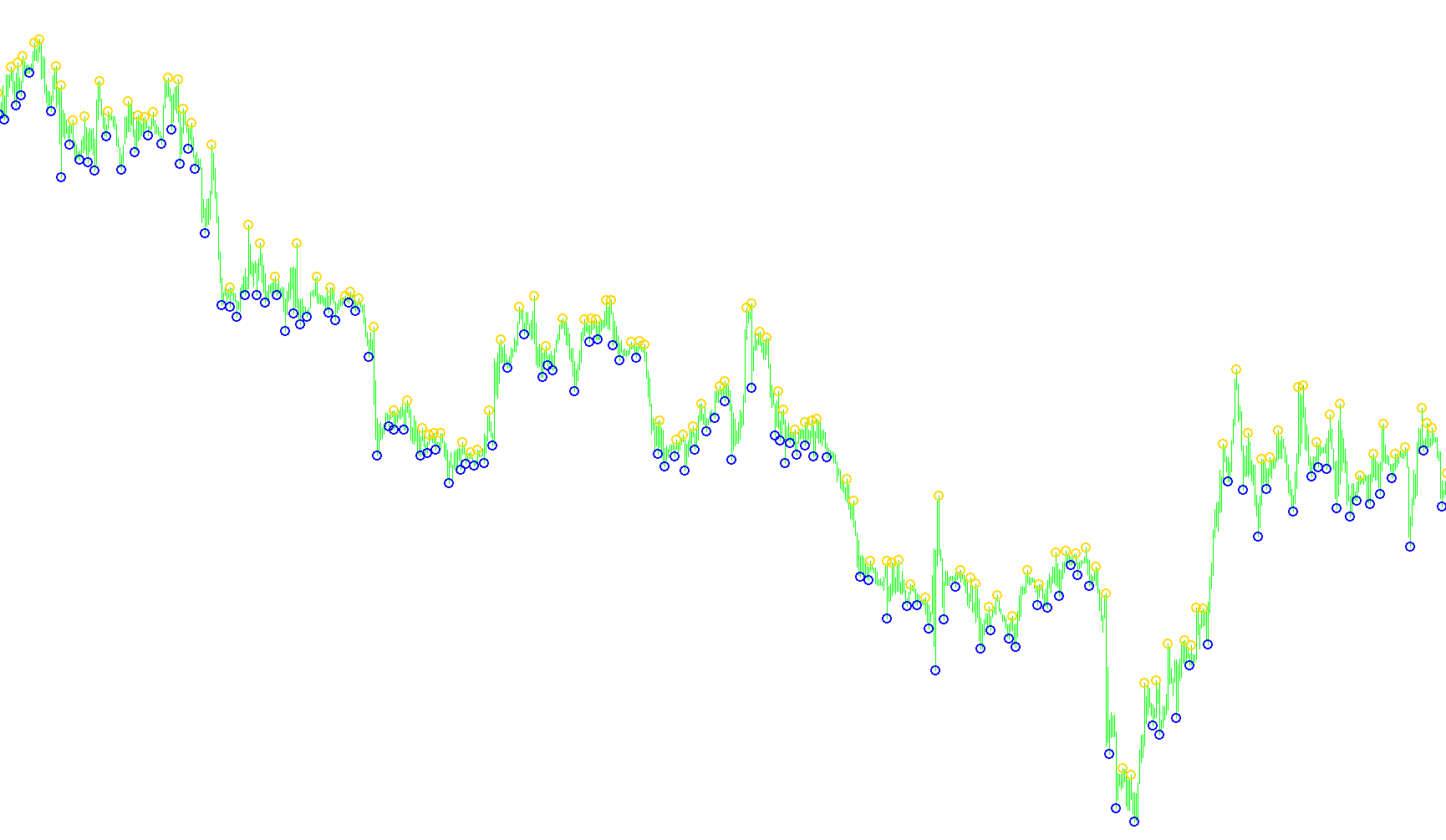

The script's primary job is to scan historical price data to find significant turning points. It looks for bars where the price reached a high or low that was greater (or lower) than the bars immediately preceding and following it. These identified "pivot points" serve as the foundation for all subsequent calculations.
Key Features and Visualizations
The tool processes these pivot points to provide several layers of automated analysis:
- Trendline Projection: The script automatically draws trendlines based on the relationship between consecutive highs (for downtrends) or lows (for uptrends). It calculates the "slope" of these lines to project where the price is headed.
- Breakout Detection & Alerts: One of the most active parts of the logic is monitoring for "breakouts." If the current price crosses a projected trendline, the script identifies this shift in momentum. It can trigger visual cues (arrows on the chart), on-screen alerts, or even send email notifications to notify you of a potential trend change.
- Dynamic Channels: Beyond simple lines, the logic can generate parallel channels. These help traders visualize the "corridor" in which the price is moving, making it easier to spot when the market is expanding or contracting.
- Target Price Forecasting: Based on DeMark theory, the script calculates potential "take profit" levels. It uses mathematical ratios (such as the 1.618 Fibonacci level) and the current slope of the trend to project four different potential target zones where price might stall or reverse.
- Breakout Qualifiers: Not every price cross is considered a valid signal. The script includes "Qualifiers"—extra logic steps that check the relationship between the opening price, the closing price, and the specific pivot level to confirm if a breakout is "strong" enough to be considered significant.
User Experience Elements
- On-Screen Commentary: The script maintains a live text box on your chart. This provides a real-time status report, including a countdown of how much time remains in the current candle and a summary of the active trendlines and target levels.
- Visual Customization: You can toggle various features on and off—such as drawing the trendlines, horizontal breakout levels, or specific target lines—allowing you to customize the "cleanliness" of your chart based on your personal trading style.
In summary, this script acts as an automated analyst that constantly scans the market for DeMark pivot points, draws the resulting trend geometry, watches for structural breaks in those trends, and calculates the most likely price targets for your trades.
//------------------------------------------------------------------/
// Indicator-advisor based on Demark threory with additions
// Some part of the code was taken from Ind-TD-DeMark-3-1.mq4 [Kara ©]
//------------------------------------------------------------------/
#property copyright "GreenDog"
#property link "krot@inbox.ru" // v2.3
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_color2 Blue
extern int showBars=3000; // if showBars= 0 so the indicator will be shown for all the chart
extern int LevDP=2; // Demar Pint Levels; 2 = central bar will be higher (lower) then 2 bars on the left side and 2 bars on the right one.
extern int qSteps=1; // number of steps/ no more than 3
extern int BackStep=0; // number of staps back
extern int startBar=0; // ifstartBar=0 so we have recommendation for the current bar, if 1 - for possible next bar
extern bool TrendLine=false; // false = no trend lines
extern bool HorizontLine=false; // true = break levels
extern bool ChannelLine=false; // true = channels which is parallel with trend lines
extern bool TakeLines=false; // true = take profit lines
extern bool Comments=false; // true = comments
extern int Trend=0; // 1 = for UpTrendLines only, -1 = for DownTrendLines only, 0 = for all TrendLines
extern bool ShowArrows=true;
extern bool CustomFeatures=true;
extern color UpTrendColor=Green;
extern color DownTrendColor=Red;
extern int TrendlineWidth=3;
extern bool ShowAlerts=false;
extern bool EmailAlert=false;
int trendwidth;
color trendcol;
//int ColNum[];
double Buf1[];
double Buf2[];
string Col[]={"Red","DarkBlue","Coral","DodgerBlue","SaddleBrown","MediumSeaGreen"};
//int ColNum[1]=coll1; //={coll1,coll2,coll3,coll4,coll5,coll6};
int ColNum[]={Red,DeepSkyBlue,Coral,Aqua,SaddleBrown,MediumSeaGreen}; //DeepSkyBlue
int qPoint=0; // ïåðåìåííàÿ äëÿ íîðìàëèçàöèè öåíû
int qBars; double qTime=0; // ïåðåìåííûå äëÿ ëèêâèäàöèè ãëþêîâ ïðè çàãðóçêå
int init()
{
qBars=Bars;
qSteps=MathMin(3,qSteps);
while (NormalizeDouble(Point,qPoint)==0)qPoint++;
int code=161; string Rem="DLines © GameOver";
IndicatorShortName(Rem);
if (ShowArrows){
SetIndexStyle(0,DRAW_ARROW);
SetIndexStyle(1,DRAW_ARROW);
}
SetIndexArrow(0,code);
SetIndexArrow(1,code);
SetIndexBuffer(0,Buf1);
SetIndexBuffer(1,Buf2);
SetIndexEmptyValue(0,0.0);
SetIndexEmptyValue(1,0.0);
SetIndexLabel(0,Rem);
SetIndexLabel(1,Rem);
return(0);
}
int deinit() {
ObjectsDeleteAll();
Comment("");
ArrayInitialize(Buf1,0.0);
ArrayInitialize(Buf2,0.0);
for(int i=1;i<=LevDP;i++){
ObjectDelete("HA_"+i);ObjectDelete("LA_"+i);
ObjectDelete("HL_"+i);ObjectDelete("LL_"+i);
ObjectDelete("HHL_"+i);ObjectDelete("HLL_"+i);
ObjectDelete("HCL_"+i);ObjectDelete("LCL_"+i);
for(int j=0;j<4;j++) {ObjectDelete("HTL_"+i+j);ObjectDelete("LTL_"+i+j);}
}
}
int start(){
if (qBars!=Bars){ deinit(); Sleep(1000); qBars=Bars; qTime=0; return(0);}
if (qTime==Time[0]) return(0); qTime=Time[0]; // çàïóñêàåöà òîêà íà 1ì òèêå
// çàïîëíèëè è îòîáðàçèëè òî÷êè äåìàðêà
if (showBars==0) showBars=Bars-LevDP;
for (int cnt=showBars;cnt>LevDP;cnt--) {
Buf1[cnt]=DemHigh(cnt,LevDP);
Buf2[cnt]=DemLow(cnt,LevDP);
}
string Comm;
double j;
int m,s,k;
m=Time[0]+Period()*60-CurTime();
j=m/60.0;
s=m%60;
m=(m-m%60)/60;
Comm=Comm+"Demark with alerts";
Comm=Comm+( m + " minutes " + s + " seconds left to bar end")+"\n";
if (Comments){Comment(Comm);}else{Comment("Demark with alerts" + "\n" + m + " minutes " + s + " seconds left to bar end" +"\n");}
Comm=Comm+"Trend Line["+On(TrendLine)+"]; Channel ["+On(ChannelLine)+
"]; Breakout level ["+On(HorizontLine)+"]; Targets ["+On(TakeLines)+"]\n";
for(cnt=1;cnt<=qSteps;cnt++) Comm=Comm+(TDMain(cnt));
Comm=Comm+" © GameOver ";
if (Comments==true) Comment(Comm);
return(0);
}
string TDMain(int Step){
int H1,H2,L1,L2,qExt,i,col;
double tmp,qTL,qLevel,HT[4],LT[4];
bool isHitch;
string Comm="»»» Step "+Step+" of "+qSteps+" (BackStep "+BackStep+")\n",Text,Rem,qp;
static datetime timealertupper, timealertlower;
// äëÿ DownTrendLines
if (Trend<=0){
Comm=Comm+"» "+Col[Step*2-2]+" DownTrendLine ";
col=ColNum[Step*2-2];
H1=GetTD(Step+BackStep,Buf1);
H2=GetNextHighTD(H1);
qTL=(High[H2]-High[H1])/(H2-H1);
qExt=Lowest(NULL,0,MODE_LOW,H2-H1-1,H1+1); // ëîêàëüíûé ìèíèìóì ìåæäó òî÷êàìè
qLevel=High[H2]-qTL*(H2); if (Step+BackStep==1) qLevel=qLevel-qTL*startBar;
if (H1<0 || H2<0) Comm=Comm+"not enough points on the chart for construction\n";
else {
Comm=Comm+"["+DoubleToStr(High[H2],qPoint)+"»"+DoubleToStr(High[H1],qPoint)+"]";
Comm=Comm+"; Level "+DoubleToStr(qLevel,qPoint);
if (Step+BackStep==1) {
if (startBar>0) Comm=Comm+"; Future Bar "+UpHitch(-1,qLevel);
else Comm=Comm+"; Last Bar "+UpHitch(startBar,qLevel);
}
Comm=Comm+"\n";
// Àíàëèç - áûë ëè ïðîáîé òðåíäîâîé ëèíèè
i=H1;isHitch=false;Text="";
while(i>0 && isHitch==false){
tmp=High[H2]-qTL*(H2-i);
Rem="HA_"+Step;
if (Close[i]>tmp){
qp=UpHitch(i,tmp);
if (qp!=""){
isHitch=true;
Text=Text+"Source "+DoubleToStr(tmp,qPoint)+" "+qp;
if (timealertupper!=Time[i]){
if (ShowAlerts){
Alert ("MOUTEKI: Upper trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid);
}
ObjectCreate(Rem,OBJ_ARROW,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_COLOR,col);
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,241);
//}
if (EmailAlert){
SendMail("MOUTEKI: Upper trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid, "MOUTEKI: Upper trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid + "\n" + "Alerts by LightKeeper. martkoz@optusnet.com.au");
}
timealertupper=Time[i];
}
/////////////////////////////////////
ObjectCreate(Rem,OBJ_ARROW,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_COLOR,col);
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,241);
////////////////////////////////////
if (ShowArrows==true){
while(i>0){ // ïðîáîé îòìåíåí, åñëè ïîñëå ïðîáîÿ áûë íîâûé ëîó èëè çàêðûòèå íèæå
i--;
if (Low[i]<Low[qExt] || Close[i]<(Low[qExt]+(High[H1]-Low[qExt])*0.236)){
Text=Text+" (cancel)";
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,251);
break;
}
}
}
}
else { Text=Text+"False "+DoubleToStr(tmp,qPoint)+"; "; ObjectDelete(Rem);}
}
i--;
}
if (Text=="") Text="No breakout";
Comm=Comm+Text+"\n";
// end analysis
Rem="HL_"+Step; // ñîáñíî ëèíèÿ òðåíäà
if (CustomFeatures){trendcol=DownTrendColor;}else{trendcol=col;}
if (TrendLine){
if (CustomFeatures==false){trendwidth=3-MathMin(2,Step);}else{trendwidth=TrendlineWidth;}
ObjectCreate(Rem,OBJ_TREND,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_TIME1,Time[H2]);ObjectSet(Rem,OBJPROP_TIME2,Time[H1]);
ObjectSet(Rem,OBJPROP_PRICE1,High[H2]);ObjectSet(Rem,OBJPROP_PRICE2,High[H1]);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
ObjectSet(Rem,OBJPROP_WIDTH,trendwidth);
}
else ObjectDelete(Rem);
Rem="HHL_"+Step; // óðîâåíü ïðîáîÿ ëèíèè òðåíäà
if (HorizontLine && (Step+BackStep)==1){
ObjectCreate(Rem,OBJ_HLINE,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_PRICE1,qLevel);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
}
else ObjectDelete(Rem);
Rem="HCL_"+Step; // ëèíèÿ êàíàëà
if (ChannelLine){
ObjectCreate(Rem,OBJ_TREND,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_TIME1,Time[qExt]);ObjectSet(Rem,OBJPROP_TIME2,Time[0]);
ObjectSet(Rem,OBJPROP_PRICE1,Low[qExt]);ObjectSet(Rem,OBJPROP_PRICE2,Low[qExt]-qTL*qExt);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
}
else ObjectDelete(Rem);
Rem="HTL_"+Step; // ëèíèè öåëåé
if (TakeLines){
HT[3]=Low[qExt]+(High[H1]-Low[qExt])*1.618-qLevel; // äîï óðîâåíü
HT[0]=High[H2]-qTL*(H2-qExt)-Low[qExt];
HT[1]=High[H2]-qTL*(H2-qExt)-Close[qExt];
qExt=Lowest(NULL,0,MODE_CLOSE,H2-H1,H1);
HT[2]=High[H2]-qTL*(H2-qExt)-Close[qExt];
Comm=Comm+"Targets: ";
for(i=0;i<4;i++){
qTL=NormalizeDouble(qLevel+HT[i],qPoint);
ObjectCreate(Rem+i,OBJ_HLINE,0,0,0,0,0);
ObjectSet(Rem+i,OBJPROP_PRICE1,qTL);
ObjectSet(Rem+i,OBJPROP_STYLE,STYLE_DOT);
ObjectSet(Rem+i,OBJPROP_COLOR,trendcol);
Comm=Comm+DoubleToStr(qTL,qPoint)+" ("+DoubleToStr(HT[i]/Point,0)+"p.) ";
}
Comm=Comm+"\n";
}
else {
for(i=0;i<4;i++) ObjectDelete(Rem+i);
}
}
}
// äëÿ UpTrendLines
if (Trend>=0){
Comm=Comm+"» "+Col[Step*2-1]+" UpTrendLine ";
col=ColNum[Step*2-1];
L1=GetTD(Step+BackStep,Buf2);
L2=GetNextLowTD(L1);
qTL=(Low[L1]-Low[L2])/(L2-L1);
qExt=Highest(NULL,0,MODE_HIGH,L2-L1-1,L1+1); // ëîêàëüíûé ìèíèìóì ìåæäó òî÷êàìè
qLevel=Low[L2]+qTL*L2; if (Step+BackStep==1) qLevel=qLevel+qTL*startBar;
if (L1<0 || L2<0) Comm=Comm+"not enough points on the chart for construction\n";
else {
Comm=Comm+"["+DoubleToStr(Low[L2],qPoint)+"»"+DoubleToStr(Low[L1],qPoint)+"]";
Comm=Comm+"; Level "+DoubleToStr(qLevel,qPoint);
if (Step+BackStep==1) {
if (startBar>0) Comm=Comm+"; Future Bar "+DownHitch(-1,qLevel);
else Comm=Comm+"; Last Bar "+DownHitch(startBar,qLevel);
}
Comm=Comm+"\n";
// Àíàëèç - áûë ëè ïðîáîé òðåíäîâîé ëèíèè
i=L1;isHitch=false;Text="";
while(i>0 && isHitch==false){
tmp=Low[L2]+qTL*(L2-i);
Rem="LA_"+Step;
if (Close[i]<tmp){
qp=DownHitch(i,tmp);
if (qp!=""){
isHitch=true;
Text=Text+"Source "+DoubleToStr(tmp,qPoint)+" "+qp;
if (timealertlower!=Time[i]){
if(ShowAlerts){
Alert ("MOUTEKI: Lower trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid);
}
ObjectCreate(Rem,OBJ_ARROW,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_COLOR,col);
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,242);
//}
if (EmailAlert){
SendMail("MOUTEKI: Lower trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid, "MOUTEKI: Lower trendline broken on " + Symbol() + " TF: " + Period() + " @ " + Bid + "\n" + "Alerts by LightKeeper. martkoz@optusnet.com.au");
}
timealertlower=Time[i];
}
///////////////////////////////
ObjectCreate(Rem,OBJ_ARROW,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_COLOR,col);
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,242);
//////////////////////////////
if (ShowArrows==true){
while(i>0){ // ïðîáîé îòìåíåí, åñëè ïîñëå ïðîáîÿ áûë íîâûé õàé èëè çàêðûòèå âûøå
i--;
if (High[i]>High[qExt] || Close[i]>High[qExt]-(High[qExt]-Low[L1])*0.236){
Text=Text+" (cancel)";
ObjectSet(Rem,OBJPROP_PRICE1,Low[i]-Point);
ObjectSet(Rem,OBJPROP_TIME1,Time[i]);
ObjectSet(Rem,OBJPROP_ARROWCODE,251);
break;
}
}
} }
else { Text=Text+"False "+DoubleToStr(tmp,qPoint)+"; "; ObjectDelete(Rem);}
}
i--;
}
if (Text=="") Text="No breakout";
Comm=Comm+Text+"\n";
// end analysis
Rem="LL_"+Step; // ñîáñíî ëèíèÿ òðåíäà
if (CustomFeatures){trendcol=UpTrendColor;}else{trendcol=col;}
if (TrendLine==1) {
if (CustomFeatures==false){trendwidth=3-MathMin(2,Step);}else{trendwidth=TrendlineWidth;}
ObjectCreate(Rem,OBJ_TREND,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_TIME1,Time[L2]);ObjectSet(Rem,OBJPROP_TIME2,Time[L1]);
ObjectSet(Rem,OBJPROP_PRICE1,Low[L2]);ObjectSet(Rem,OBJPROP_PRICE2,Low[L1]);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
ObjectSet(Rem,OBJPROP_WIDTH,trendwidth);
}
else ObjectDelete(Rem);
Rem="HLL_"+Step; // óðîâåíü ïðîáîÿ ëèíèè òðåíäà
if (HorizontLine && (Step+BackStep)==1){
ObjectCreate(Rem,OBJ_HLINE,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_PRICE1,qLevel);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
}
else ObjectDelete(Rem);
Rem="LCL_"+Step; // ëèíèÿ êàíàëà
if (ChannelLine){
ObjectCreate(Rem,OBJ_TREND,0,0,0,0,0);
ObjectSet(Rem,OBJPROP_TIME1,Time[qExt]);ObjectSet(Rem,OBJPROP_TIME2,Time[0]);
ObjectSet(Rem,OBJPROP_PRICE1,High[qExt]);ObjectSet(Rem,OBJPROP_PRICE2,High[qExt]+qTL*qExt);
ObjectSet(Rem,OBJPROP_COLOR,trendcol);
}
else ObjectDelete(Rem);
Rem="LTL_"+Step;
if (TakeLines){ // ëèíèè öåëåé
LT[3]=qLevel-High[qExt]+(High[qExt]-Low[L1])*1.618; // äîï óðîâåíü
LT[0]=High[qExt]-qTL*(L2-qExt)-Low[L2];
LT[1]=Close[qExt]-qTL*(L2-qExt)-Low[L2];
qExt=Highest(NULL,0,MODE_CLOSE,L2-L1,L1);
LT[2]=Close[qExt]-qTL*(L2-qExt)-Low[L2];
Comm=Comm+"Targets: ";
for(i=0;i<4;i++){
qTL=NormalizeDouble(qLevel-LT[i],qPoint);
ObjectCreate(Rem+i,OBJ_HLINE,0,0,0,0,0);
ObjectSet(Rem+i,OBJPROP_PRICE1,qTL);
ObjectSet(Rem+i,OBJPROP_STYLE,STYLE_DOT);
ObjectSet(Rem+i,OBJPROP_COLOR,trendcol);
Comm=Comm+DoubleToStr(qTL,qPoint)+" ("+DoubleToStr(LT[i]/Point,0)+"p.) ";
}
Comm=Comm+"\n";
}
else {
for(i=0;i<4;i++) ObjectDelete(Rem+i);
}
}
}
return(Comm);
}
int GetTD(int P, double Arr[]){
int i=0,j=0;
while(j<P){ i++; while(Arr[i]==0){i++;if(i>showBars-2)return(-1);} j++;}
return (i);
}
int GetNextHighTD(int P){
int i=P+1;
while(Buf1[i]<=High[P]){i++;if(i>showBars-2)return(-1);}
return (i);
}
int GetNextLowTD(int P){
int i=P+1;
while(Buf2[i]>=Low[P] || Buf2[i]==0){i++;if(i>showBars-2)return(-1);}
return (i);
}
// ðåêóðñèâíàÿ ïðîâåðêà íà óñëîâèÿ Äåìàðêà (õàé), âîçâðàùàåò çíà÷åíèå èëè 0
double DemHigh(int cnt, int sh){
if (High[cnt]>=High[cnt+sh] && High[cnt]>High[cnt-sh]) {
if (sh>1) return(DemHigh(cnt,sh-1));
else return(High[cnt]);
}
else return(0);
}
// ðåêóðñèâíàÿ ïðîâåðêà íà óñëîâèÿ Äåìàðêà (ëîó), âîçâðàùàåò çíà÷åíèå èëè 0
double DemLow(int cnt, int sh){
if (Low[cnt]<=Low[cnt+sh] && Low[cnt]<Low[cnt-sh]) {
if (sh>1) return(DemLow(cnt,sh-1));
else return(Low[cnt]);
}
else return(0);
}
string On(bool On){
if (On) return("on"); else return("off");
}
string UpHitch(int P, double qLevel){ // îïðåäåëåíèå êâàëèôèêàòîðîâ ïðîðûâà ââåðõ
string Comm="";
if (Close[P+1]<Close[P+2]) Comm=Comm+" 1";
if (P>=0 && Open[P]>qLevel) Comm=Comm+" 2";
if (2*Close[P+1]-Low[P+1]<qLevel) Comm=Comm+" 3";
if (Comm!="") Comm="[ Break Qualificator:"+Comm+" ]";
return(Comm);
}
string DownHitch(int P, double qLevel){ // îïðåäåëåíèå êâàëèôèêàòîðîâ ïðîðûâà âíèç
string Comm="";
if (Close[P+1]>Close[P+2]) Comm=Comm+" 1";
if (P>=0 && Open[P]<qLevel) Comm=Comm+" 2";
if (2*Close[P+1]-High[P+1]>qLevel) Comm=Comm+" 3";
if (Comm!="") Comm="[ Break Qualificator:"+Comm+" ]";
return(Comm);
}
Comments
