This tool is designed to automate the identification of market structures and provide visual price targets based on price action patterns. Rather than relying on standard lagging indicators, it analyzes historical price movement to identify "swings"—significant peaks and valleys in the market.
How the Logic Works
1. Identifying Market Swings The script scans back through recent price history to detect structural turning points. It looks for high and low price points within a specific window of time. When the price reaches a new extreme and then pulls back, the tool flags this as a "Swing." By tracking these points consecutively, the script builds a chronological map of the market's momentum, identifying the most recent significant highs and lows.
2. Defining Key Structural Points The logic specifically isolates the three most recent structural landmarks:
- Point A: The preceding swing point.
- Point B: The previous major price turn.
- Point C: The current active price turn.
By establishing these three points, the script can calculate the "distance" and "direction" of the current market move.
3. Automated Price Projections Once the coordinates for Points A, B, and C are established, the tool applies mathematical proportions to predict where the price might go next. It calculates several levels:
- Target 1: Based on a 0.618 Fibonacci proportion.
- Target 2: A calculation based on a full extension of the previous move.
- Target 3: Based on a 1.618 Fibonacci extension.
- Extended Targets: The logic also includes "Fantasy" and "Crazy Dream" levels for extreme price expansion scenarios.

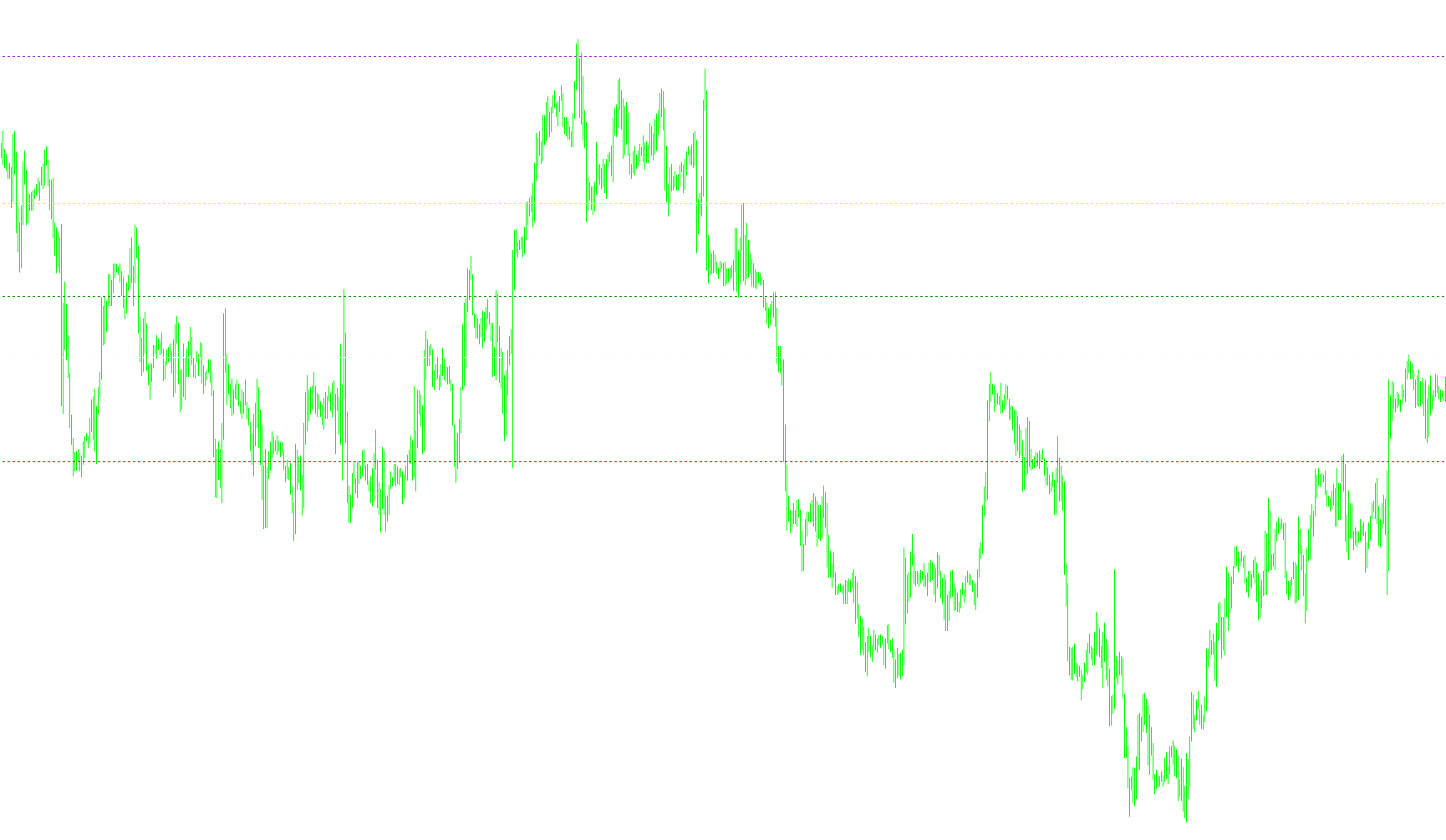

4. Dynamic Entry and Exit Visuals To make this data actionable, the script automatically draws horizontal lines on your trading chart in real-time:
- Start Line: Indicates the calculated entry zone based on the move's trajectory.
- Stop Line: Provides a visual safety net to manage risk.
- Target Lines: Clearly displays three distinct profit zones (colored Green, Yellow, and Dark Orchid) so you can see exactly where the price is mathematically expected to reach.
Summary for the User
In simple terms, this script acts as an automated "map maker." It looks at how the market moved in the past to find the trend's backbone, then projects exactly where that trend is likely to end in the future. It removes the guesswork from measuring distances, automatically placing your entry, stop-loss, and profit targets on your screen based on the current market structure.
//+------------------------------------------------------------------+
//| DinapoliTargets.mq4 |
//| mishanya_fx@yahoo.com |
//| |
//+------------------------------------------------------------------+
#property copyright "mishanya"
#property link "mishanya_fx@yahoo.com"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Blue
//---- input parameters
extern int barn=300;
extern int Length=6;
//---- buffers
double ExtMapBuffer1[];
//double ExtMapBuffer2[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexEmptyValue(0,0.0);
//SetIndexDrawBegin(0, barn);
//SetIndexStyle(0,DRAW_SECTION);
SetIndexBuffer(0,ExtMapBuffer1);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
ObjectDelete("Start line");
ObjectDelete("Stop line");
ObjectDelete("Target1 line");
ObjectDelete("Target2 line");
ObjectDelete("Target3 line");
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted();
int shift,Swing,Swing_n,uzl,i,zu,zd,mv;
double PointA,PointB,PointC,Target1,Target2,Target3,Fantnsy,CrazyDream,Start,Stop;
double LL,HH,BH,BL,NH,NL;
double Uzel[10000][3];
string text;
// loop from first bar to current bar (with shift=0)
Swing_n=0;Swing=0;uzl=0;
BH =High[barn];BL=Low[barn];zu=barn;zd=barn;
for (shift=barn;shift>=0;shift--) {
LL=10000000;HH=-100000000;
for (i=shift+Length;i>=shift+1;i--) {
if (Low[i]< LL) {LL=Low[i];}
if (High[i]>HH) {HH=High[i];}
}
if (Low[shift]<LL && High[shift]>HH){
Swing=2;
if (Swing_n==1) {zu=shift+1;}
if (Swing_n==-1) {zd=shift+1;}
} else {
if (Low[shift]<LL) {Swing=-1;}
if (High[shift]>HH) {Swing=1;}
}
if (Swing!=Swing_n && Swing_n!=0) {
if (Swing==2) {
Swing=-Swing_n;BH = High[shift];BL = Low[shift];
}
uzl=uzl+1;
if (Swing==1) {
Uzel[uzl][1]=zd;
Uzel[uzl][2]=BL;
}
if (Swing==-1) {
Uzel[uzl][1]=zu;
Uzel[uzl][2]=BH;
}
BH = High[shift];
BL = Low[shift];
}
if (Swing==1) {
if (High[shift]>=BH) {BH=High[shift];zu=shift;}}
if (Swing==-1) {
if (Low[shift]<=BL) {BL=Low[shift]; zd=shift;}}
Swing_n=Swing;
}
for (i=1;i<=uzl;i++) {
//text=DoubleToStr(Uzel[i][1],0);
//text=;
mv=StrToInteger(DoubleToStr(Uzel[i][1],0));
//ExtMapBuffer1[mv]=Uzel[i][2];
}
PointA = Uzel[uzl-2][2];
PointB = Uzel[uzl-1][2];
PointC = Uzel[uzl][2];
Comment(PointA," ",PointB," ",PointC);
Target1=NormalizeDouble((PointB-PointA)*0.618+PointC,4);
Target2=PointB-PointA+PointC;
Target3=NormalizeDouble((PointB-PointA)*1.618+PointC,4);
Fantnsy=NormalizeDouble((PointB-PointA)*2.618+PointC,4);
CrazyDream=NormalizeDouble((PointB-PointA)*4.618+PointC,4);
if (PointB<PointC)
{
Start= NormalizeDouble((PointB-PointA)*0.318+PointC,4)-(Ask-Bid);
Stop=PointC+2*(Ask-Bid);
}
if (PointB>PointC)
{
Start= NormalizeDouble((PointB-PointA)*0.318+PointC,4)+(Ask-Bid);
Stop=PointC-2*(Ask-Bid);
}
if (ObjectFind("Start Line") != 0)
{
ObjectCreate("Start line",OBJ_HLINE,0,Time[0],Start);
ObjectSet("Start line",OBJPROP_COLOR,Honeydew);
ObjectSet("Start line",OBJPROP_WIDTH,1);
ObjectSet("Start line",OBJPROP_STYLE,STYLE_DOT);
}
else
{
ObjectMove("Start line", 0,Time[0],Start);
}
if (ObjectFind("Stop Line") != 0)
{
ObjectCreate("Stop line",OBJ_HLINE,0,Time[0],Stop);
ObjectSet("Stop line",OBJPROP_COLOR,Red);
ObjectSet("Stop line",OBJPROP_WIDTH,1);
ObjectSet("Stop line",OBJPROP_STYLE,STYLE_DOT);
}
else
{
ObjectMove("Stop line", 0,Time[0],Stop);
}
if (ObjectFind("Target1 Line") != 0)
{
ObjectCreate("Target1 line",OBJ_HLINE,0,Time[0],Target1);
ObjectSet("Target1 line",OBJPROP_COLOR,Green);
ObjectSet("Target1 line",OBJPROP_WIDTH,1);
ObjectSet("Target1 line",OBJPROP_STYLE,STYLE_DOT);
}
else
{
ObjectMove("Target1 line", 0,Time[0],Target1);
}
if (ObjectFind("Target2 Line") != 0)
{
ObjectCreate("Target2 line",OBJ_HLINE,0,Time[0],Target2);
ObjectSet("Target2 line",OBJPROP_COLOR,Yellow);
ObjectSet("Target2 line",OBJPROP_WIDTH,1);
ObjectSet("Target2 line",OBJPROP_STYLE,STYLE_DOT);
}
else
{
ObjectMove("Target2 line", 0,Time[0],Target2);
}
if (ObjectFind("Target3 Line") != 0)
{
ObjectCreate("Target3 line",OBJ_HLINE,0,Time[0],Target3);
ObjectSet("Target3 line",OBJPROP_COLOR,DarkOrchid);
ObjectSet("Target3 line",OBJPROP_WIDTH,1);
ObjectSet("Target3 line",OBJPROP_STYLE,STYLE_DOT);
}
else
{
ObjectMove("Target3 line", 0,Time[0],Target3);
}
return(0);
}
//+------------------------------------------------------------------+
