Fibonacci_Spiral

This script is a specialized technical analysis tool designed to project a Golden Spiral onto your trading charts. Unlike standard indicators that simply follow price action linearly, this tool uses mathematical constants—specifically the Golden Ratio ($\phi$) and Pi—to visualize organic growth patterns in market geometry.

Core Functionality

The primary objective of the script is to map out a spiral based on a user-defined starting point. It translates abstract mathematical formulas into visual "trend lines" that help traders identify potential areas of expansion or contraction within the market.

How it Works

1. The Foundation: The Reference Square To determine the scale of the spiral, the script first creates a reference square on your chart. This square acts as the "anchor." It uses the visual dimensions of your current screen (the ratio of price movement to time) to ensure that the spiral's size remains consistent with the perspective of your specific chart.

2. Mathematical Projection Once the scale is established, the script calculates the spiral using polar coordinates. It applies a logarithmic growth formula to generate a continuous curve. This means the spiral expands at a constant rate relative to its rotation, mimicking patterns often found in nature (such as shells or galaxies) and, according to some trading theories, in financial markets.

3. Dynamic Mapping The script doesn't just draw a static image; it calculates the positions of hundreds of individual segments dynamically:

  • Clockwise vs. Counter-Clockwise: You can choose the direction of the rotation based on your preferred analysis style.
  • Accuracy Control: You can adjust the "smoothness" of the curve by modifying how many calculation steps are taken.
  • Color Coding: The spiral segments change colors based on their orientation, providing a clear visual distinction between different quadrants of the growth cycle.

Visual Output

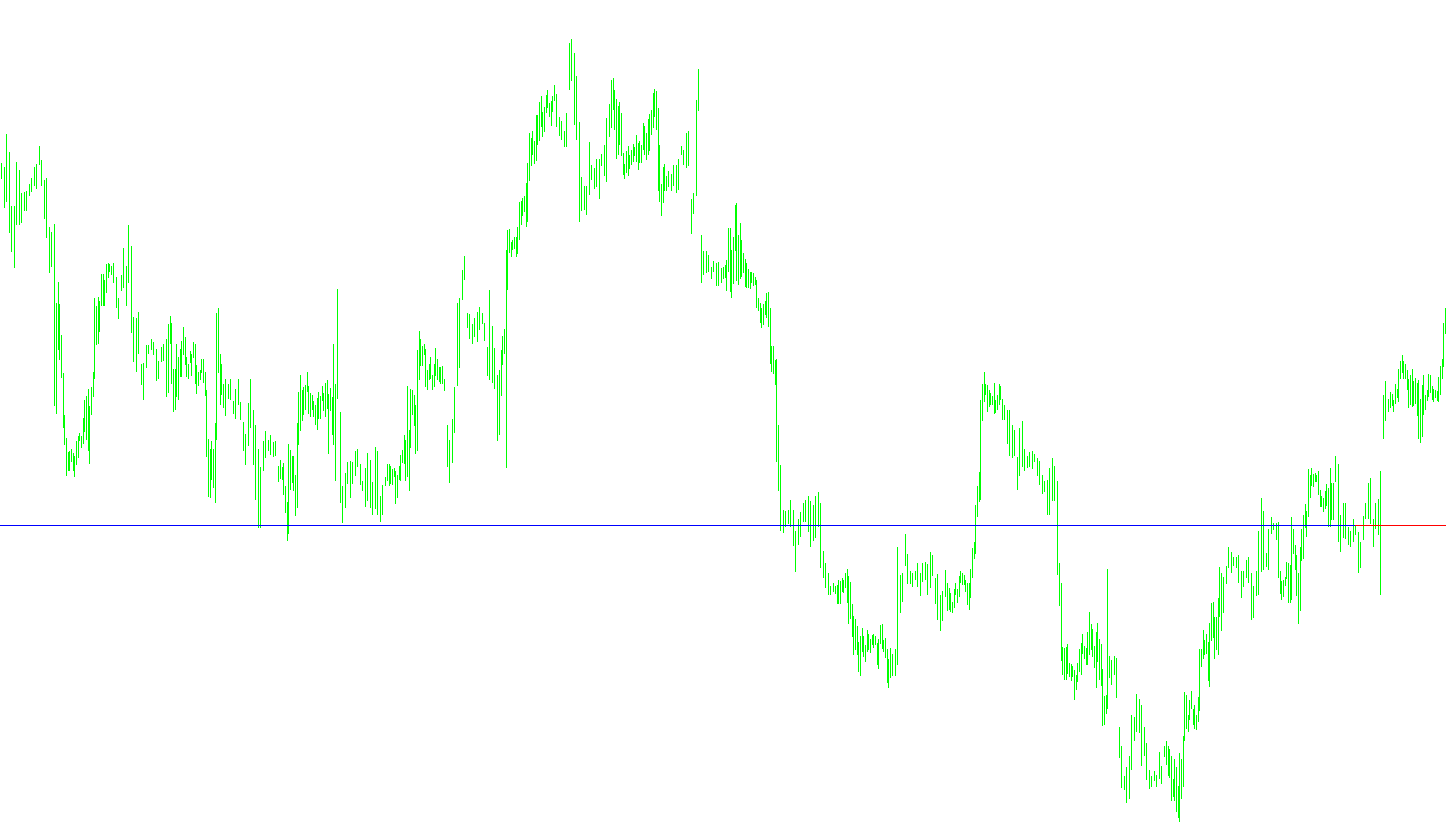

When active, the tool automatically clears previous markings and redraws the spiral every time the chart updates. It produces a series of connected trend lines that flow outward from your anchor point, providing a geometric "map" over the price candles.

Key Features for the User

  • Customizable Radius: Allows you to set the starting size of the spiral.
  • Golden Spiral Cycle: Lets you adjust the growth rate of the curve.
  • Auto-Scaling: The script automatically calculates the "Price-to-Time" scale so that the spiral looks proportional regardless of whether you are viewing a high-volatility asset or a low-volatility one.
Miscellaneous
It issuies visual alerts to the screen
7 Views
0 Downloads
0 Favorites
Fibonacci_Spiral
//+------------------------------------------------------------------+
//|                                               FX5_FiboSpiral.mq4 |
//|                                                              FX5 |
//|                                                    hazem@uk2.net |
//+------------------------------------------------------------------+
#property copyright "FX5"
#property link      "hazem@uk2.net"
//----
#property indicator_chart_window
//----
#define pi 3.14159265
#define phi 1.61803399
#define FX5_Square "FX5_Square"
#define FX5_Spiral "FX5_Spiral:#"
//---- input parameters
extern int    radius = 5;
extern double goldenSpiralCycle = 1;
extern double accurity = 0.2;
extern bool   clockWiseSpiral = true;
extern color  spiralColor1 = Blue;
extern color  spiralColor2 = Red;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   if(VerifyParams() == -1)
       return(-1);
   CreateSquare();
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   DeleteSpiral();
   ObjectDelete(FX5_Square);
   Comment(" ");
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   Comment("Programed by: FX5" + "\n" + "** hazem@uk2.net **");
   DeleteSpiral();
   DrawSpiral();
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void DrawSpiral()
  {
// In polar coordinates the basic spiral equation is:
// r = a * e ^ (Theta * cot Alpah)
// for golden spiral: cot Alpha = 2/pi * ln(phi)
   double squareTime_1 = ObjectGet(FX5_Square, OBJPROP_TIME1);
   double squareTime_2 = ObjectGet(FX5_Square, OBJPROP_TIME2);
   double squarePrice_1 = ObjectGet(FX5_Square, OBJPROP_PRICE1);
//----
   int squareShift_1 = iBarShift(NULL, 0, squareTime_1, false);
   int squareShift_2 = iBarShift(NULL, 0, squareTime_2, false);
//----
   double r0 = MathAbs(squareShift_2 - squareShift_1);
   double a = 0;
   double x0 = squareShift_1;
   double y0 = squarePrice_1;
//----
   double cotAlpha = (1/(2 * goldenSpiralCycle *pi)) * MathLog(phi);
   double x1 = 0;
   double y1 = 0;
   for(int i = 0; i < 500; i++)
     {
       double Theta = a * pi / 4;
       double r = r0 * MathExp(Theta * cotAlpha);
       //----
       if (clockWiseSpiral == false)
          Theta = -Theta;
       //----
       double x2 = r * MathCos(Theta);
       double y2 = r * MathSin(Theta);
       a += accurity;
       //----
       string label = FX5_Spiral + i;
       DrawLine(x1, y1, x2, y2, label);
       //----
       x1 = x2;
       y1 = y2;
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void DrawLine(double x1, double y1, double x2, double y2, string label)
  {
   double squareTime_1 = ObjectGet(FX5_Square, OBJPROP_TIME1);
   double squareTime_2 = ObjectGet(FX5_Square, OBJPROP_TIME2);
   double squarePrice_1 = ObjectGet(FX5_Square, OBJPROP_PRICE1);
   double squarePrice_2 = ObjectGet(FX5_Square, OBJPROP_PRICE2);
//----
   int squareShift_1 = iBarShift(NULL, 0, squareTime_1, false);
   int squareShift_2 = iBarShift(NULL, 0, squareTime_2, false);

   double scale = ((squarePrice_2 - squarePrice_1) / Point) /
                   (squareShift_2 - squareShift_1);
   scale = MathAbs(scale);
//----
   int timeShift1 = squareShift_1 + MathRound(x1);
   int timeShift2 = squareShift_1 + MathRound(x2);
//----
   double price1 = squarePrice_1 + NormalizeDouble(y1* scale * Point,
                   Digits);
   double price2 = squarePrice_1 + NormalizeDouble(y2* scale * Point,
                   Digits);
//----
   if((x2 >= 0 && y2 >= 0) || (x2 <= 0 && y2 <= 0))
       color lineColor = spiralColor1;
   else
       lineColor = spiralColor2;
   ObjectDelete(label);
   ObjectCreate(label, OBJ_TREND, 0, GetTime(timeShift1), price1,
                GetTime(timeShift2), price2, 0, 0);
   ObjectSet(label, OBJPROP_RAY, 0);
   ObjectSet(label, OBJPROP_COLOR, lineColor);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
datetime GetTime(int timeShift)
  {
   if(timeShift >= 0)
      return(Time[timeShift]);
   datetime timeFrame = Time[0] - Time[1];
   datetime time = Time[0] - timeFrame * timeShift;
   return(time);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CreateSquare()
  {
   double priceRange = WindowPriceMax(0) - WindowPriceMin(0);
   double barsCount = WindowBarsPerChart();
//   double barsCount = 133;       //Square scale
   double chartScale = (priceRange / Point) / barsCount;
//----
   int x1 = 50;
   int x2 = 50 + radius;
   double y1 = High[x1];
   double y2 = y1 + 20 * Point * chartScale;
//----
   string label = FX5_Square;
   ObjectDelete(label);
   ObjectCreate(label, OBJ_RECTANGLE, 0, Time[x1], y1,
                Time[x2], y2, 0, 0);
   ObjectSet(label, OBJPROP_RAY, 0);
   ObjectSet(label, OBJPROP_COLOR, spiralColor1);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void DeleteSpiral()
  {
   for(int i = ObjectsTotal() - 1; i >= 0; i--)
     {
       string label = ObjectName(i);
       if(StringSubstr(label, 0, 12) != FX5_Spiral)
           continue;
       ObjectDelete(label);
     }
  }
int VerifyParams()
  {
   if(radius <= 0)
     {
       radius = 5;
       Alert("Incorrect radius value!");
       return(-1);
     }
   if(goldenSpiralCycle <= 0)
     {
       goldenSpiralCycle = 1;
       Alert("Incorrect goldenSpiralCycle value!");
       return(-1);
     }
   if(accurity <= 0)
     {
       accurity = 0.2;
       Alert("Incorrect accurity value!");
       return(-1);
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
