The ForexLine script is a specialized technical analysis tool designed to help traders visualize price trends and receive real-time notifications based on the relationship between different moving averages. Instead of cluttering your chart with multiple complex lines, it focuses on identifying specific momentum shifts.
Core Logic and Visuals
The tool operates by calculating several "Linear Weighted Moving Averages" (LWMA) in the background. While it processes multiple layers of data, its primary purpose is to compare a fast-moving average against a slower, more stable 20-period average.

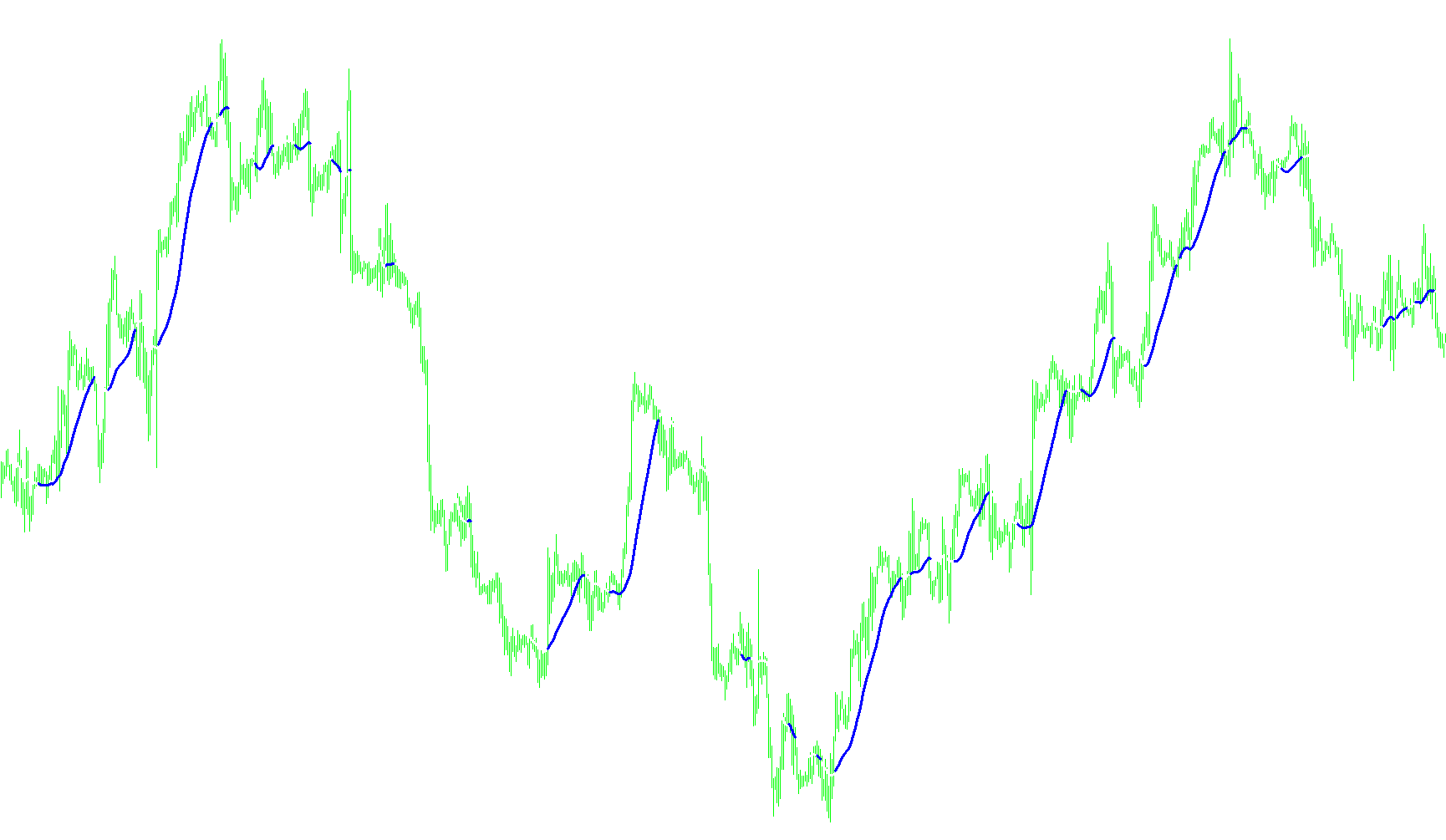

On your chart, this translates into two dynamic lines:
- The Up Line: Appears when the short-term momentum is trending upward relative to the 20-period average.
- The Down Line: Appears when the short-term momentum is trending downward relative to the 20-period average.
These lines act as visual cues, highlighting whether the current market "vibe" is bullish or bearish at any given moment.
Smart Monitoring & Alerts
Beyond just drawing lines on your screen, the script actively monitors the price action. It looks for four specific scenarios regarding how the price sits in relation to these averages:
- Strong Upward Trend: When the trend is up and the price is moving above the short-term average.
- Trend Reversal (Upwards): When the trend is still technically "down" but the price has started to move upward relative to the short-term average.
- Trend Reversal (Downwards): When the trend is technically "up" but the price has started to drop below the short-term average.
- Strong Downward Trend: When the trend is down and the price is moving below the short-term average.
Notifications
One of the key features of this script is its ability to keep you informed without needing to stare at the screen constantly. When any of the four scenarios above occur, the script can trigger multiple types of alerts (depending on your settings):
- Sound Alerts: Plays an audio file (like a "ping") on your computer.
- Pop-up Messages: Displays a notification box on your trading platform.
- Email Alerts: Sends a detailed email to your registered account.
The alerts are specifically designed to tell you not just that a change happened, but the specific magnitude of the move—noting exactly how many "points" the price is currently above or below the 20-period moving average.
Indicators Used
Miscellaneous
11
Views
0
Downloads
0
Favorites
forexline_update_01
//+------------------------------------------------------------------+
//| ForexLine.mq4 |
//| Copyright 2015, 3rjfx ~ 22/03/2015 |
//| https://www.mql5.com/en/users/3rjfx |
//+------------------------------------------------------------------+
#property copyright "Copyright 2015, 3rjfx ~ 22/03/2015"
#property link "https://www.mql5.com/en/users/3rjfx"
#property version "1.00"
/* Update (26/03/2015):
~ Added Alerts (Messages, Email dan Sound) to the indicator.
~ Eliminate bugs due to the use of ArraySetAsSeries true.
*/
//--
#include <MovingAverages.mqh>
//-
#property indicator_chart_window
//-
#property indicator_buffers 7
#property indicator_color1 clrNONE
#property indicator_color2 clrNONE
#property indicator_color3 clrNONE
#property indicator_color4 clrNONE
#property indicator_color5 clrBlue
#property indicator_color6 clrWhite
#property indicator_color7 clrNONE
//--
#property indicator_width5 3
#property indicator_width6 3
//--
extern bool SoundAlerts = true;
extern bool MsgAlerts = true;
extern bool eMailAlerts = false;
extern string SoundAlertFile = "alert.wav";
extern color ForexLineColor1 = clrBlue; // Line Up
extern color ForexLineColor2 = clrWhite; // Line Down
//-- buffers
double lwma05Buffers[];
double lwma10Buffers[];
double lwma20Buffers[];
double line20Buffers[];
double uplineBuffers[];
double dnlineBuffers[];
double posprc[];
//-
int digit;
int mafast=5;
int maslow=10;
int mdma20=20;
int cural,prval;
//-
bool lup,ldn;
//-
string symbol=_Symbol;
string alBase,alSubj,alMsg;
//-
void EventSetTimer();
//--
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int OnInit(void)
{
//-- Checking the Digits Point
if(Digits==3||Digits==5)
{digit=Digits;}
else {digit=Digits+1;}
//-
IndicatorDigits(digit);
//--
//--- indicator buffers mapping
IndicatorBuffers(7);
//--
SetIndexBuffer(0,lwma05Buffers);
SetIndexBuffer(1,lwma10Buffers);
SetIndexBuffer(2,lwma20Buffers);
SetIndexBuffer(3,line20Buffers);
SetIndexBuffer(4,uplineBuffers);
SetIndexBuffer(5,dnlineBuffers);
SetIndexBuffer(6,posprc);
//--- indicator lines
SetIndexStyle(0,DRAW_NONE);
SetIndexStyle(1,DRAW_NONE);
SetIndexStyle(2,DRAW_NONE);
SetIndexStyle(3,DRAW_NONE);
SetIndexStyle(4,DRAW_LINE,EMPTY,3,ForexLineColor1);
SetIndexStyle(5,DRAW_LINE,EMPTY,3,ForexLineColor2);
SetIndexStyle(6,DRAW_NONE);
//--- name for DataWindow and indicator subwindow label
SetIndexLabel(0,NULL);
SetIndexLabel(1,NULL);
SetIndexLabel(2,NULL);
SetIndexLabel(3,NULL);
SetIndexLabel(4,"Rice Above: ");
SetIndexLabel(5,"Down Below: ");
SetIndexLabel(6,NULL);
//--
SetIndexDrawBegin(4,maslow);
SetIndexDrawBegin(5,maslow);
//--
IndicatorShortName("FXLine");
//---
return(INIT_SUCCEEDED);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
{
//----
//--
EventKillTimer();
GlobalVariablesDeleteAll();
//----
return;
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
//---
int i,limit;
lup=false;
ldn=false;
//--- check for bars count
if(rates_total<=maslow) return(0);
//--- last counted bar will be recounted
limit=rates_total-prev_calculated;
if(prev_calculated>0) limit--;
//--
//--- counting from rates_total to 0
ArraySetAsSeries(lwma05Buffers,true);
ArraySetAsSeries(lwma10Buffers,true);
ArraySetAsSeries(lwma20Buffers,true);
ArraySetAsSeries(line20Buffers,true);
ArraySetAsSeries(uplineBuffers,true);
ArraySetAsSeries(dnlineBuffers,true);
ArraySetAsSeries(posprc,true);
ArraySetAsSeries(close,true);
//--
//--- main cycle
for(i=limit-1; i>=0; i--)
{
lwma05Buffers[i]=iMA(symbol,0,mafast,0,3,4,i);
line20Buffers[i]=iMA(symbol,0,mdma20,0,0,4,i);
}
//-
LinearWeightedMAOnBuffer(rates_total,prev_calculated,0,maslow,lwma05Buffers,lwma10Buffers,i);
LinearWeightedMAOnBuffer(rates_total,prev_calculated,0,mdma20,lwma10Buffers,lwma20Buffers,i);
//-
for(i=limit-1; i>=0; i--)
{
//--
if((lwma05Buffers[i]>lwma20Buffers[i])) {lup=true; ldn=false;}
if((lwma05Buffers[i]<lwma20Buffers[i])) {ldn=true; lup=false;}
if(lup==true)
{uplineBuffers[i]=line20Buffers[i]; dnlineBuffers[i]=EMPTY_VALUE;}
if(ldn==true)
{dnlineBuffers[i]=line20Buffers[i]; uplineBuffers[i]=EMPTY_VALUE;}
//-
if((lup==true)&&(close[i]>lwma05Buffers[i]))
{posprc[i]=(MathAbs(close[i]-line20Buffers[i]))/Point; cural=3;}
if((lup==true)&&(close[i]<lwma05Buffers[i]))
{posprc[i]=(MathAbs(line20Buffers[i]-close[i]))/Point; cural=1;}
if((ldn==true)&&(close[i]>lwma05Buffers[i]))
{posprc[i]=(MathAbs(close[i]-line20Buffers[i]))/Point; cural=2;}
if((ldn==true)&&(close[i]<lwma05Buffers[i]))
{posprc[i]=(MathAbs(line20Buffers[i]-close[i]))/Point; cural=0;}
//--
}
//--
posAlerts(cural);
//---
//--- return value of prev_calculated for next call
return(rates_total);
}
//---//
void doAlerts(string msgText,string eMailSub)
{
//--
if(MsgAlerts) Alert(msgText);
if(SoundAlerts) PlaySound(SoundAlertFile);
if(eMailAlerts) SendMail(eMailSub,msgText);
//--
}
//---/
//---/
string strTF(int period)
{
switch(period)
{
//--
case PERIOD_M1: return("M1");
case PERIOD_M5: return("M5");
case PERIOD_M15: return("M15");
case PERIOD_M30: return("M30");
case PERIOD_H1: return("H1");
case PERIOD_H4: return("H4");
case PERIOD_D1: return("D1");
case PERIOD_W1: return("W1");
case PERIOD_MN1: return("MN");
//--
}
return(_Period);
}
//---/
void posAlerts(int alerts)
{
//--
if((cural!=prval)&&(alerts==3))
{
alBase=StringConcatenate(symbol,", TF: ",strTF(_Period),", ForexLine: ");
alSubj=StringConcatenate(alBase," The Price was Up, ",DoubleToStr(posprc[0],0)," Points above the 20 MA.");
alMsg=StringConcatenate(alSubj," @ ",TimeToStr(TimeLocal(),TIME_SECONDS));
doAlerts(alMsg,alSubj);
prval=cural;
}
//--
if((cural!=prval)&&(alerts==0))
{
alBase=StringConcatenate(symbol,", TF: ",strTF(_Period),", ForexLine: ");
alSubj=StringConcatenate(alBase," The Price was Down, ",DoubleToStr(posprc[0],0)," Points below the 20 MA.");
alMsg=StringConcatenate(alSubj," @ ",TimeToStr(TimeLocal(),TIME_SECONDS));
doAlerts(alMsg,alSubj);
prval=cural;
}
//--
if((cural!=prval)&&(alerts==2))
{
alBase=StringConcatenate(symbol,", TF: ",strTF(_Period),", ForexLine: ");
alSubj=StringConcatenate(alBase," The Price began to Up, ",DoubleToStr(posprc[0],0)," Points below the 20 MA.");
alMsg=StringConcatenate(alSubj," @ ",TimeToStr(TimeLocal(),TIME_SECONDS));
doAlerts(alMsg,alSubj);
prval=cural;
}
//--
if((cural!=prval)&&(alerts==1))
{
alBase=StringConcatenate(symbol,", TF: ",strTF(_Period),", ForexLine: ");
alSubj=StringConcatenate(alBase," The Price began to Down, ",DoubleToStr(posprc[0],0)," Points above the 20 MA.");
alMsg=StringConcatenate(alSubj," @ ",TimeToStr(TimeLocal(),TIME_SECONDS));
doAlerts(alMsg,alSubj);
prval=cural;
}
//--
return;
//----
} //-end posAlerts()
//---/
//+------------------------------------------------------------------+
