FX5_Divergence_v1.5
Download script
This script is a specialized technical analysis tool designed to identify "divergences"—a phenomenon where the price of an asset moves in one direction while a related momentum indicator moves in the opposite direction. By identifying these discrepancies, traders can often spot potential reversals in market trends before they happen.
Core Components and Mechanics
1. Momentum Calculation (OsMA) The logic begins by calculating a specific type of moving average called the "Oscillating Moving Average" (OsMA). It does this by:
- Calculating a standard MACD (Moving Average Convergence Divergence) value based on fast and slow EMA settings.
- Subtracting a signal line from that MACD to produce the final OsMA values.
- This creates an oscillator that fluctuates above and below a zero line, helping to visualize the strength of current price momentum.
2. Peak and Trough Detection The script automatically scans historical data to find significant "peaks" (high points) and "troughs" (low points) within the OsMA oscillator. It looks for specific mathematical conditions where the indicator hits a local maximum or minimum relative to its surrounding bars, ensuring that it only reacts to meaningful price swings rather than minor market noise.
3. Divergence Identification Logic The primary function of this tool is to compare these detected peaks and troughs in the OsMA indicator against the actual Highs and Lows of the price chart. It looks for four distinct scenarios:
- Classic Bearish Divergence: The market price reaches a new high, but the OsMA indicator fails to reach a new high (the momentum is weakening as the price climbs).
- Reverse Bearish Divergence: The market price makes a lower high, but the OsMA indicator actually makes a higher high.
- Classic Bullish Divergence: The market price drops to a new low, but the OsMA indicator fails to drop to a new low (the selling pressure is exhausted).
- Reverse Bullish Divergence: The market price makes a higher low, but the OsMA indicator actually makes a lower low.
Visual and Alert Systems
To make this information actionable for the user, the script performs several automated tasks when a divergence is detected:

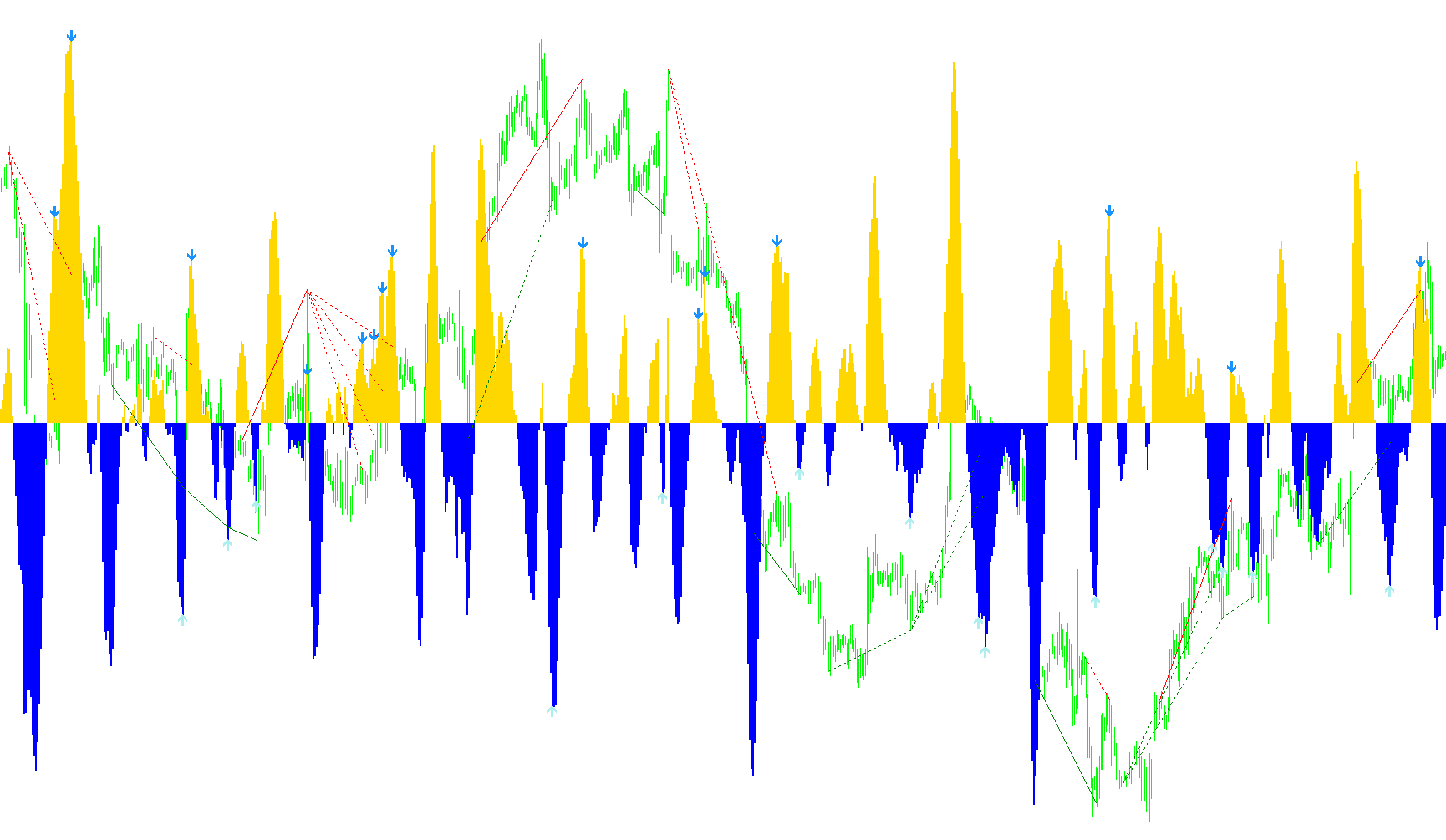

- On-Chart Signaling: It places visual arrows on the chart to highlight the exact moment a divergence occurs.
- Trendline Drawing: If enabled in the settings, the script automatically draws connecting lines. It places one line on the price chart (linking the two peaks/troughs) and another line directly on the indicator window. This allows you to see the visual "gap" between price action and momentum clearly.
- Real-Time Notifications: The script is equipped with an alert system that can send a pop-up notification to your trading platform the moment a new divergence is identified on the current live candle.
Summary of User Experience
For a trader, this tool acts as an automated "scout." Instead of manually comparing price charts and indicators side-by-side to find subtle discrepancies, the script does the heavy lifting by highlighting exactly where the momentum and price are no longer in sync, providing a visual heads-up for potential trend changes.
Indicators Used
Miscellaneous
13
Views
0
Downloads
0
Favorites
FX5_Divergence_v1.5
//+------------------------------------------------------------------+
//| FX5_Divergence.mq4 |
//| FX5 |
//| hazem@uk2.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, FX5"
#property link "hazem@uk2.net"
//----
#property indicator_separate_window
#property indicator_buffers 5
#property indicator_color1 LimeGreen
#property indicator_color2 FireBrick
#property indicator_color3 Green
#property indicator_color4 Red
//---- input parameters
extern string separator1 = "*** OSMA Settings ***";
extern int fastEMA = 12;
extern int slowEMA = 26;
extern int signal = 9;
extern string separator2 = "*** Indicator Settings ***";
extern double positiveSensitivity = 0.0001;
extern double negativeSensitivity = -0.0001;
extern double historyBarsCount = 0;
extern bool drawDivergenceLines = true;
extern bool displayAlert = true;
//---- buffers
double upOsMA[];
double downOsMA[];
double bullishDivergence[];
double bearishDivergence[];
double OsMA[];
double MACD[];
double Signal[];
double alertBuffer[];
//----
int chartBarsCount;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorBuffers(8);
//----
SetIndexStyle(0, DRAW_HISTOGRAM, STYLE_SOLID, 2);
SetIndexBuffer(0, upOsMA);
SetIndexStyle(1, DRAW_HISTOGRAM, STYLE_SOLID, 2);
SetIndexBuffer(1, downOsMA);
SetIndexStyle(2, DRAW_ARROW);
SetIndexBuffer(2, bullishDivergence);
SetIndexArrow(2, 233);
SetIndexStyle(3, DRAW_ARROW);
SetIndexBuffer(3, bearishDivergence);
SetIndexArrow(3, 234);
SetIndexStyle(4, DRAW_NONE);
SetIndexBuffer(4, OsMA);
// additional buffers
SetIndexBuffer(5, MACD);
SetIndexBuffer(6, Signal);
SetIndexBuffer(7, alertBuffer);
//----
SetIndexDrawBegin(0, signal);
SetIndexDrawBegin(1, signal);
//----
IndicatorDigits(Digits + 2);
IndicatorShortName("FX5_Divergence(" + fastEMA + "," + slowEMA + "," + signal + ")");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
for(int i = ObjectsTotal() - 1; i >= 0; i--)
{
string label = ObjectName(i);
if(StringSubstr(label, 0, 14) != "DivergenceLine")
continue;
ObjectDelete(label);
}
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
if(historyBarsCount <= 0 || historyBarsCount > Bars)
chartBarsCount = Bars;
else
chartBarsCount = historyBarsCount;
int countedBars = IndicatorCounted();
if(countedBars < 0)
countedBars = 0;
CalculateOsMA(countedBars);
CalculateDivergence(countedBars);
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void CalculateDivergence(int countedBars)
{
double arrowSeparation = 1 / MathPow(10, Digits + 2) * 50;
for(int i = chartBarsCount - countedBars; i >= 0; i--)
{
bearishDivergence[i] = EMPTY_VALUE;
bullishDivergence[i] = EMPTY_VALUE;
//----
int firstPeakOrTroughShift = GetFirstPeakOrTrough(i);
double firstPeakOrTroughOsMA = OsMA[firstPeakOrTroughShift];
if(firstPeakOrTroughOsMA > 0)
{
int peak_0 = GetIndicatorLastPeak(i);
int trough_0 = GetIndicatorLastTrough(peak_0);
int peak_1 = GetIndicatorLastPeak(trough_0);
int trough_1 = GetIndicatorLastTrough(peak_1);
}
else
{
trough_0 = GetIndicatorLastTrough(i);
peak_0 = GetIndicatorLastPeak(trough_0);
trough_1 = GetIndicatorLastTrough(peak_0);
peak_1 = GetIndicatorLastPeak(trough_1);
}
if(peak_0 == -1 || peak_1 == -1 || trough_0 == -1 || trough_1 == -1)
continue;
double indicatorLastPeak = OsMA[peak_0];
double indicatorThePeakBefore = OsMA[peak_1];
double indicatorLastTrough = OsMA[trough_0];
double indicatorTheTroughBefore = OsMA[trough_1];
/*
int pricePeak_0 = GetPriceLastPeak(peak_0);
int pricePeak_1 = GetPriceLastPeak(peak_1);
int priceTrough_0 = GetPriceLastTrough(trough_0);
int priceTrough_1 = GetPriceLastTrough(trough_1);
*/
int pricePeak_0 = peak_0;
int pricePeak_1 = peak_1;
int priceTrough_0 = trough_0;
int priceTrough_1 = trough_1;
//----
double priceLastPeak = High[pricePeak_0];
double priceThePeakBefore = High[pricePeak_1];
double priceLastTrough = Low[priceTrough_0];
double priceTheTroughBefore = Low[priceTrough_1];
// Classic bearish divergence condition
if(priceLastPeak > priceThePeakBefore &&
indicatorLastPeak < indicatorThePeakBefore)
{
DisplayAlert("Classic bearish divergence on: ", i, pricePeak_0);
bearishDivergence[peak_0] = upOsMA[peak_0] + arrowSeparation;
if(drawDivergenceLines)
{
PriceDrawLine(Time[pricePeak_0], Time[pricePeak_1],
priceLastPeak, priceThePeakBefore,
Red, STYLE_SOLID);
IndicatorDrawLine(Time[peak_0], Time[peak_1],
indicatorLastPeak, indicatorThePeakBefore,
Red, STYLE_SOLID);
}
continue;
}
// Reverse bearsih divergence condition
if(priceLastPeak < priceThePeakBefore && indicatorLastPeak > indicatorThePeakBefore)
{
DisplayAlert("Reverse bearish divergence on: ", i, pricePeak_0);
bearishDivergence[peak_0] = upOsMA[peak_0] + arrowSeparation;
if(drawDivergenceLines)
{
PriceDrawLine(Time[pricePeak_0], Time[pricePeak_1], priceLastPeak,
priceThePeakBefore, Red, STYLE_DOT);
IndicatorDrawLine(Time[peak_0], Time[peak_1], indicatorLastPeak,
indicatorThePeakBefore, Red, STYLE_DOT);
}
continue;
}
// Classic bullish divergence condition
if(priceLastTrough < priceTheTroughBefore &&
indicatorLastTrough > indicatorTheTroughBefore)
{
DisplayAlert("Classic bullish divergence on: ", i, priceTrough_0);
bullishDivergence[trough_0] = downOsMA[trough_0] - arrowSeparation;
if(drawDivergenceLines)
{
PriceDrawLine(Time[priceTrough_0], Time[priceTrough_1], priceLastTrough,
priceTheTroughBefore, Green, STYLE_SOLID);
IndicatorDrawLine(Time[trough_0], Time[trough_1], indicatorLastTrough,
indicatorTheTroughBefore, Green, STYLE_SOLID);
}
continue;
}
// Hidden bullish divergence condition
if(priceLastTrough > priceTheTroughBefore &&
indicatorLastTrough < indicatorTheTroughBefore)
{
DisplayAlert("Reverse bullish divergence on: ", i, priceTrough_0);
bullishDivergence[trough_0] = downOsMA[trough_0] - arrowSeparation;
if(drawDivergenceLines)
{
PriceDrawLine(Time[priceTrough_0], Time[priceTrough_1], priceLastTrough,
priceTheTroughBefore, Green, STYLE_DOT);
IndicatorDrawLine(Time[trough_0], Time[trough_1], indicatorLastTrough,
indicatorTheTroughBefore, Green, STYLE_DOT);
}
continue;
}
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void DisplayAlert(string message, int barIndex, int signalIndex)
{
if(displayAlert == true && barIndex == 0 && alertBuffer[signalIndex] != 1)
{
Alert(message, Symbol(), " , at: ", Bid);
alertBuffer[signalIndex] = 1;
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void CalculateOsMA(int countedBars)
{
for(int i = Bars - countedBars; i >= 0; i--)
{
MACD[i]=iMA(NULL, 0, fastEMA, 0, MODE_EMA, PRICE_CLOSE, i) -
iMA(NULL, 0, slowEMA, 0, MODE_EMA, PRICE_CLOSE, i);
}
for(i = Bars - countedBars; i >= 0; i--)
{
Signal[i]=iMAOnArray(MACD, Bars, signal, 0, MODE_SMA, i);
OsMA[i] = MACD[i] - Signal[i];
//----
if (OsMA[i] > 0)
{
upOsMA[i] = OsMA[i];
downOsMA[i] = 0;
}
else
if(OsMA[i] < 0)
{
downOsMA[i] = OsMA[i];
upOsMA[i] = 0;
}
else
{
upOsMA[i] = 0;
downOsMA[i] = 0;
}
}
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int GetPositiveRegionStart(int index)
{
int regionStart;
for(int i = index + 1; i < Bars; i++)
{
if(OsMA[i] >= OsMA[i-1] && OsMA[i] >= OsMA[i+1] &&
OsMA[i] >= OsMA[i+2] && OsMA[i] > positiveSensitivity)
return(i);
}
return(-1);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int GetNegativeRegionStart(int index)
{
for(int i = index + 1; i < Bars; i++)
{
if(OsMA[i] <= OsMA[i-1] && OsMA[i] <= OsMA[i+1] &&
OsMA[i] <= OsMA[i+2] && OsMA[i] < negativeSensitivity)
return(i);
}
return(-1);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int GetFirstPeakOrTrough(int index)
{
for(int i = index + 1; i < Bars; i++)
{
if ((OsMA[i] >= OsMA[i-1] && OsMA[i] >= OsMA[i+1] &&
OsMA[i] >= OsMA[i+2] && OsMA[i] > positiveSensitivity) ||
(OsMA[i] <= OsMA[i-1] && OsMA[i] <= OsMA[i+1] &&
OsMA[i] <= OsMA[i+2] && OsMA[i] < negativeSensitivity))
return(i);
}
return(-1);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int GetIndicatorLastPeak(int index)
{
int regionStart = GetPositiveRegionStart(index);
//----
if(regionStart == -1)
return(-1);
int peakShift = 0;
double peakValue = 0;
//----
for(int i = regionStart; i < Bars; i++)
{
if(OsMA[i] > peakValue && OsMA[i] >= OsMA[i-1] &&
OsMA[i] >= OsMA[i+1] && OsMA[i] >= OsMA[i+2] &&
OsMA[i] > positiveSensitivity)
{
peakValue = OsMA[i];
peakShift = i;
}
if(OsMA[i] < 0)
break;
}
return(peakShift);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int GetIndicatorLastTrough(int index)
{
int regionStart = GetNegativeRegionStart(index);
//----
if(regionStart == -1)
return(-1);
int troughShift = 0;
double troughValue = 0;
//----
for(int i = regionStart; i < Bars; i++)
{
if(OsMA[i] < troughValue && OsMA[i] <= OsMA[i-1] &&
OsMA[i] <= OsMA[i+1] && OsMA[i] <= OsMA[i+2] &&
OsMA[i] < negativeSensitivity)
{
troughValue = OsMA[i];
troughShift = i;
}
if(OsMA[i] > 0)
break;
}
return(troughShift);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void PriceDrawLine(datetime x1, datetime x2, double y1, double y2,
color lineColor, double style)
{
string label = "DivergenceLine# " + DoubleToStr(x1, 0);
ObjectDelete(label);
ObjectCreate(label, OBJ_TREND, 0, x1, y1, x2, y2, 0, 0);
ObjectSet(label, OBJPROP_RAY, 0);
ObjectSet(label, OBJPROP_COLOR, lineColor);
ObjectSet(label, OBJPROP_STYLE, style);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void IndicatorDrawLine(datetime x1, datetime x2, double y1, double y2,
color lineColor, double style)
{
int indicatorWindow = WindowFind("FX5_Divergence(" + fastEMA + "," +
slowEMA + "," + signal + ")");
if(indicatorWindow < 0)
return;
string label = "DivergenceLine$# " + DoubleToStr(x1, 0);
ObjectDelete(label);
ObjectCreate(label, OBJ_TREND, indicatorWindow, x1, y1, x2, y2, 0, 0);
ObjectSet(label, OBJPROP_RAY, 0);
ObjectSet(label, OBJPROP_COLOR, lineColor);
ObjectSet(label, OBJPROP_STYLE, style);
}
//+------------------------------------------------------------------+
