FX5_MACD_Correct_a

Download script
Author: Copyright � 2007, FX5
FX5_MACD_Correct_a

This script is a sophisticated technical analysis tool designed for the MetaTrader 4 platform. Its primary purpose is to identify "divergences"—situations where the price movement of an asset (like a currency pair) contradicts the momentum shown by a specific mathematical indicator. By spotting these contradictions, traders can often predict potential trend reversals before they happen.

Core Mechanics

The script operates using a customized version of the MACD (Moving Average Convergence Divergence) indicator. Unlike standard MACD, this version includes specific smoothing logic to create a modified "Oscillator."

  1. Momentum Tracking: The script calculates two different moving averages (fast and slow). The difference between these determines the overall momentum of the market.
  2. Signal Filtering: It then creates a "Signal" line to smooth out this data further, allowing the script to identify distinct peaks (high points) and troughs (low points) in the market's momentum.

Divergence Detection Logic

The heart of the script is its ability to compare the actual price on your chart against the peaks and troughs of the oscillator. It looks for four specific types of signals:

  • Classic Bearish Divergence: This occurs when the price makes a new high, but the indicator's peak is lower than the previous one. This suggests that while prices are rising, the "strength" behind the move is weakening, often signaling an upcoming price drop.
  • Reverse Bearish Divergence: A variation where the price makes a lower high while the indicator shows a higher peak.
  • Classic Bullish Divergence: This occurs when the price makes a new low, but the indicator's trough is higher than the previous one. This suggests that despite falling prices, buying momentum is building, potentially signaling an upward turn.
  • Reverse Bullish Divergence: A variation where the price makes a higher low while the indicator shows a lower trough.

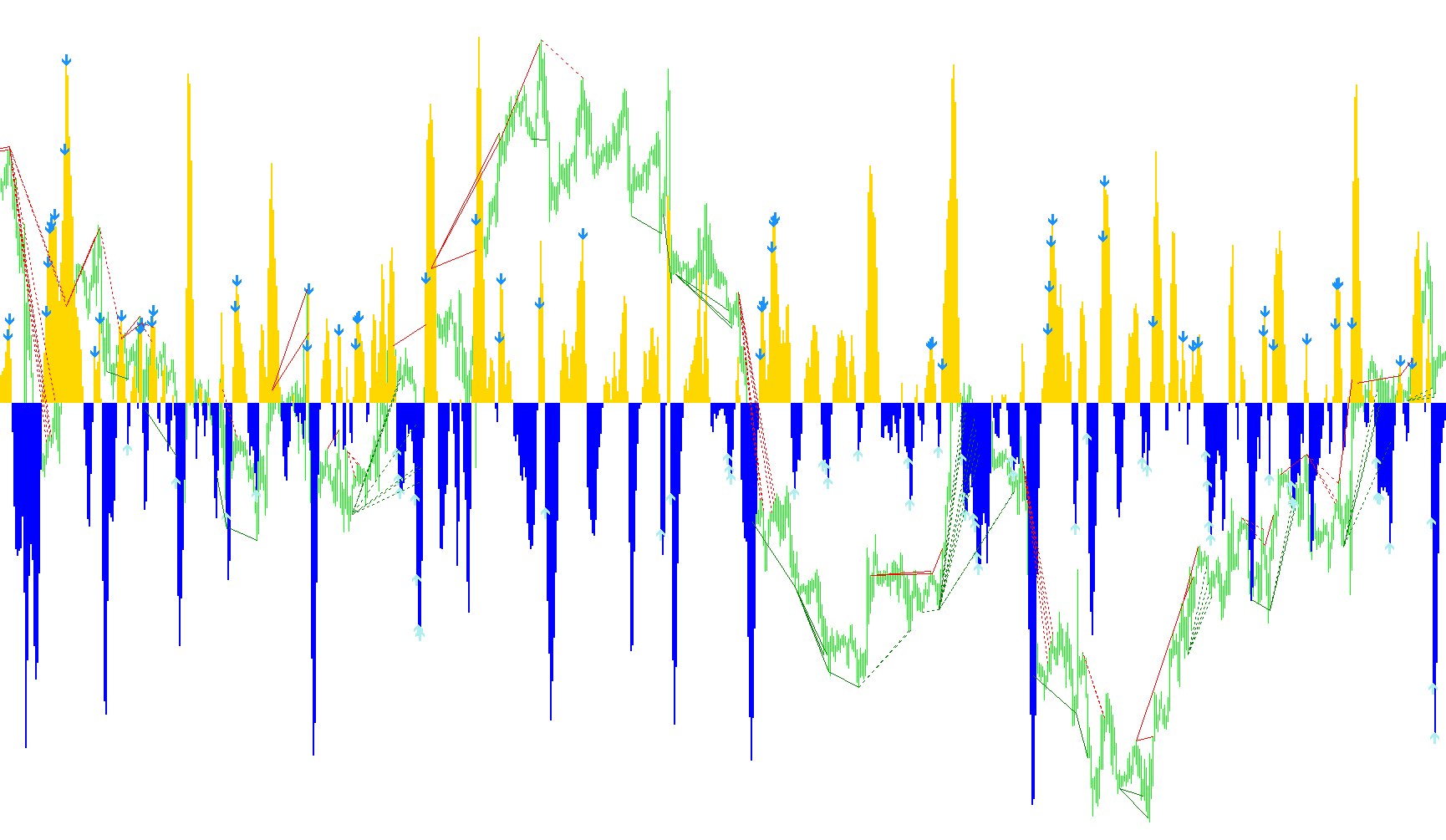

Visual and Alert Features

To make this data actionable for a trader, the script provides several automated visual aids:

  • Dynamic Drawing: When a divergence is detected, the script automatically draws trend lines on your chart. It places one line on the price action (the candles) and a corresponding line on the indicator window. This allows you to see exactly where the "mismatch" between price and momentum is occurring.
  • Color Coding: The script uses distinct colors—Green for bullish signals (potential upward moves) and Red for bearish signals (potential downward moves)—to help with quick visual identification.
  • Real-Time Alerts: The tool can be configured to send an immediate pop-up alert on your screen the moment a new divergence is confirmed on the current live bar, ensuring you don't miss a potential turning point.
  • Automatic Cleanup: To keep your charts clean, the script includes a routine that removes old drawing objects when they are no longer needed, ensuring the interface remains uncluttered as new data arrives.
Price Data Components
Series array that contains close prices for each bar
Indicators Used
Moving average indicatorMoving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
12 Views
0 Downloads
0 Favorites
FX5_MACD_Correct_a
//+------------------------------------------------------------------+
//|                                           FX5_MACD_Correct_a.mq4 |
//|                                                              FX5 |
//|                                                    hazem@uk2.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, FX5"
#property link      "hazem@uk2.net"
//----
#property indicator_separate_window
#property indicator_buffers 5
#property indicator_color1 LimeGreen
#property indicator_color2 FireBrick
#property indicator_color3 Green
#property indicator_color4 Red
//---- input parameters
extern string separator1 = "*** MACD Settings ***";
extern int    fastEMA = 5;
extern int    slowEMA = 34;
extern int    signal = 5;
extern string separator2 = "*** Indicator Settings ***";
extern double positiveSensitivity = 0.0001;
extern double negativeSensitivity = -0.0001;
extern double historyBarsCount = 0;
extern bool   drawDivergenceLines = true;
extern bool   displayAlert = true;
//---- buffers
double upOsMA[];
double downOsMA[];
double bullishDivergence[];
double bearishDivergence[];
double OsMA[];
double MACD[];
double Signal[];
double alertBuffer[];
//----
int chartBarsCount;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   IndicatorBuffers(8);

   SetIndexStyle(0, DRAW_HISTOGRAM, STYLE_SOLID, 2);
   SetIndexBuffer(0, upOsMA);
   SetIndexStyle(1, DRAW_HISTOGRAM, STYLE_SOLID, 2);
   SetIndexBuffer(1, downOsMA);
   SetIndexStyle(2, DRAW_ARROW);
   SetIndexBuffer(2, bullishDivergence);
   SetIndexArrow(2, 233);
   SetIndexStyle(3, DRAW_ARROW);
   SetIndexBuffer(3, bearishDivergence);
   SetIndexArrow(3, 234);
   SetIndexStyle(4, DRAW_NONE);
   SetIndexBuffer(4, OsMA);
// additional buffers
   SetIndexBuffer(5, MACD);
   SetIndexBuffer(6, Signal);
   SetIndexBuffer(7, alertBuffer);
//----
   SetIndexDrawBegin(0, signal);
   SetIndexDrawBegin(1, signal);
//----
   IndicatorDigits(Digits + 2);
   IndicatorShortName("FX5_MACD_Correct_a(" + fastEMA + "," + slowEMA + "," + signal + ")");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   for(int i = ObjectsTotal() - 1; i >= 0; i--)
     {
       string label = ObjectName(i);
       if(StringSubstr(label, 0, 14) != "DivergenceLine")
           continue;
       ObjectDelete(label);
     }
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   if(historyBarsCount <= 0 || historyBarsCount > Bars)
       chartBarsCount = Bars;
   else
       chartBarsCount = historyBarsCount;
   int countedBars = IndicatorCounted();
   if(countedBars < 0)
       countedBars = 0;
   CalculateOsMA(countedBars);
   CalculateDivergence(countedBars);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CalculateDivergence(int countedBars)
  {
   double arrowSeparation = 1 / MathPow(10, Digits + 2) * 50;
   for(int i = chartBarsCount - countedBars; i >= 0; i--)
     {
       bearishDivergence[i] = EMPTY_VALUE;
       bullishDivergence[i] = EMPTY_VALUE;
       //----
       int firstPeakOrTroughShift = GetFirstPeakOrTrough(i);
       double firstPeakOrTroughOsMA = OsMA[firstPeakOrTroughShift];
       if(firstPeakOrTroughOsMA > 0)
         {
           int peak_0   = GetIndicatorLastPeak(i);
           int trough_0 = GetIndicatorLastTrough(peak_0);
           int peak_1   = GetIndicatorLastPeak(trough_0);
           int trough_1 = GetIndicatorLastTrough(peak_1);
         }
       else
         {
           trough_0 = GetIndicatorLastTrough(i);
           peak_0   = GetIndicatorLastPeak(trough_0);
           trough_1 = GetIndicatorLastTrough(peak_0);
           peak_1   = GetIndicatorLastPeak(trough_1);
         }
       if(peak_0 == -1 || peak_1 == -1 || trough_0 == -1 || trough_1 == -1)
           continue;
       double indicatorLastPeak = OsMA[peak_0];
       double indicatorThePeakBefore = OsMA[peak_1];
       double indicatorLastTrough = OsMA[trough_0];
       double indicatorTheTroughBefore = OsMA[trough_1];
/*
       int pricePeak_0 = GetPriceLastPeak(peak_0);
       int pricePeak_1 = GetPriceLastPeak(peak_1);
       int priceTrough_0 = GetPriceLastTrough(trough_0);
       int priceTrough_1 = GetPriceLastTrough(trough_1);
*/
       int pricePeak_0 = peak_0;
       int pricePeak_1 = peak_1;
       int priceTrough_0 = trough_0;
       int priceTrough_1 = trough_1;
       //----
       double priceLastPeak = High[pricePeak_0];
       double priceThePeakBefore = High[pricePeak_1];
       double priceLastTrough = Low[priceTrough_0];
       double priceTheTroughBefore = Low[priceTrough_1];
       // Classic bearish divergence condition
       if(priceLastPeak > priceThePeakBefore &&
          indicatorLastPeak < indicatorThePeakBefore)
         {
           DisplayAlert("Classic bearish divergence on: ", i, pricePeak_0);
           bearishDivergence[peak_0] = upOsMA[peak_0] + arrowSeparation;
           if(drawDivergenceLines)
             {
               PriceDrawLine(Time[pricePeak_0], Time[pricePeak_1],
                             priceLastPeak, priceThePeakBefore,
                             Red, STYLE_SOLID);
               IndicatorDrawLine(Time[peak_0], Time[peak_1],
                                 indicatorLastPeak, indicatorThePeakBefore,
                                 Red, STYLE_SOLID);
             }
           continue;
         }
       // Reverse bearsih divergence condition
       if(priceLastPeak < priceThePeakBefore && indicatorLastPeak > indicatorThePeakBefore)
         {
           DisplayAlert("Reverse bearish divergence on: ", i, pricePeak_0);
           bearishDivergence[peak_0] = upOsMA[peak_0] + arrowSeparation;
           if(drawDivergenceLines)
             {
               PriceDrawLine(Time[pricePeak_0], Time[pricePeak_1], priceLastPeak,
                             priceThePeakBefore, Red, STYLE_DOT);
               IndicatorDrawLine(Time[peak_0], Time[peak_1], indicatorLastPeak,
                                 indicatorThePeakBefore, Red, STYLE_DOT);
             }
           continue;
         }
       // Classic bullish divergence condition
       if(priceLastTrough < priceTheTroughBefore &&
          indicatorLastTrough > indicatorTheTroughBefore)
        {
          DisplayAlert("Classic bullish divergence on: ", i, priceTrough_0);
          bullishDivergence[trough_0] = downOsMA[trough_0] - arrowSeparation;
          if(drawDivergenceLines)
            {
              PriceDrawLine(Time[priceTrough_0], Time[priceTrough_1], priceLastTrough,
                            priceTheTroughBefore, Green, STYLE_SOLID);
              IndicatorDrawLine(Time[trough_0], Time[trough_1], indicatorLastTrough,
                                indicatorTheTroughBefore, Green, STYLE_SOLID);
            }
          continue;
        }
       // Hidden bullish divergence condition
       if(priceLastTrough > priceTheTroughBefore &&
          indicatorLastTrough < indicatorTheTroughBefore)
         {
           DisplayAlert("Reverse bullish divergence on: ", i, priceTrough_0);
           bullishDivergence[trough_0] = downOsMA[trough_0] - arrowSeparation;
           if(drawDivergenceLines)
             {
               PriceDrawLine(Time[priceTrough_0], Time[priceTrough_1], priceLastTrough,
                             priceTheTroughBefore, Green, STYLE_DOT);
               IndicatorDrawLine(Time[trough_0], Time[trough_1], indicatorLastTrough,
                                 indicatorTheTroughBefore, Green, STYLE_DOT);
             }
           continue;
         }
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void DisplayAlert(string message, int barIndex, int signalIndex)
  {
    if(displayAlert == true && barIndex == 0 && alertBuffer[signalIndex] != 1)
      {
        Alert(message, Symbol(), " , at:  ", Bid);
        alertBuffer[signalIndex] = 1;
      }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CalculateOsMA(int countedBars)
  {
   for(int i = Bars - countedBars; i >= 0; i--)
     {

       MACD[i]=((0.15*iClose(Symbol(),0,i))+(0.85*iMA(Symbol(),0,fastEMA,0,MODE_EMA,PRICE_CLOSE,i+1))) -
               ((0.075*iClose(Symbol(),0,i))+(0.925*iMA(Symbol(),0,slowEMA,0,MODE_EMA,PRICE_CLOSE,i+1)));
     }
   for(i = Bars - countedBars; i >= 0; i--)
     {
       Signal[i]=iMAOnArray(MACD, Bars, signal, 0, MODE_SMA, i);
       OsMA[i] = MACD[i] - Signal[i];
       //----
       if (OsMA[i] > 0)
         {
           upOsMA[i] = OsMA[i];
           downOsMA[i] = 0;
         }
       else
           if(OsMA[i] < 0)
             {
               downOsMA[i] = OsMA[i];
               upOsMA[i] = 0;
             }
           else
             {
               upOsMA[i] = 0;
               downOsMA[i] = 0;
             }
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetPositiveRegionStart(int index)
  {
    int regionStart;
    for(int i = index + 1; i < Bars; i++)
      {
        //if(OsMA[i] >= OsMA[i-1] && OsMA[i] >= OsMA[i+1] &&
        if(OsMA[i] >= OsMA[i+1] &&
           OsMA[i] >= OsMA[i+2] && OsMA[i] > positiveSensitivity)
            return(i);
      }
    return(-1);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetNegativeRegionStart(int index)
  {
    for(int i = index + 1; i < Bars; i++)
      {
        //if(OsMA[i] <= OsMA[i-1] && OsMA[i] <= OsMA[i+1] &&
        if(OsMA[i] <= OsMA[i+1] &&
           OsMA[i] <= OsMA[i+2] && OsMA[i] < negativeSensitivity)
            return(i);
      }
    return(-1);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetFirstPeakOrTrough(int index)
  {
   for(int i = index + 1; i < Bars; i++)
     {
       if (//(OsMA[i] >= OsMA[i-1] && OsMA[i] >= OsMA[i+1] &&
           (OsMA[i] >= OsMA[i+1] &&
           OsMA[i] >= OsMA[i+2] && OsMA[i] > positiveSensitivity) ||
           //(OsMA[i] <= OsMA[i-1] && OsMA[i] <= OsMA[i+1] &&
           (OsMA[i] <= OsMA[i+1] &&
           OsMA[i] <= OsMA[i+2] && OsMA[i] < negativeSensitivity))
           return(i);
     }
   return(-1);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetIndicatorLastPeak(int index)
  {
   int regionStart = GetPositiveRegionStart(index);
//----
   if(regionStart == -1)
       return(-1);
   int peakShift = 0;
   double peakValue = 0;
//----
   for(int i = regionStart; i < Bars; i++)
     {
       //if(OsMA[i] > peakValue && OsMA[i] >= OsMA[i-1] &&
       if(OsMA[i] > peakValue &&
          OsMA[i] >= OsMA[i+1] && OsMA[i] >= OsMA[i+2] &&
          OsMA[i] > positiveSensitivity)
         {
           peakValue = OsMA[i];
           peakShift = i;
         }
       if(OsMA[i] < 0)
           break;
     }
   return(peakShift);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int GetIndicatorLastTrough(int index)
  {
   int regionStart = GetNegativeRegionStart(index);
//----
   if(regionStart == -1)
       return(-1);
   int troughShift = 0;
   double troughValue = 0;
//----
   for(int i = regionStart; i < Bars; i++)
     {
      //if(OsMA[i] < troughValue && OsMA[i] <= OsMA[i-1] &&
      if(OsMA[i] < troughValue &&
         OsMA[i] <= OsMA[i+1] && OsMA[i] <= OsMA[i+2] &&
         OsMA[i] < negativeSensitivity)
        {
          troughValue = OsMA[i];
          troughShift = i;
        }
      if(OsMA[i] > 0)
          break;
     }
   return(troughShift);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void PriceDrawLine(datetime x1, datetime x2, double y1, double y2,
                   color lineColor, double style)
  {
   string label = "DivergenceLine# " + DoubleToStr(x1, 0);
   ObjectDelete(label);
   ObjectCreate(label, OBJ_TREND, 0, x1, y1, x2, y2, 0, 0);
   ObjectSet(label, OBJPROP_RAY, 0);
   ObjectSet(label, OBJPROP_COLOR, lineColor);
   ObjectSet(label, OBJPROP_STYLE, style);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void IndicatorDrawLine(datetime x1, datetime x2, double y1, double y2,
                       color lineColor, double style)
  {
   int indicatorWindow = WindowFind("FX5_MACD_Correct_a(" + fastEMA + "," +
                                    slowEMA + "," + signal + ")");
   if(indicatorWindow < 0)
       return;
   string label = "DivergenceLine$# " + DoubleToStr(x1, 0);
   ObjectDelete(label);
   ObjectCreate(label, OBJ_TREND, indicatorWindow, x1, y1, x2, y2, 0, 0);
   ObjectSet(label, OBJPROP_RAY, 0);
   ObjectSet(label, OBJPROP_COLOR, lineColor);
   ObjectSet(label, OBJPROP_STYLE, style);
  }
//+------------------------------------------------------------------+

Similar scripts

FX5_MACD_MetaTrader

This indicator identifies classic and hidden bullish/bearish divergences by comparing price momentum shifts against MACD OsMA peak and trough oscillations.

FX5_MACD_Correct

This indicator identifies bullish and bearish divergence by comparing price extremes against a custom-weighted MACD Oscillator (OsMA) to detect momentum exhaustion.

FX5_MACD_Divergence_V1_0

MACD_Histogram_v1

This indicator detects and visualizes classical and reverse bullish/bearish divergences by comparing price action extremes against MACD momentum peaks and troughs.

MACD_Histogram

This indicator identifies momentum shifts by detecting classical and reverse price-to-momentum discrepancies using Moving Average Convergence Divergence peaks and troughs.

FX5_MACD_Divergence_V1.0

This indicator identifies classical and hidden bullish or bearish divergences by comparing momentum shifts in the MACD histogram against price action extremes, visualizing structural trend reversals with automated geometric trendlines.

FX5_MACD_Divergence_V1.1

This tool identifies classical and hidden bullish/bearish divergences by comparing price extremes against MACD peak fluctuations and projects automated trendlines for visual confirmation.

MACD_Histogram_v2

FX5_MACD_Divergence_V1_1

FX5_Divergence_v1.1_v1

This indicator identifies structural market exhaustion by detecting discrepancies between price action peaks and the momentum oscillations of the Optimized Signal Moving Average.

Regular RSI Div

This indicator identifies structural market reversals by detecting geometric discrepancies between price action extremes and weighted RSI-based momentum oscillations.

Comments
