FX5_NeelyElliotWave_v1.2

Download script
Author: FX5, Copyright � 2007
FX5_NeelyElliotWave_v1.2

This script is an automated technical analysis tool designed to map out "Elliott Waves" across multiple timeframes simultaneously. For a non-technical user, you can think of this as a multi-layered visual guide that helps identify the structural trends of the market—ranging from long-term monthly movements down to shorter-term daily and quarter-daily price actions.

Core Functionality

The logic operates by identifying "Swing Points" (significant highs and lows) on your chart. It automatically calculates these points across four distinct timeframes: Monthly, Weekly, Daily, and Quarter-Daily.

Instead of you having to manually calculate where a week starts or where a month's high occurred, the script performs these calculations in the background and draws clear visual markers (lines and arrows) directly on your trading screen.

How the Logic Works

The script follows a specific sequence to organize the data:

  • Timeframe Detection: The tool is "context-aware." Depending on which chart you are currently viewing (e.g., a 1-hour chart vs. a Daily chart), it will automatically determine which waves are appropriate to display. This ensures your screen isn't cluttered with unnecessary data.
  • High/Low Identification: For each designated timeframe, the script scans historical price data to find the highest and lowest prices within specific periods.
  • Wave Mapping: Once it finds these highs and lows, it connects them to form "waves." It distinguishes between different types of movements (upward vs. downward) and marks the middle points of these transitions.
  • Swing Point Filtering: The logic includes a specific filter to identify "Swings." It looks at a sequence of points to ensure that a marked peak is actually higher than the points surrounding it, and a marked trough is lower than those around it. This helps filter out "noise" and highlights only the most significant structural turns in the market.

Key Features for the User

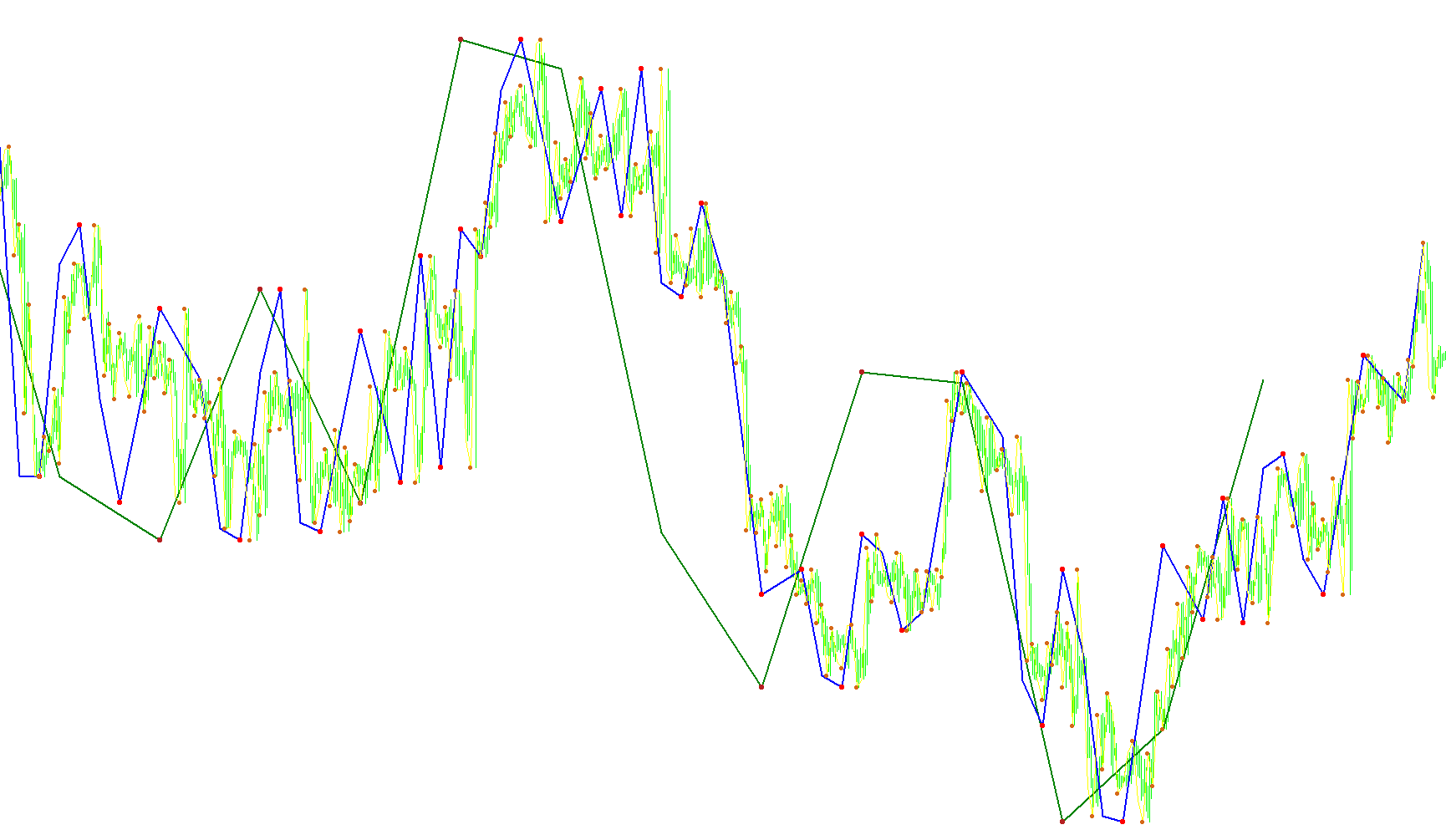

  • Visual Hierarchy: Each timeframe is assigned a unique color (e.g., BlueViolet for Monthly, Green for Weekly). This allows you to distinguish between "the big picture" (long-term trends) and "the current move" (short-term price action) at a single glance.
  • Customizable Timing: The script includes a specific logic for "Daily Close" settings. This means you can define exactly what time the market "closes" for your analysis purposes, allowing the tool to align with your specific trading session or broker's data.
  • Dynamic Drawing: The script uses different styles—solid lines for the waves and arrows for the swing points—to make it easy to follow the flow of price action without confusing the actual price path with the structural markers.

In summary, this tool acts as a visual "skeleton" for market price action, automatically plotting out the significant highs and lows across multiple time horizons to help you see the broader structure of the market clearly.

Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
FX5_NeelyElliotWave_v1.2
//+------------------------------------------------------------------+
//|                                          FX5_NellyElliotWave.mq4 |
//|                                            FX5, Copyright © 2007 |
//|                                                    hazem@uk2.net |
//+------------------------------------------------------------------+
#property copyright "FX5, Copyright © 2007"
#property link      "hazem@uk2.net"

#property indicator_chart_window
#property indicator_buffers 8

#define Sunday 0
#define Monday 1

//---- input parameters
extern string    segment_0 = "*** Daily Close Settings ***";
extern bool      enableCustomDailyClose = false;
extern string    dailyCloseTime = "00:00";
extern string    segment_1 = "*** Waves Display Setting ***";
extern bool      showMonthlyWaves = true;
extern bool      showWeeklyWaves = true;
extern bool      showDailyWaves = true;
extern bool      showQuarterDailyWaves = true;
extern string    segment_2 = "*** Waves Color Settings ***";
extern color     monthlyWavesColor = BlueViolet;
extern color     weeklyWavesColor = Green;
extern color     dailyWavesColor = Blue;
extern color     quarterDailyWavesColor = Yellow;
extern string    segment_3 = "*** SwingPoints Color Settings ***";
extern color     monthlySwingColor = Yellow;
extern color     weeklySwingColor = FireBrick;
extern color     dailySwingColor = Red;
extern color     quarterDailySwingColor = Chocolate;
//---- buffers
double monthlyWaves[];
double monthlySwings[];
double weeklyWaves[];
double weeklySwings[];
double dailyWaves[];
double dailySwings[];
double quarterDailyWaves[];
double quarterDailySwings[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
{
   datetime time = StrToTime(dailyCloseTime);
   dailyCloseTime = TimeToStr(time, TIME_MINUTES);

//---- indicators
   int timeFrame = Period();

   int monthlyWidth = 2;
   int weeklyWidth = 2;
   int dailyWidth = 2;
   int quarterDailyWidth = 1;

   if (timeFrame >= PERIOD_D1)
      weeklyWidth = 1;
   if (timeFrame >= PERIOD_H4)
      dailyWidth = 1;

   SetIndexStyle(0, DRAW_SECTION, STYLE_SOLID, monthlyWidth, monthlyWavesColor);
   SetIndexStyle(2, DRAW_SECTION, STYLE_SOLID, weeklyWidth, weeklyWavesColor);
   SetIndexStyle(4, DRAW_SECTION, STYLE_SOLID, dailyWidth, dailyWavesColor);
   SetIndexStyle(6, DRAW_SECTION, STYLE_SOLID, quarterDailyWidth, quarterDailyWavesColor);

   SetIndexStyle(1, DRAW_ARROW, EMPTY, monthlyWidth, monthlySwingColor);
   SetIndexStyle(3, DRAW_ARROW, EMPTY, weeklyWidth, weeklySwingColor);
   SetIndexStyle(5, DRAW_ARROW, EMPTY, dailyWidth, dailySwingColor);
   SetIndexStyle(7, DRAW_ARROW, EMPTY, quarterDailyWidth, quarterDailySwingColor);

   SetIndexArrow(1, 159);
   SetIndexArrow(3, 159);
   SetIndexArrow(5, 159);
   SetIndexArrow(7, 159);

   SetIndexBuffer(0, monthlyWaves);
   SetIndexBuffer(1, monthlySwings);
   SetIndexBuffer(2, weeklyWaves);
   SetIndexBuffer(3, weeklySwings);
   SetIndexBuffer(4, dailyWaves);
   SetIndexBuffer(5, dailySwings);
   SetIndexBuffer(6, quarterDailyWaves);
   SetIndexBuffer(7, quarterDailySwings);

   SetIndexEmptyValue(0, 0);
   SetIndexEmptyValue(1, 0);
   SetIndexEmptyValue(2, 0);
   SetIndexEmptyValue(3, 0);
   SetIndexEmptyValue(4, 0);
   SetIndexEmptyValue(5, 0);
   SetIndexEmptyValue(6, 0);
   SetIndexEmptyValue(7, 0);

   IndicatorDigits(Digits);
//----
   return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
{
   Comment("");

   return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
{
   Comment("Designed & Prgramed By: FX5\n", "***hazem@uk2.net***");
   int countedBars = IndicatorCounted();
   if (countedBars < 0)
      countedBars = 0;

   int timeFrame = Period();

   if (showMonthlyWaves)
   {
      if (timeFrame == PERIOD_D1 || timeFrame == PERIOD_H4)
         IdentifyMonthlyWaves(countedBars);
   }

   if (showWeeklyWaves)
   {
      if (timeFrame == PERIOD_D1 || timeFrame == PERIOD_H4 ||
          timeFrame == PERIOD_H1)
         IdentifyWeeklyWaves(countedBars);
   }
   if (showDailyWaves)
   {
      if (timeFrame == PERIOD_H4 || timeFrame == PERIOD_H1 ||
          timeFrame == PERIOD_M30 ||timeFrame == PERIOD_M15 ||
          timeFrame == PERIOD_M5 || timeFrame == PERIOD_M1)
         IdentifyDailyWaves(countedBars);
   }
   if (showQuarterDailyWaves)
   {
      if (timeFrame == PERIOD_H1 || timeFrame == PERIOD_M30 ||
          timeFrame == PERIOD_M15 || timeFrame == PERIOD_M5 ||
          timeFrame == PERIOD_M1)
         IdentifyQuarterDailyWaves(countedBars);
   }

   return(0);
}
//+------------------------------------------------------------------+
void IdentifyMonthlyWaves(int countedBars)
{
   int lastShift = -1;

   for (int i = Bars - countedBars; i >= 0; i--)
   {
      int lastClose = GetLastMonthlyClose(i);

      if (lastShift == lastClose)
         continue;
      else
         lastShift = lastClose;

      int lastOpen = GetLastMonthlyClose(lastClose);

      if (lastClose == -1 || lastOpen == -1)
         continue;

      int highShift = GetHighestHighShift(lastClose + 1, lastOpen - lastClose);
      int lowShift = GetLowestLowShift(lastClose + 1, lastOpen - lastClose);

      double highPrice = High[highShift];
      double lowPrice = Low[lowShift];

      if (highShift > lowShift)
      {
         monthlyWaves[lastOpen] = highPrice;
         int middleShift = lastClose + MathCeil((lastOpen - lastClose + 1) / 2);
         monthlyWaves[middleShift] = lowPrice;
      }
      else
      {
         monthlyWaves[lastOpen] = lowPrice;
         middleShift = lastClose + MathCeil((lastOpen - lastClose + 1) / 2);
         monthlyWaves[middleShift] = highPrice;
      }

      int swing_0 = GetLastMonthlySwing(i);
      int swing_1 = GetLastMonthlySwing(swing_0);
      int swing_2 = GetLastMonthlySwing(swing_1);
      int swing_3 = GetLastMonthlySwing(swing_2);

      if (monthlyWaves[swing_1] > monthlyWaves[swing_0] && monthlyWaves[swing_1] > monthlyWaves[swing_2])
         monthlySwings[swing_1] = monthlyWaves[swing_1];

      if (monthlyWaves[swing_1] < monthlyWaves[swing_0] && monthlyWaves[swing_1] < monthlyWaves[swing_2])
         monthlySwings[swing_1] = monthlyWaves[swing_1];

      if (monthlyWaves[swing_2] > monthlyWaves[swing_1] && monthlyWaves[swing_2] > monthlyWaves[swing_3])
         monthlySwings[swing_2] = monthlyWaves[swing_2];

      if (monthlyWaves[swing_2] < monthlyWaves[swing_1] && monthlyWaves[swing_2] < monthlyWaves[swing_3])
         monthlySwings[swing_2] = monthlyWaves[swing_2];
   }
}
//+------------------------------------------------------------------+
void IdentifyWeeklyWaves(int countedBars)
{
   int lastShift = -1;

   for (int i = Bars - countedBars; i >= 0; i--)
   {
      int lastWeekClose = GetLastWeeklyClose(i);

      if (lastShift == lastWeekClose)
         continue;
      else
         lastShift = lastWeekClose;

      int lastWeekOpen = GetLastWeeklyClose(lastWeekClose);

      if (lastWeekClose == -1 || lastWeekOpen == -1)
         continue;

      int weekHighShift = GetHighestHighShift(lastWeekClose + 1, lastWeekOpen - lastWeekClose);
      int weekLowShift = GetLowestLowShift(lastWeekClose + 1, lastWeekOpen - lastWeekClose);

      double weekHighPrice = High[weekHighShift];
      double weekLowPrice = Low[weekLowShift];

      if (weekHighShift > weekLowShift)
      {
         weeklyWaves[lastWeekOpen] = weekHighPrice;
         int middleWeekShift = lastWeekClose + MathCeil((lastWeekOpen - lastWeekClose + 1) / 2);
         weeklyWaves[middleWeekShift] = weekLowPrice;
      }
      else
      {
         weeklyWaves[lastWeekOpen] = weekLowPrice;
         middleWeekShift = lastWeekClose + MathCeil((lastWeekOpen - lastWeekClose + 1) / 2);
         weeklyWaves[middleWeekShift] = weekHighPrice;
      }

      int swing_0 = GetLastWeeklySwing(i);
      int swing_1 = GetLastWeeklySwing(swing_0);
      int swing_2 = GetLastWeeklySwing(swing_1);
      int swing_3 = GetLastWeeklySwing(swing_2);

      if (weeklyWaves[swing_1] > weeklyWaves[swing_0] && weeklyWaves[swing_1] > weeklyWaves[swing_2])
         weeklySwings[swing_1] = weeklyWaves[swing_1];

      if (weeklyWaves[swing_1] < weeklyWaves[swing_0] && weeklyWaves[swing_1] < weeklyWaves[swing_2])
         weeklySwings[swing_1] = weeklyWaves[swing_1];

      if (weeklyWaves[swing_2] > weeklyWaves[swing_1] && weeklyWaves[swing_2] > weeklyWaves[swing_3])
         weeklySwings[swing_2] = weeklyWaves[swing_2];

      if (weeklyWaves[swing_2] < weeklyWaves[swing_1] && weeklyWaves[swing_2] < weeklyWaves[swing_3])
         weeklySwings[swing_2] = weeklyWaves[swing_2];
   }
}
//+------------------------------------------------------------------+
void IdentifyDailyWaves(int countedBars)
{
   int lastShift = -1;

   for (int i = Bars - countedBars; i >= 0; i--)
   {
      int lastDayClose = GetLastDailyClose(i);

      if (lastShift == lastDayClose)
         continue;
      else
         lastShift = lastDayClose;

      int lastDayOpen = GetLastDailyClose(lastDayClose);

      if (lastDayClose == -1 || lastDayOpen == -1)
         continue;

      int dayHighShift = GetHighestHighShift(lastDayClose + 1, lastDayOpen - lastDayClose);
      int dayLowShift = GetLowestLowShift(lastDayClose + 1, lastDayOpen - lastDayClose);

      double dayHighPrice = High[dayHighShift];
      double dayLowPrice = Low[dayLowShift];

      if (dayHighShift > dayLowShift)
      {
         dailyWaves[lastDayOpen] = dayHighPrice;
         int middleDayShift = lastDayClose + MathCeil((lastDayOpen - lastDayClose + 1) / 2);
         dailyWaves[middleDayShift] = dayLowPrice;
      }
      else
      {
         dailyWaves[lastDayOpen] = dayLowPrice;
         middleDayShift = lastDayClose + MathCeil((lastDayOpen - lastDayClose + 1) / 2);
         dailyWaves[middleDayShift] = dayHighPrice;
      }

      int swing_0 = GetLastDailySwing(i);
      int swing_1 = GetLastDailySwing(swing_0);
      int swing_2 = GetLastDailySwing(swing_1);
      int swing_3 = GetLastDailySwing(swing_2);

      if (dailyWaves[swing_1] > dailyWaves[swing_0] && dailyWaves[swing_1] > dailyWaves[swing_2])
         dailySwings[swing_1] = dailyWaves[swing_1];

      if (dailyWaves[swing_1] < dailyWaves[swing_0] && dailyWaves[swing_1] < dailyWaves[swing_2])
         dailySwings[swing_1] = dailyWaves[swing_1];

      if (dailyWaves[swing_2] > dailyWaves[swing_1] && dailyWaves[swing_2] > dailyWaves[swing_3])
         dailySwings[swing_2] = dailyWaves[swing_2];

      if (dailyWaves[swing_2] < dailyWaves[swing_1] && dailyWaves[swing_2] < dailyWaves[swing_3])
         dailySwings[swing_2] = dailyWaves[swing_2];
   }
}
//+------------------------------------------------------------------+
void IdentifyQuarterDailyWaves(int countedBars)
{
   int lastShift = -1;

   for (int i = Bars - countedBars; i >= 0; i--)
   {
      int lastClose = GetLastQuarterDailyClose(i);

      if (lastShift == lastClose)
         continue;
      else
         lastShift = lastClose;

      int lastOpen = GetLastQuarterDailyClose(lastClose);

      if (lastClose == -1 || lastOpen == -1)
         continue;

      int highShift = GetHighestHighShift(lastClose + 1, lastOpen - lastClose);
      int lowShift = GetLowestLowShift(lastClose + 1, lastOpen - lastClose);

      double highPrice = High[highShift];
      double lowPrice = Low[lowShift];

      if (highShift > lowShift)
      {
         quarterDailyWaves[lastOpen] = highPrice;
         int middleShift = lastClose + MathCeil((lastOpen - lastClose + 1) / 2);
         quarterDailyWaves[middleShift] = lowPrice;
      }
      else
      {
         quarterDailyWaves[lastOpen] = lowPrice;
         middleShift = lastClose + MathCeil((lastOpen - lastClose + 1) / 2);
         quarterDailyWaves[middleShift] = highPrice;
      }

      int swing_0 = GetLastQuarterDailySwing(i);
      int swing_1 = GetLastQuarterDailySwing(swing_0);
      int swing_2 = GetLastQuarterDailySwing(swing_1);
      int swing_3 = GetLastQuarterDailySwing(swing_2);

      if (quarterDailyWaves[swing_1] > quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1] > quarterDailyWaves[swing_2])
         quarterDailySwings[swing_1] = quarterDailyWaves[swing_1];

      if (quarterDailyWaves[swing_1] < quarterDailyWaves[swing_0] && quarterDailyWaves[swing_1] < quarterDailyWaves[swing_2])
         quarterDailySwings[swing_1] = quarterDailyWaves[swing_1];

      if (quarterDailyWaves[swing_2] > quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2] > quarterDailyWaves[swing_3])
         quarterDailySwings[swing_2] = quarterDailyWaves[swing_2];

      if (quarterDailyWaves[swing_2] < quarterDailyWaves[swing_1] && quarterDailyWaves[swing_2] < quarterDailyWaves[swing_3])
         quarterDailySwings[swing_2] = quarterDailyWaves[swing_2];
   }
}
//+------------------------------------------------------------------+
int GetLastMonthlySwing(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (monthlyWaves[i] != 0)
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastWeeklySwing(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (weeklyWaves[i] != 0)
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastDailySwing(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (dailyWaves[i] != 0)
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastQuarterDailySwing(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (quarterDailyWaves[i] != 0)
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastMonthlyClose(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (TimeDay(Time[i]) < TimeDay(Time[i+1]))
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastWeeklyClose(int shift)
{
   for (int i = shift + 1; i < Bars; i++)
   {
      if (TimeDayOfWeek(Time[i]) < TimeDayOfWeek(Time[i+1]))
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastDailyClose(int shift)
{
   if (enableCustomDailyClose)
   {
      for (int i = shift + 1; i < Bars; i++)
      {
         string candleDateString = TimeToStr(Time[i], TIME_DATE);
         datetime closeTime = StrToTime(candleDateString + " " + dailyCloseTime);

         if (closeTime < Time[shift] && closeTime >= Time[i])
            return(i);
      }
   }
   else
   {
      for (i = shift + 1; i < Bars; i++)
      {
         if (TimeDayOfWeek(Time[i]) != TimeDayOfWeek(Time[i+1]) &&
             TimeDayOfWeek(Time[i]) !=  Monday && TimeDayOfWeek(Time[i+1]) != Sunday)
            return(i);
      }
   }
   return(-1);
}
//+------------------------------------------------------------------+
int GetLastQuarterDailyClose(int shift)
{
   if (enableCustomDailyClose)
   {
      int colonIndex = StringFind(dailyCloseTime, ":", 0);
      if (colonIndex == -1)
         return(-1);

      string closeHourString = StringSubstr(dailyCloseTime, 0, colonIndex);
      int closeHour = StrToInteger(closeHourString);
   }
   else
      closeHour = 0;

   for (int i = shift + 1; i < Bars; i++)
   {
      string candleDateString = TimeToStr(Time[i], TIME_DATE);

      int quarterHour = HourSum(closeHour, 0);
      datetime closeTime = StrToTime(candleDateString + " " + DoubleToStr(quarterHour, 0) + ":00");
      if (closeTime < Time[shift] && closeTime >= Time[i])
         return(i);

      quarterHour = HourSum(closeHour, 6);
      closeTime = StrToTime(candleDateString + " " + DoubleToStr(quarterHour, 0) + ":00");
      if (closeTime < Time[shift] && closeTime >= Time[i])
         return(i);

      quarterHour = HourSum(closeHour, 12);
      closeTime = StrToTime(candleDateString + " " + DoubleToStr(quarterHour, 0) + ":00");
      if (closeTime < Time[shift] && closeTime >= Time[i])
         return(i);

      quarterHour = HourSum(closeHour, 18);
      closeTime = StrToTime(candleDateString + " " + DoubleToStr(quarterHour, 0) + ":00");
      if (closeTime < Time[shift] && closeTime >= Time[i])
         return(i);
   }
   return(-1);
}
//+------------------------------------------------------------------+
int HourSum(int firstHour, int secondHour)
{
   int sum = firstHour + secondHour;
   if (sum >= 24)
      sum -= 24;

   return(sum);
}
//+------------------------------------------------------------------+
int GetHighestHighShift(int start, int count)
{
   int highestShift = -1;
   double highestPrice = -1;
   for (int i = start; i < start + count; i++)
   {
      if (High[i] > highestPrice)
      {
         highestShift = i;
         highestPrice = High[i];
      }
   }
   return(highestShift);
}
//+------------------------------------------------------------------+
int GetLowestLowShift(int start, int count)
{
   int lowestShift = -1;
   double lowestPrice = 9999999;
   for (int i = start; i < start + count; i++)
   {
      if (Low[i] < lowestPrice)
      {
         lowestShift = i;
         lowestPrice = Low[i];
      }
   }
   return(lowestShift);
}
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+

Similar scripts

FX5_NeelyElliotWave_v1_2

[i] nonlagzigzag_v2

This indicator identifies structural price extremes by applying a non-lagging moving average smoothed with a dynamic standard deviation filter to determine trend shifts and pivot points.

NonLagZigZag_v2_005

This indicator synthesizes a non-lagging moving average with dynamic standard deviation filtering to identify structural pivot points and trend transitions.

nonlagzigzag_v2_002

This indicator identifies structural price pivots by applying a Non-Lag Moving Average coupled with a standard deviation-based volatility filter to suppress minor noise.

NonLagZigZag_v2

This indicator utilizes a non-lagging moving average combined with standard deviation volatility filtering to identify structural price pivot points and trend shifts.

NonLagZigZag_v2[1]-2

This indicator identifies structural pivot points by applying a non-lagging moving average filtered by dynamic standard deviation to smooth price volatility.

NonLagZigZag_v291f-2

FRASMA_v2_v1

fractal_dimension

RS_FRASMA

fractal_bands_v1

Comments
