FXTT_MTF_BollingerBands

Download script
Author: Copyright 2016, Carlos Oliveira
FXTT_MTF_BollingerBands

Overview

This script is a specialized technical analysis tool designed for the MetaTrader 4 platform. Its primary purpose is to display Multi-Timeframe (MTF) Bollinger Bands on a single chart. Typically, Bollinger Bands are used to identify volatility and potential price reversals; this tool enhances that analysis by allowing you to view the bands of several different timeframes simultaneously—ranging from very fast movements (1 Minute) to long-term trends (Monthly)—all at once.

Key Features and Logic

1. Multi-Timeframe Integration

The core logic of the script is its ability to "fetch" data from other timeframes while you are looking at your current chart. It calculates and displays the Upper, Middle, and Lower bands for nine specific intervals:

  • Intraday: 1 Minute (M1), 5 Minutes (M5), 15 Minutes (M15), and 30 Minutes (M30)
  • Hourly/Daily: 1 Hour (H1) and 4 Hours (H4)
  • Long-term: Daily (D1), Weekly (W1), and Monthly (MN1)

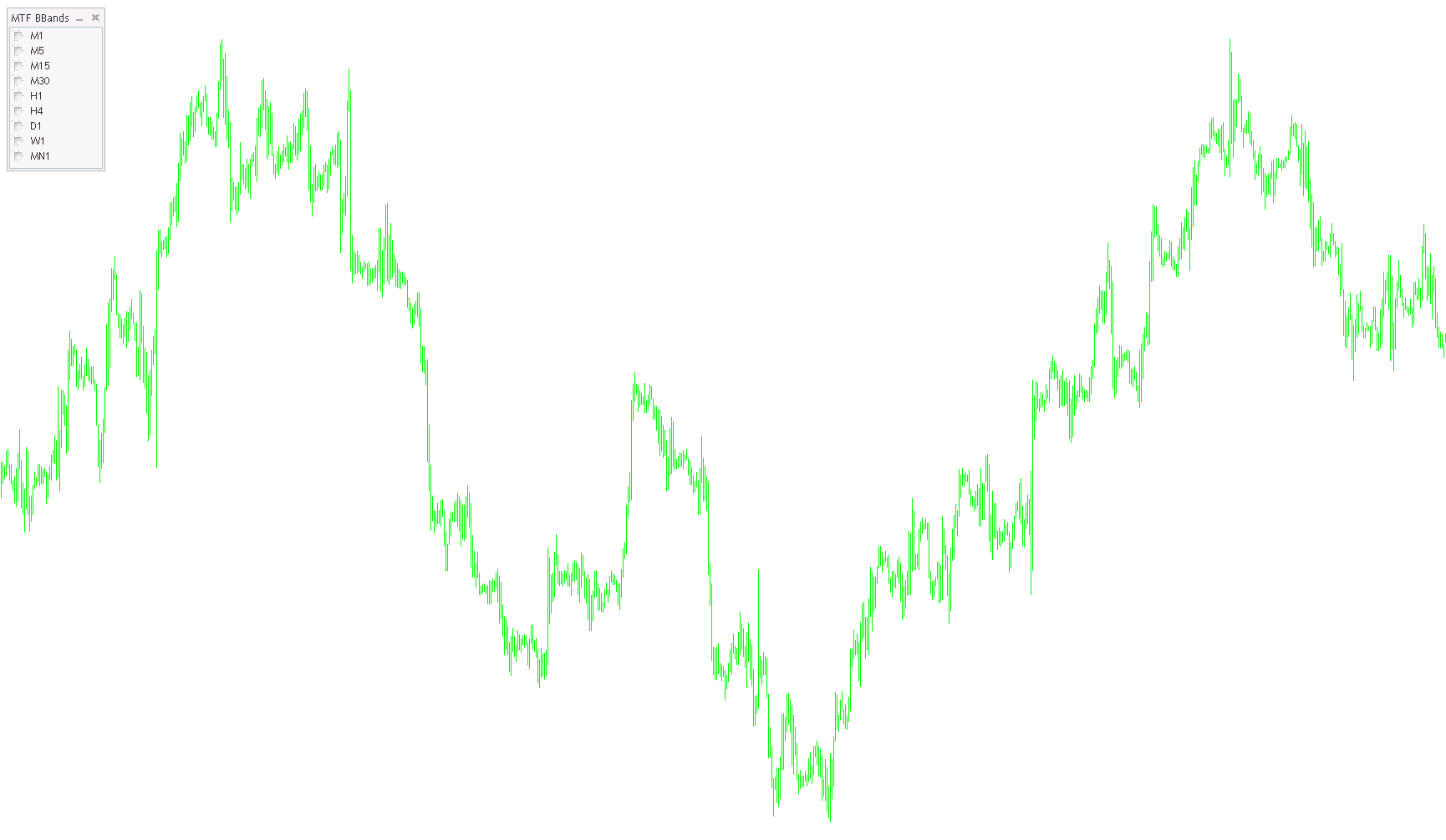

2. Interactive User Interface (Control Panel)

Instead of cluttering your screen with every possible timeframe at once, the script includes a professional graphical user interface (GUI). This is a pop-up menu on your chart that allows you to:

  • Toggle Visibility: You can check or uncheck specific timeframes to show or hide their respective bands instantly.
  • Dynamic Updating: When you interact with the menu, the script automatically updates the chart, drawing or removing the lines based on your selection.

3. Dynamic Labeling

To ensure the chart remains readable and organized, the script includes an automated labeling system. When a timeframe is enabled via the menu, the tool creates text labels (e.g., "H1 Upper Band", "D1 Main Band") next to the corresponding lines. This ensures you always know exactly which line belongs to which timeframe without having to guess.

4. Data Persistence

The script includes a "memory" feature. It is designed to save your personal preferences—specifically, which timeframes you have selected as "active"—into a local data file. This means that when you restart your trading platform, the tool will remember your previous settings and restore your chosen view automatically.

How it Works for the Trader

When you load this tool, it performs a series of background calculations:

  1. Data Retrieval: It scans the history of the various timeframes.
  2. Mapping: It aligns those historical timeframes with the current time on your active chart.
  3. Rendering: It draws the bands as dots or lines (depending on your settings) and places them accurately on your price candles.
  4. Real-time Updates: The script constantly refreshes these calculations to ensure the bands move in sync with live market prices.
Indicators Used
Bollinger bands indicator
Miscellaneous
Implements a curve of type %1Uses files from the file systemIt writes information to fileIt reads information from a file
9 Views
1 Downloads
0 Favorites
FXTT_MTF_BollingerBands
//+------------------------------------------------------------------+
//|                                      FXTT_MTF_BollingerBands.mq4 |
//|                                  Copyright 2016, Carlos Oliveira |
//|                                         http://carlosoliveira.me |
//+------------------------------------------------------------------+
#property copyright "Copyright 2016, Carlos Oliveira"
#property link      "http://forextradingtools.x10host.com/"
#property version   "1.00"
#property strict
#property indicator_chart_window
#property indicator_buffers 27

#include <Controls\Dialog.mqh>
#include <Controls\CheckGroup.mqh>

/*
#property indicator_color1    clrRoyalBlue
#property indicator_width1    1
#property indicator_style1    STYLE_DOT

#property indicator_color2    clrMediumSeaGreen
#property indicator_width2    1
#property indicator_style2    STYLE_DOT

#property indicator_color3    clrTomato
#property indicator_width3    1
#property indicator_style3    STYLE_DOT

#property indicator_color4    clrRoyalBlue
#property indicator_width4    1
#property indicator_style4    STYLE_DOT

#property indicator_color5    clrMediumSeaGreen
#property indicator_width5    1
#property indicator_style5    STYLE_DOT

#property indicator_color6    clrTomato
#property indicator_width6    1
#property indicator_style6    STYLE_DOT

#property indicator_color7    clrRoyalBlue
#property indicator_width7    1
#property indicator_style7    STYLE_DOT

#property indicator_color8    clrMediumSeaGreen
#property indicator_width8    1
#property indicator_style8    STYLE_DOT

#property indicator_color9    clrTomato
#property indicator_width9    1
#property indicator_style9    STYLE_DOT

#property indicator_color10    clrRoyalBlue
#property indicator_width10    1
#property indicator_style10    STYLE_DOT

#property indicator_color11    clrMediumSeaGreen
#property indicator_width11    1
#property indicator_style11    STYLE_DOT

#property indicator_color12    clrTomato
#property indicator_width12    1
#property indicator_style12    STYLE_DOT

#property indicator_color13    clrRoyalBlue
#property indicator_width13    1
#property indicator_style13    STYLE_DOT

#property indicator_color14    clrMediumSeaGreen
#property indicator_width14    1
#property indicator_style14    STYLE_DOT

#property indicator_color15    clrTomato
#property indicator_width15    1
#property indicator_style15    STYLE_DOT

#property indicator_color16    clrTomato
#property indicator_width16    1
#property indicator_style16    STYLE_DOT

#property indicator_color17    clrTomato
#property indicator_width17    1
#property indicator_style17    STYLE_DOT

#property indicator_color18    clrTomato
#property indicator_width18    1
#property indicator_style18    STYLE_DOT

#property indicator_color19    clrTomato
#property indicator_width19    1
#property indicator_style19    STYLE_DOT

#property indicator_color20    clrTomato
#property indicator_width20    1
#property indicator_style20    STYLE_DOT

#property indicator_color21    clrTomato
#property indicator_width21    1
#property indicator_style21    STYLE_DOT

#property indicator_color22    clrTomato
#property indicator_width22    1
#property indicator_style22    STYLE_DOT

#property indicator_color23    clrTomato
#property indicator_width23    1
#property indicator_style23    STYLE_DOT

#property indicator_color24    clrTomato
#property indicator_width24    1
#property indicator_style24    STYLE_DOT

#property indicator_color25    clrTomato
#property indicator_width25    1
#property indicator_style25    STYLE_DOT

#property indicator_color26    clrTomato
#property indicator_width26    1
#property indicator_style26    STYLE_DOT

#property indicator_color27    clrTomato
#property indicator_width27    1
#property indicator_style27    STYLE_DOT
*/

extern int BBPeriod=20;                         //Bollinger Bands Period
extern int BBDeviations=2;                      //Bollinger Bands Deviations
extern int BBShift=0;                           //Bollinger Bands Shift

extern ENUM_LINE_STYLE UpperStyle = STYLE_DOT;  //Upper Band line style
extern int UpperLineWidth = 1;                  //Upper Band line width
extern color UpperLineColor = clrPurple;        //Upper Band line color

extern ENUM_LINE_STYLE MainStyle = STYLE_DOT;   //Main Band line style
extern int MainLineWidth = 1;                   //Main Band line style
extern color MainLineColor = clrRed;            //Main Band line style

extern ENUM_LINE_STYLE LowerStyle = STYLE_DOT;  //Lower Band line style
extern int LowerLineWidth = 1;                  //Lower Band line style
extern color LowerLineColor = clrPurple;        //Lower Band line style

//+------------------------------------------------------------------+
//| defines                                                          |
//+------------------------------------------------------------------+
//--- indents and gaps
#define INDENT_LEFT                         (11)      // indent from left (with allowance for border width)
#define INDENT_TOP                          (11)      // indent from top (with allowance for border width)
#define INDENT_RIGHT                        (11)      // indent from right (with allowance for border width)
#define INDENT_BOTTOM                       (11)      // indent from bottom (with allowance for border width)
#define CONTROLS_GAP_X                      (5)       // gap by X coordinate
#define CONTROLS_GAP_Y                      (5)       // gap by Y coordinate
//--- for group controls
#define GROUP_WIDTH                         (230)     // size by X coordinate
#define GROUP_HEIGHT                        (57)      // size by Y coordinate

string  DataFileName="data.bin";                // File name
string  DataDirectoryName="MTFBBands";   // Folder name
//+------------------------------------------------------------------+
//| Class CPanelDialog                                               |
//| Usage: main dialog of the SimplePanel application                |
//+------------------------------------------------------------------+
class CPanelDialog : public CAppDialog
  {
private:
   CCheckGroup       m_check_group;                   // the check box group object
public:
   bool              mM1;
   bool              mM5;
   bool              mM15;
   bool              mM30;
   bool              mH1;
   bool              mH4;
   bool              mD1;
   bool              mW1;
   bool              mMN1;

                     CPanelDialog(void);
                    ~CPanelDialog(void);
   //--- create
   virtual bool      Create(const long chart,const string name,const int subwin,const int x1,const int y1,const int x2,const int y2);
   //--- chart event handler
   virtual bool      OnEvent(const int id,const long &lparam,const double &dparam,const string &sparam);
   void              WriteIndicatorsData(void);
   void              ReadIndicatorsData(void);
   void              DrawIndicatorsData(void);
protected:
   //--- create dependent controls
   bool              CreateCheckGroup(void);
   //--- internal event handlers
   virtual bool      OnResize(void);
   //--- handlers of the dependent controls events
   void              OnChangeCheckGroup(void);
   //-- Draw the text labels
   void              DrawLabels();
   bool              OnDefault(const int id,const long &lparam,const double &dparam,const string &sparam);
  };
//+------------------------------------------------------------------+
//| Event Handling                                                   |
//+------------------------------------------------------------------+
EVENT_MAP_BEGIN(CPanelDialog)
ON_EVENT(ON_CHANGE,m_check_group,OnChangeCheckGroup)
ON_OTHER_EVENTS(OnDefault)
EVENT_MAP_END(CAppDialog)
//+------------------------------------------------------------------+
//| Constructor                                                      |
//+------------------------------------------------------------------+
CPanelDialog::CPanelDialog(void)
  {
  }
//+------------------------------------------------------------------+
//| Destructor                                                       |
//+------------------------------------------------------------------+
CPanelDialog::~CPanelDialog(void)
  {
   WriteIndicatorsData();
  }
//+------------------------------------------------------------------+
//| Create                                                           |
//+------------------------------------------------------------------+
bool CPanelDialog::Create(const long chart,const string name,const int subwin,const int x1,const int y1,const int x2,const int y2)
  {
   if(!CAppDialog::Create(chart,name,subwin,x1,y1,x2,y2))
      return(false);
//--- create dependent controls
   if(!CreateCheckGroup())
      return(false);

   mM1=false;
   mM5=false;
   mM15=false;
   mM30=false;
   mH1=false;
   mH4=false;
   mD1=false;
   mW1=false;
   mMN1=false;

   ReadIndicatorsData();

   m_check_group.Check(0, mM1);
   m_check_group.Check(1, mM5);
   m_check_group.Check(2, mM15);
   m_check_group.Check(3, mM30);
   m_check_group.Check(4,mH1);
   m_check_group.Check(5,mH4);
   m_check_group.Check(6,mD1);
   m_check_group.Check(7,mW1);
   m_check_group.Check(8,mMN1);

//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Create the "CheckGroup" element                                  |
//+------------------------------------------------------------------+
bool CPanelDialog::CreateCheckGroup(void)
  {
/*
   //--- coordinates
   int x1=INDENT_LEFT;
   int y1=INDENT_TOP;
   int x2=x1+GROUP_WIDTH;
   int y2=y1+GROUP_HEIGHT;
//--- create
   if(!m_check_group.Create(m_chart_id,m_name+"CheckGroup",m_subwin,x1,y1,x2,y2))
      return(false);
   if(!Add(m_check_group))
      return(false);
//--- fill out with strings
   if(!m_check_group.AddItem("Mail if Trade event",1<<0))
   */

   if(!m_check_group.Create(m_chart_id,m_name+"CheckGroup",m_subwin,0,0,112,170))
      return(false);
   if(!Add(m_check_group))
      return(false);

   if(!m_check_group.AddItem("M1",1<<0))
      return(false);
   if(!m_check_group.AddItem("M5",1<<1))
      return(false);
   if(!m_check_group.AddItem("M15",1<<2))
      return(false);
   if(!m_check_group.AddItem("M30",1<<3))
      return(false);
   if(!m_check_group.AddItem("H1",1<<4))
      return(false);
   if(!m_check_group.AddItem("H4",1<<5))
      return(false);
   if(!m_check_group.AddItem("D1",1<<6))
      return(false);
   if(!m_check_group.AddItem("W1",1<<7))
      return(false);
   if(!m_check_group.AddItem("MN1",1<<8))

      return(false);
//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Handler of resizing                                              |
//+------------------------------------------------------------------+
bool CPanelDialog::OnResize(void)
  {
//--- call method of parent class
   if(!CAppDialog::OnResize()) return(false);
//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Event handler                                                    |
//+------------------------------------------------------------------+
void CPanelDialog::OnChangeCheckGroup(void)
  {
   mM1=m_check_group.Check(0);
   mM5=m_check_group.Check(1);
   mM15=m_check_group.Check(2);
   mM30=m_check_group.Check(3);
   mH1=m_check_group.Check(4);
   mH4=m_check_group.Check(5);
   mD1=m_check_group.Check(6);
   mW1=m_check_group.Check(7);
   mMN1=m_check_group.Check(8);

   DrawIndicatorsData();
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CPanelDialog::DrawIndicatorsData()
  {
   if((mMN1))
     {
      SetIndexStyle(0,DRAW_LINE);
      SetIndexStyle(1,DRAW_LINE);
      SetIndexStyle(2,DRAW_LINE);
     }
   else
     {
      SetIndexStyle(0,DRAW_NONE);
      SetIndexStyle(1,DRAW_NONE);
      SetIndexStyle(2,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBMN");
     }

   if((mW1))
     {
      SetIndexStyle(3,DRAW_LINE);
      SetIndexStyle(4,DRAW_LINE);
      SetIndexStyle(5,DRAW_LINE);
        }else{
      SetIndexStyle(3,DRAW_NONE);
      SetIndexStyle(4,DRAW_NONE);
      SetIndexStyle(5,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBW1");
     }

   if((mD1))
     {
      SetIndexStyle(6,DRAW_LINE);
      SetIndexStyle(7,DRAW_LINE);
      SetIndexStyle(8,DRAW_LINE);
        }else{
      SetIndexStyle(6,DRAW_NONE);
      SetIndexStyle(7,DRAW_NONE);
      SetIndexStyle(8,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBD1");
     }

   if((mH4))
     {
      SetIndexStyle(9,DRAW_LINE);
      SetIndexStyle(10,DRAW_LINE);
      SetIndexStyle(11,DRAW_LINE);
        }else{
      SetIndexStyle(9,DRAW_NONE);
      SetIndexStyle(10,DRAW_NONE);
      SetIndexStyle(11,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBH4");
     }

   if((mH1))
     {
      SetIndexStyle(12,DRAW_LINE);
      SetIndexStyle(13,DRAW_LINE);
      SetIndexStyle(14,DRAW_LINE);
        }else{
      SetIndexStyle(12,DRAW_NONE);
      SetIndexStyle(13,DRAW_NONE);
      SetIndexStyle(14,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBH1");
     }

   if((mM30))
     {
      SetIndexStyle(15,DRAW_LINE);
      SetIndexStyle(16,DRAW_LINE);
      SetIndexStyle(17,DRAW_LINE);
        }else{
      SetIndexStyle(15,DRAW_NONE);
      SetIndexStyle(16,DRAW_NONE);
      SetIndexStyle(17,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBM30");
     }

   if((mM15))
     {
      SetIndexStyle(18,DRAW_LINE);
      SetIndexStyle(19,DRAW_LINE);
      SetIndexStyle(20,DRAW_LINE);
        }else{
      SetIndexStyle(18,DRAW_NONE);
      SetIndexStyle(19,DRAW_NONE);
      SetIndexStyle(20,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBM15");
     }

   if((mM5))
     {
      SetIndexStyle(21,DRAW_LINE);
      SetIndexStyle(22,DRAW_LINE);
      SetIndexStyle(23,DRAW_LINE);
        }else{
      SetIndexStyle(21,DRAW_NONE);
      SetIndexStyle(22,DRAW_NONE);
      SetIndexStyle(23,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBM5");
     }

   if((mM1))
     {
      SetIndexStyle(24,DRAW_LINE);
      SetIndexStyle(25,DRAW_LINE);
      SetIndexStyle(26,DRAW_LINE);
        }else{
      SetIndexStyle(24,DRAW_NONE);
      SetIndexStyle(25,DRAW_NONE);
      SetIndexStyle(26,DRAW_NONE);
      ObjectsDeleteAll(ChartID(),"BBM1");
     }

   DrawLabels();
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CPanelDialog::DrawLabels()
  {

   DrawPriceLabel(mM1,lblM1h,bufferM1BBh[0],"M1 Upper Band",UpperLineColor);
   DrawPriceLabel(mM1,lblM1m,bufferM1BBm[0],"M1 Main Band",MainLineColor);
   DrawPriceLabel(mM1,lblM1l,bufferM1BBl[0],"M1 Lower Band",LowerLineColor);

   DrawPriceLabel(mM5,lblM5h,bufferM5BBh[0],"M5 Upper Band",UpperLineColor);
   DrawPriceLabel(mM5,lblM5m,bufferM5BBm[0],"M5 Main Band",MainLineColor);
   DrawPriceLabel(mM5,lblM5l,bufferM5BBl[0],"M5 Lower Band",LowerLineColor);

   DrawPriceLabel(mM15,lblM15h,bufferM15BBh[0],"M15 Upper Band",UpperLineColor);
   DrawPriceLabel(mM15,lblM15m,bufferM15BBm[0],"M15 Main Band",MainLineColor);
   DrawPriceLabel(mM15,lblM15l,bufferM15BBl[0],"M15 Lower Band",LowerLineColor);

   DrawPriceLabel(mM30,lblM30h,bufferM30BBh[0],"M30 Upper Band",UpperLineColor);
   DrawPriceLabel(mM30,lblM30m,bufferM30BBm[0],"M30 Main Band",MainLineColor);
   DrawPriceLabel(mM30,lblM30l,bufferM30BBl[0],"M30 Lower Band",LowerLineColor);

   DrawPriceLabel(mH1,lblH1h,bufferH1BBh[0],"H1 Upper Band",UpperLineColor);
   DrawPriceLabel(mH1,lblH1m,bufferH1BBm[0],"H1 Main Band",MainLineColor);
   DrawPriceLabel(mH1,lblH1l,bufferH1BBl[0],"H1 Lower Band",LowerLineColor);

   DrawPriceLabel(mH4,lblH4h,bufferH4BBh[0],"H4 Upper Band",UpperLineColor);
   DrawPriceLabel(mH4,lblH4m,bufferH4BBm[0],"H4 Main Band",MainLineColor);
   DrawPriceLabel(mH4,lblH4l,bufferH4BBl[0],"H4 Lower Band",LowerLineColor);

   DrawPriceLabel(mD1,lblD1h,bufferD1BBh[0],"D1 Upper Band",UpperLineColor);
   DrawPriceLabel(mD1,lblD1m,bufferD1BBm[0],"D1 Main Band",MainLineColor);
   DrawPriceLabel(mD1,lblD1l,bufferD1BBl[0],"D1 Lower Band",LowerLineColor);

   DrawPriceLabel(mW1,lblW1h,bufferW1BBh[0],"W1 Upper Band",UpperLineColor);
   DrawPriceLabel(mW1,lblW1m,bufferW1BBm[0],"W1 Main Band",MainLineColor);
   DrawPriceLabel(mW1,lblW1l,bufferW1BBl[0],"W1 Lower Band",LowerLineColor);

   DrawPriceLabel(mMN1,lblMN1h,bufferMN1BBh[0],"MN1 Upper Band",UpperLineColor);
   DrawPriceLabel(mMN1,lblMN1m,bufferMN1BBm[0],"MN1 Main Band",MainLineColor);
   DrawPriceLabel(mMN1,lblMN1l,bufferMN1BBl[0],"MN1 Lower Band",LowerLineColor);
  }
//+------------------------------------------------------------------+
//| Rest events handler                                                    |
//+------------------------------------------------------------------+
bool CPanelDialog::OnDefault(const int id,const long &lparam,const double &dparam,const string &sparam)
  {
//--- restore buttons' states after mouse move'n'click
//if(id==CHARTEVENT_CLICK)
//m_radio_group.RedrawButtonStates();
//--- let's handle event by parent
   return(false);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
//| Global Variables                                                 |
//+------------------------------------------------------------------+
CPanelDialog ExtDialog;

double bufferMN1BBh[];
double bufferMN1BBm[];
double bufferMN1BBl[];

double bufferW1BBh[];
double bufferW1BBm[];
double bufferW1BBl[];

double bufferD1BBh[];
double bufferD1BBm[];
double bufferD1BBl[];

double bufferH4BBh[];
double bufferH4BBm[];
double bufferH4BBl[];

double bufferH1BBh[];
double bufferH1BBm[];
double bufferH1BBl[];

double bufferM30BBh[];
double bufferM30BBm[];
double bufferM30BBl[];

double bufferM15BBh[];
double bufferM15BBm[];
double bufferM15BBl[];

double bufferM5BBh[];
double bufferM5BBm[];
double bufferM5BBl[];

double bufferM1BBh[];
double bufferM1BBm[];
double bufferM1BBl[];

int lblM1h,lblM1m,lblM1l;
int lblM5h,lblM5m,lblM5l;
int lblM15h,lblM15m,lblM15l;
int lblM30h,lblM30m,lblM30l;
int lblH1h,lblH1m,lblH1l;
int lblH4h,lblH4m,lblH4l;
int lblD1h,lblD1m,lblD1l;
int lblW1h,lblW1m,lblW1l;
int lblMN1h,lblMN1m,lblMN1l;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
   ObjectsDeleteAll(ChartID(),"MTF BBands");

   InitBuffers();

//--- create application dialog
   if(!ExtDialog.Create(0,"MTF BBands",0,10,10,130,208))
      //if(!ExtDialog.Create(0,"MTF BBands",0,10,10,230,308))
      return(INIT_FAILED);
//--- run application
   if(!ExtDialog.Run())
      return(INIT_FAILED);
//--- ok

   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   ObjectsDeleteAll(ChartID(),"MTF BBands");

//--- destroy application dialog
   ExtDialog.Destroy(reason);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
// Call function ManageEvents on every MT4 tick
   RunIndicators();

   ExtDialog.DrawIndicatorsData();

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
  {
//---

//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+
//| ChartEvent function                                              |
//+------------------------------------------------------------------+
void OnChartEvent(const int id,
                  const long &lparam,
                  const double &dparam,
                  const string &sparam)
  {
   ExtDialog.ChartEvent(id,lparam,dparam,sparam);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
void InitBuffers()
  {

   AddBuffer(0,bufferMN1BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"MN1 BB Upper");
   AddBuffer(1,bufferMN1BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"MN1 BB Main");
   AddBuffer(2,bufferMN1BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"MN1 BB Lower");

   AddBuffer(3,bufferW1BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"W1 BB Upper");
   AddBuffer(4,bufferW1BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"W1 BB Main");
   AddBuffer(5,bufferW1BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"W1 BB Lower");

   AddBuffer(6,bufferD1BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"D1 BB Upper");
   AddBuffer(7,bufferD1BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"D1 BB Main");
   AddBuffer(8,bufferD1BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"D1 BB Lower");

   AddBuffer(9,bufferH4BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"H4 BB Upper");
   AddBuffer(10,bufferH4BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"H4 BB Main");
   AddBuffer(11,bufferH4BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"H4 BB Lower");

   AddBuffer(12,bufferH1BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"H1 BB Upper");
   AddBuffer(13,bufferH1BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"H1 BB Main");
   AddBuffer(14,bufferH1BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"H1 BB Lower");

   AddBuffer(15,bufferM30BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"M30 BB Upper");
   AddBuffer(16,bufferM30BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"M30 BB Main");
   AddBuffer(17,bufferM30BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"M30 BB Lower");

   AddBuffer(18,bufferM15BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"M15 BB Upper");
   AddBuffer(19,bufferM15BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"M15 BB Main");
   AddBuffer(20,bufferM15BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"M15 BB Lower");

   AddBuffer(21,bufferM5BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"M5 BB Upper");
   AddBuffer(22,bufferM5BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"M5 BB Main");
   AddBuffer(23,bufferM5BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"M5 BB Lower");

   AddBuffer(24,bufferM1BBh,DRAW_NONE,UpperStyle,UpperLineWidth,UpperLineColor,"M1 BB Upper");
   AddBuffer(25,bufferM1BBm,DRAW_NONE,MainStyle,MainLineWidth,MainLineColor,"M1 BB Main");
   AddBuffer(26,bufferM1BBl,DRAW_NONE,LowerStyle,LowerLineWidth,LowerLineColor,"M1 BB Lower");
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void AddBuffer(int idx,double &buffer[],int type,int style=EMPTY,int width=EMPTY,color clr=clrNONE,string text="")
  {
   SetIndexBuffer(idx,buffer);
   SetIndexStyle(idx,type,style,width,clr);
   SetIndexLabel(idx,text);
  }
//+------------------------------------------------------------------+
int RunIndicators()
  {
   int limit;
   int counted_bars=IndicatorCounted();
   datetime tfMN1[],tfW1[],tfD1[],tfH4[],tfH1[],tfM30[],tfM15[],tfM5[],tfM1[];
   int iMN1=0,iW1=0,iD1=0,iH4=0,iH1=0,iM30=0,iM15=0,iM5=0,iM1=0;

//---- check for possible errors
   if(counted_bars<0)
      return(-1);

//---- the last counted bar will be recounted
   if(counted_bars>0)
      counted_bars--;

   ArrayCopySeries(tfMN1,MODE_TIME,Symbol(),PERIOD_MN1);
   ArrayCopySeries(tfW1,MODE_TIME,Symbol(),PERIOD_W1);
   ArrayCopySeries(tfD1,MODE_TIME,Symbol(),PERIOD_D1);
   ArrayCopySeries(tfH4,MODE_TIME,Symbol(),PERIOD_H4);
   ArrayCopySeries(tfH1,MODE_TIME,Symbol(),PERIOD_H1);
   ArrayCopySeries(tfM30,MODE_TIME,Symbol(),PERIOD_M30);
   ArrayCopySeries(tfM15,MODE_TIME,Symbol(),PERIOD_M15);
   ArrayCopySeries(tfM5,MODE_TIME,Symbol(),PERIOD_M5);
   ArrayCopySeries(tfM1,MODE_TIME,Symbol(),PERIOD_M1);

   limit=Bars-counted_bars;

//---- main loop
   for(int i=0; i<limit; i++)
     {
      if(iMN1<ArraySize(tfMN1) && Time[i]<tfMN1[iMN1]) iMN1++;
      if(iW1<ArraySize(tfW1) && Time[i]<tfW1[iW1]) iW1++;
      if(iD1<ArraySize(tfD1) && Time[i]<tfD1[iD1]) iD1++;
      if(iH4<ArraySize(tfH4) && Time[i]<tfH4[iH4]) iH4++;
      if(iH1<ArraySize(tfH1) && Time[i]<tfH1[iH1]) iH1++;
      if(iM30<ArraySize(tfM30) && Time[i]<tfM30[iM30]) iM30++;
      if(iM15<ArraySize(tfM15) && Time[i]<tfM15[iM15]) iM15++;
      if(iM5<ArraySize(tfM5) && Time[i]<tfM5[iM5]) iM5++;
      if(iM1<ArraySize(tfM1) && Time[i]<tfM1[iM1]) iM1++;

      bufferMN1BBh[i]   = iBands(NULL,PERIOD_MN1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iMN1);
      bufferMN1BBm[i]   = iBands(NULL,PERIOD_MN1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iMN1);
      bufferMN1BBl[i]   = iBands(NULL,PERIOD_MN1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iMN1);
      bufferW1BBh[i]    = iBands(NULL,PERIOD_W1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iW1);
      bufferW1BBm[i]    = iBands(NULL,PERIOD_W1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iW1);
      bufferW1BBl[i]    = iBands(NULL,PERIOD_W1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iW1);
      bufferD1BBh[i]    = iBands(NULL,PERIOD_D1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iD1);
      bufferD1BBm[i]    = iBands(NULL,PERIOD_D1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iD1);
      bufferD1BBl[i]    = iBands(NULL,PERIOD_D1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iD1);
      bufferH4BBh[i]    = iBands(NULL,PERIOD_H4,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iH4);
      bufferH4BBm[i]    = iBands(NULL,PERIOD_H4,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iH4);
      bufferH4BBl[i]    = iBands(NULL,PERIOD_H4,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iH4);
      bufferH1BBh[i]    = iBands(NULL,PERIOD_H1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iH1);
      bufferH1BBm[i]    = iBands(NULL,PERIOD_H1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iH1);
      bufferH1BBl[i]    = iBands(NULL,PERIOD_H1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iH1);
      bufferM30BBh[i]   = iBands(NULL,PERIOD_M30,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iM30);
      bufferM30BBm[i]   = iBands(NULL,PERIOD_M30,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iM30);
      bufferM30BBl[i]   = iBands(NULL,PERIOD_M30,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iM30);
      bufferM15BBh[i]   = iBands(NULL,PERIOD_M15,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iM15);
      bufferM15BBm[i]   = iBands(NULL,PERIOD_M15,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iM15);
      bufferM15BBl[i]   = iBands(NULL,PERIOD_M15,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iM15);
      bufferM5BBh[i]    = iBands(NULL,PERIOD_M5,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iM5);
      bufferM5BBm[i]    = iBands(NULL,PERIOD_M5,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iM5);
      bufferM5BBl[i]    = iBands(NULL,PERIOD_M5,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iM5);
      bufferM1BBh[i]    = iBands(NULL,PERIOD_M1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_UPPER,iM1);
      bufferM1BBm[i]    = iBands(NULL,PERIOD_M1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_MAIN,iM1);
      bufferM1BBl[i]    = iBands(NULL,PERIOD_M1,BBPeriod,BBDeviations,BBShift,PRICE_CLOSE,MODE_LOWER,iM1);
     }
   return(0);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void DrawPriceLabel(bool show,int lblHwnd,double price,string text,color foreground,color background=clrLightGray)
  {
   string name="MTF BBands"+text;
   ObjectDelete(0,name);
   if(show)
     {
      int x,y;
      datetime fwdTime;
      int      window=0;

      ChartTimePriceToXY(0,0,Time[0],price,x,y);
      x = x + 30;
      y = y - 8;
      ChartXYToTimePrice(0,x,y,window,fwdTime,price);

      ObjectCreate(name,OBJ_TEXT,0,fwdTime,price);
      ObjectSetText(name,text,9,"Verdana",foreground);
      ObjectSet(name,OBJPROP_CORNER,0);
      ObjectSet(name,OBJPROP_XDISTANCE,250);
      ObjectSet(name,OBJPROP_YDISTANCE,20);
     }
  }
//+------------------------------------------------------------------+

void CPanelDialog::WriteIndicatorsData()
  {
   bool arr[9];
   string path=DataDirectoryName+"//"+Symbol()+DataFileName;

   arr[0] = mM1;
   arr[1] = mM5;
   arr[2] = mM15;
   arr[3] = mM30;
   arr[4] = mH1;
   arr[5] = mH4;
   arr[6] = mD1;
   arr[7] = mW1;
   arr[8] = mMN1;

//--- open the file
   ResetLastError();
   int handle = FileOpen(path,FILE_READ|FILE_WRITE|FILE_BIN);
   if(handle != INVALID_HANDLE)
     {
      //--- write array data
      FileWriteArray(handle,arr);
      //--- close the file
      FileClose(handle);
     }
   else
     {
      Print("Failed to open the file, error: "+(string) GetLastError());
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CPanelDialog::ReadIndicatorsData()
  {
   bool arr[];
   string path=DataDirectoryName+"//"+Symbol()+DataFileName;

//--- open the file
   ResetLastError();
   int file_handle = FileOpen(path,FILE_READ|FILE_BIN);
   if(file_handle != INVALID_HANDLE)
     {
      //--- read all data from the file to the array
      FileReadArray(file_handle,arr);
      int size=ArraySize(arr);

      mM1 = arr[0];
      mM5 = arr[1];
      mM15 = arr[2];
      mM30 = arr[3];
      mH1 = arr[4];
      mH4 = arr[5];
      mD1 = arr[6];
      mW1 = arr[7];
      mMN1= arr[8];

      //--- close the file
      FileClose(file_handle);
     }
   else
     {
      Print("File open failed, error: "+(string) GetLastError());
     }

  }
//+------------------------------------------------------------------+

Similar scripts

FXTT_MTF_TripleMA

demo_fileisending

demo_filereadarray

report2set_codebase

demo_filecopy

grabweb2

The script utilizes Windows Internet (wininet.dll) libraries to fetch live economic calendar HTML data from a remote URL and persist it into a local daily timestamped file.

GroupOfHistory

This script parses historical trade data to cluster performance metrics, including profit, drawdown, and trade counts, into a structured CSV file based on specific criteria like magic numbers, symbols, or operation types.

Graphics editor MT4

Urdala_News

Options_levels_and_VolunsXR_online_beta_V21

demo_filewriteinteger

Comments
