Heiken_Ashi_Ma_T3_2009

Download script
Author: Copyright � 2006, Forex-TSD.com
Heiken_Ashi_Ma_T3_2009

This script is a specialized technical analysis tool designed to smooth out market price data and provide clear visual signals for trading trends. It combines several advanced mathematical concepts to filter out "market noise," making it easier to identify the underlying direction of price movement.

Core Logic Overview

The indicator operates by taking standard market prices (the High, Low, Open, and Close of a candle) and processing them through two distinct layers of refinement:

1. Advanced Moving Averages (Smoothing) Instead of using simple averages, the script offers a choice between two smoothing methods. The primary focus is the T3 Moving Average, which is a sophisticated formula designed to reduce the "lag" typically found in standard moving averages while maintaining a very smooth line. By calculating weights based on specific constants, it creates a more responsive yet stable view of where the price is heading.

2. Heiken Ashi Integration The script then applies these smoothed values into a Heiken Ashi framework. Heiken Ashi is a type of price action chart that calculates "synthetic" prices to show momentum. By blending the smoothed moving average data with Heiken Ashi logic, the tool creates candles that are less erratic than standard ones, helping to highlight whether the current trend is bullish (upward) or bearish (downward).

Key Features and Functionality

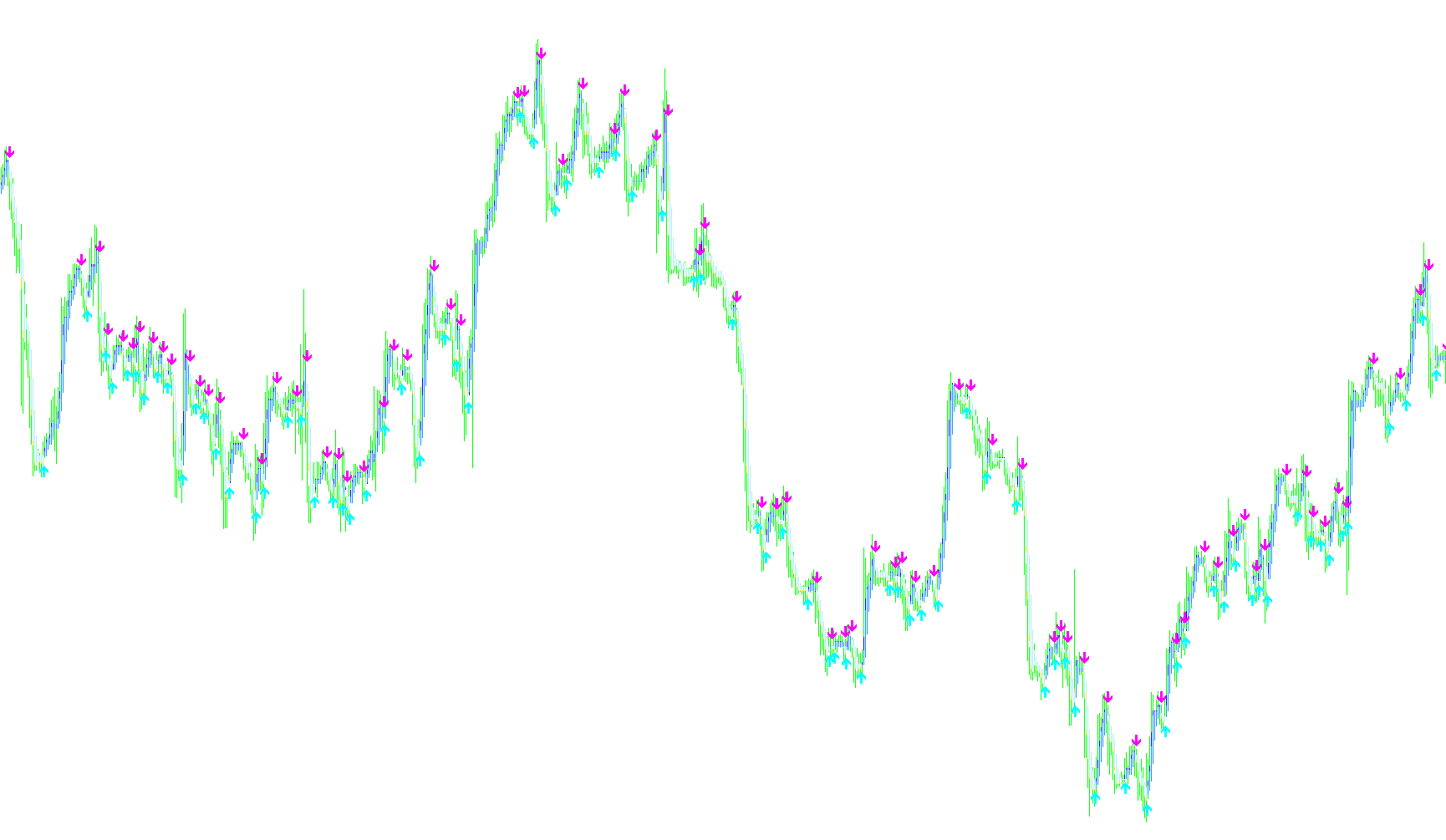

  • Trend Visualization: The indicator draws visual components on your chart to represent these smoothed price levels. It uses different colors and line thicknesses to help distinguish between different price data points, providing a clearer picture of market structure.
  • Volatility Filtering (The "Step" Logic): To prevent the indicator from reacting to tiny, insignificant price flickers, it includes a "Step" filter. This ensures that the displayed values only change when a significant move occurs, effectively ignoring minor noise that might trigger false signals.
  • Automated Signal Alerts: One of the primary functions of this script is its ability to identify trend reversals automatically. It monitors the relationship between the smoothed "Open" and "Close" prices:
    • Buy Signals: When the data suggests a transition from a downward trend to an upward move, the script places an arrow on the chart and can trigger an audible alert.
    • Sell Signals: When the data suggests a transition from an upward trend to a downward move, it places a corresponding arrow and triggers an alert.
  • State Management: The script is intelligent enough to ensure that alerts only fire once per trend change. This prevents the system from "spamming" you with notifications during a single ongoing move, only notifying you when a new direction is confirmed.

Summary for the User

In simple terms, this tool acts as a "filter." It takes messy, jagged market movements and rounds them off into a smooth, readable trend using high-level mathematics. It then watches those smoothed lines for specific "crosses" or shifts in momentum, notifying you exactly when the trend appears to be flipping from up to down (or vice versa).

Price Data Components
Series array that contains open time of each bar
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
11 Views
0 Downloads
0 Favorites
Heiken_Ashi_Ma_T3_2009
//+------------------------------------------------------------------+
//|                                            Heiken Ashi Ma T3.mq4 |
//+------------------------------------------------------------------+
//|                                                      mod by Raff |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Forex-TSD.com "
#property link      "http://www.forex-tsd.com/"

#property indicator_chart_window
#property indicator_buffers 6
#property indicator_color1 Red
#property indicator_color2 RoyalBlue
#property indicator_color3 Red
#property indicator_color4 RoyalBlue
#property indicator_color5 Yellow
#property indicator_color6 Aqua
#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 3
#property indicator_width4 3
#property indicator_width5 1
#property indicator_width6 1

//---- parameters
extern int MaPeriod = 10;
extern int MaMetod  = 2;
extern int Step = 10;
extern int CountBars = 1500;
extern bool UseT3 = true;
extern double b = 0.618;
extern bool Alerts = true;

//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double UpArrow[];
double DnArrow[];

//----
double e1,e2,e3,e4,e5,e6;
double c1,c2,c3,c4;
double n,w1,w2,b2,b3;
//----
int ExtCountedBars=0;
static bool TurnedUp = false;
static bool TurnedDown = false;
datetime timeprev=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//|------------------------------------------------------------------|
int init()
  {
//---- indicators
   IndicatorBuffers(6);
   SetIndexStyle(0,DRAW_HISTOGRAM);
   SetIndexBuffer(0, ExtMapBuffer1);
   SetIndexStyle(1,DRAW_HISTOGRAM);
   SetIndexBuffer(1, ExtMapBuffer2);
   SetIndexStyle(2,DRAW_HISTOGRAM);
   SetIndexBuffer(2, ExtMapBuffer3);
   SetIndexStyle(3,DRAW_HISTOGRAM);
   SetIndexBuffer(3, ExtMapBuffer4);
   SetIndexBuffer(4, UpArrow);
   SetIndexStyle(4,DRAW_ARROW);
   SetIndexArrow(4,233);
   SetIndexBuffer(5,DnArrow);
   SetIndexStyle(5,DRAW_ARROW);
   SetIndexArrow(5,234);


//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexBuffer(2,ExtMapBuffer3);
   SetIndexBuffer(3,ExtMapBuffer4);
   SetIndexBuffer(4,UpArrow);
   SetIndexBuffer(5,DnArrow);

//---- variable reset
    e1=0; e2=0; e3=0; e4=0; e5=0; e6=0;
    c1=0; c2=0; c3=0; c4=0;
    n=0;
    w1=0; w2=0;
    b2=0; b3=0;

    b2=b*b;
    b3=b2*b;
    c1=-b3;
    c2=(3*(b2+b3));
    c3=-3*(2*b2+b+b3);
    c4=(1+3*b+b3+3*b2);
    n=MaPeriod;

    if (n<1) n=1;
    n = 1 + 0.5*(n-1);
    w1 = 2 / (n + 1);
    w2 = 1 - w1;
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   if(timeprev<iTime(NULL,0,0)) {TurnedDown = false; TurnedUp = false;timeprev=iTime(NULL,0,0);}

   if (CountBars>Bars-1) CountBars=Bars-1;
   double maOpen, maClose, maLow, maHigh;
   double haOpen, haHigh, haLow, haClose;
   if(Bars<=10) return(0);
   //ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   //if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   //if (ExtCountedBars>0) ExtCountedBars--;

   int pos=CountBars;//-ExtCountedBars-1;
   while(pos>=0)
     {
    if (UseT3)
    {
      maOpen=CalcT3(Open[pos]);
      maClose=CalcT3(Close[pos]);
      maLow=CalcT3(Low[pos]);
      maHigh=CalcT3(High[pos]);
    }
    else
    if (!UseT3)
    {
      maOpen  = iMA(NULL,0,MaPeriod,0,MaMetod,PRICE_OPEN ,pos);
      maClose = iMA(NULL,0,MaPeriod,0,MaMetod,PRICE_CLOSE,pos);
      maLow   = iMA(NULL,0,MaPeriod,0,MaMetod,PRICE_LOW  ,pos);
      maHigh  = iMA(NULL,0,MaPeriod,0,MaMetod,PRICE_HIGH ,pos);
    }

      haClose=(maOpen+maHigh+maLow+maClose)/4;
      //haClose=(maOpen+maClose)/2+(((maClose-maOpen)/(maHigh-maLow))*MathAbs((maClose-maOpen)/2));
      haOpen=(ExtMapBuffer3[pos+1]+ExtMapBuffer4[pos+1])/2;
      haHigh=MathMax(maHigh, MathMax(haOpen, haClose));
      haLow=MathMin(maLow, MathMin(haOpen, haClose));

      if (haOpen<haClose)
        {
         ExtMapBuffer1[pos]=haLow;
         ExtMapBuffer2[pos]=haHigh;
        }
      else
        {
         ExtMapBuffer1[pos]=haHigh;
         ExtMapBuffer2[pos]=haLow;
        }
      ExtMapBuffer3[pos]=haOpen;
      ExtMapBuffer4[pos]=haClose;
      if (Step>0) if( MathAbs(ExtMapBuffer1[pos]-ExtMapBuffer1[pos+1]) < Step*Point ) ExtMapBuffer1[pos]=ExtMapBuffer1[pos+1];
      if (Step>0) if( MathAbs(ExtMapBuffer2[pos]-ExtMapBuffer2[pos+1]) < Step*Point ) ExtMapBuffer2[pos]=ExtMapBuffer2[pos+1];
      if (Step>0) if( MathAbs(ExtMapBuffer3[pos]-ExtMapBuffer3[pos+1]) < Step*Point ) ExtMapBuffer3[pos]=ExtMapBuffer3[pos+1];
      if (Step>0) if( MathAbs(ExtMapBuffer4[pos]-ExtMapBuffer4[pos+1]) < Step*Point ) ExtMapBuffer4[pos]=ExtMapBuffer4[pos+1];

    if (Alerts==true)
    {
        UpArrow[pos]=EMPTY_VALUE; DnArrow[pos]=EMPTY_VALUE;

        if (ExtMapBuffer3[pos]<ExtMapBuffer4[pos] && ExtMapBuffer4[pos+1]<ExtMapBuffer3[pos+1])
        {
           UpArrow[pos]=ExtMapBuffer4[pos+1]-(Ask-Bid);
           if (UpArrow[0]!=EMPTY_VALUE && TurnedUp==false)
           {
              Alert("HAMa  BUY:  ",Symbol()," - ",Period(),"  at  ", Close[0],"  -  ", TimeToStr(CurTime(),TIME_SECONDS));
              TurnedDown = false;
              TurnedUp = true;
           }
        }
        if (ExtMapBuffer3[pos]>ExtMapBuffer4[pos] && ExtMapBuffer4[pos+1]>ExtMapBuffer3[pos+1])
        {
           DnArrow[pos]=ExtMapBuffer4[pos+1]+(Ask-Bid);
           if (DnArrow[0]!=EMPTY_VALUE && TurnedDown==false)
           {
              Alert("HAMa SELL:  ",Symbol()," - ",Period(),"  at  ", Close[0],"  -  ", TimeToStr(CurTime(),TIME_SECONDS));
              TurnedUp = false;
              TurnedDown = true;
           }
        }
    }

 	   pos--;
     }
//----
   return(0);
  }

double CalcT3(double CalcPrice)
{
      e1 = w1*CalcPrice+w2*e1;
      e2 = w1*e1 + w2*e2;
      e3 = w1*e2 + w2*e3;
      e4 = w1*e3 + w2*e4;
      e5 = w1*e4 + w2*e5;
      e6 = w1*e5 + w2*e6;
      double T3=c1*e6 + c2*e5 + c3*e4 + c4*e3;
      return(T3);
}
//+------------------------------------------------------------------+
