Hist_StepMA_Stoch_KV1_Ex_03_v1

Download script
Author: Copyright � 2005, TrendLaboratory Ltd.
Hist_StepMA_Stoch_KV1_Ex_03_v1

This script is a technical analysis tool designed to visualize market trends and price momentum. Instead of using standard moving averages, it employs a "Step" logic combined with volatility measurements to identify the direction and strength of price movements.

Here is a breakdown of how the logic functions in non-technical terms:

Volatility Measurement

The script begins by analyzing a specific window of recent price history (defined by the PeriodWATR setting). It looks at the range between the highest and lowest prices reached during this time. It doesn't just look at the total distance; it applies a weighted calculation where more recent price action carries more significance than older data. This helps the tool understand how much "room" the market is moving in currently.

Dynamic Step Boundaries

Based on the volatility calculated above, the script establishes three different "step" levels: Minimum, Maximum, and Mid-range.

  • These steps act like invisible boundaries around the current price.
  • The width of these boundaries expands or contracts automatically depending on how volatile the market is. If the market becomes wilder, the steps widen; if the market becomes calm, the steps tighten.

Trend Detection

The script constantly checks where the current price sits in relation to these dynamic boundaries. It looks for "breakouts."

  • If the price pushes beyond a specific boundary, the script registers a change in trend direction (Positive or Negative).
  • By using three different sets of boundaries (Min, Max, and Mid), the tool can distinguish between aggressive momentum and more moderate price shifts.

Momentum Calculation (Stochastic Logic)

Once the trends are identified, the script converts these "steps" into a relative numerical value (similar to how a Stochastic Oscillator works). It calculates where the current trend sits within the total available range of movement.

  • It compares the "Minimum" trend level against the "Mid" trend level.
  • The difference between these two values determines the final output.

Visual Output

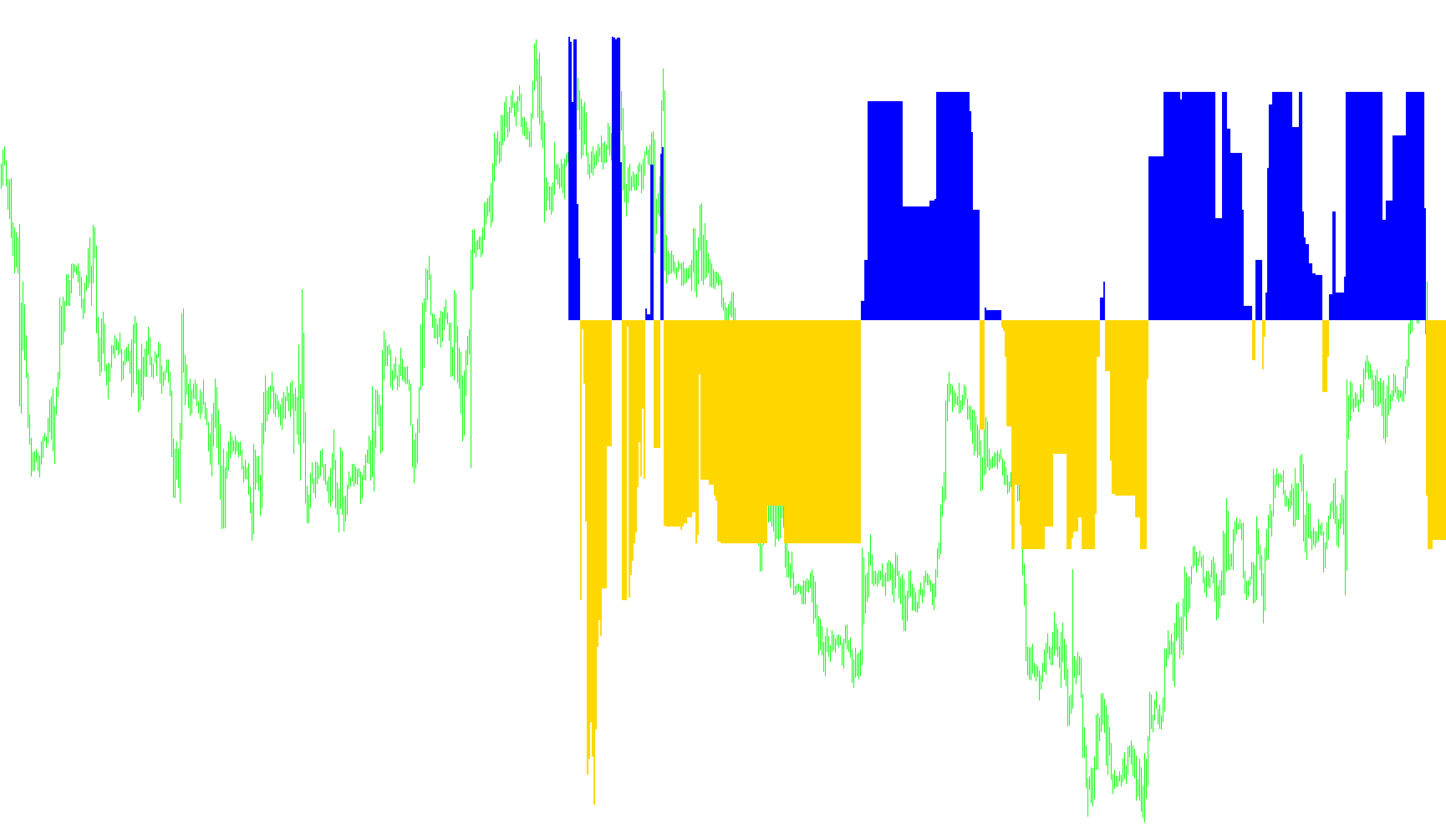

The result is displayed as two distinct histograms in a separate window:

  • One histogram represents the "minimum" momentum.
  • The other represents the "mid-range" momentum.

Essentially, the script filters out market noise by focusing on significant price "steps." It tells you not just where the price is going, but how strongly it is pushing against the current volatility limits of the market.

Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
Hist_StepMA_Stoch_KV1_Ex_03_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                             StepMA_Stoch_KV1.mq4 |
//|                           Copyright © 2005, TrendLaboratory Ltd. |
//|                                       E-mail: igorad2004@list.ru |
//|                           modified by Kalenzo -> simone@konto.pl |
//|                           modified by raduga  21.04.2006         |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, TrendLaboratory Ltd."
#property link      "E-mail: igorad2004@list.ru"

#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_color2 Green

//#property indicator_minimum -1
//#property indicator_maximum 1

//---- input parameters
extern int PeriodWATR=10;
extern double Kwatr=1.0000;
extern int HighLow=0;
extern int NumberOfBarsToCalculate = 500;
//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
  int init()
  {
 Comment("");
//---- indicator line
   SetIndexStyle(0,DRAW_HISTOGRAM,STYLE_SOLID,2);
   SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,2);
   SetIndexBuffer(0,LineMinBuffer);
   SetIndexBuffer(1,LineMidBuffer);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
   //short_name="StepMA Stoch("+PeriodWATR+","+Kwatr+","+HighLow+")";

   SetIndexLabel(0,"StepMA Stoch 1");
   SetIndexLabel(1,"StepMA Stoch 2");
//----
   SetIndexDrawBegin(0,PeriodWATR);
   SetIndexDrawBegin(1,PeriodWATR);
   /**
   *raduga:
   *USELESS !!!! Throws "ArrayInitialization" Exception !!!!
   **/
   //======================================================
   //ArrayInitialize(LineMinBuffer,0);
   //ArrayInitialize(LineMidBuffer,0);
   SetIndexEmptyValue(0,0.0);
   SetIndexEmptyValue(1,0.0);
   //=====================================================
//----
   return(0);
  }

//+------------------------------------------------------------------+
//| StepMA_3D_v1                                                         |
//+------------------------------------------------------------------+
int start()
  {
      string short_name;
      short_name = "Max bars to count: |"+(Bars-1)+"| ";
      IndicatorShortName(short_name);

   int      i,shift,TrendMin,TrendMax,TrendMid;
   double   SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
   double   SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
   double   linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
   //raduga : Variable theDelta - has a differense between two bsmin/max lines
   double theDelta;

   double prev_y = 0,prev_b = 0;

   for(shift=NumberOfBarsToCalculate-1;shift>=0;shift--)
   {
	SumRange=0;
	//raduga: initialization because of ZERO-DEVIDE ERROR
	//===============================
	Stoch1 = 0.0;
	Stoch2 = 0.0;
	//===============================
	for (i=PeriodWATR-1;i>=0;i--)
	    {
       dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
       //raduga: MathAbs has no sense ragarding High - Low... Probably Close - open !!!!
       //SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
       SumRange+= dK*(High[i+shift]-Low[i+shift]);
       }
	WATR0 = SumRange/PeriodWATR;

	WATRmax=MathMax(WATR0,WATRmax);
	if (shift==NumberOfBarsToCalculate-1-PeriodWATR) WATRmin=WATR0;
	WATRmin=MathMin(WATR0,WATRmin);

	int StepSizeMin=MathRound(Kwatr*WATRmin/Point);
	int StepSizeMax=MathRound(Kwatr*WATRmax/Point);
	int StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);

	if (HighLow>0)
	  {
	  SmaxMin0=Low[shift]+2*StepSizeMin*Point;
	  SminMin0=High[shift]-2*StepSizeMin*Point;

	  SmaxMax0=Low[shift]+2*StepSizeMax*Point;
	  SminMax0=High[shift]-2*StepSizeMax*Point;

	  SmaxMid0=Low[shift]+2*StepSizeMid*Point;
	  SminMid0=High[shift]-2*StepSizeMid*Point;

	  if(Close[shift]>SmaxMin1) TrendMin=1;
	  if(Close[shift]<SminMin1) TrendMin=-1;

	  if(Close[shift]>SmaxMax1) TrendMax=1;
	  if(Close[shift]<SminMax1) TrendMax=-1;

	  if(Close[shift]>SmaxMid1) TrendMid=1;
	  if(Close[shift]<SminMid1) TrendMid=-1;
	  }

	if (HighLow == 0)
	  {
	  SmaxMin0=Close[shift]+2*StepSizeMin*Point;
	  SminMin0=Close[shift]-2*StepSizeMin*Point;

	  SmaxMax0=Close[shift]+2*StepSizeMax*Point;
	  SminMax0=Close[shift]-2*StepSizeMax*Point;

	  SmaxMid0=Close[shift]+2*StepSizeMid*Point;
	  SminMid0=Close[shift]-2*StepSizeMid*Point;

	  if(Close[shift]>SmaxMin1) TrendMin=1;
	  if(Close[shift]<SminMin1) TrendMin=-1;

	  if(Close[shift]>SmaxMax1) TrendMax=1;
	  if(Close[shift]<SminMax1) TrendMax=-1;

	  if(Close[shift]>SmaxMid1) TrendMid=1;
	  if(Close[shift]<SminMid1) TrendMid=-1;
	  }

	  if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
	  if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;

	  if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
	  if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;

	  if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
	  if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;


	  if (TrendMin>0) linemin=SminMin0+StepSizeMin*Point;
	  if (TrendMin<0) linemin=SmaxMin0-StepSizeMin*Point;

	  if (TrendMax>0) linemax=SminMax0+StepSizeMax*Point;
	  if (TrendMax<0) linemax=SmaxMax0-StepSizeMax*Point;

	  if (TrendMid>0) linemid=SminMid0+StepSizeMid*Point;
	  if (TrendMid<0) linemid=SmaxMid0-StepSizeMid*Point;

	  bsmin=linemax-StepSizeMax*Point;
	  bsmax=linemax+StepSizeMax*Point;
	  //raduga: ZERO-DEVIDE-ERROR
	  //=============================
	  theDelta = bsmax-bsmin;
	  if(theDelta != 0)
	  {
	     Stoch1=NormalizeDouble((linemin-bsmin)/theDelta,6);
	     Stoch2=NormalizeDouble((linemid-bsmin)/theDelta,6);
	  }
	  //==============================
	  prev_y = (Stoch1 - Stoch2);
	  if(prev_y<0.0){
	     LineMinBuffer[shift] = prev_y;
	     LineMidBuffer[shift] = 0;
	     }
	  else if(prev_y>0.0){
	     LineMidBuffer[shift] = prev_y;
	     LineMinBuffer[shift] = 0;
	     }

	  //prev_y = Stoch1;
	  //prev_b = Stoch2;


	  SminMin1=SminMin0;
	  SmaxMin1=SmaxMin0;

	  SminMax1=SminMax0;
	  SmaxMax1=SmaxMax0;

	  SminMid1=SminMid0;
	  SmaxMid1=SmaxMid0;
	 }
	return(0);
 }
