JR_Trend_Indicator
Download scriptThe 4Hour Vegas Model - Weekly Chart Direction Calculator is a specialized technical analysis tool designed to help traders identify and visualize the underlying momentum of a currency pair or asset based on weekly trends. Rather than just showing you where the price is currently sitting, this script focuses on the velocity of the trend—measuring how quickly the market direction is shifting.
How the Logic Works
The script operates by analyzing two primary moving averages to establish a baseline for the market's "health" and "speed":
- Short-Term Momentum (SMA 5): A fast-moving average that reacts quickly to recent price changes.
- Medium-Term Trend (EMA 21): A slightly slower, smoothed average that represents the broader price flow.
By comparing these two indicators against each other, the tool calculates a "Difference Value." This value tells the trader how far the short-term momentum has pulled away from the medium-term trend.
Trend Velocity & Directional Analysis
The core intelligence of this script lies in its ability to compare the current difference with the previous difference. This allows it to distinguish between a stagnant market and an accelerating one:
- Upward Acceleration: If the gap between the short-term and medium-term trends is widening larger than it was in the previous period, the script identifies an "UP" direction.
- Downward Acceleration: If the gap is shrinking or becoming more negative compared to the previous period, the script identifies a "DOWN" direction.

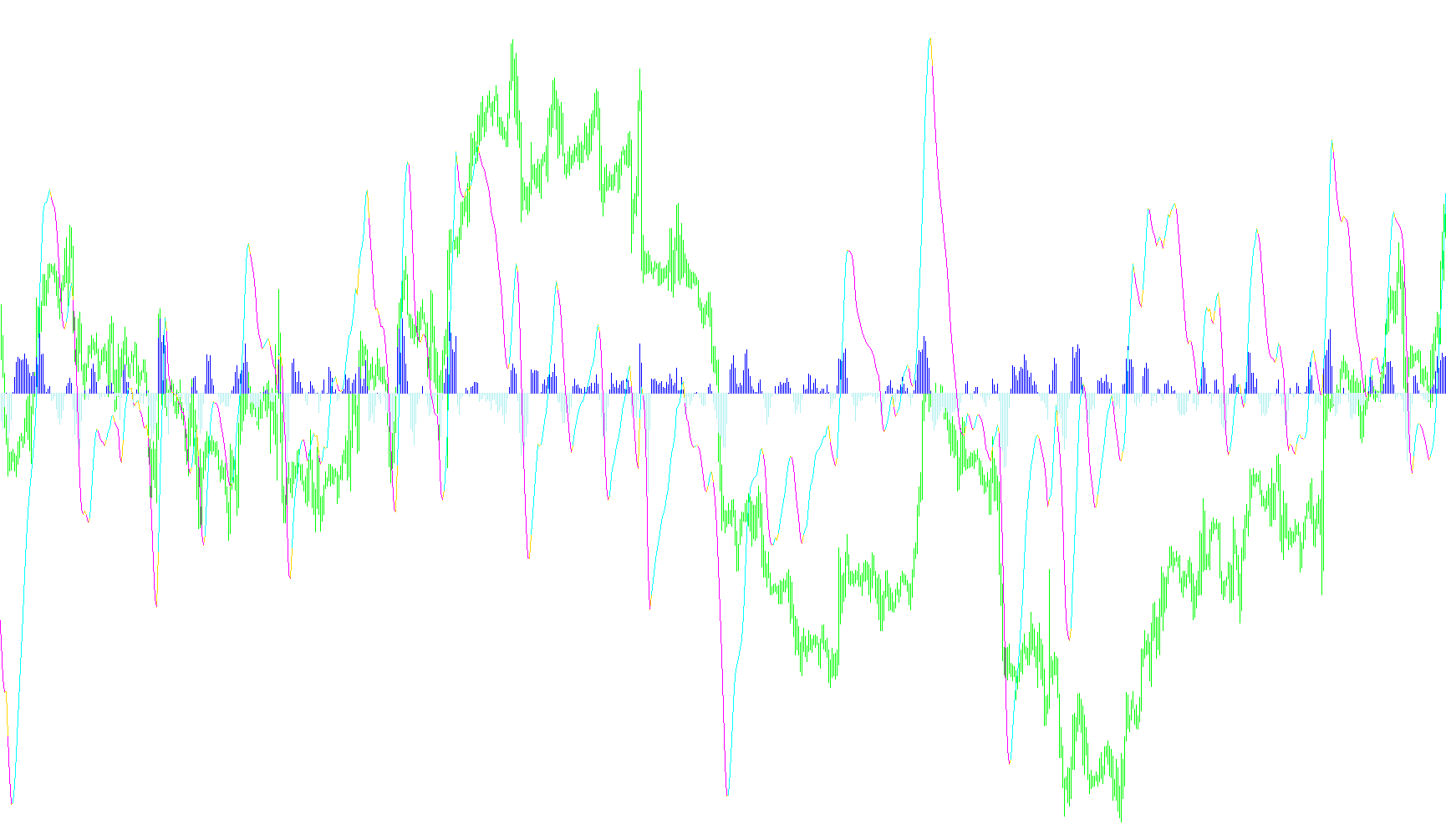

Visual Representation
To make this data easy to read at a glance, the script translates these calculations into a visual dashboard in a separate window:
- Continuous Lines & Histograms: The tool uses lines and bars to show the raw difference between the averages and the specific amount of momentum change occurring from one bar to the next.
- Directional Markers: The script specifically highlights "UP" and "DOWN" movements using distinct visual cues. When the trend is moving upward, it emphasizes the positive difference; when moving downward, it isolates the negative difference.
- Persistent Memory: Interestingly, the script includes a "Global Variable" feature. This means it can record and store the weekly direction for specific symbols, ensuring that the calculated trend data remains consistent as you navigate through different timeframes or chart views.
Summary for the Trader
Essentially, this tool acts as a momentum speedometer. It filters out the "noise" of minor price fluctuations and focuses on whether the market is actively gaining strength in one direction or losing it in another. By looking at the visual outputs, you can see not just if the market is moving, but how aggressively it is pushing toward its next destination.
//+------------------------------------------------------------------+
//| 4Hour Vegas Model - Weekly Chart Direction Calculator |
//| Spiggy |
//| |
//+------------------------------------------------------------------+
#property copyright "Jrich3"
#property link ""
#property indicator_separate_window
//#property indicator_buffers 4
#property indicator_buffers 6
#property indicator_color1 Yellow
#property indicator_color2 DarkGreen
#property indicator_color3 Maroon
//#property indicator_color4 Red
#property indicator_color5 Lime
#property indicator_color6 Red
//---- input parameters
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double ExtMapBuffer5[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexStyle(1,DRAW_HISTOGRAM);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexStyle(2,DRAW_HISTOGRAM);
SetIndexBuffer(2,ExtMapBuffer3);
SetIndexStyle(4,DRAW_LINE);
//SetIndexStyle(4,DRAW_ARROW,STYLE_SOLID,1);
SetIndexBuffer(4,ExtMapBuffer4);
SetIndexArrow(4,159);
SetIndexStyle(5,DRAW_LINE);
//SetIndexStyle(5,DRAW_ARROW,STYLE_SOLID,1);
SetIndexBuffer(5,ExtMapBuffer5);
SetIndexArrow(5,159);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit;
int i;
int counted_bars=IndicatorCounted();
double EMA21;
double SMA5;
double EMA21Prev;
double SMA5Prev;
string ValueIndex;
string Direction;
string KeyValue;
// Always prepare all of the information for the other indicators
if(counted_bars<0) return(-1);
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
//---- main loop
for(i=limit; i>=0; i--)
{
//---- Calculate the current weekly trend
EMA21=iMA(NULL,0,21,0,MODE_EMA,PRICE_MEDIAN,i);
SMA5 =iMA(NULL,0,5,0,MODE_SMA,PRICE_MEDIAN,i);
//---- Calculate the previous weekly trend
EMA21Prev=iMA(NULL,0,21,0,MODE_EMA,PRICE_MEDIAN,i+1);
SMA5Prev =iMA(NULL,0,5,0,MODE_SMA,PRICE_MEDIAN,i+1);
// Calculate the difference of the MAs
ExtMapBuffer1[i] = SMA5-EMA21;
// Calculate the difference of the MAs
if (((SMA5-EMA21) - (SMA5Prev-EMA21Prev)) > 0.0 )
{
ExtMapBuffer2[i] = (SMA5-EMA21) - (SMA5Prev-EMA21Prev);
ExtMapBuffer3[i] = 0.0;
Direction = "UP";
}
if (((SMA5-EMA21) - (SMA5Prev-EMA21Prev)) < 0.0 )
{
ExtMapBuffer2[i] = 0.0;
ExtMapBuffer3[i] = (SMA5-EMA21) - (SMA5Prev-EMA21Prev);
Direction = "DOWN";
}
// Calculate the start of the week and publish the value in a global variable
// Publish this with the previous Sunday as the index
ValueIndex = TimeToStr(Time[i]-TimeDayOfWeek(Time[i]),TIME_DATE);
KeyValue = Symbol() + "-ThisWeekDirection-" + ValueIndex;
if (! GlobalVariableCheck(KeyValue))
GlobalVariableSet(KeyValue, ((SMA5-EMA21) - (SMA5Prev-EMA21Prev)));
Print("Key: " + KeyValue + " = " + DoubleToStr(((SMA5-EMA21) - (SMA5Prev-EMA21Prev)),4));
customMethod(SMA5, EMA21, i, Direction );
}
// Comment("Line = SMA5-EMA21","\n","Histogram = Now - Previous");
return(0);
}
void customMethod(double SMA5, double EMA21, int index, string Direction)
{
double difference = SMA5-EMA21;
if (Direction == "DOWN")
{
ExtMapBuffer4[index] = EMPTY_VALUE;
ExtMapBuffer5[index] = difference;
}
if (Direction == "UP")
{
ExtMapBuffer4[index] = difference;
ExtMapBuffer5[index] = EMPTY_VALUE;
}
//EMPTY_VALUE
}
//+------------------------------------------------------------------+
