This script is a custom technical analysis tool designed to help traders visualize momentum and trend direction on a price chart. Instead of simply showing the raw price movement, it calculates a smoothed mathematical representation of the market's flow to highlight specific trends.
Core Logic and Functionality
Data Smoothing and Calculation The tool looks at a specific window of historical price data (defined by a user-set period). It doesn't just look at the most recent price; instead, it performs a weighted calculation over that timeframe. By applying a specific multiplier to different points within this window, the script generates a "weighted" value. This helps filter out minor market "noise"—those small, insignificant price fluctuations—to reveal the more significant underlying trend.
Trend Visualization The primary goal of the script is to provide a visual cue regarding whether the market momentum is increasing or decreasing. It compares the calculated value of the current moment against the value of the previous moment.
Dynamic Color Coding To make this information easy to read at a glance, the script uses a color-coded system:
- Trend Upward: When the calculation shows that momentum is moving higher than it was in the previous step, the indicator emphasizes the upward movement using a specific color (SeaGreen).
- Trend Downward: Conversely, if the calculation identifies that the momentum is dropping, it switches the visual representation to another color (Maroon/DarkKhaki).

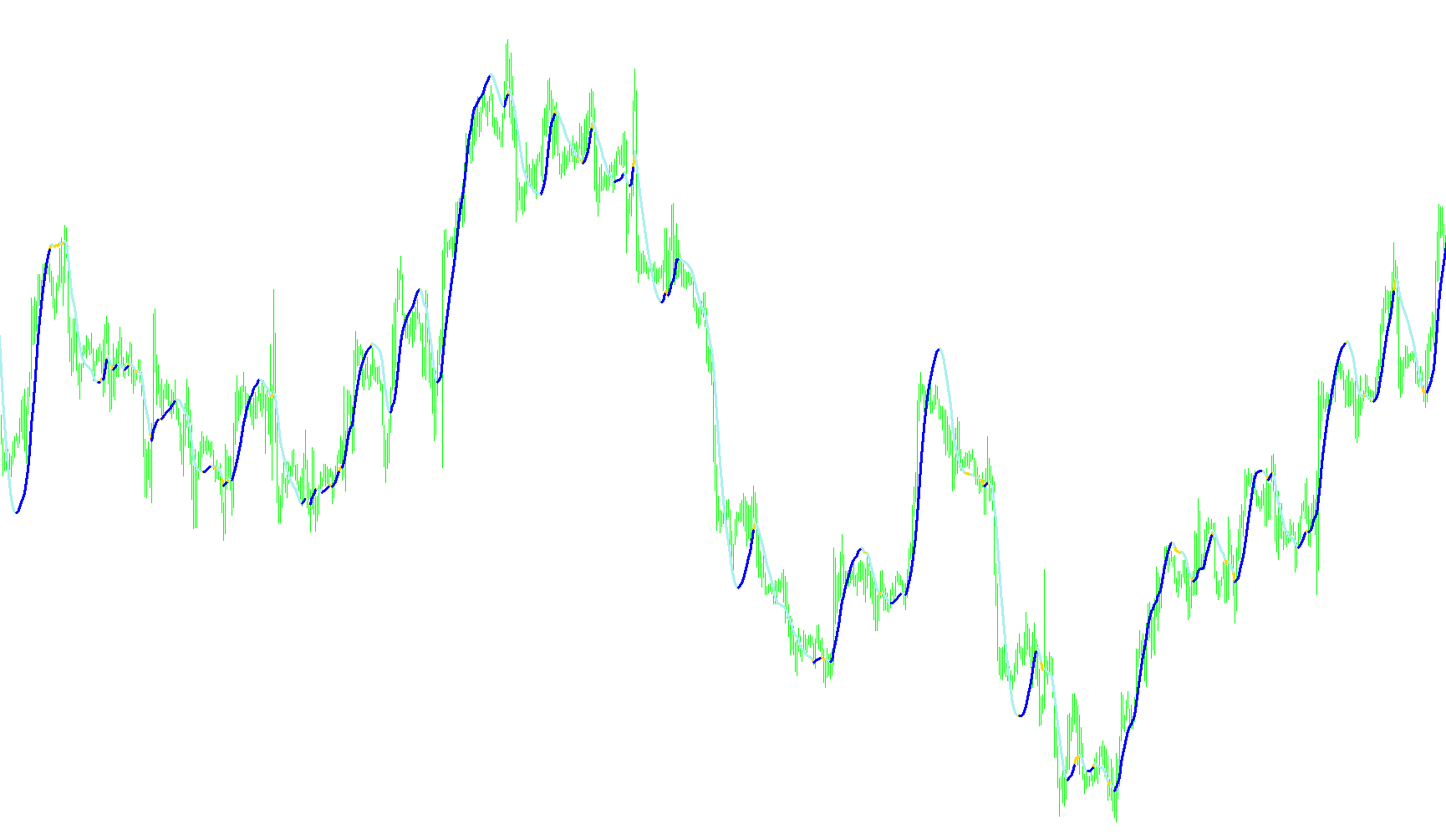

Visual Output The result on your chart is a continuous line that changes appearance based on the direction of the market. By observing these color shifts, a trader can more quickly identify when a trend is gaining strength or beginning to weaken, allowing for potentially faster identification of entry and exit points in the market.
//+------------------------------------------------------------------+
//| |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005"
#property link "http://www.metaquotes.net/"
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 DarkKhaki
#property indicator_color2 SeaGreen
#property indicator_color3 Maroon
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
int width;
extern int Rperiod = 25;
extern int Draw4HowLongg = 5000;
int Draw4HowLong;
int shift;
int i;
int loopbegin;
double sum[];
int length;
double lengthvar;
double tmp ;
double wt[];
int c;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- 2 additional buffers are used for counting.
IndicatorBuffers(5);
//---- drawing settings
SetIndexBuffer(2,ExtMapBuffer1);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexBuffer(0,ExtMapBuffer3);
SetIndexBuffer(3,sum);
SetIndexBuffer(4,wt);
SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,3);
SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,3);
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,3);
//---- initialization done
return(0);
}
int start()
{ Draw4HowLong = Bars-Rperiod - 5;
length = Rperiod;
loopbegin = Draw4HowLong - length - 1;
for(shift = loopbegin; shift >= 0; shift--)
{
sum[1] = 0;
for(i = length; i >= 1 ; i--)
{
lengthvar = length + 1;
lengthvar /= 3;
tmp = 0;
tmp = ( i - lengthvar)*Close[length-i+shift];
sum[1]+=tmp;
}
wt[shift] = sum[1]*6/(length*(length+1));
//========== COLOR CODING ===========================================
ExtMapBuffer3[shift] = wt[shift]; //red
ExtMapBuffer2[shift] = wt[shift]; //green
ExtMapBuffer1[shift] = wt[shift]; //yellow
// for(c=loopbegin;c==shift;c++)
// {
if (wt[shift+1] > wt[shift])
{
ExtMapBuffer2[shift+1] = EMPTY_VALUE;
// ObjectCreate("smiley_face", OBJ_ARROW, 0, Time[shift], Low[shift]-Point*20);
// Print("time= ",Time[shift]);
// ObjectSet("smiley_face", OBJPROP_ARROWCODE, 242);
// ObjectSet("smiley_face", OBJPROP_COLOR , Red);
// ObjectSet("smiley_face", OBJPROP_WIDTH , 1);
// ObjectsRedraw();
//ExtMapBuffer3[shift+1] = EMPTY_VALUE;
//ExtMapBuffer3[shift+1] = EMPTY_VALUE;
}
else if (wt[shift+1] < wt[shift])
{
ExtMapBuffer1[shift+1] = EMPTY_VALUE; //-1 red/greem tight
//ExtMapBuffer3[shift+1] = EMPTY_VALUE;
}
else
{
ExtMapBuffer1[shift+1]=CLR_NONE;//EMPTY_VALUE;
ExtMapBuffer2[shift+1]=CLR_NONE;//EMPTY_VALUE;
}
}
return(0);
}
//+------------------------------------------------------------------+
