MA_Crossover_Alert2

Download script
Author: Copyright � 2005, Jason Robinson (jnrtrading)
MA_Crossover_Alert2

This tool is designed for traders who use Moving Averages (MA) to identify trends in the financial markets. Its primary purpose is to visually identify and provide real-time notifications when two specific moving averages "cross" each other, which is a common technique used to signal potential changes in market momentum.

Core Functionality

The script monitors two distinct moving averages—a "Fast" average and a "Slow" average—simultaneously. Because price bars can often overlap or hide the exact point of intersection on a chart, this tool performs the following actions:

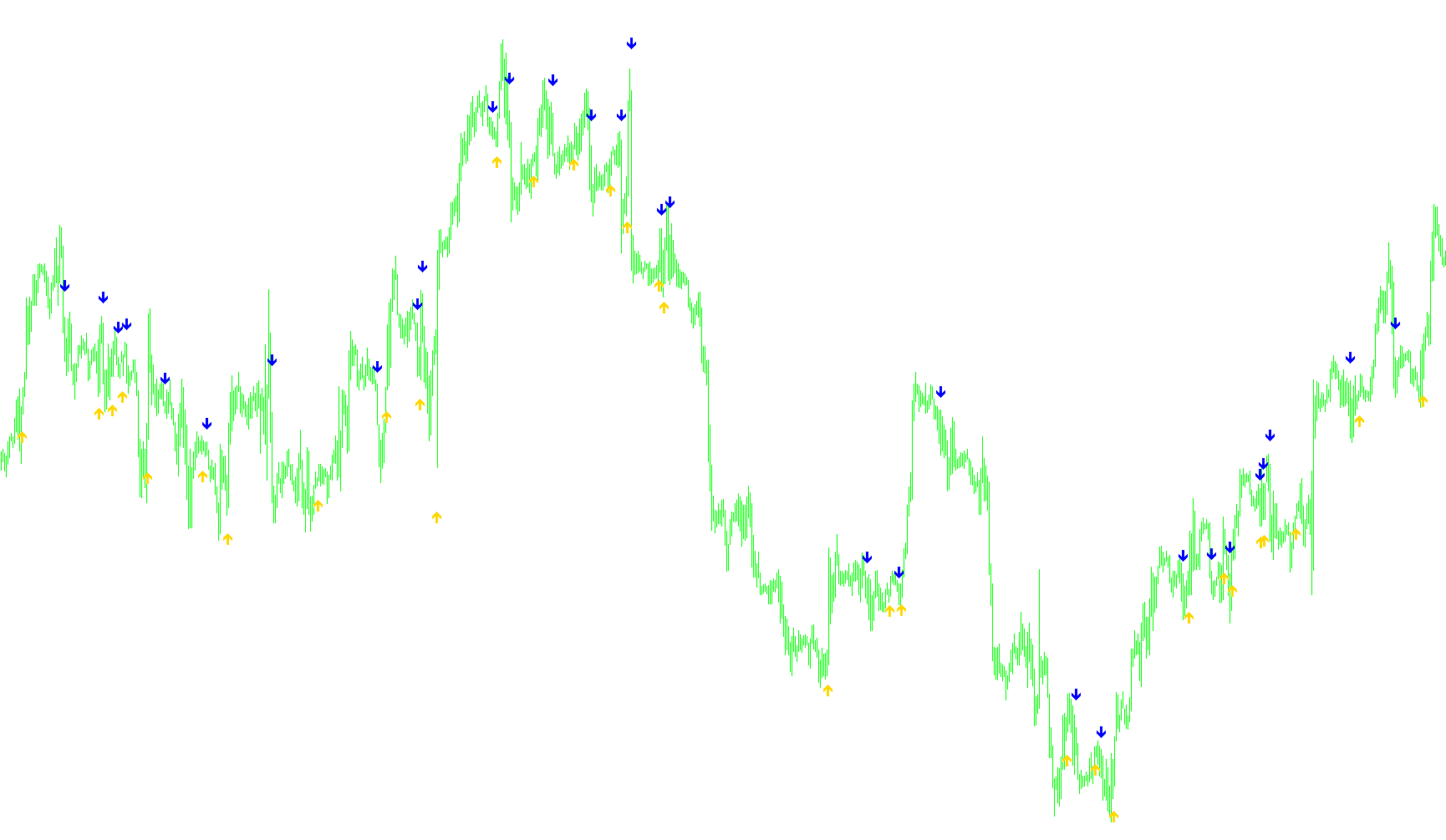

  • Visual Markers: It places specific visual symbols (arrows) directly on the chart at the exact moment the lines cross. This makes it easy to spot trend shifts even when zooming out or viewing fast-moving price action.
  • Dynamic Positioning: The markers are intelligently placed slightly above or below the price candles based on the recent market volatility. This ensures the signals remain visible and do not clutter the actual price bars.
  • Real-Time Notifications: Beyond just visual cues, the tool can be configured to proactively notify the trader. It can trigger:
    • Audio Alerts: A sound will play on your computer when a crossover occurs.
    • Email Notifications: A message can be sent directly to your inbox containing the current price (Bid and Ask), the time of the signal, and the specific currency pair or asset being traded.

Customization Options

The logic is highly flexible, allowing users to tailor the sensitivity and type of analysis:

  1. Moving Average Types: Users can choose between various calculation methods (such as Simple, Exponential, Smoothed, Linear Weighted, or Least Squares) for both the fast and slow lines.
  2. Price Source Selection: The script can calculate its averages based on different data points, including the Close price, Open price, High/Low extremes, or even a weighted average of multiple price points (Median, Typical, or Weighted).
  3. Adjustable Timeframes: You can define the specific periods for both the Fast and Slow averages to suit different trading styles (e.g., scalping vs. long-term investing).

Operational Logic

The script constantly scans every new price tick. It compares the current position of the two moving averages against their previous positions. If the "Fast" average moves from below to above the "Slow" average, it registers a "Buy" signal. Conversely, if it moves from above to below, it registers a "Sell" signal.

To prevent spamming the user with repetitive notifications during a single trend, the script includes logic to track the "Alert Time," ensuring that it primarily notifies you when a new crossover event actually occurs.

Price Data Components
Series array that contains open time of each bar
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
12 Views
0 Downloads
0 Favorites
MA_Crossover_Alert2
//+------------------------------------------------------------------+
//|                                           MA-Crossover_Alert.mq4 |
//|         Copyright © 2005, Jason Robinson (jnrtrading)            |
//|                   http://www.jnrtading.co.uk                     |
//| Modified by Robert Hill to add LSMA and alert or send email      |
//| Added Global LastAlert to try to have alert only on new cross    |
//| but does not seem to work. So indicator does alert every bar     |
//+------------------------------------------------------------------+

/*
  +------------------------------------------------------------------+
  | Allows you to enter two ma periods and it will then show you at  |
  | Which point they crossed over. It is more usful on the shorter   |
  | periods that get obscured by the bars / candlesticks and when    |
  | the zoom level is out. Also allows you then to remove the  mas   |
  | from the chart. (emas are initially set at 5 and 6)              |
  +------------------------------------------------------------------+
*/
#property copyright "Copyright © 2005, Jason Robinson (jnrtrading)"
#property link      "http://www.jnrtrading.co.uk"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 FireBrick

extern bool SoundON=true;
extern bool EmailON=false;

extern int FastMA_Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma, 4=lsma
extern int FastMA_Period =   5;
extern int FastPriceMode = 0;//0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2, 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4
extern int SlowMA_Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma, 4=lsma
extern int SlowMA_Period =   13;
extern int SlowPriceMode = 0;//0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2, 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4
double CrossUp[];
double CrossDown[];
int flagval1 = 0;
int flagval2 = 0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW, EMPTY, 1);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp);
   SetIndexStyle(1, DRAW_ARROW, EMPTY, 1);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown);
   GlobalVariableSet("AlertTime"+Symbol()+Period(),CurTime());
   GlobalVariableSet("SignalType"+Symbol()+Period(),OP_SELLSTOP);
//   GlobalVariableSet("LastAlert"+Symbol()+Period(),0);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   GlobalVariableDel("AlertTime"+Symbol()+Period());
   GlobalVariableDel("SignalType"+Symbol()+Period());
//   GlobalVariableDel("LastAlert"+Symbol()+Period());

//----
   return(0);
  }

//+------------------------------------------------------------------+
//| LSMA with PriceMode                                              |
//| PrMode  0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2,    |
//| 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4  |
//+------------------------------------------------------------------+

double LSMA(int Rperiod, int prMode, int shift)
{
   int i;
   double sum, pr;
   int length;
   double lengthvar;
   double tmp;
   double wt;

   length = Rperiod;

   sum = 0;
   for(i = length; i >= 1  ; i--)
   {
     lengthvar = length + 1;
     lengthvar /= 3;
     tmp = 0;
     switch (prMode)
     {
     case 0: pr = Close[length-i+shift];break;
     case 1: pr = Open[length-i+shift];break;
     case 2: pr = High[length-i+shift];break;
     case 3: pr = Low[length-i+shift];break;
     case 4: pr = (High[length-i+shift] + Low[length-i+shift])/2;break;
     case 5: pr = (High[length-i+shift] + Low[length-i+shift] + Close[length-i+shift])/3;break;
     case 6: pr = (High[length-i+shift] + Low[length-i+shift] + Close[length-i+shift] + Close[length-i+shift])/4;break;
     }
     tmp = ( i - lengthvar)*pr;
     sum+=tmp;
    }
    wt = sum*6/(length*(length+1));

    return(wt);
}


//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int limit, i, counter;
   double tmp=0;
   double fastMAnow, slowMAnow, fastMAprevious, slowMAprevious;
   double Range, AvgRange;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;

   limit=Bars-counted_bars;

   for(i = 0; i <= limit; i++) {

      counter=i;
      Range=0;
      AvgRange=0;
      for (counter=i ;counter<=i+9;counter++)
      {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
      }
      Range=AvgRange/10;

      if (FastMA_Mode == 4)
      {
         fastMAnow = LSMA(FastMA_Period, FastPriceMode, i);
         fastMAprevious = LSMA(FastMA_Period, FastPriceMode,  i+1);

      }
      else
      {
         fastMAnow = iMA(NULL, 0, FastMA_Period, 0, FastMA_Mode, FastPriceMode, i);
         fastMAprevious = iMA(NULL, 0, FastMA_Period, 0, FastMA_Mode, FastPriceMode, i+1);
      }

      if (SlowMA_Mode == 4)
      {
         slowMAnow = LSMA( SlowMA_Period, SlowPriceMode, i);
         slowMAprevious = LSMA( SlowMA_Period, SlowPriceMode, i+1);
      }
      else
      {
         slowMAnow = iMA(NULL, 0, SlowMA_Period, 0, SlowMA_Mode, SlowPriceMode, i);
         slowMAprevious = iMA(NULL, 0, SlowMA_Period, 0, SlowMA_Mode, SlowPriceMode, i+1);
      }

      if ((fastMAnow > slowMAnow) && (fastMAprevious < slowMAprevious))
      {
         if (i == 1 && flagval1==0){  flagval1=1; flagval2=0; }
         CrossUp[i] = Low[i] - Range*0.75;
      }
      else if ((fastMAnow < slowMAnow) && (fastMAprevious > slowMAprevious))
      {
         if (i == 1 && flagval2==0) { flagval2=1; flagval1=0; }
         CrossDown[i] = High[i] + Range*0.75;
      }
   }

   if (flagval1==1 && CurTime() > GlobalVariableGet("AlertTime"+Symbol()+Period()) && GlobalVariableGet("SignalType"+Symbol()+Period())!=OP_BUY)
   {
//      if (GlobalVariableGet("LastAlert"+Symbol()+Period()) < 0.5)
//      {
      if (SoundON) Alert("BUY signal at Ask=",Ask,"\n Bid=",Bid,"\n Time=",TimeToStr(CurTime(),TIME_DATE)," ",TimeHour(CurTime()),":",TimeMinute(CurTime()),"\n Symbol=",Symbol()," Period=",Period());
      if (EmailON) SendMail("BUY signal alert","BUY signal at Ask="+DoubleToStr(Ask,4)+", Bid="+DoubleToStr(Bid,4)+", Date="+TimeToStr(CurTime(),TIME_DATE)+" "+TimeHour(CurTime())+":"+TimeMinute(CurTime())+" Symbol="+Symbol()+" Period="+Period());
//      }
      tmp = CurTime() + (Period()-MathMod(Minute(),Period()))*60;
      GlobalVariableSet("AlertTime"+Symbol()+Period(),tmp);
      GlobalVariableSet("SignalType"+Symbol()+Period(),OP_SELL);
//      GlobalVariableSet("LastAlert"+Symbol()+Period(),1);
   }

   if (flagval2==1 && CurTime() > GlobalVariableGet("AlertTime"+Symbol()+Period()) && GlobalVariableGet("SignalType"+Symbol()+Period())!=OP_SELL) {
//      if (GlobalVariableGet("LastAlert"+Symbol()+Period()) > -0.5)
//      {
      if (SoundON) Alert("SELL signal at Ask=",Ask,"\n Bid=",Bid,"\n Date=",TimeToStr(CurTime(),TIME_DATE)," ",TimeHour(CurTime()),":",TimeMinute(CurTime()),"\n Symbol=",Symbol()," Period=",Period());
      if (EmailON) SendMail("SELL signal alert","SELL signal at Ask="+DoubleToStr(Ask,4)+", Bid="+DoubleToStr(Bid,4)+", Date="+TimeToStr(CurTime(),TIME_DATE)+" "+TimeHour(CurTime())+":"+TimeMinute(CurTime())+" Symbol="+Symbol()+" Period="+Period());
//      }
      tmp = CurTime() + (Period()-MathMod(Minute(),Period()))*60;
      GlobalVariableSet("AlertTime"+Symbol()+Period(),tmp);
      GlobalVariableSet("SignalType"+Symbol()+Period(),OP_BUY);
//      GlobalVariableSet("LastAlert"+Symbol()+Period(),-1);
   }

   return(0);
}
