macd_ZZ_YZ_MDAC_ELDER_1-1000

This script is a specialized technical analysis indicator designed to provide visual feedback on market momentum by enhancing the standard Moving Average Convergence Divergence (MACD) logic. Instead of just showing raw lines, it uses a color-coded histogram system to represent the relationship between current price momentum and the historical "signal" trend.

Core Logic Overview

The script operates by calculating three distinct moving averages:

  1. Fast Moving Average: Tracks short-term price trends.
  2. Slow Moving Average: Tracks long-term price trends.
  3. Signal Line: A moving average calculated based on the difference between the Fast and Slow averages.

By subtracting the Slow average from the Fast average, the script generates a base momentum value. It then compares the current movement of this momentum against its previous state, while simultaneously comparing the current movement of the Signal Line against its previous state.

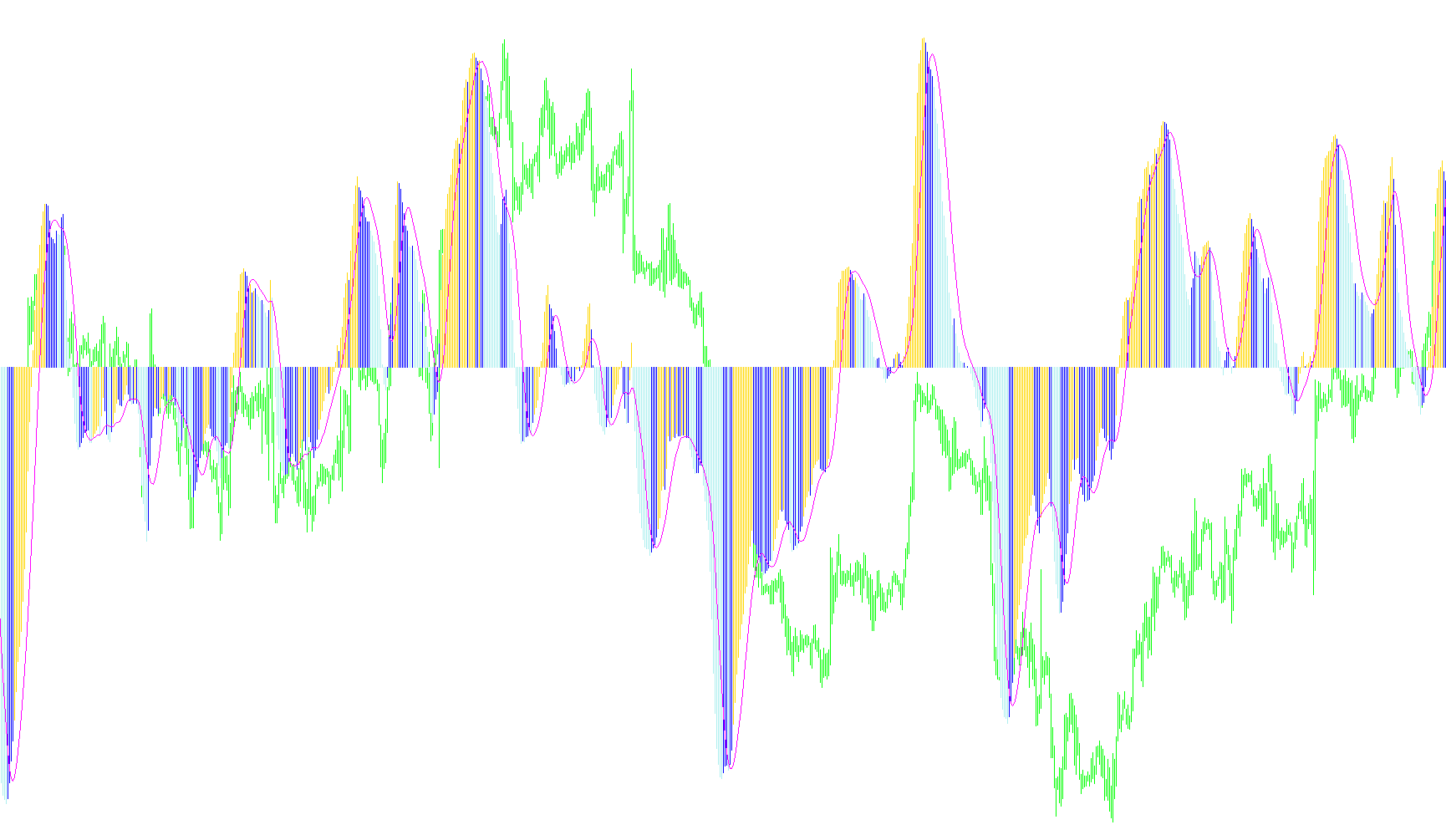

Visual Interpretation (Color Coding)

The primary purpose of the script is to categorize these movements into specific colors, helping traders identify different types of momentum shifts:

  • Strong Upward Momentum (Green): This appears when both the main momentum value and the Signal Line are increasing simultaneously. It suggests a synchronized move in the positive direction.
  • Strong Downward Momentum (Red): This occurs when both the main momentum value and the Signal Line are decreasing simultaneously. It indicates a synchronized decline in price strength.
  • Divergent/Neutral Momentum (Medium Blue): This is triggered when the two values move in opposite directions (e.g., the momentum is rising while the signal is falling, or vice versa). This highlights potential "friction" or inconsistency in the current trend, where one part of the market logic is pushing one way and the other is resisting.

Summary for the User

Unlike a standard MACD which requires you to interpret the crossing of lines manually, this tool automates that interpretation into a color-coded histogram. It allows you to quickly distinguish between healthy trends (Green/Red) and unstable or conflicting price action (Blue), providing a more immediate visual cue for decision-making.

Indicators Used
Moving average indicatorMoving average indicator
Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
macd_ZZ_YZ_MDAC_ELDER_1-1000
//
// MDAC ïî ýëäåðó
//
#property  copyright "Copyright © 2007, YURAZ"
#property  link      "yzh@mail.ru"
//---- indicator settings
#property  indicator_separate_window
#property  indicator_buffers 6

#property  indicator_color1  Green
#property  indicator_color2  MediumBlue
#property  indicator_color3  Red
#property  indicator_color4  SeaGreen
#property  indicator_color5  Yellow

#property  indicator_color6  Chocolate // Ivory

//---- indicator parameters

extern int FastMA_Period=12;
extern int SlowMA_Period=26;
extern int SignalMA_Period=9;

int FastMA_Shift=0;
int FastMA_Method=1;
int FastMA_Price=0;
int FastMA_Timeframe=0;
int SlowMA_Shift=0;
int SlowMA_Method=1;
int SlowMA_Price=0;
int SlowMA_Timeframe=0;
int SignalMA_Shift=0;
int SignalMA_Method=0;


//---- indicator buffers

double     ind_buffer1[];
double     ind_buffer2[];

double     ExtBuffer1[];
double     ExtBuffer2[];
double     ExtBuffer3[];
double     ExtBuffer4[];

int Shift;
int MA_Period;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   if (FastMA_Price>6 || FastMA_Price<0) FastMA_Price=0;
   if (FastMA_Method>3 || FastMA_Method<0) FastMA_Method=1;
   if (FastMA_Period<=0) FastMA_Period=12;
   if (SlowMA_Price>6 || SlowMA_Price<0) SlowMA_Price=0;
   if (SlowMA_Method>3 || SlowMA_Method<0) SlowMA_Method=1;
   if (SlowMA_Period<=0) SlowMA_Period=26;
   if (SignalMA_Method>3 || SignalMA_Method<0) SignalMA_Method=0;
   if (SignalMA_Period<=0) SignalMA_Period=9;
   if (FastMA_Shift<0) FastMA_Shift=0;
   if (SlowMA_Shift<0) SlowMA_Shift=0;
   if (FastMA_Shift>=SlowMA_Shift)
     {
      Shift=FastMA_Shift;
     }
   else
     {
      Shift=SlowMA_Shift;
     }
   if (FastMA_Period>=SlowMA_Period)
     {
      FastMA_Period=12;
      SlowMA_Period=26;
     }
   if (SignalMA_Period>=SlowMA_Period)
     {
      MA_Period=SignalMA_Period;
     }
   else
     {
      MA_Period=SlowMA_Period;
     }
//---- drawing settings
   SetIndexStyle(0,DRAW_HISTOGRAM);
   SetIndexDrawBegin(0,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(0,ExtBuffer1);

   SetIndexStyle(1,DRAW_HISTOGRAM);
   SetIndexDrawBegin(1,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(1,ExtBuffer2);

   SetIndexStyle(2,DRAW_HISTOGRAM);
   SetIndexDrawBegin(2,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(2,ExtBuffer3);

   SetIndexStyle(3,DRAW_HISTOGRAM);
   SetIndexDrawBegin(3,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(3,ExtBuffer4);

   SetIndexStyle(4,DRAW_NONE);
   SetIndexDrawBegin(4,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(4,ind_buffer1);

   SetIndexStyle(5,DRAW_LINE);
   SetIndexDrawBegin(5,MA_Period+Shift+4*SignalMA_Period);
   SetIndexBuffer(5,ind_buffer2);
   SetIndexShift(5,SignalMA_Shift);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS)+1);
//---- name for DataWindow and indicator subwindow label
   IndicatorShortName("yzMACDCOLOR ("+FastMA_Period+","+SlowMA_Period+","+SignalMA_Period+")");
   SetIndexLabel(0,NULL);
   SetIndexLabel(1,NULL);
   SetIndexLabel(2,NULL);
   SetIndexLabel(3,NULL);
   SetIndexLabel(4,"yzMACDCOLOR");
   SetIndexLabel(5,"Signal");
//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//| Moving Averages Convergence/Divergence                           |
//+------------------------------------------------------------------+
int start()
  {
   int limit;
   double prev,current, Sprev,Scurrent;
   int counted_bars=IndicatorCounted();

   if(counted_bars<0) return(-1);

   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;




   for(int i=0; i<limit; i++)
   {
         ind_buffer1[i]=iMA(Symbol(),FastMA_Timeframe,FastMA_Period,FastMA_Shift,FastMA_Method,FastMA_Price,i) -
         iMA(Symbol(),SlowMA_Timeframe,SlowMA_Period,SlowMA_Shift,SlowMA_Method,SlowMA_Price,i);

   }

   for( int j = 0; j <= limit-1;   j++)
   {
       ind_buffer2[j]=iMAOnArray(ind_buffer1,Bars,SignalMA_Period,0,SignalMA_Method,j);
   }

   for(i=0, j = 0; i <= limit-1; i++ , j++)
   {


      current=ind_buffer1[i];
      prev=ind_buffer1[i+1];

      Scurrent = ind_buffer2[i];
      Sprev = ind_buffer2[i+1];
      ExtBuffer1[i]=0.0;
      ExtBuffer2[i]=0.0;
      ExtBuffer3[i]=0.0;
      ExtBuffer4[i]=0.0;
/*
1)  ÑË - çíà÷åíèå áîëüøå ïðåäûäóùåãî;
     Ãà  - çíà÷åíèå áîëüøå ïðåäûäóùåãî - ïîëîñêà çåëåíàÿ.

2)  ÑË - çíà÷åíèå áîëüøå ïðåäûäóùåãî;
     Ãà  - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì - ïîëîñêà çåëåíàÿ.

3)  ÑË - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì;
     Ãà  - çíà÷åíèå áîëüøå ïðåäûäóùåãî - ïîëîñêà çåëåíàÿ,

4)  ÑË - çíà÷åíèå áîëüøå ïðåäûäóùåãî;
     Ãà  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî - ïîëîñêà ñèíÿÿ.

5)  ÑË - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì;
     Ãà - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì - ïîëîñêà ñèíÿÿ.

6)  ÑË  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî;
     Ãà  - çíà÷åíèå áîëüøå ïðåäûäóùåãî - ïîëîñêà ñèíÿÿ.

7)  ÑË  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî;
     Ãà  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî - ïîëîñêà êðàñíàÿ.

8) ÑË - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì;
    Ãà  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî  - ïîëîñêà êðàñíàÿ.

9)  ÑË  - çíà÷åíèå ìåíüøå ïðåäûäìóùåãî;
      Ãà - çíà÷åíèå ðîâíîå ñ ïðåäûäìóùèì - ïîëîñêà êðàñíàÿ.
*/
      if(( current > prev) && (Scurrent > Sprev) )
      {
         ExtBuffer1[i]=current; // Green
         ExtBuffer2[i]=0.0;
         ExtBuffer3[i]=0.0;
         ExtBuffer4[i]=0.0;
      }
      else
      if( ( current< prev) && (Scurrent < Sprev)   ) // 7-å óñëîâèå
      {
         ExtBuffer1[i]=0.0;
         ExtBuffer2[i]=0.0;
         ExtBuffer3[i]=current; // // Red
         ExtBuffer4[i]=0.0;
      }
      else
      if( (current > prev)&& (Scurrent < Sprev)  )
      {
         ExtBuffer1[i]=0.0;
         ExtBuffer2[i]=current; // MediumBlue
         ExtBuffer3[i]=0.0;
         ExtBuffer4[i]=0.0;
      }
      else
      if( (current < prev)&& (Scurrent > Sprev)  )
      {
         ExtBuffer1[i]=0.0;
         ExtBuffer2[i]=current; // MediumBlue
         ExtBuffer3[i]=0.0;
         ExtBuffer4[i]=0.0;
      }
   }
   return(0);
}
