MovingAverages1.1

Download script
Author: Copyright � 2004, MetaQuotes Software Corp.
MovingAverages1.1

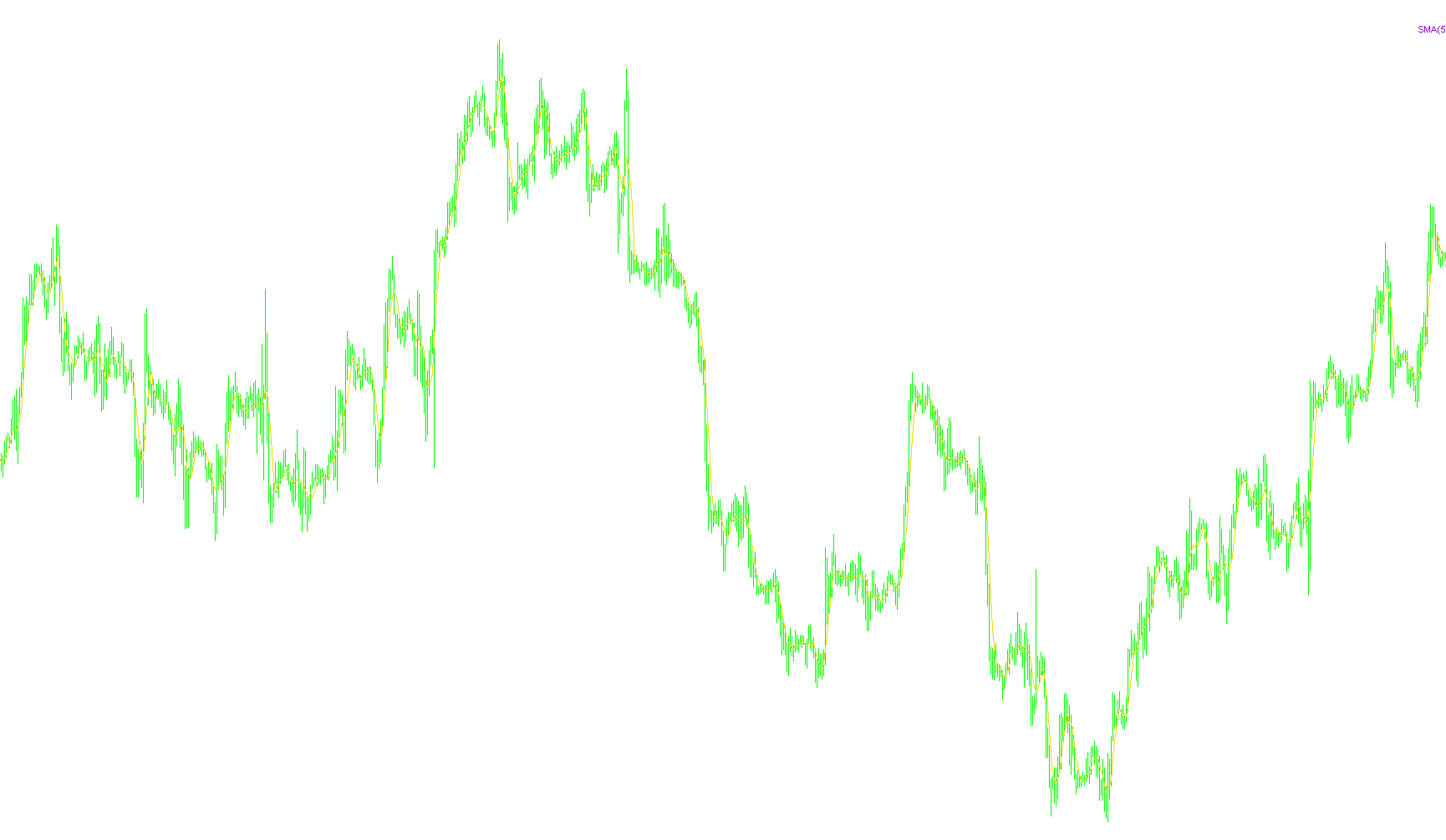

This script is a versatile technical analysis tool designed to calculate and display various types of Moving Averages (MA) on a trading chart. Its primary purpose is to help traders identify trends by smoothing out price fluctuations over a specific period.

Core Functionality

The script allows you to choose from four distinct mathematical methods to calculate the average price. Each method reacts differently to market data:

  • Simple Moving Average (SMA): The most straightforward calculation, where it takes the arithmetic mean of the closing prices over the selected period. It treats all days/bars in the period with equal importance.
  • Exponential Moving Average (EMA): This method gives more weight to recent price data. Because it reacts faster to sudden price changes than a simple average, it is often preferred by traders looking for quicker trend signals.
  • Smoothed Moving Average (SMMA): This provides a "smoother" line by taking into account the previous moving average values. It reduces "noise" in the data even more than an SMA, making it ideal for identifying long-term trends.
  • Linear Weighted Moving Average (LWMA): Similar to the EMA in that it prioritizes recent data, but it applies a linear weight to each price point. This creates a specific type of curve that balances responsiveness with smoothness.

User Customization Options

The script is designed to be highly adjustable so that users can tailor the visual and mathematical output to their specific trading style:

  • Time Period: You can define exactly how many bars of data should be included in the average (e.g., a 5-period average vs. a 200-period average).
  • Visual Shift: The "Shift" parameter allows you to move the resulting line forward or backward on the chart relative to current prices.
  • Color and Visibility: Users can choose the specific color of the indicator line (defaulting to Dark Violet) and adjust its appearance on the chart window.
  • On-Screen Labeling: The script automatically generates a text label on the chart to identify which type of Moving Average is being displayed and what period it covers. You can choose which corner of the screen this information appears in (Upper Left, Upper Right, Lower Left, or Lower Right).

Technical Logic Flow

When the script runs, it first initializes by checking your preferences (period, method, and colors). It then looks at the available price data on your chart. Based on the mathematical method you selected, it performs a loop through the historical closing prices, calculates the average based on that specific formula, and draws the resulting line on your screen in real-time as new price data arrives.

Miscellaneous
Implements a curve of type %1
6 Views
0 Downloads
0 Favorites
MovingAverages1.1
//+------------------------------------------------------------------+
//|                                        Custom Moving Average.mq4 |
//|                      Copyright © 2004, MetaQuotes Software Corp. |
//|                                       http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net/"

#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 DarkViolet
//---- indicator parameters
extern string note1 = "Moving Average";
extern int MA_Period=5;
extern int MA_Shift=0;
extern string note2 = "0=Simple,1=Exponential";
extern string note3 = "2=Smooth,3=Linear Weighted";
extern int MA_Method=0;
extern string note4 = "change color in the Colors area too";
extern color MAcolor1 = DarkViolet;
extern string note5 = "Display the info in what corner?";
extern string note6 = "Upper left=0; Upper right=1";
extern string note7 = "Lower left=2; Lower right=3";
extern int    WhatCorner=1;
extern string note8 = "Y distance; add 10 to each MA";
extern int    ydistance1=10;

double ExtMapBuffer[];
string objectma1;
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
string IntToStr(int X)
  {
    return (DoubleToStr(X, 0));
  }
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   int    draw_begin, ydistance2;
   string short_name;
//---- drawing settings
   SetIndexStyle(0,DRAW_LINE);
   SetIndexShift(0,MA_Shift);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   if(MA_Period<2) MA_Period=13;
   draw_begin=MA_Period-1;
//---- indicator short name
   switch(MA_Method)
     {
      case 1 : short_name="EMA";  draw_begin=0; break;
      case 2 : short_name="SMMA"; break;
      case 3 : short_name="LWMA"; break;
      default :
         MA_Method=0;
         short_name="SMA";
     }
   IndicatorShortName(short_name+MA_Period+")");
   SetIndexDrawBegin(0,draw_begin);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer);
//---- initialization done
   if ((WhatCorner == 2) || (WhatCorner == 3))
      {
      ydistance2 = 50+ydistance1;
      }
    else
      {
      ydistance1 = 20+ydistance1;
      }
   objectma1 = "banzaiMA"+IntToStr(MA_Period);
   ObjectCreate(objectma1, OBJ_LABEL, 0, 0, 0);
   ObjectSetText(objectma1, short_name+"("+MA_Period+")", 8, "Arial", MAcolor1);
   ObjectSet(objectma1, OBJPROP_CORNER, WhatCorner);
   ObjectSet(objectma1, OBJPROP_XDISTANCE, 2);
   ObjectSet(objectma1, OBJPROP_YDISTANCE, ydistance1);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
  ObjectDelete(objectma1);
  return(0);
  }
//+------------------------------------------------------------------+
int start()
  {
   if(Bars<=MA_Period) return(0);
   ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   if (ExtCountedBars>0) ExtCountedBars--;
//----
   switch(MA_Method)
     {
      case 0 : sma();  break;
      case 1 : ema();  break;
      case 2 : smma(); break;
      case 3 : lwma();
     }
//---- done
   return(0);
  }
//+------------------------------------------------------------------+
//| Simple Moving Average                                            |
//+------------------------------------------------------------------+
void sma()
  {
   double sum=0;
   int    i,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<MA_Period;i++,pos--)
      sum+=Close[pos];
//---- main calculation loop
   while(pos>=0)
     {
      sum+=Close[pos];
      ExtMapBuffer[pos]=sum/MA_Period;
	   sum-=Close[pos+MA_Period-1];
 	   pos--;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
  }
//+------------------------------------------------------------------+
//| Exponential Moving Average                                       |
//+------------------------------------------------------------------+
void ema()
  {
   double pr=2.0/(MA_Period+1);
   int    pos=Bars-2;
   if(ExtCountedBars>2) pos=Bars-ExtCountedBars-1;
//---- main calculation loop
   while(pos>=0)
     {
      if(pos==Bars-2) ExtMapBuffer[pos+1]=Close[pos+1];
      ExtMapBuffer[pos]=Close[pos]*pr+ExtMapBuffer[pos+1]*(1-pr);
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Smoothed Moving Average                                          |
//+------------------------------------------------------------------+
void smma()
  {
   double sum=0;
   int    i,k,pos=Bars-ExtCountedBars+1;
//---- main calculation loop
   pos=Bars-MA_Period;
   if(pos>Bars-ExtCountedBars) pos=Bars-ExtCountedBars;
   while(pos>=0)
     {
      if(pos==Bars-MA_Period)
        {
         //---- initial accumulation
         for(i=0,k=pos;i<MA_Period;i++,k++)
           {
            sum+=Close[k];
            //---- zero initial bars
            ExtMapBuffer[k]=0;
           }
        }
      else sum=ExtMapBuffer[pos+1]*(MA_Period-1)+Close[pos];
      ExtMapBuffer[pos]=sum/MA_Period;
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average                                   |
//+------------------------------------------------------------------+
void lwma()
  {
   double sum=0.0,lsum=0.0;
   double price;
   int    i,weight=0,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<=MA_Period;i++,pos--)
     {
      price=Close[pos];
      sum+=price*i;
      lsum+=price;
      weight+=i;
     }
//---- main calculation loop
   pos++;
   i=pos+MA_Period;
   while(pos>=0)
     {
      ExtMapBuffer[pos]=sum/weight;
      if(pos==0) break;
      pos--;
      i--;
      price=Close[pos];
      sum=sum-lsum+price*MA_Period;
      lsum-=Close[i];
      lsum+=price;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
  }
//+------------------------------------------------------------------+
