MT4-Cams-Pivots_v1

Download script
Author: forex2stay
MT4-Cams-Pivots_v1

This script is designed to automatically identify and plot Camarilla Pivot Points on your trading charts. It serves as a technical analysis tool that helps traders visualize specific price levels based on the previous day's market activity.

Core Functionality

The logic operates by analyzing historical price data to project potential support and resistance zones for the current trading session. Here is a breakdown of how the script processes this information:

1. Data Collection & Time Synchronization To ensure accuracy, the script first checks your current chart timeframe. It is designed to work on intraday charts (any timeframe smaller than one day). It then scans historical hourly data to identify specific price points from the previous trading day, including:

  • The highest price reached (High)
  • The lowest price reached (Low)
  • The closing price (Close)

2. Dynamic Calculations Once the script has gathered yesterday's High, Low, and Close prices, it applies a specific mathematical formula to generate eight unique "Camarilla" levels:

  • High Levels (H1 - H4): These are calculated by adding a fraction of the previous day's range to the closing price. They represent potential ceiling areas where the market might face resistance.
  • Low Levels (L1 - L4): These are calculated by subtracting a fraction of the previous day's range from the closing price. They represent potential floor areas where the market might find support.

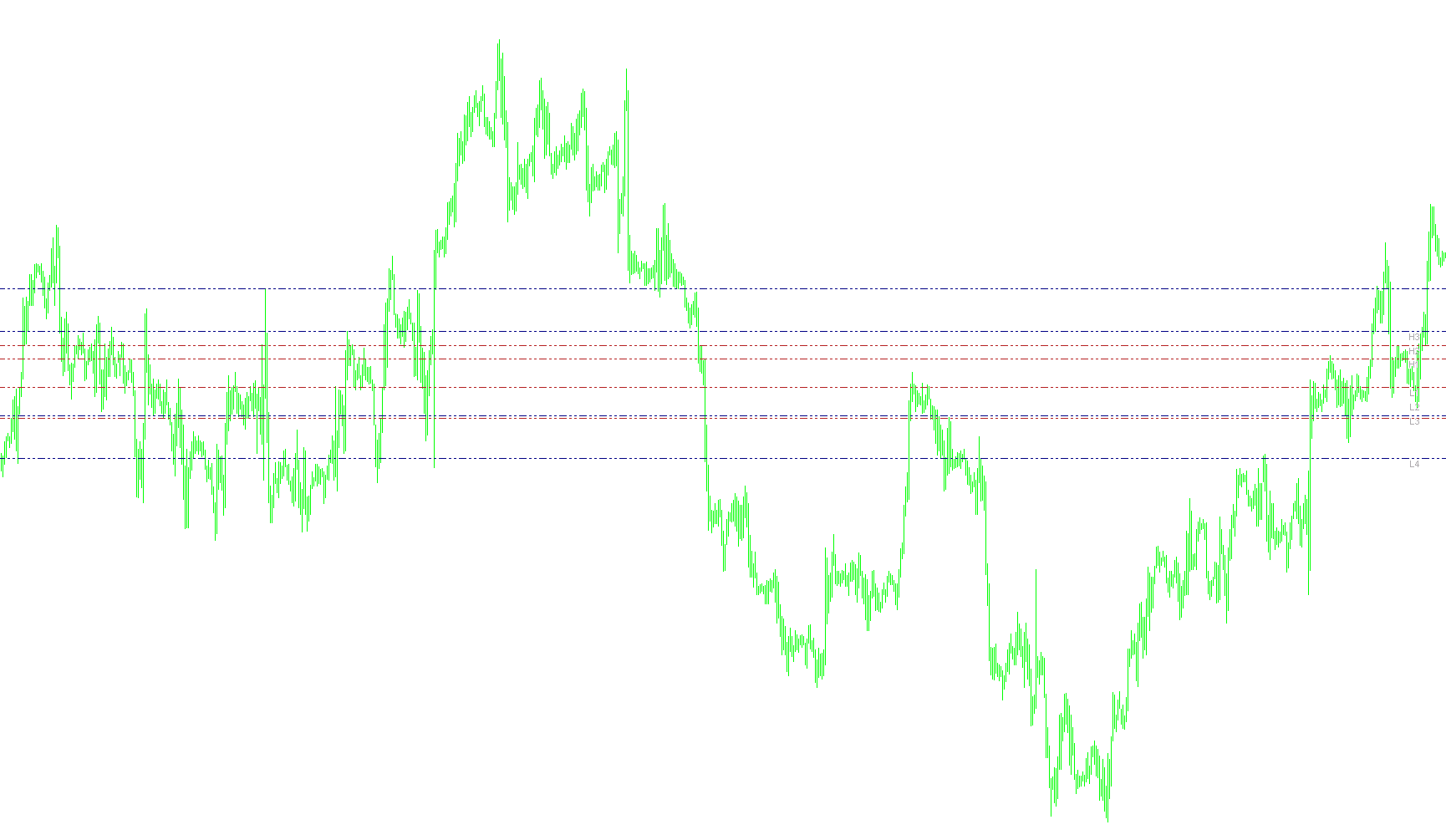

3. Visual Representation on Chart Instead of just providing raw numbers, the script takes action to make this data easy to read visually:

  • Automatic Drawing: It automatically draws horizontal lines across your chart at these calculated levels.
  • Color Coding: The lines are color-coded (using Navy and FireBrick) and styled with dashed patterns to distinguish between different types of price boundaries.
  • Labels: The script places text labels (e.g., "H4", "L1") directly on the chart near the corresponding lines so you can identify each level instantly at a glance.
  • On-Screen Dashboard: It also provides a small text commentary in the corner of your screen, showing the specific values for Yesterday's High, Low, and Close, along with the current day's price range.

User Experience Note

The script is automated to update as new data becomes available. If you are looking at a chart that is larger than one day (like a weekly or monthly chart), the script will notify you that it cannot run, as it requires smaller timeframes to accurately calculate daily pivots.

Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
MT4-Cams-Pivots_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                             Camarilla Pivots.mq4 |
//|  modified from Pivots.mq4 found on MT yahoo group by forex2stay  |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "forex2stay"
#property link      " "

#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 EMPTY


extern bool camarilla = true;
extern int gmt_offset = 7;

double day_high=0;
double day_low=0;
double yesterday_high=0;
double yesterday_open=0;
double yesterday_low=0;
double yesterday_close=0;
double today_open=0;
double today_high=0;
double today_low=0;
double P=0;
double wP=0;
double Q=0;
double CH4,CH3,CH2,CH1,CL4,CL3,CL2,CL1;
double nQ=0;
double nD=0;
double D=0;
double rates_h1[2][6];
double ExtMapBuffer1[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init(){
   IndicatorBuffers(4);
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,159);
   SetIndexBuffer(0, ExtMapBuffer1);

   //---- indicators
  CH4=0; CH3=0; CH2=0; CH1=0; CL4=0; CL3=0; CL2=0; CL1=0;


   //----
   return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit(){
   //---- TODO: add your code here
   ObjectDelete("CH4 Label");
   ObjectDelete("CH4 Line");
   ObjectDelete("CH3 Label");
   ObjectDelete("CH3 Line");
   ObjectDelete("CH2 Label");
   ObjectDelete("CH2 Line");
   ObjectDelete("CH1 Label");
   ObjectDelete("CH1 Line");
   ObjectDelete("CL1 Label");
   ObjectDelete("CL2 Line");
   ObjectDelete("CL3 Label");
   ObjectDelete("CL3 Line");
   ObjectDelete("CL4 Label");
   ObjectDelete("CL4 Line");
   //----
   return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start(){

//---- TODO: add your code here

//---- exit if period is greater than daily charts
   if(Period() > 1440){
      Print("Error - Chart period is greater than 1 day.");
      return(-1); // then exit
   }

//---- Get new daily prices
   ArrayCopyRates(rates_h1, Symbol(), PERIOD_H1);
   for(int i=0;i < 24;i++){
      if((TimeHour(rates_h1[i][0]) - gmt_offset) == 0){
         yesterday_open = rates_h1[i+24][1];
         yesterday_close = rates_h1[i][1];
         today_open = rates_h1[i][1];
         yesterday_high = rates_h1[i+1][3];
         yesterday_low = rates_h1[i+1][2];
         for(int j=0;j < 24;j++){
            if(rates_h1[i+j][3] > yesterday_high) yesterday_high = rates_h1[i+j][3];
            if(rates_h1[i+j][2] < yesterday_low) yesterday_low = rates_h1[i+j][2];
         }
         day_high = rates_h1[i][3];
         day_low = rates_h1[i][2];
         while(i>=0){
            if(rates_h1[i][3] > day_high) day_high = rates_h1[i][3];
            if(rates_h1[i][2] < day_low) day_low = rates_h1[i][2];
            i--;
         }
         break;
      }
   }


//---- Calculate Pivots

   CH4 = (((yesterday_high-yesterday_low)* 1.1)/2)+ yesterday_close;
	CH3 = (((yesterday_high-yesterday_low)* 1.1)/4)+ yesterday_close;
	CH2 = (((yesterday_high-yesterday_low)* 1.1)/6)+ yesterday_close;
	CH1 = (((yesterday_high-yesterday_low)* 1.1)/12)+ yesterday_close;
	CL1 = yesterday_close-(((yesterday_high-yesterday_low) * 1.1)/12);
	CL2 = yesterday_close-(((yesterday_high-yesterday_low) * 1.1)/6);
	CL3 = yesterday_close-(((yesterday_high-yesterday_low)* 1.1)/4);
	CL4 = yesterday_close-(((yesterday_high-yesterday_low) * 1.1)/2);

   if (Q > 5) {
	  nQ = Q;
   } else {
	  nQ = Q*10000;
   }

   if (D > 5){
	  nD = D;
   } else {
	  nD = D*10000;
   }


   Comment("High= ",yesterday_high,"    Previous Days Range= ",nQ,"\nLow= ",yesterday_low,"    Current Days Range= ",nD,"\nClose= ",yesterday_close);
   //Comment("High= ",yesterday_high,"    Previous Days Range= ",nQ,"\nLow= ",yesterday_low,"\nClose= ",yesterday_close);
   //Comment("High= "+yesterday_high+"    Low= "+yesterday_low+"    Open= "+today_open);

   //---- Set line labels on chart window

   //----- Camarilla Lines

   if (camarilla==true){
      if(ObjectFind("CH4label") != 0){
         ObjectCreate("CH4label", OBJ_TEXT, 0, Time[20], CH4);
         ObjectSetText("CH4label", " H4", 8, "Arial", EMPTY);
      } else {
         ObjectMove("CH4label", 0, Time[20], CH4);
      }

      if(ObjectFind("CH3 label") != 0){
         ObjectCreate("CH3 label", OBJ_TEXT, 0, Time[20], CH3);
         ObjectSetText("CH3 label", " H3", 8, "Arial", DarkGray);
      } else {
         ObjectMove("CH3 label", 0, Time[20], CH3);
      }

      if(ObjectFind("CH2 label") != 0){
         ObjectCreate("CH2 label", OBJ_TEXT, 0, Time[20], CH2);
         ObjectSetText("CH2 label", " H2", 8, "Arial", DarkGray);
      } else {
         ObjectMove("CH2 label", 0, Time[20], CH2);
      }

      if(ObjectFind("CH1 label") != 0){
         ObjectCreate("CH1 label", OBJ_TEXT, 0, Time[20], CH1);
         ObjectSetText("CH1 label", " H1", 8, "Arial", DarkGray);
      } else {
         ObjectMove("CH1 label", 0, Time[20], CH1);
      }

      if(ObjectFind("CL1 label") != 0){
         ObjectCreate("CL1 label", OBJ_TEXT, 0, Time[20], CL1);
         ObjectSetText("CL1 label", " L1", 8, "Arial", DarkGray);
      } else {
         ObjectMove("CL1 label", 0, Time[20], CL1);
      }

      if(ObjectFind("CL2 label") != 0){
         ObjectCreate("CL2 label", OBJ_TEXT, 0, Time[20], CL2);
         ObjectSetText("CL2 label", " L2", 8, "Arial", DarkGray);
      } else {
         ObjectMove("CL2 label", 0, Time[20], CL2);
      }

      if(ObjectFind("L3 label") != 0){
         ObjectCreate("L3 label", OBJ_TEXT, 0, Time[20], CL3);
         ObjectSetText("L3 label", " L3", 8, "Arial", DarkGray);
      } else {
         ObjectMove("L3 label", 0, Time[20], CL3);
      }

      if(ObjectFind("L4 label") != 0){
         ObjectCreate("L4 label", OBJ_TEXT, 0, Time[20], CL4);
         ObjectSetText("L4 label", " L4", 8, "Arial", DarkGray);
      } else {
         ObjectMove("L4 label", 0, Time[20], CL4);
      }

//---- Draw Camarilla lines on Chart
      if(ObjectFind("CH4 line") != 0){
         ObjectCreate("CH4 line", OBJ_HLINE, 0, Time[40], CH4);
         ObjectSet("CH4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CH4 line", OBJPROP_COLOR, Navy);
      } else {
         ObjectMove("CH4 line", 0, Time[40], CH4);
      }

      if(ObjectFind("CH3 line") != 0){
         ObjectCreate("CH3 line", OBJ_HLINE, 0, Time[40], CH3);
         ObjectSet("CH3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CH3 line", OBJPROP_COLOR, Navy);
      } else {
         ObjectMove("CH3 line", 0, Time[40], CH3);
      }

      if(ObjectFind("CH2 line") != 0){
         ObjectCreate("CH2 line", OBJ_HLINE, 0, Time[40], CH2);
         ObjectSet("CH2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CH2 line", OBJPROP_COLOR, FireBrick);
      } else {
         ObjectMove("CH2 line", 0, Time[40], CH2);
      }

      if(ObjectFind("CH1 line") != 0){
         ObjectCreate("CH1 line", OBJ_HLINE, 0, Time[40], CH1);
         ObjectSet("CH1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CH1 line", OBJPROP_COLOR, FireBrick);
      } else {
         ObjectMove("CH1 line", 0, Time[40], CH1);
      }

      if(ObjectFind("CL1 line") != 0){
         ObjectCreate("CL1 line", OBJ_HLINE, 0, Time[40], CL1);
         ObjectSet("CL1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CL1 line", OBJPROP_COLOR, FireBrick);
      } else {
         ObjectMove("CL1 line", 0, Time[40], CL1);
      }

      if(ObjectFind("CL2 line") != 0){
         ObjectCreate("CL2 line", OBJ_HLINE, 0, Time[40], CL2);
         ObjectSet("CL2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CL2 line", OBJPROP_COLOR, FireBrick);
      } else {
         ObjectMove("CL3 line", 0, Time[40], CL2);
      }

      if(ObjectFind("CL3 line") != 0){
         ObjectCreate("CL3 line", OBJ_HLINE, 0, Time[40], CL3);
         ObjectSet("CL3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CL3 line", OBJPROP_COLOR, Navy);
      } else {
         ObjectMove("CL3 line", 0, Time[40], CL3);
      }

      if(ObjectFind("CL4 line") != 0){
         ObjectCreate("CL4 line", OBJ_HLINE, 0, Time[40], CL4);
         ObjectSet("CL4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
         ObjectSet("CL4 line", OBJPROP_COLOR, Navy);
      } else {
         ObjectMove("CL4 line", 0, Time[40], CL4);
      }
   }
//-------End of Draw Camarilla Lines

//---- End Of Program
   return(0);
}
//+------------------------------------------------------------------+
