MTF_HI_LOW
Download scriptThis script is a specialized technical analysis tool designed for the MetaTrader platform. Its primary purpose is to automatically identify and display significant price milestones—specifically the "Highs" and "Lows"—across different timeframes (Daily, Weekly, and Monthly) directly on your trading chart.

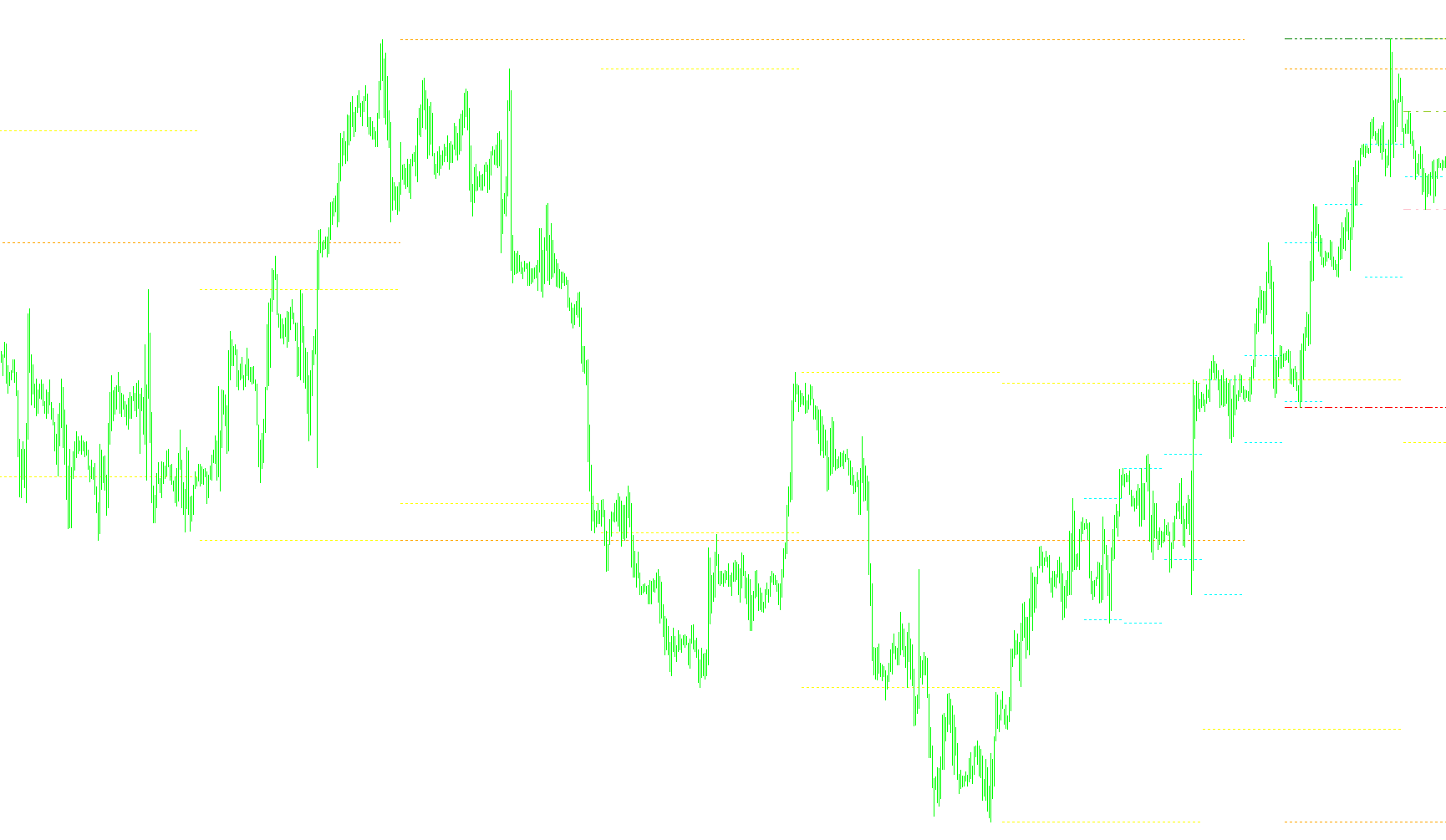

By providing this visual data, the script helps traders quickly identify key areas of support and resistance without having to manually calculate historical price points.
Core Functionality
1. Historical Milestone Tracking The tool looks back at a user-defined number of days to plot the high and low prices of previous periods. It identifies:
- Previous Daily Highs/Lows: The extreme price points reached during previous trading days.
- Previous Weekly Highs/Lows: The extreme price points reached during previous trading weeks.
- Previous Monthly Highs/Lows: The extreme price points reached during previous trading months.
2. Real-Time Tracking (Current Periods) In addition to historical data, the script tracks the "Live" highs and lows for the current day, week, and month. This allows traders to see how the current price action is evolving relative to the boundaries established so far in the ongoing period.
3. Visual Zones & Rectangles The script offers a unique visual feature where it can draw shaded rectangles instead of just simple lines. These rectangles represent the "range" of the current day, week, or month. This helps traders visualize the entire "trading zone" at a glance, showing the vertical space between the highest and lowest prices achieved in those timeframes.
Customization and User Control
The logic is highly configurable, allowing users to tailor the visual experience to their specific trading style:
- Toggle Visibility: Users can choose to show or hide Daily, Weekly, or Monthly levels independently.
- Color Coding: Each timeframe has its own distinct color profile (e.g., different colors for "Upper" highs and "Lower" lows), making it easy to distinguish between a daily level and a monthly level at a glance.
- Line Styling: The script supports different line styles (solid, dashed, etc.) and allows users to choose whether these levels should extend infinitely across the chart or remain contained within specific time brackets.
- Rectangle Filtering: There is a specific logic gate that allows users to decide if they want to see all rectangles at once or limit them only to the current day's period to reduce visual clutter.
How It Works Behind the Scenes
Every time the chart updates, the script performs a sweep of the market history. It calculates the highest and lowest prices for the specified timeframe intervals, identifies the correct coordinates on the chart, and renders the corresponding lines or rectangles. It automatically manages these objects, ensuring that old data is cleaned up and new price levels are drawn accurately as time progresses.
//+------------------------------------------------------------------+
//| MTF_HI_LOW.mq4 |
//| Copyright © 2006, MetaQuotes Software Corp. |
//| http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"
#property link " modified by cja "
//+------------------------------------------------------------------+
//| AllPivots_v1.mq4 |
//| Copyright © 2006, Forex-TSD.com |
//| Written by IgorAD,igorad2003@yahoo.co.uk |
//| http://finance.groups.yahoo.com/group/TrendLaboratory |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Forex-TSD.com "
#property link "http://www.forex-tsd.com/"
#property indicator_chart_window
extern int CountDays=10;
extern bool Show_CurrDaily = true;
extern bool Show_CurrWeekly = true;
extern bool Show_CurrMonthly = true;
extern color line_color_CurrDailyUPPER = Lime;
extern color line_color_CurrDailyLOWER = Magenta;
extern color line_color_CurrWeeklyUPPER = YellowGreen;
extern color line_color_CurrWeeklyLOWER = Pink;
extern color line_color_CurrMonthlyUPPER = Green;
extern color line_color_CurrMonthyLOWER = Red;
extern int CurrDaily_LineStyle = 2;
extern int CurrWeekly_LineStyle = 3;
extern int CurrMonthly_LineStyle = 4;
extern bool Show_PreviousDaily = true;
extern bool Xtend_Prev_DailyLine = false;
extern bool Show_PreviousWeekly = true;
extern bool Xtend_Prev_WeeklyLine = false;
extern bool Show_PreviousMonthly = true;
extern bool Xtend_Prev_MonthlyLine = false;
extern color line_color_PreviousDaily = Aqua;
extern color line_color_PreviousWeekly = Yellow;
extern color line_color_PreviousMonthly = Orange;
extern int PreviousLine_Style = 2;
extern bool Show_CurrRectangles_Display = false;
extern bool Show_Rectangles = true;
extern bool Rectangle_Curr_DayPeriod_only = true;
extern bool Show_Daily_Rectangle = true;
extern color Daily_Rectangle_color = Navy;
extern bool Show_Weekly_Rectangle = true;
extern color Weekly_Rectangle_color = Blue;
extern bool Show_Monthly_Rectangle = true;
extern color Monthly_Rectangle_color = Maroon;
#define Curr_DG "Curr_DG"
#define Curr_WG "Curr_WG"
#define Curr_MG "Curr_MG"
datetime time1;
datetime time2;
datetime time3;
datetime time4;
datetime time5;
datetime time6;
//******************************
//currTimes
datetime time7;
datetime time8;
datetime time9;
datetime time10;
datetime time11;
datetime time12;
double DHi,DLo,WHi,WLo,MHi,MLo;
double DHigh,DLow,WHigh,WLow,MHigh,MLow;
int shift, num;
void ObjDel()
{
for (;num<=CountDays;num++)
{
ObjectDelete("Previous_DailyHi["+num+"]");
ObjectDelete("Previous_DailyLo["+num+"]");
ObjectDelete("Previous_WeeklyHi["+num+"]");
ObjectDelete("Previous_WeeklyLo["+num+"]");
ObjectDelete("Previous_MonthlyHi["+num+"]");
ObjectDelete("Previous_MonthlyLo["+num+"]");
ObjectDelete("CurrentDailyHi["+num+"]");
ObjectDelete("CurrentDailyLo["+num+"]");
ObjectDelete("CurrentWeeklyHi["+num+"]");
ObjectDelete("CurrentWeeklyLo["+num+"]");
ObjectDelete("CurrentMonthlyHi["+num+"]");
ObjectDelete("CurrentMonthlyLo["+num+"]");
}
}
void PlotLineD(string dname,double value,double line_color_Daily,double style)
{
ObjectCreate(dname,OBJ_TREND,0,time1,value,time2,value);
ObjectSet(dname, OBJPROP_WIDTH, 1);
ObjectSet(dname, OBJPROP_STYLE, PreviousLine_Style);
ObjectSet(dname, OBJPROP_RAY, Xtend_Prev_DailyLine);
ObjectSet(dname, OBJPROP_BACK, true);
ObjectSet(dname, OBJPROP_COLOR, line_color_Daily);
}
void PlotLineW(string wname,double value,double line_color_Weekly,double style)
{
ObjectCreate(wname,OBJ_TREND,0,time3,value,time4,value);
ObjectSet(wname, OBJPROP_WIDTH, 1);
ObjectSet(wname, OBJPROP_STYLE, PreviousLine_Style);
ObjectSet(wname, OBJPROP_RAY, Xtend_Prev_WeeklyLine);
ObjectSet(wname, OBJPROP_BACK, true);
ObjectSet(wname, OBJPROP_COLOR, line_color_Weekly);
}
void PlotLineM(string mname,double value,double line_color_Monthly,double style)
{
ObjectCreate(mname,OBJ_TREND,0,time5,value,time6,value);
ObjectSet(mname, OBJPROP_WIDTH, 1);
ObjectSet(mname, OBJPROP_STYLE, PreviousLine_Style);
ObjectSet(mname, OBJPROP_RAY, Xtend_Prev_MonthlyLine);
ObjectSet(mname, OBJPROP_BACK, true);
ObjectSet(mname, OBJPROP_COLOR, line_color_Monthly);
}
//****************************************************************************************
// CurrDaily levels
void PlotLineDLY(string dayname,double value,double col,double style)
{
ObjectCreate(dayname,OBJ_TREND,0,time7,value,time8,value);
ObjectSet(dayname, OBJPROP_WIDTH, 1);
ObjectSet(dayname, OBJPROP_STYLE, CurrDaily_LineStyle );
ObjectSet(dayname, OBJPROP_RAY, false);
ObjectSet(dayname, OBJPROP_BACK, true);
ObjectSet(dayname, OBJPROP_COLOR, col);
}
void PlotLineWLY(string weekname,double value,double col,double style)
{
ObjectCreate(weekname,OBJ_TREND,0,time9,value,time10,value);
ObjectSet(weekname, OBJPROP_WIDTH, 1);
ObjectSet(weekname, OBJPROP_STYLE, CurrWeekly_LineStyle );
ObjectSet(weekname, OBJPROP_RAY, false);
ObjectSet(weekname, OBJPROP_BACK, true);
ObjectSet(weekname, OBJPROP_COLOR, col);
}
void PlotLineMLY(string monthname,double value,double col,double style)
{
ObjectCreate(monthname,OBJ_TREND,0,time11,value,time12,value);
ObjectSet(monthname, OBJPROP_WIDTH, 1);
ObjectSet(monthname, OBJPROP_STYLE, CurrMonthly_LineStyle );
ObjectSet(monthname, OBJPROP_RAY, false);
ObjectSet(monthname, OBJPROP_BACK, true);
ObjectSet(monthname, OBJPROP_COLOR, col);
}
int init()
{
IndicatorShortName("MTF_HI_LOW");
return(0);
}
int deinit()
{
ObjectsDeleteAll(0,OBJ_RECTANGLE);
ObjectsDeleteAll(0,OBJ_TRENDBYANGLE);
ObjDel();
Comment("");
return(0);
}
int start()
//*******************************************************************************************
{
CreateDHI();
}
void Create_DailyLineHI(string dLine, double start, double end,double w, double s,color clr)
{
ObjectCreate(dLine, OBJ_RECTANGLE, 0, iTime(NULL,1440,0), start, Time[0], end);
ObjectSet(dLine, OBJPROP_COLOR, clr);
ObjectSet(dLine,OBJPROP_RAY,false);
ObjectSet(dLine,OBJPROP_BACK,Show_Rectangles);
ObjectSet(dLine,OBJPROP_WIDTH,w);
ObjectSet(dLine,OBJPROP_STYLE,s);
}
void DeleteCreate_DailyLineHI()
{
ObjectDelete( Curr_DG);ObjectDelete( Curr_WG);ObjectDelete( Curr_MG);
}
void CreateDHI()
{
DeleteCreate_DailyLineHI();
ObjectsDeleteAll(0,OBJ_RECTANGLE);
CreateWHI();
}
void Create_DailyLineWHI(string WLine, double start, double end,double w, double s,color clr)
{
ObjectCreate(WLine, OBJ_RECTANGLE, 0, iTime(NULL,10080,0), start, Time[0], end);
ObjectSet(WLine, OBJPROP_COLOR, clr);
ObjectSet(WLine,OBJPROP_RAY,false);
ObjectSet(WLine,OBJPROP_BACK,Show_Rectangles);
ObjectSet(WLine,OBJPROP_WIDTH,w);
ObjectSet(WLine,OBJPROP_STYLE,s);
}
void DeleteCreate_DailyLineWHI()
{
ObjectDelete( Curr_WG);
}
void CreateWHI()
{
DeleteCreate_DailyLineWHI();
ObjectsDeleteAll(0,OBJ_RECTANGLE);
CreateMHI();
}
void Create_DailyLineMHI(string MLine, double start, double end,double w, double s,color clr)
{
ObjectCreate(MLine, OBJ_RECTANGLE, 0, iTime(NULL,43200,0), start, Time[0], end);
ObjectSet(MLine, OBJPROP_COLOR, clr);
ObjectSet(MLine,OBJPROP_RAY,false);
ObjectSet(MLine,OBJPROP_BACK,Show_Rectangles);
ObjectSet(MLine,OBJPROP_WIDTH,w);
ObjectSet(MLine,OBJPROP_STYLE,s);
}
void DeleteCreate_DailyLineMHI()
{
ObjectDelete( Curr_MG);
}
void CreateMHI()
{
DeleteCreate_DailyLineMHI();
ObjectsDeleteAll(0,OBJ_RECTANGLE);
double Dailyhigh = iHigh(NULL,1440,0);
double Dailylow = iLow(NULL,1440,0);
double Weeklyhigh = iHigh(NULL,10080,0);
double Weeklylow = iLow(NULL,10080,0);
double Monthlyhigh = iHigh(NULL,43200,0);
double Monthlylow = iLow(NULL,43200,0);
if ( Rectangle_Curr_DayPeriod_only == false )
{
if (Show_CurrRectangles_Display == true )
{
if (Show_Daily_Rectangle == true )
{
Create_DailyLineHI( Curr_DG, Dailyhigh , Dailylow ,2,2,Daily_Rectangle_color);
}
if (Show_Weekly_Rectangle == true )
{
Create_DailyLineWHI( Curr_WG, Weeklyhigh , Weeklylow ,2,2,Weekly_Rectangle_color);
}
if (Show_Monthly_Rectangle == true )
{
Create_DailyLineMHI( Curr_MG, Monthlyhigh , Monthlylow ,2,2,Monthly_Rectangle_color);
}}}
if ( Rectangle_Curr_DayPeriod_only == true )
{
if (Show_CurrRectangles_Display == true )
{
if (Show_Daily_Rectangle == true )
{
Create_DailyLineHI( Curr_DG, Dailyhigh , Dailylow ,2,2,Daily_Rectangle_color);
}
if (Show_Weekly_Rectangle == true )
{
Create_DailyLineHI( Curr_WG, Weeklyhigh , Weeklylow ,2,2,Weekly_Rectangle_color);
}
if (Show_Monthly_Rectangle == true )
{
Create_DailyLineHI( Curr_MG, Monthlyhigh , Monthlylow ,2,2,Monthly_Rectangle_color);
}}}
//*******************************************************************************
int i;
ObjDel();
num=0;
for (shift=CountDays-1;shift>=0;shift--)
{
time1=iTime(NULL,PERIOD_D1,shift);
time3=iTime(NULL,PERIOD_W1,shift);
time5=iTime(NULL,PERIOD_MN1,shift);
//**************************************************
//CurrDaily levels
time7=iTime(NULL,PERIOD_D1,0);
time9=iTime(NULL,PERIOD_W1,0);
time11=iTime(NULL,PERIOD_MN1,0);
i=shift-1;
if (i<0)
time2=Time[0];
else
time2=iTime(NULL,PERIOD_D1,i)-Period()*60;
if (i<0)
time4=Time[0];
else
time4=iTime(NULL,PERIOD_W1,i)-Period()*60;
if (i<0)
time6=Time[0];
else
time6=iTime(NULL,PERIOD_MN1,i)-Period()*60;
if (i<0)
//***********************************************************
//CurrDaily levels
time8=iTime(NULL,PERIOD_D1,0)-Period()*60;
time10=iTime(NULL,PERIOD_W1,0)-Period()*60;
time12=iTime(NULL,PERIOD_MN1,0)-Period()*60;
DHi = iHigh(NULL,PERIOD_D1,shift+1);
DLo = iLow(NULL,PERIOD_D1,shift+1);
WHi = iHigh(NULL,PERIOD_W1,shift+1);
WLo = iLow(NULL,PERIOD_W1,shift+1);
MHi = iHigh(NULL,PERIOD_MN1,shift+1);
MLo = iLow(NULL,PERIOD_MN1,shift+1);
//***************************
//CurrDaily levels
DHigh = iHigh(NULL,PERIOD_D1,0);
DLow = iLow(NULL,PERIOD_D1,0);
WHigh = iHigh(NULL,PERIOD_W1,0);
WLow = iLow(NULL,PERIOD_W1,0);
MHigh = iHigh(NULL,PERIOD_MN1,0);
MLow = iLow(NULL,PERIOD_MN1,0);
time2=time1+PERIOD_D1*60;
time4=time3+PERIOD_W1*60;
time6=time5+PERIOD_MN1*60;
//******************************************
// CurrDaily levels
time8=time7+PERIOD_D1*60;
time10=time9+PERIOD_W1*60;
time12=time11+PERIOD_MN1*60;
num=shift;
if (Show_PreviousDaily == true)
{
PlotLineD("Previous_DailyHi["+num+"]",DHi,line_color_PreviousDaily,0);
PlotLineD("Previous_DailyLo["+num+"]",DLo,line_color_PreviousDaily,0);
}
if (Show_PreviousWeekly == true)
{
PlotLineW("Previous_WeeklyHi["+num+"]",WHi,line_color_PreviousWeekly,0);
PlotLineW("Previous_WeeklyLo["+num+"]",WLo,line_color_PreviousWeekly,0);
}
if (Show_PreviousMonthly == true)
{
PlotLineM("Previous_MonthlyHi["+num+"]",MHi,line_color_PreviousMonthly,0);
PlotLineM("Previous_MonthlyLo["+num+"]",MLo,line_color_PreviousMonthly,0);
}
//***************************************************************************************************
//CurrDaily levels
if (Show_CurrDaily == true)
{
PlotLineDLY("CurrentDailyHi["+num+"]",DHigh,line_color_CurrDailyUPPER ,0);
PlotLineDLY("CurrentDailyLo["+num+"]",DLow,line_color_CurrDailyLOWER,0);
}
if (Show_CurrWeekly == true)
{
PlotLineWLY("CurrentWeeklyHi["+num+"]",WHigh,line_color_CurrWeeklyUPPER,0);
PlotLineWLY("CurrentWeeklyLo["+num+"]",WLow,line_color_CurrWeeklyLOWER,0);
}
if (Show_CurrMonthly == true)
{
PlotLineMLY("CurrentMonthlyHi["+num+"]",MHigh,line_color_CurrMonthlyUPPER ,0);
PlotLineMLY("CurrentMonthlyLo["+num+"]",MLow,line_color_CurrMonthyLOWER,0);
}}
return(0);
}
//+------------------------------------------------------------------+
Comments
