This script is a sophisticated multi-timeframe analysis tool designed to provide traders with a comprehensive overview of market momentum across different time horizons simultaneously. Instead of forcing you to switch between various charts to see the "big picture," it consolidates this data into a single, easy-to-read display.
Core Functionality
The primary logic revolves around monitoring the Relative Strength Index (RSI)—a common momentum oscillator—across six different timeframes: 1 Minute, 5 Minutes, 15 Minutes, 30 Minutes, 1 Hour, and 4 Hours.
For every timeframe it monitors, the script performs two specific calculations:
- Standard RSI: It calculates the raw momentum value for that specific timeframe.
- Moving Average of RSI (MARSI): It applies a smoothing calculation (either a Simple Moving Average or an Exponential Moving Average) to the RSI values. This helps filter out "noise" and reveals the underlying trend of the momentum.
Dynamic Timeframe Switching
The script is designed to be intelligent based on which chart you currently have open. When you navigate through different timeframes, the tool automatically detects your current view and updates its primary visual lines to match. It ensures that while you are looking at a specific timeframe, you can see both its raw momentum and its smoothed trend clearly.
Visual Presentation
To make the data accessible for non-technical users, the script organizes information in two ways:

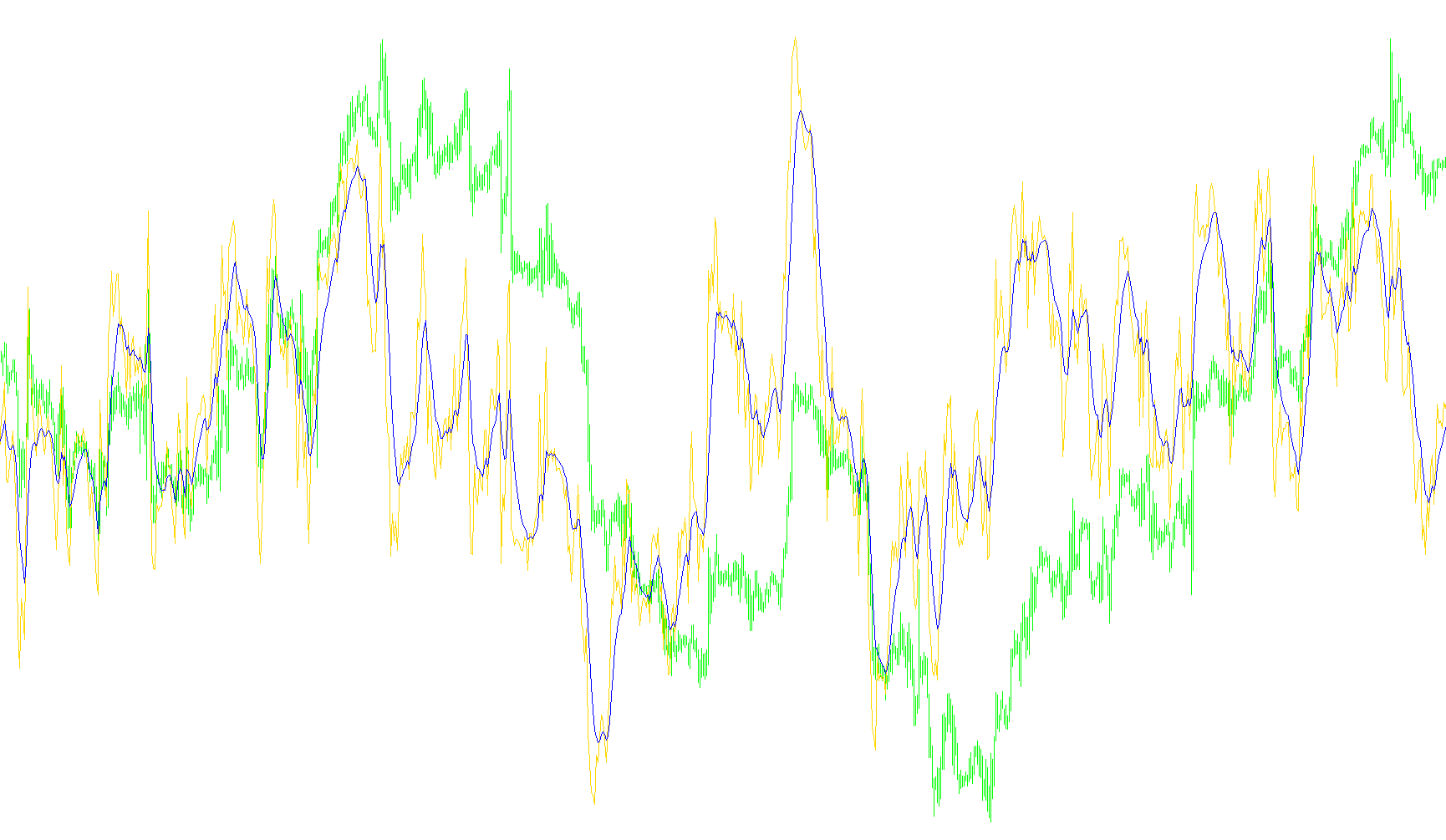

- Graphical Lines: It plots the RSI and its Moving Average as visual lines in a separate window, allowing you to see crossovers and trend changes geometrically.
- On-Screen Dashboard: The tool creates a clean, text-based dashboard directly on your chart. It displays the exact numerical values for both the RSI and the MARSI for all six timeframes simultaneously. These values are organized neatly so you can quickly scan from short-term (1M) to long-term (4H) trends at a single glance.
Key User Benefits
- Consolidated View: You no longer need to jump between six different windows to understand how the 1-minute trend aligns with the 4-hour trend.
- Trend Smoothing: By including the Moving Average of the RSI, the script helps distinguish between minor price fluctuations and significant shifts in market strength.
- Real-Time Updates: The dashboard updates dynamically, providing a constant stream of data as new price candles form.
Indicators Used
Miscellaneous
12
Views
0
Downloads
0
Favorites
MTF_MARSI_v0.10
//+------------------------------------------------------------------+
//| MTF_MARSI_v0.10.mq4 |
//| RL |
//| http:// |
//| 28.jul.2009 - add modeMA = EMA (1) |
//+------------------------------------------------------------------+
#property copyright "RL (okfar)"
#property link "http://"
#property indicator_separate_window
#property indicator_minimum 0
#property indicator_maximum 100
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 Gold
#property indicator_level1 30
#property indicator_level2 70
#property indicator_levelcolor DarkSlateGray
extern int RSIPeriod = 14;
extern int MARSIPeriod =8;
extern int ModeMA = MODE_EMA; //Avalible: 0-SMA, 1-EMA
extern int fontsize = 10;
extern int Side = 1;
extern int Y = 5;
extern int X = 5;
extern color maRsiCoolor = Gold;
extern color rsiCoolor = Blue;
extern color BarLabel_color = DarkGreen;
extern int minBars = 10;
int tf[] = {1, 5, 15, 30, 60, 240};
double rsi1[],
rsi5[],
rsi15[],
rsi30[],
rsi1H[],
rsi4H[];
double maRsi1[],
maRsi5[],
maRsi15[],
maRsi30[],
maRsi1H[],
maRsi4H[];
double dRsi[];
double dMaRsi[];
string ind;
int i, j;
int pperiod;
int limit[6];
int cBars[6],
pBars[6];
int pTime ;
//---- buffers
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
if (ModeMA == MODE_EMA && minBars < 2*MARSIPeriod )
minBars = 3*MARSIPeriod;
//---- indicators
IndicatorBuffers(8);
SetIndexStyle(0,DRAW_LINE, Blue);
SetIndexLabel( 0, "RSI"+Period());
SetIndexBuffer(0, dRsi);
SetIndexStyle(1,DRAW_LINE, Green);
SetIndexLabel( 1, "MARSI"+Period());
SetIndexBuffer(1, dMaRsi);
SetIndexBuffer(2, rsi1);
SetIndexBuffer(3, rsi5);
SetIndexBuffer(4, rsi15);
SetIndexBuffer(5, rsi30);
SetIndexBuffer(6, rsi1H);
SetIndexBuffer(7, rsi4H);
ind = StringConcatenate(WindowExpertName()," RSI (",RSIPeriod,") MARSI(",MARSIPeriod,")");
IndicatorShortName(ind);
ArraySetAsSeries(maRsi1, true);
ArraySetAsSeries(maRsi5, true);
ArraySetAsSeries(maRsi15, true);
ArraySetAsSeries(maRsi30,true);
ArraySetAsSeries(maRsi1H, true);
ArraySetAsSeries(maRsi4H, true);
if (Side == 1 || Side == 3)
Write("NumberRsi"+WindowFind(ind), Side, X+(12*fontsize/8), Y, "H4 H1 M30 M15 M5 M1", (fontsize+2), "Tahoma", BarLabel_color);
else
Write("NumberRsi"+WindowFind(ind), Side, X+(12*fontsize/8), Y, "M1 M5 M15 M30 H1 H4", fontsize+2, "Tahoma", BarLabel_color);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
ObjectDelete("NumberRsi"+WindowFind(ind));
DeleteAllVObj();
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
//----
for (i=0; i<6; i++) {
cBars[i] = iBars(Symbol(), tf[i]);
if (pBars[i] <= 0)
limit[i] = cBars[i] - RSIPeriod - 1;
else
limit[i] = cBars[i] - pBars[i];
}
limit[0] = CheckArray(maRsi1, tf[0], limit[0], 0);
limit[1] = CheckArray(maRsi5, tf[1], limit[1], 1);
limit[2] = CheckArray(maRsi15, tf[2], limit[2], 2);
limit[3] = CheckArray(maRsi30, tf[3], limit[3], 3);
limit[4] = CheckArray(maRsi1H, tf[4], limit[4], 4);
limit[5] = CheckArray(maRsi4H, tf[5], limit[5], 5);
for (i=limit[0]+MARSIPeriod; i>=0; i--)
rsi1[i] = iRSI(Symbol(),tf[0],RSIPeriod,PRICE_CLOSE,i);
for (i=limit[1]+MARSIPeriod; i>=0; i--)
rsi5[i] = iRSI(Symbol(),tf[1],RSIPeriod,PRICE_CLOSE,i);
for (i=limit[2]+MARSIPeriod; i>=0; i--)
rsi15[i] = iRSI(Symbol(),tf[2],RSIPeriod,PRICE_CLOSE,i);
for (i=limit[3]+MARSIPeriod; i>=0; i--)
rsi30[i] = iRSI(Symbol(),tf[3],RSIPeriod,PRICE_CLOSE,i);
for (i=limit[4]+MARSIPeriod; i>=0; i--)
rsi1H[i] = iRSI(Symbol(),tf[4],RSIPeriod,PRICE_CLOSE,i);
for (i=limit[5]+MARSIPeriod; i>=0; i--)
rsi4H[i] = iRSI(Symbol(),tf[5],RSIPeriod,PRICE_CLOSE,i);
if (ModeMA == MODE_EMA) {
maRsi1[limit[0]] = iMAOA(maRsi1, rsi1, MARSIPeriod, MODE_SMA, limit[0]);
maRsi5[limit[1]] = iMAOA(maRsi5, rsi5, MARSIPeriod, MODE_SMA, limit[1]);
maRsi15[limit[2]] = iMAOA(maRsi15, rsi15, MARSIPeriod, MODE_SMA, limit[2]);
maRsi30[limit[3]] = iMAOA(maRsi30, rsi30, MARSIPeriod, MODE_SMA, limit[3]);
maRsi1H[limit[4]] = iMAOA(maRsi1H, rsi1H, MARSIPeriod, MODE_SMA, limit[4]);
maRsi4H[limit[5]] = iMAOA(maRsi4H, rsi4H, MARSIPeriod, MODE_SMA, limit[5]);
for (i=0; i<6; i++)
limit[i] --;
}
for (i=limit[0]; i>=0; i--)
maRsi1[i] = iMAOA(maRsi1, rsi1, MARSIPeriod, ModeMA, i);
for (i=limit[1]; i>=0; i--)
maRsi5[i] = iMAOA(maRsi5, rsi5, MARSIPeriod, ModeMA, i);
for (i=limit[2]; i>=0; i--)
maRsi15[i] = iMAOA(maRsi15, rsi15, MARSIPeriod, ModeMA, i);
for (i=limit[3]; i>=0; i--)
maRsi30[i] = iMAOA(maRsi30, rsi30, MARSIPeriod, ModeMA, i);
for (i=limit[4]; i>=0; i--)
maRsi1H[i] = iMAOA(maRsi1H, rsi1H, MARSIPeriod, ModeMA, i);
for (i=limit[5]; i>=0; i--)
maRsi4H[i] = iMAOA(maRsi4H, rsi4H, MARSIPeriod, ModeMA, i);
switch (Period()) {
case 1: {
if (pperiod != Period())
ArrayResize(maRsi1, cBars[0]);
for (i=cBars[0] - RSIPeriod; i>=0; i--)
maRsi1[i] = iMAOnArray(rsi1,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi1, 0, 0, WHOLE_ARRAY);
ArrayCopy(dMaRsi, maRsi1, 0, 0, WHOLE_ARRAY);
} break;
case 5: {
if (pperiod != Period())
ArrayResize(maRsi5, cBars[1]);
for (i=cBars[1] - RSIPeriod; i>=0; i--)
maRsi5[i] = iMAOnArray(rsi5,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi5, 0, 0, WHOLE_ARRAY);
ArrayCopy(dMaRsi, maRsi5, 0, 0, WHOLE_ARRAY);
} break;
case 15: {
if (pperiod != Period())
ArrayResize(maRsi15, cBars[2]);
for (i=cBars[2] - RSIPeriod; i>=0; i--)
maRsi15[i] = iMAOnArray(rsi15,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi15, 0, 0, WHOLE_ARRAY);
ArrayCopy(dMaRsi, maRsi15, 0, 0, WHOLE_ARRAY);
} break;
case 30: {
if (pperiod != Period())
ArrayResize(maRsi30, cBars[3]);
for (i=cBars[3] - RSIPeriod; i>=0; i--)
maRsi30[i] = iMAOnArray(rsi30,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi30, 0, 0);
ArrayCopy(dMaRsi, maRsi30, 0, 0);
} break;
case 60: {
if (pperiod != Period())
ArrayResize(maRsi1H, cBars[4]);
for (i=cBars[4] - RSIPeriod; i>=0; i--)
maRsi1H[i] = iMAOnArray(rsi1H,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi1H, 0, 0);
ArrayCopy(dMaRsi, maRsi1H, 0, 0);
} break;
case 240: {
if (pperiod != Period())
ArrayResize(maRsi4H, cBars[5]);
for (i=cBars[5] - RSIPeriod; i>=0; i--)
maRsi4H[i] = iMAOnArray(rsi4H,0,MARSIPeriod,0,ModeMA,i);
ArrayCopy(dRsi, rsi4H, 0, 0);
ArrayCopy(dMaRsi, maRsi4H, 0, 0);
} break;
default: {
ArrayInitialize(dRsi, EMPTY_VALUE);
ArrayInitialize(dMaRsi, EMPTY_VALUE);
} break;
}
for (i=0; i<6; i++)
pBars[i] = cBars[i];
pperiod = Period();
if (ModeMA <= MODE_EMA && ModeMA >= 0) {
Write("maRSI1"+WindowFind(ind), Side, X+(5*fontsize/6) , Y+(10*fontsize/6), DoubleToStr(maRsi1[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("maRSI5"+WindowFind(ind), Side, X+(29*fontsize/6), Y+(10*fontsize/6), DoubleToStr(maRsi5[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("maRSI15"+WindowFind(ind), Side, X+(51*fontsize/6), Y+(10*fontsize/6), DoubleToStr(maRsi15[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("maRSI30"+WindowFind(ind), Side, X+(74*fontsize/6), Y+(10*fontsize/6), DoubleToStr(maRsi30[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("maRSI1H"+WindowFind(ind), Side, X+(97*fontsize/6), Y+(10*fontsize/6), DoubleToStr(maRsi1H[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("maRSI4H"+WindowFind(ind), Side, X+(120*fontsize/6), Y+(10*fontsize/6), DoubleToStr(maRsi4H[0], 2), fontsize, "Tahoma", maRsiCoolor);
Write("RSI1"+WindowFind(ind), Side, X+(5*fontsize/6) , Y+(18*fontsize/6), DoubleToStr(rsi1[0], 2), fontsize, "Tahoma", rsiCoolor);
Write("RSI5"+WindowFind(ind), Side, X+(29*fontsize/6), Y+(18*fontsize/6), DoubleToStr(rsi5[0], 2), fontsize, "Tahoma", rsiCoolor);
Write("RSI15"+WindowFind(ind), Side, X+(51*fontsize/6), Y+(18*fontsize/6), DoubleToStr(rsi15[0], 2), fontsize, "Tahoma", rsiCoolor);
Write("RSI30"+WindowFind(ind), Side, X+(74*fontsize/6), Y+(18*fontsize/6), DoubleToStr(rsi30[0], 2), fontsize, "Tahoma", rsiCoolor);
Write("RSI1H"+WindowFind(ind), Side, X+(97*fontsize/6), Y+(18*fontsize/6), DoubleToStr(rsi1H[0], 2), fontsize, "Tahoma", rsiCoolor);
Write("RSI4H"+WindowFind(ind), Side, X+(120*fontsize/6), Y+(18*fontsize/6), DoubleToStr(rsi4H[0], 2), fontsize, "Tahoma", rsiCoolor);
}
else
DeleteAllVObj();
//----
//----
return(0);
}
//+------------------------------------------------------------------+
void Write(string LBL, double Side, int X, int Y, string text, int fontsize, string fontname, color Tcolor)
{
if (ObjectFind(LBL) < 0) {
ObjectCreate(LBL, OBJ_LABEL, WindowFind(ind), 0 , 0);
ObjectSet(LBL, OBJPROP_CORNER, Side);
ObjectSet(LBL, OBJPROP_XDISTANCE, X);
ObjectSet(LBL, OBJPROP_YDISTANCE, Y);
}
ObjectSetText(LBL,text, fontsize, fontname, Tcolor);
}
void DeleteAllVObj() {
ObjectDelete("maRSI1"+WindowFind(ind));
ObjectDelete("maRSI5"+WindowFind(ind));
ObjectDelete("maRSI15"+WindowFind(ind));
ObjectDelete("maRSI30"+WindowFind(ind));
ObjectDelete("maRSI1H"+WindowFind(ind));
ObjectDelete("maRSI4H"+WindowFind(ind));
ObjectDelete("RSI1"+WindowFind(ind));
ObjectDelete("RSI5"+WindowFind(ind));
ObjectDelete("RSI15"+WindowFind(ind));
ObjectDelete("RSI30"+WindowFind(ind));
ObjectDelete("RSI1H"+WindowFind(ind));
ObjectDelete("RSI4H"+WindowFind(ind));
}
int CheckArray(double arr[], int tf, int n, int c)
{
if (Period() != tf && ArraySize(arr) != minBars+1) {
ArrayResize(arr, minBars+1);
return (minBars);
}
else if (Period() != tf) {
return (minBars);
}
else
return (n);
}
double iMAOA(double ma[], double a[],int per,int ModeMa,int sh)
{
int i;
double res = 0.0;
double k;
switch (ModeMa) {
case MODE_SMA: {
for (i=0+sh; i<per+sh;i++)
res += a[i];
return (res/per);
} break;
case MODE_EMA: {
k = 2.0/(per+1.0);
res = k*a[sh] + (1-k)*ma[sh+1];
return (res);
} break;
default:
return (EMPTY_VALUE);
break;
}
}
