Author: Vladislav Goshkov (VG).
Murrey_Math_MT4_Period_VG

This script implements a sophisticated technical analysis tool based on Murrey Math principles. Instead of using standard moving averages or basic oscillators, it identifies "Octave" levels—essentially carving the current price action into a logical grid of support and resistance zones.

How the Logic Works

The script functions by analyzing specific price ranges over a set period to build a dynamic map of where the market is likely to react. Here is the step-by-step breakdown:

1. Range Identification The tool first looks at a specific historical window (defined by the MMPeriod setting) to find the highest and lowest prices reached. This establishes the "trading territory" for the current session.

2. The Fractal & Octave Calculation Rather than just splitting that territory into equal pieces, the script uses a logarithmic approach (Fractals). It tries to determine the natural "scale" of the market movement. It then calculates an Octave, which is the fundamental unit of measurement for that specific price range.

3. Dynamic Level Construction The logic then builds a grid of 13 distinct levels based on this Octave. These aren't static lines; they shift and recalculate as the market moves. The script identifies different roles for these lines:

  • Major Support & Resistance (4/8): This is identified as the pivotal center point. If price is above this, it acts as a strong floor; if below, it acts as a ceiling.
  • Trading Range Boundaries (3/8 and 5/8): These mark the edges of the "normal" trading zone. The script suggests that prices often spend a significant amount of time moving between these two points.
  • Reversal & Pivot Points (2/8 and 6/8): These are identified as areas where the price has a high probability of turning around or experiencing significant friction.
  • Oversold/Overbought Zones (0/8 and 8/8): These represent the extreme ends of the market territory—the "Ultimate" support and resistance levels.
  • Weak/Stall Zones (1/8 and 7/8): These are transitional areas where price might pause briefly before either continuing its trend or reversing.

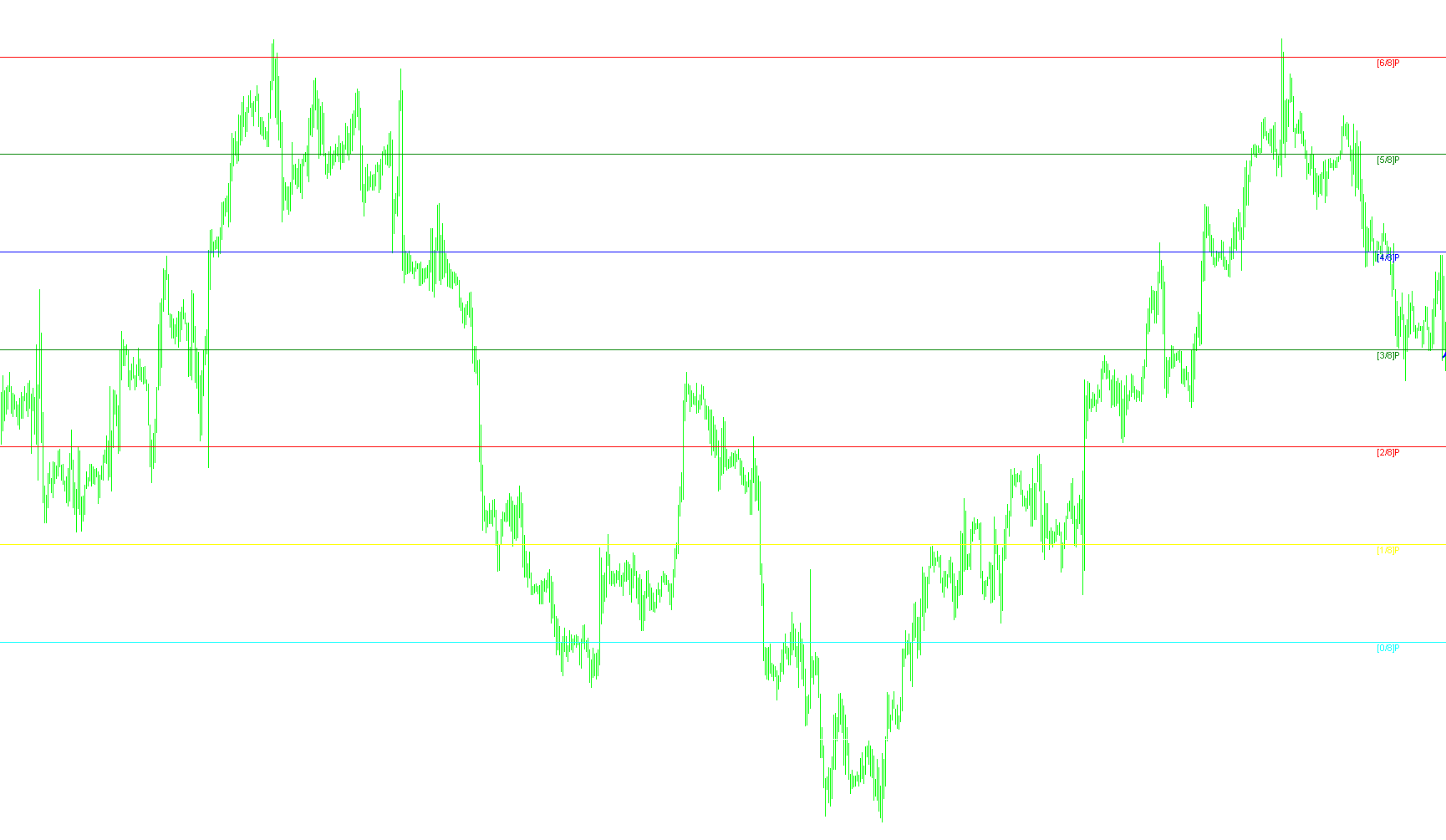

4. Visual Execution The script automatically draws these horizontal lines on your chart in real-time. Each line is assigned a unique color and thickness based on its importance, allowing you to see at a glance whether the market is currently in a "premium" zone (high price), a "discount" zone (low price), or reacting to a major structural pivot.

Summary for the User

In simple terms, this tool takes the current "chaos" of price movement and organizes it into an organized set of rules. It tells you where the market is currently "comfortable," where it might struggle to move higher, and where it might find enough support to bounce back up.

16 Views
0 Downloads
0 Favorites
Murrey_Math_MT4_Period_VG
//+------------------------------------------------------------------+
//|                                            Murrey_Math_MT_VG.mq4 |
//|                       Copyright © 2004, Vladislav Goshkov (VG).  |
//|                                           4vg@mail.ru            |
//+------------------------------------------------------------------+
#property copyright "Vladislav Goshkov (VG)."
#property link      "4vg@mail.ru"

#property indicator_chart_window

// ============================================================================================
// * Ëèíèè 8/8 è 0/8 (Îêîí÷àòåëüíîå ñîïðîòèâëåíèå).
// * Ýòè ëèíèè ñàìûå ñèëüíûå è îêàçûâàþò ñèëüíåéøèå ñîïðîòèâëåíèÿ è ïîääåðæêó.
// ============================================================================================
//* Ëèíèÿ 7/8  (Ñëàáàÿ, ìåñòî äëÿ îñòàíîâêè è ðàçâîðîòà). Weak, Stall and Reverse
//* Ýòà ëèíèÿ ñëàáà. Åñëè öåíà çàøëà ñëèøêîì äàëåêî è ñëèøêîì áûñòðî è åñëè îíà îñòàíîâèëàñü îêîëî ýòîé ëèíèè,
//* çíà÷èò îíà ðàçâåðíåòñÿ áûñòðî âíèç. Åñëè öåíà íå îñòàíîâèëàñü îêîëî ýòîé ëèíèè, îíà ïðîäîëæèò äâèæåíèå ââåðõ ê 8/8.
// ============================================================================================
//* Ëèíèÿ 1/8  (Ñëàáàÿ, ìåñòî äëÿ îñòàíîâêè è ðàçâîðîòà). Weak, Stall and Reverse
//* Ýòà ëèíèÿ ñëàáà. Åñëè öåíà çàøëà ñëèøêîì äàëåêî è ñëèøêîì áûñòðî è åñëè îíà îñòàíîâèëàñü îêîëî ýòîé ëèíèè,
//* çíà÷èò îíà ðàçâåðíåòñÿ áûñòðî ââåðõ. Åñëè öåíà íå îñòàíîâèëàñü îêîëî ýòîé ëèíèè, îíà ïðîäîëæèò äâèæåíèå âíèç ê 0/8.
// ============================================================================================
//* Ëèíèè 6/8 è 2/8 (Âðàùåíèå, ðàçâîðîò). Pivot, Reverse
//* Ýòè äâå ëèíèè óñòóïàþò â ñâîåé ñèëå òîëüêî 4/8 â ñâîåé ñïîñîáíîñòè ïîëíîñòüþ ðàçâåðíóòü öåíîâîå äâèæåíèå.
// ============================================================================================
//* Ëèíèÿ 5/8 (Âåðõ òîðãîâîãî äèàïàçîíà). Top of Trading Range
//* Öåíû âñåõ ðûíêîâ òðàòÿò 40% âðåìåíè, íà äâèæåíèå ìåæäó 5/8 è 3/8 ëèíèÿìè.
//* Åñëè öåíà äâèãàåòñÿ îêîëî ëèíèè 5/8 è îñòàåòñÿ îêîëî íåå â òå÷åíèè 10-12 äíåé, ðûíîê ñêàçàë ÷òî ñëåäóåò
//* ïðîäàâàòü â ýòîé «ïðåìèàëüíîé çîíå», ÷òî è äåëàþò íåêîòîðûå ëþäè, íî åñëè öåíà ñîõðàíÿåò òåíäåíöèþ îñòàâàòüñÿ
//* âûøå 5/8, òî îíà è îñòàíåòñÿ âûøå íåå. Åñëè, îäíàêî, öåíà ïàäàåò íèæå 5/8, òî îíà ñêîðåå âñåãî ïðîäîëæèò
//* ïàäàòü äàëåå äî ñëåäóþùåãî óðîâíÿ ñîïðîòèâëåíèÿ.
// ============================================================================================
//* Ëèíèÿ 3/8 (Äíî òîðãîâîãî äèàïàçîíà). Bottom of Trading Range
//* Åñëè öåíû íèæå ýòîé ëèíè è äâèãàþòñÿ ââåðõ, òî öåíå áóäåò ñëîæíî ïðîáèòü ýòîò óðîâåíü.
//* Åñëè ïðîáèâàþò ââåðõ ýòó ëèíèþ è îñòàþòñÿ âûøå íåå â òå÷åíèè 10-12 äíåé, çíà÷èò öåíû îñòàíóòñÿ âûøå ýòîé ëèíèè
//* è ïîòðàòÿò 40% âðåìåíè äâèãàÿñü ìåæäó ýòîé ëèíèåé è 5/8 ëèíèåé.
// ============================================================================================
//* Ëèíèÿ 4/8 (Ãëàâíàÿ ëèíèÿ ñîïðîòèâëåíèÿ/ïîääåðæêè). Major Support/Resistance
//* Ýòà ëèíèÿ îáåñïå÷èâàåò íàèáîëüøåå ñîïðîòèâëåíèå/ïîääåðæêó. Ýòîò óðîâåíü ÿâëÿåòñÿ ëó÷øèì äëÿ íîâîé ïîêóïêè èëè ïðîäàæè.
//* Åñëè öåíà íàõîäèòñÿ âûøå 4/8, òî ýòî ñèëüíûé óðîâåíü ïîääåðæêè. Åñëè öåíà íàõîäèòñÿ íèæå 4/8, òî ýòî ïðåêðàñíûé óðîâåíü
//* ñîïðîòèâëåíèÿ.
// ============================================================================================
extern int P = 64;
extern int MMPeriod = 1440;
extern int StepBack = 0;

extern color  mml_clr_m_2_8 = White;       // [-2]/8
extern color  mml_clr_m_1_8 = White;       // [-1]/8
extern color  mml_clr_0_8   = Aqua;        //  [0]/8
extern color  mml_clr_1_8   = Yellow;      //  [1]/8
extern color  mml_clr_2_8   = Red;         //  [2]/8
extern color  mml_clr_3_8   = Green;       //  [3]/8
extern color  mml_clr_4_8   = Blue;        //  [4]/8
extern color  mml_clr_5_8   = Green;       //  [5]/8
extern color  mml_clr_6_8   = Red;         //  [6]/8
extern color  mml_clr_7_8   = Yellow;      //  [7]/8
extern color  mml_clr_8_8   = Aqua;        //  [8]/8
extern color  mml_clr_p_1_8 = White;       // [+1]/8
extern color  mml_clr_p_2_8 = White;       // [+2]/8

extern int    mml_wdth_m_2_8 = 2;        // [-2]/8
extern int    mml_wdth_m_1_8 = 1;       // [-1]/8
extern int    mml_wdth_0_8   = 1;        //  [0]/8
extern int    mml_wdth_1_8   = 1;      //  [1]/8
extern int    mml_wdth_2_8   = 1;         //  [2]/8
extern int    mml_wdth_3_8   = 1;       //  [3]/8
extern int    mml_wdth_4_8   = 1;        //  [4]/8
extern int    mml_wdth_5_8   = 1;       //  [5]/8
extern int    mml_wdth_6_8   = 1;         //  [6]/8
extern int    mml_wdth_7_8   = 1;      //  [7]/8
extern int    mml_wdth_8_8   = 1;        //  [8]/8
extern int    mml_wdth_p_1_8 = 1;       // [+1]/8
extern int    mml_wdth_p_2_8 = 2;       // [+2]/8

extern color  MarkColor   = Blue;
extern int    MarkNumber  = 217;


double  dmml = 0,
        dvtl = 0,
        sum  = 0,
        v1 = 0,
        v2 = 0,
        mn = 0,
        mx = 0,
        x1 = 0,
        x2 = 0,
        x3 = 0,
        x4 = 0,
        x5 = 0,
        x6 = 0,
        y1 = 0,
        y2 = 0,
        y3 = 0,
        y4 = 0,
        y5 = 0,
        y6 = 0,
        octave = 0,
        fractal = 0,
        range   = 0,
        finalH  = 0,
        finalL  = 0,
        mml[13];

string  ln_txt[13],
        buff_str = "";

int
        bn_v1   = 0,
        bn_v2   = 0,
        OctLinesCnt = 13,
        mml_thk = 8,
        mml_clr[13],
        mml_wdth[13],
        mml_shft = 35,
        nTime = 0,
        CurPeriod = 0,
        nDigits = 0,
        i = 0;
int NewPeriod=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init() {
//---- indicators
   if(MMPeriod>0)
      NewPeriod   = P*MathCeil(MMPeriod/Period());
   else NewPeriod = P;

   ln_txt[0]  = "[-2/8]P";// "extremely overshoot [-2/8]";// [-2/8]
   ln_txt[1]  = "[-1/8]P";// "overshoot [-1/8]";// [-1/8]
   ln_txt[2]  = "[0/8]P";// "Ultimate Support - extremely oversold [0/8]";// [0/8]
   ln_txt[3]  = "[1/8]P";// "Weak, Stall and Reverse - [1/8]";// [1/8]
   ln_txt[4]  = "[2/8]P";// "Pivot, Reverse - major [2/8]";// [2/8]
   ln_txt[5]  = "[3/8]P";// "Bottom of Trading Range - [3/8], if 10-12 bars then 40% Time. BUY Premium Zone";//[3/8]
   ln_txt[6]  = "[4/8]P";// "Major Support/Resistance Pivotal Point [4/8]- Best New BUY or SELL level";// [4/8]
   ln_txt[7]  = "[5/8]P";// "Top of Trading Range - [5/8], if 10-12 bars then 40% Time. SELL Premium Zone";//[5/8]
   ln_txt[8]  = "[6/8]P";// "Pivot, Reverse - major [6/8]";// [6/8]
   ln_txt[9]  = "[7/8]P";// "Weak, Stall and Reverse - [7/8]";// [7/8]
   ln_txt[10] = "[8/8]P";// "Ultimate Resistance - extremely overbought [8/8]";// [8/8]
   ln_txt[11] = "[+1/8]P";// "overshoot [+1/8]";// [+1/8]
   ln_txt[12] = "[+2/8]P";// "extremely overshoot [+2/8]";// [+2/8]

   //mml_shft = 3;
   mml_thk  = 3;

   // Íà÷àëüíàÿ óñòàíîâêà öâåòîâ óðîâíåé îêòàâ è òîëùèíû ëèíèé
   mml_clr[0]  = mml_clr_m_2_8;   mml_wdth[0] = mml_wdth_m_2_8; // [-2]/8
   mml_clr[1]  = mml_clr_m_1_8;   mml_wdth[1] = mml_wdth_m_1_8; // [-1]/8
   mml_clr[2]  = mml_clr_0_8;     mml_wdth[2] = mml_wdth_0_8;   //  [0]/8
   mml_clr[3]  = mml_clr_1_8;     mml_wdth[3] = mml_wdth_1_8;   //  [1]/8
   mml_clr[4]  = mml_clr_2_8;     mml_wdth[4] = mml_wdth_2_8;   //  [2]/8
   mml_clr[5]  = mml_clr_3_8;     mml_wdth[5] = mml_wdth_3_8;   //  [3]/8
   mml_clr[6]  = mml_clr_4_8;     mml_wdth[6] = mml_wdth_4_8;   //  [4]/8
   mml_clr[7]  = mml_clr_5_8;     mml_wdth[7] = mml_wdth_5_8;   //  [5]/8
   mml_clr[8]  = mml_clr_6_8;     mml_wdth[8] = mml_wdth_6_8;   //  [6]/8
   mml_clr[9]  = mml_clr_7_8;     mml_wdth[9] = mml_wdth_7_8;   //  [7]/8
   mml_clr[10] = mml_clr_8_8;     mml_wdth[10]= mml_wdth_8_8;   //  [8]/8
   mml_clr[11] = mml_clr_p_1_8;   mml_wdth[11]= mml_wdth_p_1_8; // [+1]/8
   mml_clr[12] = mml_clr_p_2_8;   mml_wdth[12]= mml_wdth_p_2_8; // [+2]/8


//----
   return(0);
  }

//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit() {
//---- TODO: add your code here
Comment(" ");
for(i=0;i<OctLinesCnt;i++) {
    buff_str = "mml"+i;
    ObjectDelete(buff_str);
    buff_str = "mml_txt"+i;
    ObjectDelete(buff_str);
    buff_str = "MML_LatestCulcBar";
    ObjectDelete(buff_str);
    }
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {

//---- TODO: add your code here

if( (nTime != Time[0]) || (CurPeriod != Period()) ) {

  //price
   bn_v1 = Lowest(NULL,0,MODE_LOW,NewPeriod+StepBack,StepBack);
   bn_v2 = Highest(NULL,0,MODE_HIGH,NewPeriod+StepBack,StepBack);

   v1 = Low[bn_v1];
   v2 = High[bn_v2];

//determine fractal.....
   if( v2<=250000 && v2>25000 )
   fractal=100000;
   else
     if( v2<=25000 && v2>2500 )
     fractal=10000;
     else
       if( v2<=2500 && v2>250 )
       fractal=1000;
       else
         if( v2<=250 && v2>25 )
         fractal=100;
         else
           if( v2<=25 && v2>12.5 )
           fractal=12.5;
           else
             if( v2<=12.5 && v2>6.25)
             fractal=12.5;
             else
               if( v2<=6.25 && v2>3.125 )
               fractal=6.25;
               else
                 if( v2<=3.125 && v2>1.5625 )
                 fractal=3.125;
                 else
                   if( v2<=1.5625 && v2>0.390625 )
                   fractal=1.5625;
                   else
                     if( v2<=0.390625 && v2>0)
                     fractal=0.1953125;

   range=(v2-v1);
   sum=MathFloor(MathLog(fractal/range)/MathLog(2));
   octave=fractal*(MathPow(0.5,sum));
   mn=MathFloor(v1/octave)*octave;
   if( (mn+octave)>v2 )
   mx=mn+octave;
   else
     mx=mn+(2*octave);


// calculating xx
//x2
    if( (v1>=(3*(mx-mn)/16+mn)) && (v2<=(9*(mx-mn)/16+mn)) )
    x2=mn+(mx-mn)/2;
    else x2=0;
//x1
    if( (v1>=(mn-(mx-mn)/8))&& (v2<=(5*(mx-mn)/8+mn)) && (x2==0) )
    x1=mn+(mx-mn)/2;
    else x1=0;

//x4
    if( (v1>=(mn+7*(mx-mn)/16))&& (v2<=(13*(mx-mn)/16+mn)) )
    x4=mn+3*(mx-mn)/4;
    else x4=0;

//x5
    if( (v1>=(mn+3*(mx-mn)/8))&& (v2<=(9*(mx-mn)/8+mn))&& (x4==0) )
    x5=mx;
    else  x5=0;

//x3
    if( (v1>=(mn+(mx-mn)/8))&& (v2<=(7*(mx-mn)/8+mn))&& (x1==0) && (x2==0) && (x4==0) && (x5==0) )
    x3=mn+3*(mx-mn)/4;
    else x3=0;

//x6
    if( (x1+x2+x3+x4+x5) ==0 )
    x6=mx;
    else x6=0;

     finalH = x1+x2+x3+x4+x5+x6;
// calculating yy
//y1
    if( x1>0 )
    y1=mn;
    else y1=0;

//y2
    if( x2>0 )
    y2=mn+(mx-mn)/4;
    else y2=0;

//y3
    if( x3>0 )
    y3=mn+(mx-mn)/4;
    else y3=0;

//y4
    if( x4>0 )
    y4=mn+(mx-mn)/2;
    else y4=0;

//y5
    if( x5>0 )
    y5=mn+(mx-mn)/2;
    else y5=0;

//y6
    if( (finalH>0) && ((y1+y2+y3+y4+y5)==0) )
    y6=mn;
    else y6=0;

    finalL = y1+y2+y3+y4+y5+y6;

    for( i=0; i<OctLinesCnt; i++) {
         mml[i] = 0;
         }

   dmml = (finalH-finalL)/8;

   mml[0] =(finalL-dmml*2); //-2/8
   for( i=1; i<OctLinesCnt; i++) {
        mml[i] = mml[i-1] + dmml;
        }
   for( i=0; i<OctLinesCnt; i++ ){
        buff_str = "mml"+i;
        if(ObjectFind(buff_str) == -1) {
           ObjectCreate(buff_str, OBJ_HLINE, 0, Time[0], mml[i]);
           ObjectSet(buff_str, OBJPROP_STYLE, STYLE_SOLID);
           ObjectSet(buff_str, OBJPROP_COLOR, mml_clr[i]);
           ObjectSet(buff_str, OBJPROP_WIDTH, mml_wdth[i]);
           ObjectMove(buff_str, 0, Time[0],  mml[i]);
           }
        else {
           ObjectMove(buff_str, 0, Time[0],  mml[i]);
           }

        buff_str = "mml_txt"+i;
        if(ObjectFind(buff_str) == -1) {
           ObjectCreate(buff_str, OBJ_TEXT, 0, Time[mml_shft], mml_shft);
           ObjectSetText(buff_str, ln_txt[i], 8, "Arial", mml_clr[i]);
           ObjectMove(buff_str, 0, Time[mml_shft],  mml[i]);
           }
        else {
           ObjectMove(buff_str, 0, Time[mml_shft],  mml[i]);
           }
        } // for( i=1; i<=OctLinesCnt; i++ ){

   nTime    = Time[0];
   CurPeriod= Period();

   string buff_str = "MML_LatestCulcBar";
   if(ObjectFind(buff_str) == -1) {
      ObjectCreate(buff_str, OBJ_ARROW,0, Time[StepBack], Low[StepBack]-2*Point );
      ObjectSet(buff_str, OBJPROP_ARROWCODE, MarkNumber);
      ObjectSet(buff_str, OBJPROP_COLOR, MarkColor);
      }
   else {
      ObjectMove(buff_str, 0, Time[StepBack], Low[StepBack]-2*Point );
      }

   }

//---- End Of Program
  return(0);
  }
//+------------------------------------------------------------------+
