Nina_StepMA_1_Custom3s
Download scriptThis script functions as a specialized technical analysis tool designed to track and visualize market trends through a "stepping" methodology. Instead of following every minor price fluctuation, it identifies broader price movements and categorizes them into distinct levels based on volatility.
Core Logic Overview
The indicator operates by analyzing the relationship between historical price ranges (the difference between highs and lows) and current price action. It works through the following logical steps:
1. Volatility Measurement The tool first calculates the market's "range" over a specific lookback period. By weighing recent price movements more heavily than older ones, it establishes a dynamic sense of how much the market is currently expanding or contracting. This allows the indicator to adjust its sensitivity based on current market conditions.
2. Dynamic Threshold Creation (The "Steps") Based on the volatility measured above, the script calculates three distinct "zones" or levels:
- Minimum Level: Based on low-volatility expectations.
- Maximum Level: Based on high-volatility expectations.
- Mid Level: A balanced middle ground between the two.
These levels act as boundaries. The logic assumes that price movements are not just random but often move in "steps" relative to these volatility markers.
3. Trend Identification The script compares the current closing price against these three calculated levels (Min, Mid, and Max). It determines the prevailing trend by checking if the price has broken above or below these boundaries. This logic helps distinguish between a minor fluctuation and a significant structural move in the market.
4. Stochastic Mapping Once the trends are identified, the script translates this data into a visual "Stochastic" format. It maps the distance of the current trend lines relative to the maximum possible range. The result is a smoothed representation of momentum that shows where the price sits in relation to its historical boundaries.
5. Signal Generation and Alerts The final layer of logic monitors the relationship between the different trend lines:
- Buy/Sell Signals: When one calculated line crosses another (specifically the "Mid" line), the script identifies a change in momentum.

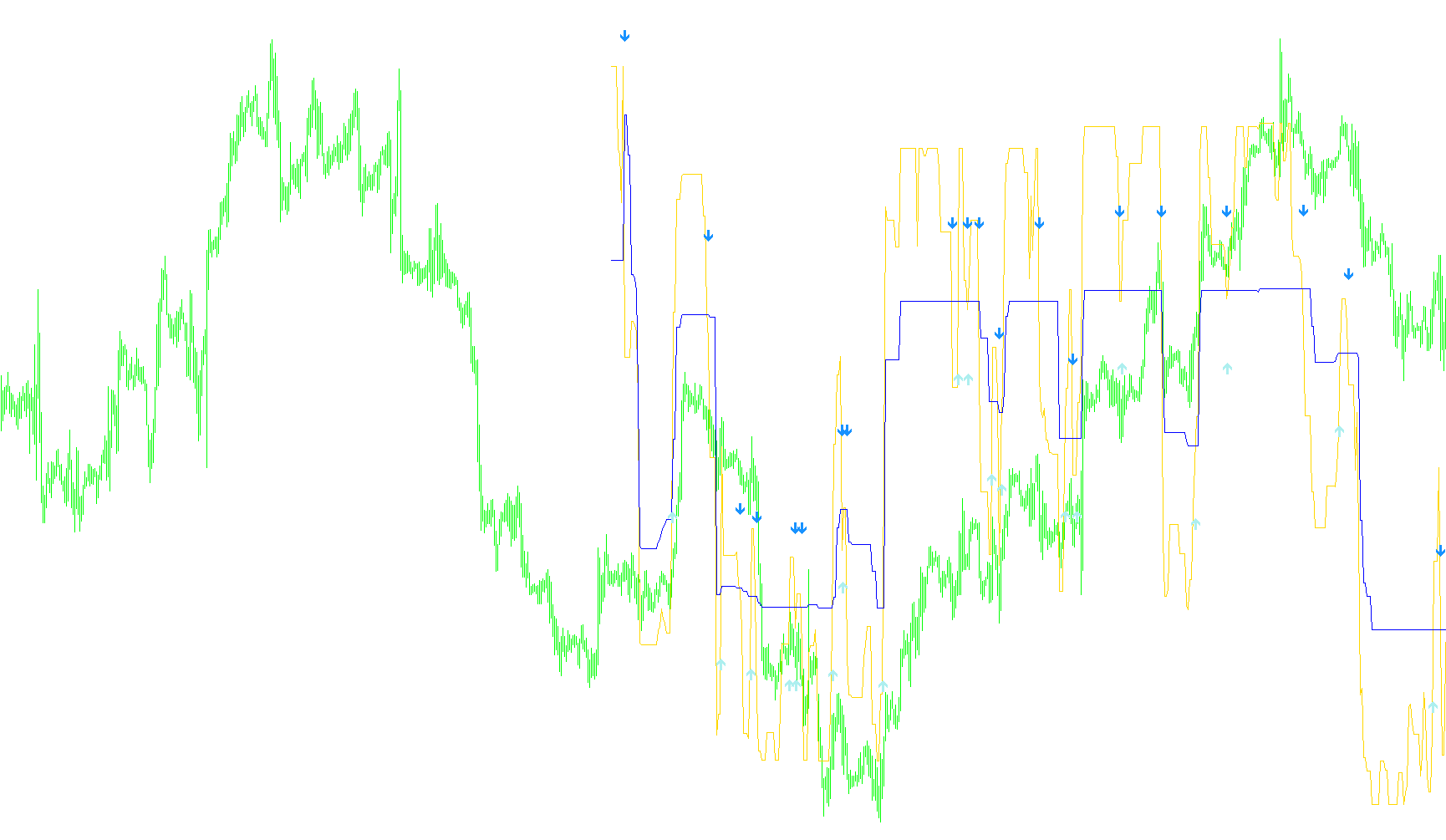

- Visual Cues: The script places specific arrows on the chart to highlight these crossover moments, providing a clear entry or exit point for the user.
- Audio Alerts: If the "Alert" setting is enabled, the tool triggers an audible notification and a pop-up message whenever a confirmed crossover occurs, allowing for real-time monitoring without needing to watch the screen constantly.
//+------------------------------------------------------------------+
//| Nina_StepMA_1.mq4 |
//+------------------------------------------------------------------+
#property indicator_separate_window
#property indicator_buffers 4
#property indicator_color1 Magenta
#property indicator_color2 Aqua
#property indicator_color3 Blue
#property indicator_color4 Red
#property indicator_width3 0
#property indicator_width4 0
#property indicator_minimum 0
#property indicator_maximum 1
//----input parameters
extern int PeriodWATR=7;
extern double Kwatr= 0.7;
extern int HighLow=0;
extern int CalculatedBars = 500;
extern bool alert_ON=true; // ON=true, OFF=false
//---- indicator buffers
double LineMinBuffer[];
double LineMidBuffer[];
double LineBuyBuffer[];
double LineSellBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string short_name;
IndicatorBuffers(4);
//---- indicator line
SetIndexStyle(0,DRAW_LINE);
SetIndexStyle(1,DRAW_LINE);
SetIndexStyle(2,DRAW_ARROW);
SetIndexStyle(3,DRAW_ARROW);
SetIndexEmptyValue(2,0);
SetIndexArrow(2,233);
SetIndexEmptyValue(3,0);
SetIndexArrow(3,234);
SetIndexBuffer(0,LineMinBuffer);
SetIndexBuffer(1,LineMidBuffer);
SetIndexBuffer(2,LineBuyBuffer);
SetIndexBuffer(3,LineSellBuffer);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//---- name for DataWindow and indicator subwindow label
short_name="StepMA_Stoch("+PeriodWATR+","+Kwatr+","+HighLow+")";
IndicatorShortName(short_name);
//----
SetIndexDrawBegin(0,PeriodWATR);
SetIndexDrawBegin(1,PeriodWATR);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int i,shift,TrendMin,TrendMax,TrendMid;
double SminMin0,SmaxMin0,SminMin1,SmaxMin1,SumRange,dK,WATR0,WATRmax,WATRmin,WATRmid;
double SminMax0,SmaxMax0,SminMax1,SmaxMax1,SminMid0,SmaxMid0,SminMid1,SmaxMid1;
double linemin,linemax,linemid,Stoch1,Stoch2,bsmin,bsmax;
static bool turn_alarm = true;
int StepSizeMin,StepSizeMax,StepSizeMid;
double min,max,mid,h,l,c;
int position_ind0=0, position_ind1=0;
// position_ind0 = -1, below
// = 1, up
ArrayInitialize(LineBuyBuffer,0);
ArrayInitialize(LineSellBuffer,0);
if(CalculatedBars>Bars || CalculatedBars == 0 ) CalculatedBars = Bars;
for(shift=CalculatedBars-1;shift>=0;shift--){
SumRange=0;
for (i=PeriodWATR-1;i>=0;i--){
dK = 1+1.0*(PeriodWATR-i)/PeriodWATR;
SumRange+= dK*MathAbs(High[i+shift]-Low[i+shift]);
}
WATR0 = SumRange/PeriodWATR;
WATRmax=MathMax(WATR0,WATRmax);
if (shift==CalculatedBars-1-PeriodWATR) WATRmin=WATR0;
WATRmin=MathMin(WATR0,WATRmin);
StepSizeMin=MathRound(Kwatr*WATRmin/Point);
StepSizeMax=MathRound(Kwatr*WATRmax/Point);
StepSizeMid=MathRound(Kwatr*0.5*(WATRmax+WATRmin)/Point);
min = Kwatr*WATRmin;
max = Kwatr*WATRmax;
mid = Kwatr*0.5*(WATRmax+WATRmin);
//b = iBarShift(Symbol(),tPeriod,Time[shift]);
c = Close[shift];//iClose(Symbol(),tPeriod,b);
h = High[shift];//iHigh(Symbol(),tPeriod,b)
l = Low[shift];//iLow(Symbol(),tPeriod,b)
if (HighLow>0){
SmaxMin0=l+2*min;
SminMin0=h-2*min;
SmaxMax0=l+2*max;
SminMax0=h-2*max;
SmaxMid0=l+2*mid;
SminMid0=h-2*mid;
if(c>SmaxMin1) TrendMin=1;
if(c<SminMin1) TrendMin=-1;
if(c>SmaxMax1) TrendMax=1;
if(c<SminMax1) TrendMax=-1;
if(c>SmaxMid1) TrendMid=1;
if(c<SminMid1) TrendMid=-1;
}
if (HighLow == 0){
SmaxMin0=c+2*min;
SminMin0=c-2*min;
SmaxMax0=c+2*max;
SminMax0=c-2*max;
SmaxMid0=c+2*mid;
SminMid0=c-2*mid;
if(c>SmaxMin1) TrendMin=1;
if(c<SminMin1) TrendMin=-1;
if(c>SmaxMax1) TrendMax=1;
if(c<SminMax1) TrendMax=-1;
if(c>SmaxMid1) TrendMid=1;
if(c<SminMid1) TrendMid=-1;
}
if(TrendMin>0 && SminMin0<SminMin1) SminMin0=SminMin1;
if(TrendMin<0 && SmaxMin0>SmaxMin1) SmaxMin0=SmaxMin1;
if(TrendMax>0 && SminMax0<SminMax1) SminMax0=SminMax1;
if(TrendMax<0 && SmaxMax0>SmaxMax1) SmaxMax0=SmaxMax1;
if(TrendMid>0 && SminMid0<SminMid1) SminMid0=SminMid1;
if(TrendMid<0 && SmaxMid0>SmaxMid1) SmaxMid0=SmaxMid1;
if (TrendMin>0) linemin=SminMin0+min;
if (TrendMin<0) linemin=SmaxMin0-min;
if (TrendMax>0) linemax=SminMax0+max;
if (TrendMax<0) linemax=SmaxMax0-max;
if (TrendMid>0) linemid=SminMid0+mid;
if (TrendMid<0) linemid=SmaxMid0-mid;
bsmin=linemax-max;
bsmax=linemax+max;
Stoch1=(linemin-bsmin)/(bsmax-bsmin);
Stoch2=(linemid-bsmin)/(bsmax-bsmin);
LineMinBuffer[shift]=Stoch1;
LineMidBuffer[shift]=Stoch2;
SminMin1=SminMin0;
SmaxMin1=SmaxMin0;
SminMax1=SminMax0;
SmaxMax1=SmaxMax0;
SminMid1=SminMid0;
SmaxMid1=SmaxMid0;
// don't do anything for current bar since it is keeping changing.
if(shift != 0) {
position_ind0 = position_ind1;
if(LineMinBuffer[shift]>LineMidBuffer[shift]){
position_ind1=1;
}
else {
position_ind1=-1;
}
// current bar is keeping on changing
// so don't put arrow on it
// that means we only set on signal for confirmed bar
if((position_ind0==-1) && (position_ind1==1)) {
// cross up
LineBuyBuffer[shift] = LineMidBuffer[shift]-0.1;
}
if((position_ind0==1) && (position_ind1==-1)) {
// cross down
LineSellBuffer[shift] = LineMidBuffer[shift]+0.1;
}
}
}
if(Volume[0]>1) return(0);
// for the current crossing, make the sound
// still have problem for this mechanism, leave it for later modification
if(alert_ON) {
if(position_ind0*position_ind1<0) { // time for alarm
Alert ("StepStoch crossed on ",Symbol(),"-",Period());
PlaySound("timeout.wav");
turn_alarm=false;
}
}
return(0);
}
//+------------------------------------------------------------------+
