open_position_ma
Download script
This script is designed as a visual technical analysis tool for the MetaTrader platform. It simplifies market trend identification by calculating specific moving averages across different timeframes and displaying a real-time "signal" on your trading chart.
Core Logic and Functionality
Multi-Timeframe Analysis The tool automatically gathers data from two primary timeframes: the 1-hour (H1) and the 4-hour (H4) charts. It calculates moving averages for both of these periods to ensure that the signals are based on broader market trends rather than just short-term price fluctuations.
Visual Indicators When you activate this script, it performs several visual tasks on your chart:
- Identification Labels: It places text labels directly on the chart to identify specific moving average levels (such as MA 5 and MA 20), allowing you to see exactly where these key price benchmarks are located.
- Trend Lines: The script draws horizontal trend lines at the current value of the moving averages. This helps traders visualize the "support" or "resistance" zones created by these averages in real-time.

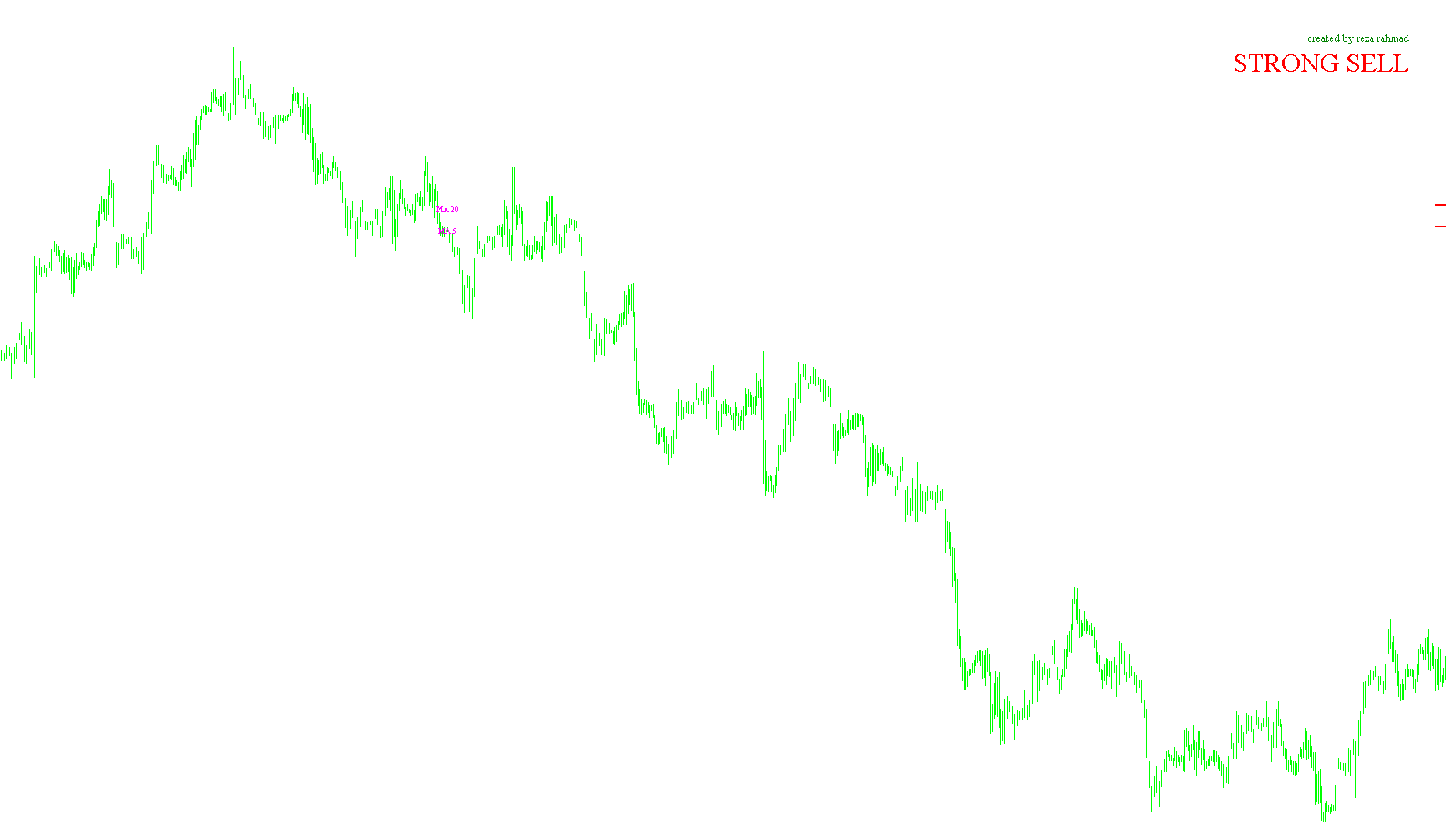

- Dynamic Status Text: A prominent text display on your screen updates instantly to provide a clear market sentiment summary.
Signal Generation Logic The script determines the market sentiment by comparing the current closing price of the 1-hour chart against two different moving averages (a "fast" and a "slow" average). The logic branches into four distinct categories:
- Strong Buy: Triggered when the current price is above both the fast and slow moving averages, indicating significant upward momentum.
- Weak Buy: Triggered when the price is above the fast average but still below the slow average, suggesting a slight recovery or a less confident upward move.
- Strong Sell: Triggered when the current price is below both the fast and slow moving averages, indicating heavy downward momentum.
- Weak Sell: Triggered when the price is below the fast average but above the slow average, suggesting a slight dip in an overall bearish environment.
- No Logic: If the price sits exactly on a boundary or does not meet specific criteria, the script notifies you that no clear trend signal is currently detected.
Summary for Traders
Essentially, this tool acts as a real-time "trend translator." Instead of you having to manually calculate and compare multiple moving averages across different timeframes, the script does the math for you and provides a clear, color-coded text instruction—ranging from Strong Buy to Strong Sell—to help you quickly gauge the current market direction at a glance.
Indicators Used
8
Views
0
Downloads
0
Favorites
open_position_ma
//+------------------------------------------------------------------+
//| open position MA.mq4 |
//| reza rahmad |
//| reiz_gamer@yahoo.co.id |
//+------------------------------------------------------------------+
#property copyright "reza rahmad"
#property link "reiz_gamer@yahoo.co.id"
#property version "1.00"
#property strict
#property indicator_chart_window
extern double MA_fast = 5;
extern double MA_slow = 20;
extern double MA_shift_fast = 2;
extern double MA_shift_slow = 0;
double h15 =iMA( NULL,PERIOD_H1, MA_fast, MA_shift_fast,MODE_SMA,PRICE_CLOSE,0);
double h120=iMA( NULL,PERIOD_H1,MA_slow, MA_shift_slow,MODE_SMA,PRICE_CLOSE,0);
double h45=iMA( NULL,PERIOD_H4, MA_fast, MA_shift_fast,MODE_SMA,PRICE_CLOSE,0);
double h420=iMA( NULL,PERIOD_H4, MA_shift_slow, MA_shift_slow,MODE_SMA,PRICE_CLOSE,0);
//---jectSet("text",OBJPROP_YDISTANCE,60);
int init(){
ObjectCreate("texti",OBJ_LABEL,0,0,0,0,0);
ObjectSet("texti",OBJPROP_CORNER,1);
ObjectSet("texti",OBJPROP_XDISTANCE,50);
ObjectSet("texti",OBJPROP_YDISTANCE,60);
ObjectSetText("texti","TEST",24,"Times New Roman",Green);
ObjectCreate("textir",OBJ_LABEL,0,0,0,0,0);
ObjectSet("textir",OBJPROP_CORNER,1);
ObjectSet("textir",OBJPROP_XDISTANCE,50);
ObjectSet("textir",OBJPROP_YDISTANCE,40);
ObjectSetText("textir","created by reza rahmad",10,"Times New Roman",Green);
ObjectCreate("text1",OBJ_TEXT,0,0,0,0,0);
ObjectSet("text1",OBJPROP_CORNER,1);
ObjectSet("text1",OBJPROP_TIME1,Time[0]);
ObjectSet("text1",OBJPROP_PRICE1,h15 +5 * Point);
ObjectSetText("text1","MA 5",7,"Times New Roman",Magenta);
ObjectCreate("text2",OBJ_TEXT,0,0,0,0,0);
ObjectSet("text2",OBJPROP_CORNER,1);
ObjectSet("text2",OBJPROP_TIME1,Time[0]);
ObjectSet("text2",OBJPROP_PRICE1,h120 +5 * Point);
ObjectSetText("text2","MA 20",7,"Times New Roman",Magenta);
return(0);
}
int deinit(){
ObjectDelete("texti");
ObjectDelete("text1");
ObjectDelete("text2");
ObjectDelete("h15");
ObjectDelete("h120");
ObjectDelete("h55");
ObjectDelete("h420");
return(0);
}
int start(){
ObjectCreate("b1",OBJ_TREND,0,0,0,0,0);
ObjectSet("b1",OBJPROP_PRICE1,h15);
ObjectSet("b1",OBJPROP_PRICE2,h15);
ObjectSet("b1",OBJPROP_TIME1,Time[0]);
ObjectSet("b1",OBJPROP_TIME2,Time[7]);
ObjectSet("b1",OBJPROP_RAY,false);
ObjectSet("b1",OBJPROP_WIDTH,2);
ObjectSet("b1",OBJPROP_COLOR,clrRed);
ObjectCreate("s1",OBJ_TREND,0,0,0,0,0);
ObjectSet("s1",OBJPROP_PRICE1,h120);
ObjectSet("s1",OBJPROP_PRICE2,h120);
ObjectSet("s1",OBJPROP_TIME1,Time[0]);
ObjectSet("s1",OBJPROP_TIME2,Time[7]);
ObjectSet("s1",OBJPROP_RAY,false);
ObjectSet("s1",OBJPROP_WIDTH,2);
ObjectSet("s1",OBJPROP_COLOR,clrRed);
/*break h4 strong
ObjectSet("b4",OBJPROP_PRICE1,h45);
ObjectSet("b4",OBJPROP_PRICE2,h45);
ObjectSet("b4",OBJPROP_TIME1,Time[0]);
ObjectSet("b4",OBJPROP_TIME2,Time[7]);
ObjectSet("b4",OBJPROP_RAY,false);
ObjectSet("b4",OBJPROP_WIDTH,4);
ObjectSet("b4",OBJPROP_COLOR,clrGreen);
ObjectCreate("s4",OBJ_TREND,0,0,0,0,0);
ObjectSet("s4",OBJPROP_PRICE1,h420);
ObjectSet("s4",OBJPROP_PRICE2,h420);
ObjectSet("s4",OBJPROP_TIME1,Time[0]);
ObjectSet("s4",OBJPROP_TIME2,Time[7]);
ObjectSet("s4",OBJPROP_RAY,false);
ObjectSet("s4",OBJPROP_WIDTH,4);
ObjectSet("s4",OBJPROP_COLOR,clrGreen);
*/
if(iClose (NULL,PERIOD_H1,0) > h15 && iClose (NULL,PERIOD_H1,0) > h120)
{
ObjectSetText("texti","STRONG BUY",24,"Times New Roman",Green);
}
else if(iClose (NULL,PERIOD_H1,0) > h15 && iClose (NULL,PERIOD_H1,0) < h120)
{
ObjectSetText("texti","WEAK BUY",24,"Times New Roman",Green);
}
else if(iClose (NULL,PERIOD_H1,0) < h15 && iClose (NULL,PERIOD_H1,0) < h120)
{
ObjectSetText("texti","STRONG SELL",24,"Times New Roman",Red);
}
else if(iClose (NULL,PERIOD_H1,0) < h15 && iClose (NULL,PERIOD_H1,0) > h120)
{
ObjectSetText("texti","WEAK SELL",24,"Times New Roman",Red);
}
else
{
ObjectSetText("texti","NO LOGIC",24,"Times New Roman",Red);
}
return(0);
}
//+---------------------------------------------------------------+
