osc1

This tool is designed as a visual trading assistant that helps analyze market trends by smoothing out price fluctuations and highlighting underlying momentum. It operates in a separate window from the main price chart, providing a cleaner view of the data it processes.

Core Logic and Functionality

The indicator works by applying several layers of mathematical filtering to the closing prices of the assets you are trading. Here is a breakdown of how that logic functions:

Data Smoothing and Filtering Instead of reacting impulsively to every minor price tick, the script uses a "weighted" approach. It calculates a moving average to establish a baseline and then passes that data through a series of consecutive smoothing stages (represented as a chain of calculations). This creates a "filtered" result that removes market noise while preserving the general direction of the trend.

Momentum Calculation Once the data is smoothed, the script applies a specific mathematical formula to determine the current momentum. By calculating these specific coefficients, the tool identifies how strongly the price is pushing in a particular direction. This allows the indicator to show the "force" behind a move rather than just the raw price.

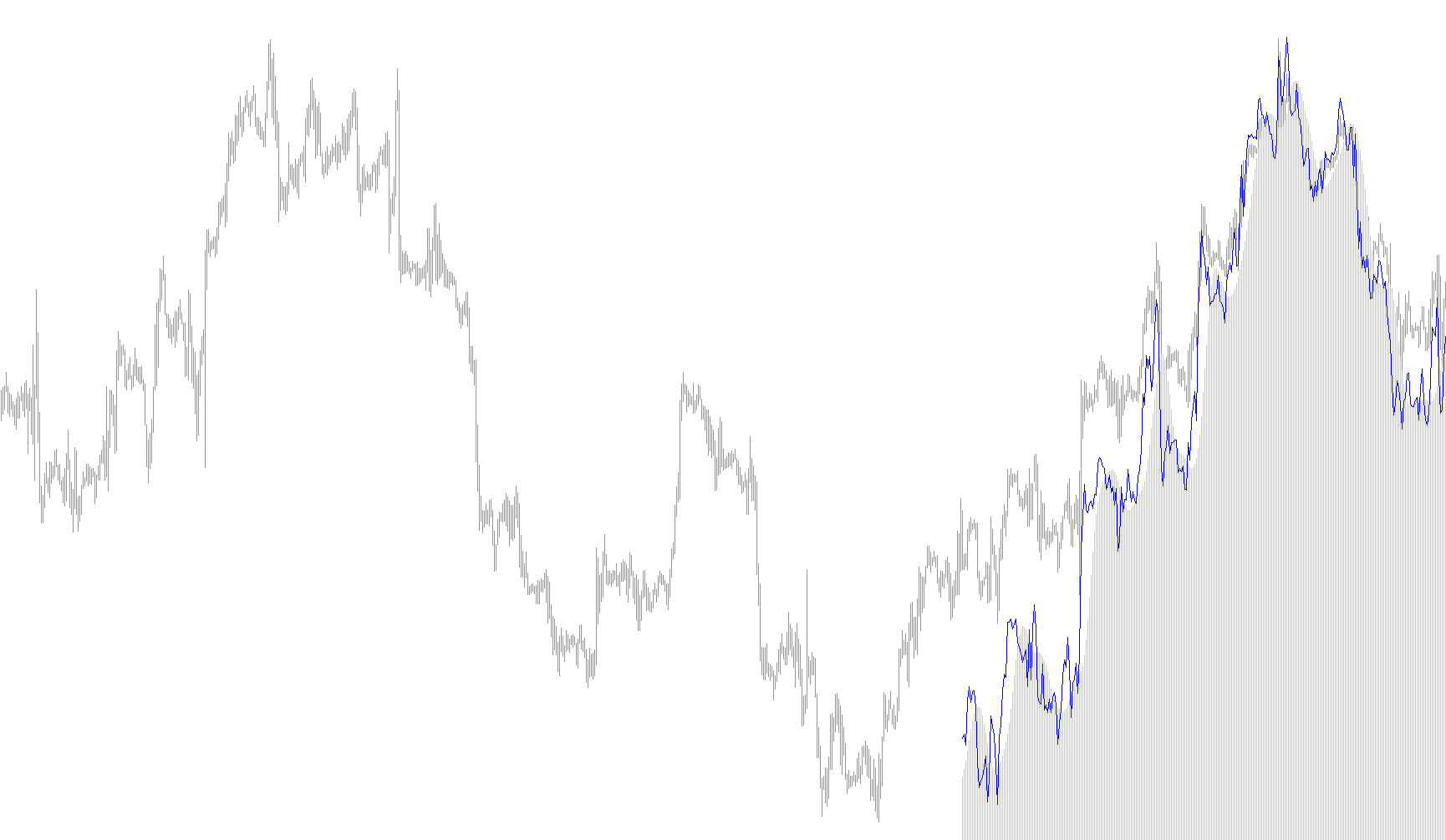

Visual Representation The results are displayed to the user in two distinct visual formats:

  • Histogram: One part of the calculation is rendered as vertical bars, which help in visualizing the volume or intensity of the current trend at a glance.
  • Line Graph: The other part is rendered as a continuous line, which helps in identifying the overarching flow and direction of the market movement.

Summary for the User

In simple terms, this script acts like a high-quality lens for your trading chart. It takes raw, jagged price movements, filters out the "noise" through multiple layers of smoothing, and converts that information into a clear visual trend. By looking at the relationship between the line and the histogram in the separate window, you can better perceive whether the market is gaining strength, losing steam, or moving into a new phase.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1
7 Views
0 Downloads
0 Favorites
osc1


#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Green
#property indicator_color2 DarkViolet
//---- input parameters
extern int x_prd=0;
extern int t3_period=8;
extern double b=0.7;
extern int CountBars=300;
//---- buffers
double t3[];
double prise[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicator line
   IndicatorBuffers(2);
   SetIndexBuffer(0,t3);
   SetIndexBuffer(1,prise);
   SetIndexStyle(0,DRAW_HISTOGRAM);
   SetIndexStyle(1,DRAW_LINE);

//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| T3_DPO-v1                                                         |
//+------------------------------------------------------------------+
int start()
  {
   SetIndexDrawBegin(0,Bars-CountBars+t3_period+1);
   SetIndexDrawBegin(1,Bars-CountBars+t3_period+1);
   int i,counted_bars=IndicatorCounted();
   double e1,e2,e3,e4,e5,e6,c1,c2,c3,c4,n,w1,w2, b2,b3,dpo,Prise;
//----
   if(Bars<=t3_period) return(0);
//---- initial zero
   if(counted_bars<t3_period)
   {
      for(i=1;i<=t3_period;i++) prise[Bars-i]=0.0;
      for(i=1;i<=t3_period;i++) t3[Bars-i]=0.0;
   }
//----
b2=b*b;
b3=b2*b;
c1=-b3;
c2=(3*(b2+b3));
c3=-3*(2*b2+b+b3);
c4=(1+3*b+b3+3*b2);
n=t3_period;

if (n<1) n=1;
n = 1 + 0.5*(n-1);
w1 = 2 / (n + 1);
w2 = 1 - w1;
//----
   i=Bars-CountBars-1;
   if(counted_bars>=t3_period) i=CountBars-counted_bars-1;
   while(i>=0)
     {
      dpo=iMA(NULL,0,t3_period,0,MODE_SMA,PRICE_CLOSE,i);

  e1 = w1*dpo + w2*e1;
  e2 = w1*e1 + w2*e2;
  e3 = w1*e2 + w2*e3;
  e4 = w1*e3 + w2*e4;
  e5 = w1*e4 + w2*e5;
  e6 = w1*e5 + w2*e6;

  t3[i] = c1*e6 + c2*e5 + c3*e4 + c4*e3;

   prise[i]=Close[i];

      i--;
     }
   return(0);
  }
//+------------------------------------------------------------------+
