renkolivechart_v600_indi
Download scriptThis script is designed to convert standard price action data into a Renko Chart format in real-time. Unlike traditional charts that show price movement over specific time intervals (like 1-minute or 1-hour bars), Renko charts focus exclusively on price movement, creating uniform "bricks" that only change based on a set price distance.
Here is the professional logic of how the script functions:
Core Functionality
The primary purpose of this tool is to filter out market "noise" by ignoring time and only plotting a new brick when the price moves a specific amount in one direction. This allows traders to see clearer trends and price reversals more easily.
Operational Workflow
1. Initial Setup and Configuration When the script is first loaded, it performs a series of compatibility checks:
- Permissions: It ensures that the necessary external communication permissions are enabled.
- Input Validation: It verifies that the user-defined "Box Size" (the price movement required to form a brick) and "Offset" settings are logically correct.
- Automatic Scaling: The script detects the precision of the currency pair you are trading (e.g., 3-digit vs. 5-digit brokers) and automatically scales the box sizes so that your inputs remain consistent across different platforms.
2. Historical Data Processing Before showing live data, the script "replays" historical price data to build the initial chart:
- It creates a dedicated history file on your system to store these Renko bricks.
- It scans past price points and calculates how many Renko bricks should have formed based on your chosen box size.
- It accounts for "wicks" (the thin lines extending from the bricks) based on your preferences, ensuring that extreme price movements are captured even if they don't result in a full brick.
3. Real-Time Live Tracking Once the history is loaded, the script switches to live mode:
- Price Monitoring: It constantly monitors every single price tick (the tiny fluctuations in price).
- Brick Formation:
- If the price moves up enough to meet your "Box Size" requirement, a new upward brick is drawn.
- If it drops enough, a downward brick is drawn.
- In-Between Movement: If the price is moving but hasn't reached the threshold to form a new brick yet, the script tracks the high and low points of that current movement so it can accurately draw the "wick" or the next brick once the threshold is eventually hit.
4. System Integration To ensure the user sees the correct visual output, the script includes a "Window Message" system. This helps communicate with the trading platform's interface to ensure the Renko bricks are displayed smoothly on your screen as the live price fluctuates.
Key Features for the User
- Wick Management: You can toggle wicks on or off to decide how much price detail you want to see outside of the main bricks.
- Data Persistence: By writing the data to a history file, the script ensures that the Renko chart remains consistent and accessible.
- Dynamic Volume: It tracks and applies volume data to the bricks as they form, providing a more complete picture of market activity.
//+------------------------------------------------------------------+
//| RenkoLiveChart_v600.4.2.mq4 |
//| Copyright 2016, MetaQuotes Software Corp. |
//| https://www.mql5.com |
//+------------------------------------------------------------------+
//+---------------------------------------------------------------------------+
//| EA VERSION
//| RenkoLiveChart_v3.2.mq4
//| Inspired from Renko script by "e4" (renko_live_scr.mq4)
//| Copyleft 2009 LastViking
//|
//| Aug 12 2009 (LV):
//| - Wanted volume in my Renko chart so I wrote my own script
//|
//| Aug 20-21 2009 (LV) (v1.1 - v1.3):
//| - First attempt at live Renko brick formation (bugs O bugs...)
//| - Fixed problem with strange symbol names at some 5 digit
//| brokers (credit to Tigertron)
//|
//| Aug 24 2009 (LV) (v1.4):
//| - Handle High / Low in history in a reasonable way (prev.
//| used Close)
//|
//| Aug 26 2009 (Lou G) (v1.5/v1.6):
//| - Finaly fixing the "late appearance" (live Renko brick
//| formation) bug
//|
//| Aug 31 2009 (LV) (v2.0):
//| - Not a script anylonger, but run as indicator
//| - Naroved down the MT4 bug that used to cause the "late appearance bug"
//| a little closer (has to do with High / Low gaps)
//| - Removed the while ... sleep() loop. Renko chart is now tick
//| driven: -MUCH nicer to system resources this way
//|
//| Sep 03 2009 (LV) (v2.1):
//| - Fixed so that Time[] holds the open time of the renko
//| bricks (prev. used time of close)
//|
//| Sep 16 2009 (Lou G) (v3.0):
//| - Optional wicks added
//| - Conversion back to EA
//| - Auto adjust for 5 and 6 dec brokers added
//| enter RenkoBoxSize as "actual" size e.g. "10" for 10 pips
//| - Compensation for "zero compare" problem added
//|
//| Okt 05 2009 (LV) (v3.1):
//| - Fixed a bug related to BoxOffset
//| - Auto adjust for 3 and 4 dec JPY pairs
//| - Removed init() function
//| - Changed back to old style Renko brick formation
//|
//| Okt 13 2009 (LV) (v3.2):
//| - Added "EmulateOnLineChart" option (credit to Skipperxit/Mimmo)
//|
//| Feb 07 2014 (KZ) (v600.1):
//| - Build 600 forced upgrade for new history file format
//| - Build 600 has some "funny" quirks
//| - "So that is why everyone is laughing"?
//| - 1) The share/lock access rights
//| - 2) It appears to me static variables do not act right
//| - Seems like they might not be reset when the code is re-loaded
//| - Not sure, so just moved them all to common
//| - Many thanks to LastViking, Lou G, Kiads, Mihailo, and many others
//| - that have contributed to making Renko a success
//| - My apologies to each of you if I have abused your code
//| - Many thanks to Mary-Jane for helping me get up to date on passing strings to DLLs
//| - "surprise, surprise, surprise"
//| - Many thanks to MetaQuirks for forcing me to bring my programming skills up to date
//|
//| Apr 03 2015 (SK) (v600.3)
//| - Fixed missing wicks on the same side of bar as current direction
//| - Fixed missing wicks on extremums
//| - Made a start timer to build the chart once even if no ticks coming (i.e. during weekend)
//| Nov 25 2015 (SK - https://www.mql5.com/en/users/marketeer) (v600.4)
//| - Classical 'look and feel' of renko wicks applied as a patch
//|
//| Jan 19 2106 (File45 - https://www.mql5.com/en/users/file45/publications) (v600.5 & v600.6)
//| - Transcribed to Post MT4 Build 600 New Code
//| - Change Renko BoxSize from int to double
//| - Corrected ShowWicks=false failure to remove wicks
//| Mar 24 2106 (File45 - https://www.mql5.com/en/users/file45/publications) (v600.6)
//| - Convert EA to Indicator
//|
//| From the MQL4 Reference
//| MqlRates
//|
//| This structure stores information about the prices, volumes and spread.
//|
//| struct MqlRates
//| {
//| datetime time; // Period start time
//| double open; // Open price
//| double high; // The highest price of the period
//| double low; // The lowest price of the period
//| double close; // Close price
//| long tick_volume; // Tick volume
//| int spread; // Spread
//| long real_volume; // Trade volume
//| };
//+---------------------------------------------------------------------------+
#property copyright "Copyright 2016, MetaQuotes Software Corp."
#property link "https://www.mql5.com"
#property version "6.00"
#property strict
#property indicator_chart_window
#include <WinUser32.mqh>
#include <stdlib.mqh>
//+------------------------------------------------------------------+
#import "user32.dll"
int RegisterWindowMessageW(string lpString);
#import
//+------------------------------------------------------------------+
input double RenkoBoxSize = 3.0;
input int RenkoBoxOffset = 0;
input int RenkoTimeFrame = 7; // Offline Timeframe
input bool ShowWicks = false;
input bool EmulateOnLineChart = true;
input bool StrangeSymbolName = false;
//+------------------------------------------------------------------+
int HstHandle = -1, LastFPos = 0, MT4InternalMsg = 0;
string sSymbolName;
datetime dtSendTime;
double dSendOpen;
double dSendHigh;
double dSendLow;
double dSendClose;
double dSendVol;
bool bStopAll = false;
int iRcdCnt = 0;
int hwnd = 0;
double BoxPoints, UpWick, DnWick;
double PrevLow, PrevHigh, PrevOpen, PrevClose, CurVolume, CurLow, CurHigh, CurOpen, CurClose;
datetime PrevTime;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int OnInit()
{
if(HstHandle > 0)
{
FileClose(HstHandle);
}
HstHandle = -1;
EventSetTimer(1);
return(INIT_SUCCEEDED);
}
void OnDeinit(const int reason)
{
if(HstHandle >= 0)
{
FileClose(HstHandle);
HstHandle = -1;
}
Comment("");
return;
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
if(bStopAll) return(0);
//+------------------------------------------------------------------+
// This is only executed once, then the first tick arives.
if(HstHandle < 0)
{
// Init
// Error checking
if(!IsConnected())
{
Print("Waiting for connection...");
return(0);
}
if(!IsDllsAllowed())
{
Print("Error: Dll calls must be allowed!");
bStopAll = true;
return(0);
}
if(MathAbs(RenkoBoxOffset) >= RenkoBoxSize)
{
Print("Error: |RenkoBoxOffset| should be less then RenkoBoxSize!");
bStopAll = true;
return(0);
}
switch(RenkoTimeFrame)
{
case 1:
case 5:
case 15:
case 30:
case 60:
case 240:
case 1440:
case 10080:
case 43200:
case 0:
Print("Error: Invald time frame used for offline renko chart (RenkoTimeFrame)!");
bStopAll = true;
return(0);
}
double BoxSize = RenkoBoxSize;
int BoxOffset = RenkoBoxOffset;
if(Digits == 5 || (Digits == 3 && StringFind(Symbol(), "JPY") != -1))
{
BoxSize = BoxSize * 10;
BoxOffset = BoxOffset * 10;
}
if(Digits == 6 || (Digits == 4 && StringFind(Symbol(), "JPY") != -1))
{
BoxSize = BoxSize * 100;
BoxOffset = BoxOffset * 100;
}
if(StrangeSymbolName) sSymbolName = StringSubstr(Symbol(), 0, 6);
else sSymbolName = Symbol();
BoxPoints = NormalizeDouble(BoxSize * Point, Digits);
PrevLow = NormalizeDouble(BoxOffset * Point + MathFloor(Close[Bars - 1] / BoxPoints) * BoxPoints, Digits);
DnWick = PrevLow;
PrevHigh = PrevLow + BoxPoints;
UpWick = PrevHigh;
PrevOpen = PrevLow;
PrevClose = PrevHigh;
CurVolume = 1;
PrevTime = Time[Bars - 1];
// create / open hst file
HstHandle = FileOpenHistory(sSymbolName + IntegerToString(RenkoTimeFrame) + ".hst", FILE_BIN | FILE_WRITE | FILE_ANSI);//W1
if(HstHandle < 0)
{
Print("Error: can\'t create / open history file: " + ErrorDescription(GetLastError()) + ": " + sSymbolName + IntegerToString(RenkoTimeFrame) + ".hst");
bStopAll = true;
return(0);
}
else
{
Print("History file opened for write, handle: " + IntegerToString(HstHandle));
FileSeek(HstHandle, 0, SEEK_SET);
// Hist file opened as write zero length to create
}
// the file is created empty, now re-open it read write shared
DoOpenHistoryReadWrite();
FileSeek(HstHandle, 0, SEEK_SET);
//Hist file opened as read write for adding to
// write hst file header - does anyone have a structure for this heading?
int HstUnused[13];
FileWriteInteger(HstHandle, 401, LONG_VALUE); // Version // was 400
FileWriteString(HstHandle, "", 64); // Copyright
FileWriteString(HstHandle, sSymbolName, 12); // Symbol
FileWriteInteger(HstHandle, RenkoTimeFrame, LONG_VALUE); // Period
FileWriteInteger(HstHandle, Digits, LONG_VALUE); // Digits
FileWriteInteger(HstHandle, 0, LONG_VALUE); // Time Sign
FileWriteInteger(HstHandle, 0, LONG_VALUE); // Last Sync
FileWriteArray(HstHandle, HstUnused, 0, 13); // Unused
// process historical data
int i = Bars - 2;
//Print(Symbol() + " " + High[i] + " " + Low[i] + " " + Open[i] + " " + Close[i]);
//---------------------------------------------------------------------------
while(i >= 0)
{
CurVolume = CurVolume + Volume[i];
UpWick = MathMax(UpWick, High[i]);
DnWick = MathMin(DnWick, Low[i]);
// update low before high or the revers depending on is closest to prev. bar
bool UpTrend = High[i] + Low[i] > High[i + 1] + Low[i + 1];
bool WipeUpWick = false, WipeDownWick = false;
// go down in up phase
while(UpTrend && (Low[i] < PrevLow - BoxPoints || CompareDoubles(Low[i], PrevLow - BoxPoints)))
{
PrevHigh = PrevHigh - BoxPoints;
PrevLow = PrevLow - BoxPoints;
PrevOpen = PrevHigh;
PrevClose = PrevLow;
dtSendTime = PrevTime;
dSendOpen = PrevOpen;
if(ShowWicks==true && DnWick < PrevLow && Low[i] >= PrevLow - BoxPoints)
{
dSendLow = DnWick;
WipeDownWick = true;
}
else
{
//dSendLow = PrevLow;// When ShowWicks = false this code will show wicks (file45)
dSendLow = PrevHigh;
}
if(ShowWicks==true && UpWick > PrevHigh && UpWick <= PrevHigh + 2 * BoxPoints)
{
dSendHigh = UpWick;
WipeUpWick = true;
}
else
{
dSendHigh = PrevHigh;
}
dSendClose = PrevClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
if(WipeUpWick) UpWick = 0;
if(WipeDownWick) DnWick = EMPTY_VALUE;
CurVolume = 0;
CurHigh = PrevLow;
CurLow = PrevLow;
if(PrevTime < Time[i]) PrevTime = Time[i];
else PrevTime++;
}
// go up
while(High[i] > PrevHigh + BoxPoints || CompareDoubles(High[i], PrevHigh + BoxPoints))
{
PrevHigh = PrevHigh + BoxPoints;
PrevLow = PrevLow + BoxPoints;
PrevOpen = PrevLow;
PrevClose = PrevHigh;
dtSendTime = PrevTime;
dSendOpen = PrevOpen;
if(ShowWicks==true && DnWick < PrevLow && DnWick >= PrevLow - 2 * BoxPoints )
{
dSendLow = DnWick;
WipeDownWick = true;
}
else
{
dSendLow = PrevLow;
}
if(ShowWicks==true && UpWick > PrevHigh && High[i] <= PrevHigh + BoxPoints)
{
dSendHigh = UpWick;
WipeUpWick = true;
}
else
{
//dSendHigh = PrevHigh; // When ShowWicks = false this code will show wicks (file45)
dSendHigh = PrevLow;
}
dSendClose = PrevClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
if(WipeUpWick) UpWick = 0;
if(WipeDownWick) DnWick = EMPTY_VALUE;
CurVolume = 0;
CurHigh = PrevHigh;
CurLow = PrevHigh;
if(PrevTime < Time[i]) PrevTime = Time[i];
else PrevTime++;
RefreshRates();
}
// go down in down phase
while(!UpTrend && (Low[i] < PrevLow - BoxPoints || CompareDoubles(Low[i], PrevLow - BoxPoints)))
{
PrevHigh = PrevHigh - BoxPoints;
PrevLow = PrevLow - BoxPoints;
PrevOpen = PrevHigh;
PrevClose = PrevLow;
dtSendTime = PrevTime;
dSendOpen = PrevOpen;
if(ShowWicks==true && DnWick < PrevLow && Low[i] >= PrevLow - BoxPoints)
{
dSendLow = DnWick;
WipeDownWick = true;
}
else
{
//dSendLow = PrevLow; // When ShowWicks = false this code will show wicks (file45)
dSendLow = PrevHigh;
}
if(ShowWicks==true && UpWick > PrevHigh)
{
dSendHigh = UpWick;
WipeUpWick = true;
}
else
{
dSendHigh = PrevHigh;
}
dSendClose = PrevClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
if(WipeUpWick) UpWick = 0;
if(WipeDownWick) DnWick = EMPTY_VALUE;
CurVolume = 0;
CurHigh = PrevLow;
CurLow = PrevLow;
if(PrevTime < Time[i]) PrevTime = Time[i];
else PrevTime++;
RefreshRates();
}
i--;
}
LastFPos = (int)FileTell(HstHandle); // Remember Last pos in file
if(Close[0] > MathMax(PrevClose, PrevOpen)) CurOpen = MathMax(PrevClose, PrevOpen);
else if(Close[0] < MathMin(PrevClose, PrevOpen)) CurOpen = MathMin(PrevClose, PrevOpen);
else CurOpen = Close[0];
CurClose = Close[0];
if(ShowWicks==true)
{
if(UpWick > PrevHigh) CurHigh = UpWick;
if(DnWick < PrevLow) CurLow = DnWick;
}
dtSendTime = PrevTime;
dSendOpen = CurOpen;
dSendLow = CurLow;
dSendHigh = CurHigh;
dSendClose = CurClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
FileFlush(HstHandle);
if(bStopAll) return(0);

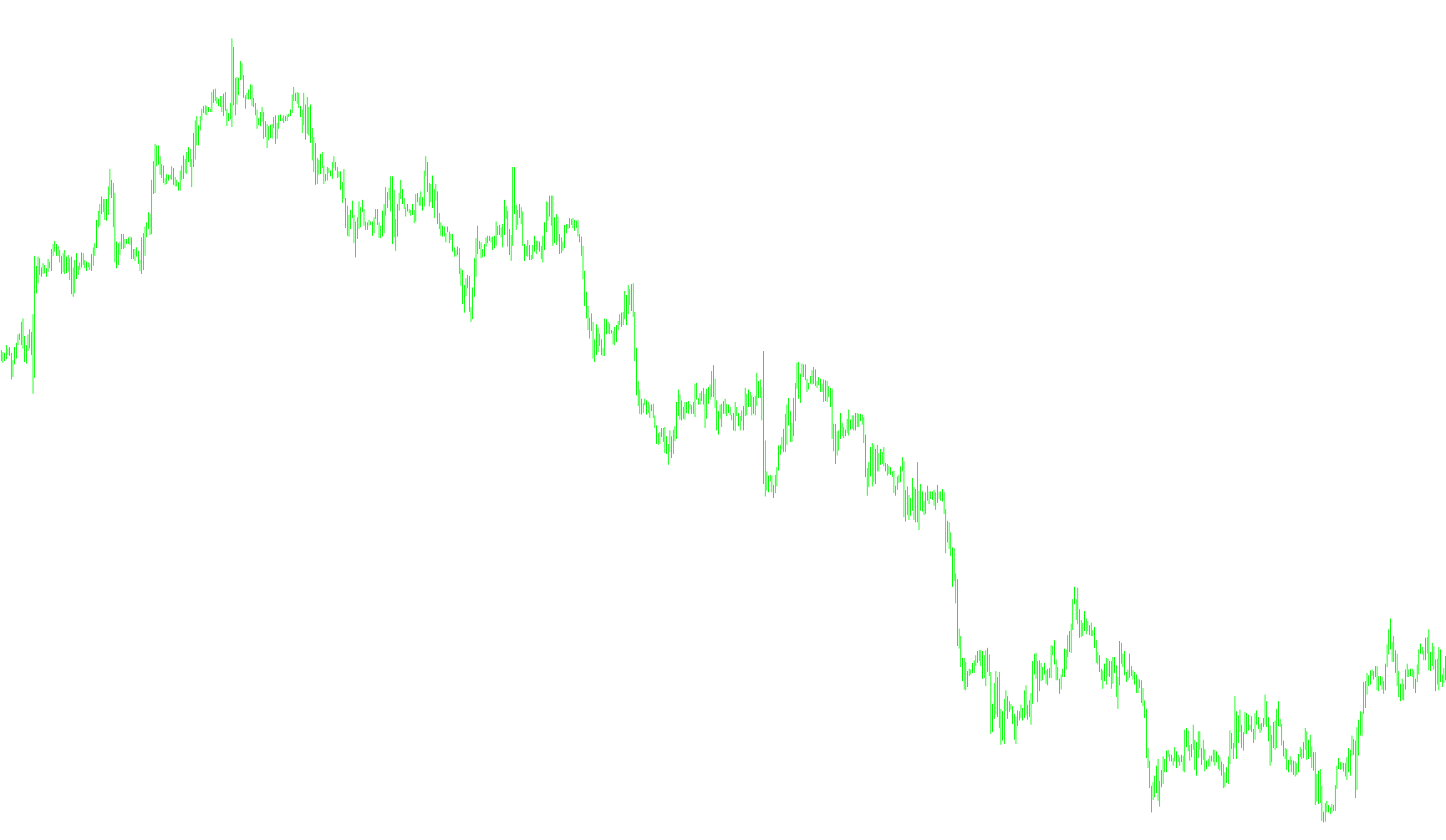

Comment("RenkoLiveChart (" + DoubleToString(RenkoBoxSize) + "): Open Offline ", sSymbolName, ",M", RenkoTimeFrame, " To View Chart");//3
UpdateChartWindow();
return(0);
// End historical data / Init
}
//----------------------------------------------------------------------------
// HstHandle not < 0 so we always enter here after history done
// Begin live data feed
if(bStopAll) return(0);
UpWick = MathMax(UpWick, Bid);
DnWick = MathMin(DnWick, Bid);
CurVolume++;
FileSeek(HstHandle, LastFPos, SEEK_SET);
//-------------------------------------------------------------------------
// up box
if(Bid > PrevHigh + BoxPoints || CompareDoubles(Bid, PrevHigh + BoxPoints))
{
PrevHigh = PrevHigh + BoxPoints;
PrevLow = PrevLow + BoxPoints;
PrevOpen = PrevLow;
PrevClose = PrevHigh;
dtSendTime = PrevTime;
dSendOpen = PrevOpen;
if(ShowWicks==true && DnWick < PrevLow)
{
dSendLow = DnWick;
}
else
{
dSendLow = PrevLow;
}
if(ShowWicks==true && UpWick > PrevHigh)
{
dSendHigh = UpWick;
}
else
{
dSendHigh = PrevHigh;
}
dSendClose = PrevClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
FileFlush(HstHandle);
LastFPos = (int) FileTell(HstHandle); // Remeber Last pos in file
if(PrevTime < TimeCurrent()) PrevTime = TimeCurrent();
else PrevTime++;
CurVolume = 0;
CurHigh = PrevHigh;
CurLow = PrevHigh;
UpWick = 0;
DnWick = EMPTY_VALUE;
UpdateChartWindow();
}
//-------------------------------------------------------------------------
// down box
else if(Bid < PrevLow - BoxPoints || CompareDoubles(Bid, PrevLow - BoxPoints))
{
PrevHigh = PrevHigh - BoxPoints;
PrevLow = PrevLow - BoxPoints;
PrevOpen = PrevHigh;
PrevClose = PrevLow;
dtSendTime = PrevTime;
dSendOpen = PrevOpen;
if(ShowWicks==true && DnWick < PrevLow)
{
dSendLow = DnWick;
}
else
{
dSendLow = PrevLow;
}
if(ShowWicks==true && UpWick > PrevHigh)
{
dSendHigh = UpWick;
}
else
{
dSendHigh = PrevHigh;
}
dSendClose = PrevClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol);
FileFlush(HstHandle);
LastFPos = (int)FileTell(HstHandle); // Remeber Last pos in file
if(PrevTime < TimeCurrent()) PrevTime = TimeCurrent();
else PrevTime++;
CurVolume = 0;
CurHigh = PrevLow;
CurLow = PrevLow;
UpWick = 0;
DnWick = EMPTY_VALUE;
UpdateChartWindow();
}
//-------------------------------------------------------------------------
// no box - high/low not hit
else
{
if(Bid > CurHigh) CurHigh = Bid;
if(Bid < CurLow) CurLow = Bid;
if(PrevHigh <= Bid) CurOpen = PrevHigh;
else if(PrevLow >= Bid) CurOpen = PrevLow;
else CurOpen = Bid;
CurClose = Bid;
dtSendTime = PrevTime;
dSendOpen = CurOpen;
dSendLow = CurLow;
dSendHigh = CurHigh;
dSendClose = CurClose;
dSendVol = CurVolume;
DoWriteStruct(dtSendTime, dSendOpen, dSendHigh, dSendLow, dSendClose, dSendVol, false);
FileFlush(HstHandle);
UpdateChartWindow();
}
return(rates_total);
}
void UpdateChartWindow()
{
if(hwnd == 0)
{
hwnd = WindowHandle(sSymbolName, RenkoTimeFrame);
if(hwnd != 0) Print("Chart window detected");
}
if(EmulateOnLineChart && MT4InternalMsg == 0) MT4InternalMsg = RegisterWindowMessageW("MetaTrader4_Internal_Message");
if(hwnd != 0) if(PostMessageW(hwnd, WM_COMMAND, 0x822c, 0) == 0) hwnd = 0;
if(hwnd != 0 && MT4InternalMsg != 0) PostMessageW(hwnd, MT4InternalMsg, 2, 1);
return;
}
void DoWriteStruct(datetime dtTime, double dOpen, double dHigh, double dLow, double dClose, double dVol, bool history = true)
{
iRcdCnt++;
static int iErr = 0;
static int iBWritn = 0;
MqlRates rate;
rate.time = dtTime;
rate.open = dOpen;
static double prevHigh = 0, prevLow = DBL_MAX;
if(history)
{
rate.high = (dOpen < dClose)?dClose:MathMax(dHigh, prevHigh);
rate.low = (dOpen > dClose)?dClose:MathMin(dLow, prevLow);
prevHigh = (dOpen < dClose)?dHigh:0;
prevLow = (dOpen > dClose)?dLow:DBL_MAX;
}
else
{
rate.high = dHigh;
rate.low = dLow;
}
rate.close = dClose;
rate.tick_volume = (long) dVol;
rate.spread = 0;
rate.real_volume = (long) dVol;
iBWritn = (int)FileWriteStruct(HstHandle, rate);
if(iBWritn == 0)
{
iErr = GetLastError();
Print("Error on write struct at cntr: " + IntegerToString(iRcdCnt) + ", errdesc: " + ErrorDescription(iErr));//W4
bStopAll = true;
}
return;
}
void DoOpenHistoryReadWrite()
{
if(HstHandle >= 0)
{
int iSz = (int)FileSize(HstHandle);
Print("fl sz " + IntegerToString(iSz));
FileClose(HstHandle);
HstHandle = -1;
}
HstHandle = FileOpenHistory(
sSymbolName + IntegerToString(RenkoTimeFrame) + ".hst", FILE_BIN | FILE_READ | FILE_WRITE | FILE_SHARE_WRITE | FILE_SHARE_READ | FILE_ANSI);
// this combination is critical to unlock the file and still allow read write and opening a chart on it
if(HstHandle < 0)
{
Print("Error: cant open history file read write: " + ErrorDescription(GetLastError()) + ": " + sSymbolName + IntegerToString(RenkoTimeFrame) + ".hst");
bStopAll = true;
}
else
{
Print("Hist file opened for read write, handle: " + IntegerToString(HstHandle));
}
return;
}
Comments
