road_map_v04

Download script
Author: Inkov Evgeni
road_map_v04

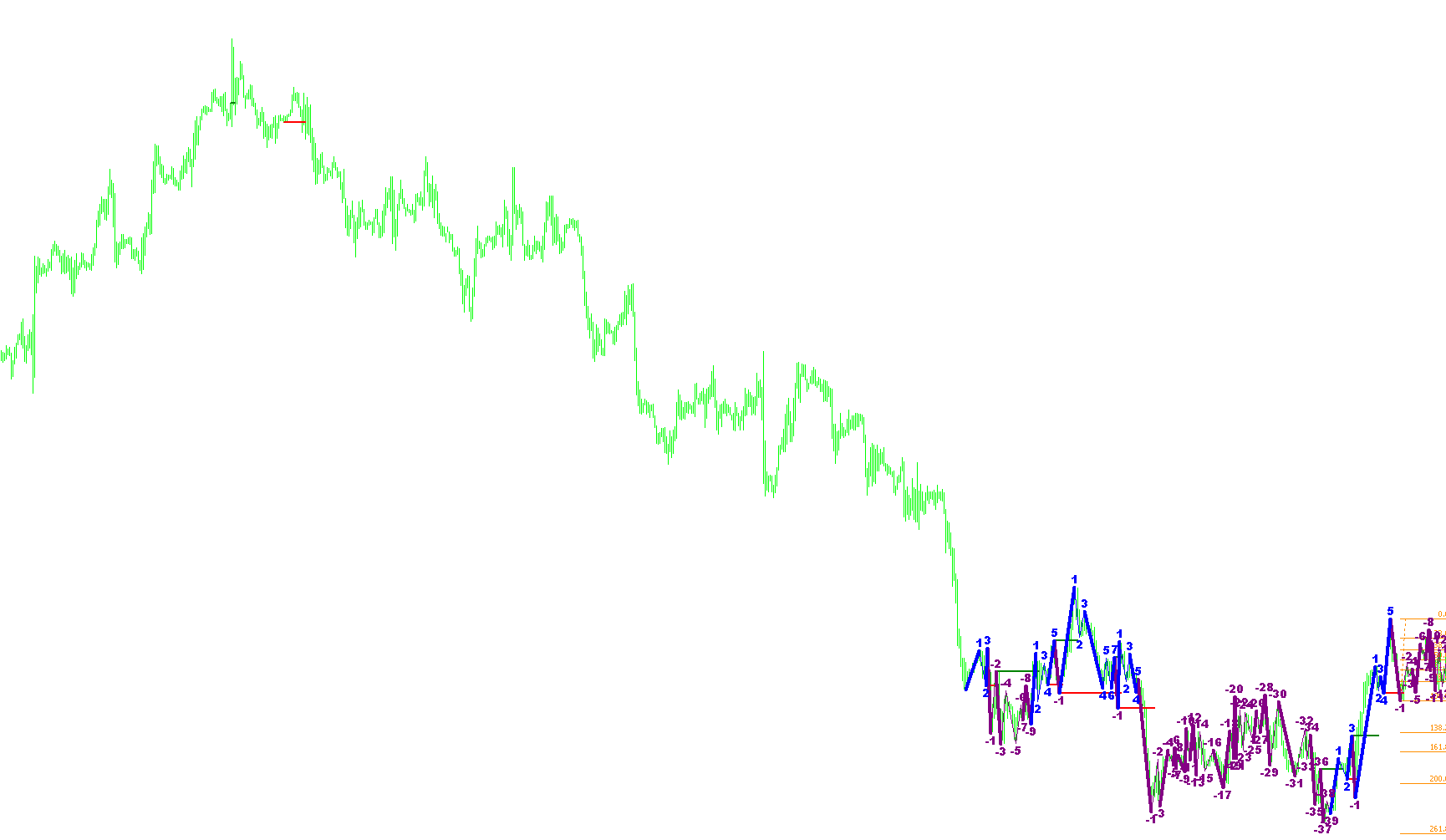

This script is designed to automate the identification and visualization of market structures on a trading chart. It primarily focuses on identifying "fractals"—specific high or low points in price action—and using them to construct a visual "Road Map" of the market's momentum.

Instead of simply showing every price movement, the logic filters out market noise to highlight significant structural shifts. Here is a breakdown of how the system functions:

1. Fractal Identification

The foundation of the script is its ability to detect local peaks (highs) and valleys (lows). It scans the recent history of the chart to find bars where the high or low price is higher or lower than the surrounding bars. This allows the tool to identify the "turning points" of the market.

2. ZigZag Logic & Structural Cleaning

Once these peaks and valleys are found, the script applies a logic similar to a "ZigZag" indicator. It doesn't just connect every dot; it processes them to ensure they make logical sense:

  • Removing Distortions: It checks for "impossible" sequences (e.g., a low appearing before a higher high in a way that breaks the trend) and removes those points to keep the map clean.
  • Intermediate Points: If two consecutive peaks occur too close together, the script identifies the lowest point between them to create a more accurate path of the price movement.
  • Trend Definition: It categorizes movements as either "Up" or "Down" based on the direction from one structural peak to the next.

3. Impulse and Wave Analysis

The script distinguishes between different types of price movements:

  • Impulse Waves: These represent strong, direct movements in a specific direction. The logic identifies these by checking if the price is reaching new highs or lows compared to previous significant levels.
  • Correction Waves: It can recognize when the market is moving against the primary trend (pullbacks).
  • Wave Numbering: The tool tracks the sequence of these waves, helping the user see how many "legs" a specific move has.

4. Probability and Visual Aids

Beyond just drawing lines, the script provides several layers of visual information:

  • Probability Zones: It identifies areas where the price is likely to react based on previous high/low points. If the current price enters these zones, the script can trigger specific visual cues (like trendlines) or even provide audio alerts.
  • Fibonacci Retracements: The script automatically calculates and draws Fibonacci levels on major waves. This helps traders identify potential "take-profit" or "entry" zones based on standard market proportions.
  • Wave Numbering (Optional): It can display the numerical sequence of waves directly on the chart, making it easier to identify which part of a larger trend the price is currently in.

5. User Experience Features

To make the data digestible for a trader:

  • Dynamic Updates: The script constantly recalculates as new bars form, ensuring the "Road Map" stays updated with live price action.
  • Alerts: It includes an option for audio notifications when the price reaches significant structural levels or enters a high-probability zone.
  • Visual Customization: Users can toggle features like Fibonacci lines, wave numbering, and various colors to match their personal trading style.
Price Data Components
Series array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains close prices for each bar
Miscellaneous
It plays sound alerts
10 Views
0 Downloads
0 Favorites
road_map_v04
//+------------------------------------------------------------------+
//|                                                 Road_Map_v04.mq4 |
//|  íà÷. 15/10/2015                                                 |
//+------------------------------------------------------------------+
#property copyright "Inkov Evgeni"
#property link      "ew123@mail.ru"
//+------------------------------------------------------------------+
// áåç ñæàòèÿ
// èçìåíåíà ëîãèêà çèã-çàãà íà íà÷àëüíûõ áàðàõ
//+------------------------------------------------------------------+
#property version   "1.00"
#property strict
#property indicator_chart_window
//+------------------------------------------------------------------+
input int   TF_ind         = 0;
input int   Max_Bars       = 300;
input color clr_Series_Up  = clrBlue;
input color clr_Series_Dw  = clrPurple;
input color clr_Tail_ZZ    = clrGreen;
input color clr_Fibo       = clrDarkOrange;
input color clr_Prob_UP    = clrGreen;
input color clr_Prob_DW    = clrRed;
input bool  On_Nom_Series  = true;
input bool  On_Fibo        = true;
input bool  Sound          = true;
input bool  Alert_On       = false;
//+------------------------------------------------------------------+
int Mas_Fract[][2][3];   // [2]: 0 - ëåâàÿ, 1-ïðàâàÿ òî÷êà ôðàêòàëà (äëÿ âåðòèêàëüíîé ëèíèè),
                         //    åñëè íàêëîííàÿ ëèíèÿ, çíà÷åíèÿ ÿ÷ååê îäèíàêîâûå
                         // [3] ïðèçíàêè:
                         // 0 - çíà÷.ôðàêòàëà: 1,2,3-ìàêñ, 0 - íåò ôðàêò, -1,-2,-3 - ìèí. (1-èñòèíûé ôðàêò., 2- äîï., 3-íà÷àëî)
                         // 1 - (-1 - èìï.âîëíà âíèç, 2 - êîðð.âîëíà, 1 - èìï.âîëíà ââåðõ)
                         //     â [0] ÷àñòè çàïèñûâàåòñÿ èìïóëüñ äëÿ âåðò.ëèíèè,
                         //     â [1]- äëÿ ñëåäóþùåé íàêëîííîé ëèíèè
                         // 2 - (1 - ñåðèÿ âîëí ââåðõ, -1 - ñåðèÿ âîëí âíèç), ÷èñëî - íåêóùèé íîìåð âîëíû â ñåðèè
                         //     [0] íîìåð âîëíû äëÿ íàêë. ëèíèè è äëÿ ëåâîé òî÷êè âåðò.ëèíèè
                         //     [1] íîìåð âîëíû äëÿ ïðàâîé òî÷êè âåðò.ëèíèè (äëÿ íàêë.ëèíèè íå èñï.)
int M_Bars;
string pref="ZZ_";
datetime time_end_urov;
bool new_bar;
bool Open_UP=0,Open_DW=0;
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int OnInit()
  {
   if(Max_Bars>0)
      M_Bars=MathMin(Max_Bars,iBars(_Symbol,0));
   else
      M_Bars=iBars(_Symbol,0);

   ArrayResize(Mas_Fract,M_Bars);

   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   remove_objects(pref);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//  â íà÷àëå rates_total=bars è prev_calculated=0, äàëåå â òå÷åíèå áàðà îíè ðàâíû,
//  ïðè ñìåíå áàðà rates_total=prev_calculated+1, äàëåå îíè ñíîâà ðàâíû
   new_bar=rates_total!=prev_calculated;
   int per=TF_ind;
   if(Period()>per)per=Period();
   Form_ZZ(per);

   return(rates_total);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Form_ZZ(int TF)
  {
   Find_Fractal(TF);
   Dorab_Fract(TF);
   Opred_Impuls_Wave(TF,Mas_Fract);
   Opred_Series_Wave(TF,Mas_Fract);

   Out_ZZ(TF,Mas_Fract);
   if(On_Nom_Series)Out_Nom_Series(TF,Mas_Fract);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Opred_Series_Wave(int TF,int &mas_ish[][][])
  {  // íàéòè ñåðèè âîëí
   int impS=0,impS_beg=0,tek_series=0,kol_wave=0,b1=-1,b0=-1,b1S=0,b0S=0,b1S_beg=0,b0S_beg=0;
   int r0,r1,z10=0,z00=0,z11=0,z01=0;
   double H,L,HS=0,LS=0;
   double HS_beg=0,LS_beg=0;

   int n=0,m=0;
   for(int i=M_Bars-1;i>=0;i--)
     {
      if(mas_ish[i][0][0]==0)continue;

      r0=mas_ish[i][0][1]; // èìïóëüñ
      r1=mas_ish[i][1][1];

      // íîìåð áàðà
      b0=b1;  // ëåâûé   ôðàêòàë
      b1=i;   // òåêóùèé ôðàêòàë
              // çía÷åíèå èïóëüñà
      z00=z10;
      z10=r0;

      z01=z11;
      z11=r1;
      if(b0<0 || b1<0)continue;

      if(z00!=0) // âåðò. ëèíèÿ
        {
         if(z00!=2) // íàéäåíà èìïóëüñíàÿ âîëíà
           {
            L=iLow (_Symbol,TF,b0);
            H=iHigh(_Symbol,TF,b0);
            opred_prob(TF,H,L,b0,b0,z00,
                       HS,LS,b0S,b1S,impS,
                       HS_beg,LS_beg,b0S_beg,b1S_beg,impS_beg,
                       tek_series,kol_wave,n,m);
           }
         kol_wave++;
         mas_ish[b0][0][2]=tek_series*kol_wave;
        }
      //---
      if(z01!=2) // íàéäåíà èìïóëüñíàÿ âîëíà
        {
         if(z01>0)
           {
            L=iLow (_Symbol,TF,b0);
            H=iHigh(_Symbol,TF,b1);
           }
         else
           {
            H=iHigh(_Symbol,TF,b0);
            L=iLow (_Symbol,TF,b1);
           }
         opred_prob(TF,H,L,b0,b1,z01,
                    HS,LS,b0S,b1S,impS,
                    HS_beg,LS_beg,b0S_beg,b1S_beg,impS_beg,
                    tek_series,kol_wave,n,m);
        }
      kol_wave++;
      mas_ish[i][1][2]=tek_series*kol_wave;
      //---
      if(i==0)
         if(z10!=2) // íàéäåíà èìïóëüñíàÿ âîëíà
           {
            L=iLow (_Symbol,TF,0);
            H=iHigh(_Symbol,TF,0);
            opred_prob(TF,H,L,0,0,z10,
                       HS,LS,b0S,b1S,impS,
                       HS_beg,LS_beg,b0S_beg,b1S_beg,impS_beg,
                       tek_series,kol_wave,n,m);
            kol_wave++;
            mas_ish[0][0][2]=tek_series*kol_wave;
           }
     }
   Del_extra_obj(TF,"prob_U",n+1);
   Del_extra_obj(TF,"prob_D",m+1);

   if(On_Fibo)Out_Fibo(TF,impS_beg,b0S_beg,b1S_beg,LS_beg,HS_beg);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void opred_prob(int TF,double H,double L,int b0,int b1,int imp,
                double &HS,double &LS,int &b0S,int &b1S,int &impS,
                double &HS_beg,double &LS_beg,int &b0S_beg,int &b1S_beg,int &impS_beg,
                int &tek_series,int &kol_wave,int &n,int &m)
  {
   bool prob_up=0;
   bool prob_dw=0;
   if(ND(HS)!=0)
     {
      prob_up=impS<0 && ND(H)>ND(HS);  // ïðîáîé ââåðõ
      prob_dw=impS>0 && ND(L)<ND(LS);  // ïðîáîé âíèç
     }
   datetime t_prob;
   if(prob_up)
     {
      if(b1<2)
         t_prob=iTime(_Symbol,TF,b1)+2*TF*60;
      else
         t_prob=iTime(_Symbol,TF,b1-2);

      Out_TL(n,iTime(_Symbol,TF,b0S),HS,t_prob,HS,"prob_U",clr_Prob_UP,TF,1,2);

      if(iTime(_Symbol,TF,b0S)>time_end_urov)
        {
         time_end_urov=iTime(_Symbol,TF,b0S);
         if(iTime(_Symbol,TF,0)==iTime(_Symbol,TF,b1) &&
            ND(HS)<=ND(iHigh(_Symbol,TF,0)) &&
            ND(HS)>=ND(iLow (_Symbol,TF,0)))
           {
            Open_UP=true;
            Open_DW=false;
            if(Sound)PlaySound("alert.wav");
           }
        }
      n++;
     }
   if(prob_dw)
     {
      if(b1<2)
         t_prob=iTime(_Symbol,TF,b1)+2*TF*60;
      else
         t_prob=iTime(_Symbol,TF,b1-2);

      Out_TL(m,iTime(_Symbol,TF,b0S),LS,t_prob,LS,"prob_D",clr_Prob_DW,TF,1,2);

      if(iTime(_Symbol,TF,b0S)>time_end_urov)
        {
         time_end_urov=iTime(_Symbol,TF,b0S);
         if(iTime(_Symbol,TF,0)==iTime(_Symbol,TF,b1) &&
            ND(LS)<=ND(iHigh(_Symbol,TF,0)) &&
            ND(LS)>=ND(iLow (_Symbol,TF,0)))
           {
            Open_UP=false;
            Open_DW=true;
            if(Sound)PlaySound("email.wav");
           }
        }
      m++;
     }

   if(ND(HS)==0 || prob_up || prob_dw) // èëè âîëí åù¸ íå áûëî èëè ïðîáîé ââåðõ/âíèç
     {
      HS=H;
      LS=L;
      b0S=b0;
      b1S=b1;
      impS=imp;

      HS_beg=H;
      LS_beg=L;
      b0S_beg=b0;
      b1S_beg=b1;
      impS_beg=imp;

      tek_series=imp; // 1 èëè -1
      kol_wave=0;
     }
   else
      if((impS>0 && ND(H)>ND(HS)) || // ïðåâûøåíèå ââåðõ
         (impS<0 && ND(L)<ND(LS))) // èëè âíèç
        {  // îáíîâëÿåì èñõîäíóþ âîëíó
         HS=H;
         LS=L;
         b0S=b0;
         b1S=b1;
        }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Out_Fibo(int TF1,int dir,int b0,int b1,double L,double H)
  {
   if(dir>0)
     {
      double p=L;
      L=H;
      H=p;
     }
   string name=pref+str_TF(TF1)+"_Fibo";

   double d=MathCeil(0.1*((1.0*WindowBarsPerChart()-WindowFirstVisibleBar())/5.0+b1));
   b0=b1-(int)d;
   datetime t0;;
   if(b0<0)
      t0=iTime(_Symbol,TF1,0)-b0*TF1*60;
   else
      t0=iTime(_Symbol,TF1,b0);

   if(ObjectFind(name))ObjectCreate(name,OBJ_FIBO,0,iTime(_Symbol,TF1,b1),L,t0,H);

   ObjectSet(name,OBJPROP_TIME1,iTime(_Symbol,TF1,b1));
   ObjectSet(name,OBJPROP_PRICE1,L);

   ObjectSet(name,OBJPROP_TIME2,t0);
   ObjectSet(name,OBJPROP_PRICE2,H);
   ObjectSet(name,OBJPROP_COLOR,clr_Fibo);
   ObjectSet(name,OBJPROP_WIDTH,1);
   ObjectSetInteger(0,name,OBJPROP_RAY_RIGHT,false);
   ObjectSetInteger(0,name,OBJPROP_LEVELCOLOR,0,clr_Fibo);
   ObjectSetInteger(0,name,OBJPROP_LEVELS,13);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,0,0);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,1,0.236);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,2,0.382);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,3,0.5);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,4,0.618);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,5,0.764);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,6,1.0);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,7,1.382);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,8,1.618);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,9,2.0);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,10,2.618);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,11,3.0);
   ObjectSetDouble(0,name,OBJPROP_LEVELVALUE,12,4.0);
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,0,"0.0");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,1,"23.6");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,2,"38.2");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,3,"50.0");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,4,"61.8");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,5,"76.4");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,6,"100.0");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,7,"138.2");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,8,"161.8");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,9,"200.0");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,10,"261.8");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,11,"300.0");
   ObjectSetString(0,name,OBJPROP_LEVELTEXT,12,"400.0");
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Find_Fractal(int TF)
  {
   int up,dw;
//---
   int max_bars;
   if(new_bar)
     {
      max_bars=M_Bars;
      ArrayInitialize(Mas_Fract,0);
     }
   else
     {
      max_bars=7;
      for(int i=0;i<max_bars-4;i++)
        {
         Mas_Fract[i][0][0]=0;
         Mas_Fract[i][1][0]=0;
        }
     }
//---
   for(int i=max_bars-4;i>=2;i--)
     {
      up=0;
      dw=0;
      double H_2=iHigh(_Symbol,TF,i-2);
      double H_1=iHigh(_Symbol,TF,i-1); // ïðàâûé áàð
      double H0 =iHigh(_Symbol,TF,i);   // òåêóùèé áàð
      double H1 =iHigh(_Symbol,TF,i+1); // ëåâûé áàð
      double H2 =iHigh(_Symbol,TF,i+2);
      double H3 =iHigh(_Symbol,TF,i+3);
      if(((ND(H0)>ND(H1) && ND(H0)>ND(H2)) ||
         (ND(H0)==ND(H1) && ND(H0)>ND(H2)) ||
         (ND(H0)>ND(H1) && ND(H0)==ND(H2)) ||
         (ND(H0)==ND(H1) && ND(H0)==ND(H2) && ND(H0)>ND(H3))) &&
         ND(H0)>ND(H_1) && ND(H0)>ND(H_2))
         up=1;
      //---
      double L_2=iLow(_Symbol,TF,i-2);
      double L_1=iLow(_Symbol,TF,i-1);
      double L0 =iLow(_Symbol,TF,i);
      double L1 =iLow(_Symbol,TF,i+1);
      double L2 =iLow(_Symbol,TF,i+2);
      double L3 =iLow(_Symbol,TF,i+3);
      if(((ND(L0)<ND(L1) && ND(L0)<ND(L2)) ||
         (ND(L0)==ND(L1) && ND(L0)<ND(L2)) ||
         (ND(L0)<ND(L1) && ND(L0)==ND(L2)) ||
         (ND(L0)==ND(L1) && ND(L0)==ND(L2) && ND(L0)<ND(L3))) &&
         ND(L0)<ND(L_1) && ND(L0)<ND(L_2))dw=1;
      //---
      if(up==1 && dw==0)
        {
         Mas_Fract[i][0][0]=1;
         Mas_Fract[i][1][0]=1;
        }
      else
      if(up==0 && dw==1)
        {
         Mas_Fract[i][0][0]=-1;
         Mas_Fract[i][1][0]=-1;
        }
      else
      if(up==1 && dw==1)
        {
         double op0=iOpen (_Symbol,TF,i);
         double cl0=iClose(_Symbol,TF,i);
         if(ND(cl0)>=ND(op0))
           {
            Mas_Fract[i][0][0]=-1;
            Mas_Fract[i][1][0]= 1;
           }
         else
           {
            Mas_Fract[i][0][0]= 1;
            Mas_Fract[i][1][0]=-1;
           }
        }
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Dorab_Fract(int TF)
  {
   obrab_begin_ZZ(TF,Mas_Fract);  // îáðàáîòàòü íà÷àëî çèã-çàãà
//---
   Find_promezh_point(TF, Mas_Fract); // íàéòè òî÷êè ìåæäó îäèíàêîâûìè âåðøèíàìè
   ubrat_iskagen_ZZ  (TF, Mas_Fract); // óáðàòü èñêàæåíèÿ ZZ
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void obrab_begin_ZZ(int TF,int &mas_Fr[][][])
  {
   int k,m,i;
   for(i=0;i<M_Bars;i++) // íàéòè íà÷àëî ìàñèâà ZZ (i)
      if(mas_Fr[i][0][0]!=0)break;

   if(i==0)return;
//---
// íàéòè ìàêñ è ìèí â íà÷àëüíûõ áàðàõ
   k=Main_iHighest(TF,i+1,0);
   m=Main_iLowest (TF,i+1,0);

   if(k==m) // âåðòèêàëüíàÿ ëèíèÿ
     {
      if(i!=k)
         if(ND(iClose(_Symbol,TF,k))>=ND(iOpen(_Symbol,TF,k))) // áû÷èé áàð
           {
            mas_Fr[k][0][0]=-1;
            mas_Fr[k][1][0]= 1;
           }
      else    //  ìåäâ. áàð
        {
         mas_Fr[m][0][0]= 1;
         mas_Fr[m][1][0]=-1;
        }
     }
   else
     {
      if(i!=k)
        {
         mas_Fr[k][0][0]= 1;
         mas_Fr[k][1][0]= 1;
        }
      if(i!=m)
        {
         mas_Fr[m][0][0]=-1;
         mas_Fr[m][1][0]=-1;
        }
     }
//---
// äîðàáàòûâåì âíóòðåííèå áàðû ïîñëåäíåé ëèíèè çèã-çàãà
   int min_n=(int)MathMin(k,m);
   if(min_n>0)
      if(min_n==1) // îñòàëñÿ òîëüêî 0-é áàð
        {
         if(mas_Fr[min_n][1][0]<0) // îêîí÷àíèå ZZ âíèçó
           {
            mas_Fr[0][0][0]= 1;
            mas_Fr[0][1][0]= 1;
           }
         else // îêîí÷àíèå ZZ ââåðõó
           {
            mas_Fr[0][0][0]=-1;
            mas_Fr[0][1][0]=-1;
           }
        }
   else // îñòàëîñü 2 è áîëåå âíóòðåííèõ áàðîâ
     {
      k=Main_iHighest(TF,min_n,0);
      m=Main_iLowest (TF,min_n,0);
      if(mas_Fr[min_n][1][0]<0) // îêîí÷àíèå ZZ âíèçó
        {
         mas_Fr[k][0][0]=1;  // äåëàåì ìàêñèìóì
         mas_Fr[k][1][0]= 1;
         if(m<k) // åñëè ìèíèììàëüíûé áàð äàëüøå ìàêñèìàëüíîãî
           {
            mas_Fr[m][0][0]=-1; // äåëàåì ìèíèìêì
            mas_Fr[m][1][0]=-1;
            if(m>0) // åñëè ìèíèìóì íå íà íóëåâîì áàðà
              {
               mas_Fr[0][0][0]=1; // íà íóëåâîì äåëàåì ìàêñ.
               mas_Fr[0][1][0]=1;
              }
           }
         else // åñëè ìèíèììàëüíûé áàð áëèæå ìàêñèìàëüíîãî
         if(k>0) // è ìàêñ. áàð íå íà íóëå
           {
            mas_Fr[0][0][0]=-1; // íà íóëåâîì äåëàåì ìèí.
            mas_Fr[0][1][0]=-1;
           }
        }
      else // îêîí÷àíèå ZZ ââåðõó
        {
         mas_Fr[m][0][0]=-1;
         mas_Fr[m][1][0]=-1;
         if(k<m)
           {
            mas_Fr[k][0][0]=1;
            mas_Fr[k][1][0]=1;
            if(k>0)
              {
               mas_Fr[0][0][0]=-1;
               mas_Fr[0][1][0]=-1;
              }
           }
         else
         if(m>0)
           {
            mas_Fr[0][0][0]=1;
            mas_Fr[0][1][0]=1;
           }
        }
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Find_promezh_point(int TF,int &mas_ish_ZZ[][][])
  { // íàéòè òî÷êè ìåæäó îäèíàêîâûìè âåðøèíàìè
   int r0,r1,k,b0=0,b1=0,z0=0,z1=0;
//---
   int max_bars;
   if(new_bar)
      max_bars=M_Bars;
   else
      max_bars=7;
//---
   for(int i=0;i<max_bars;i++)
     {
      r0=mas_ish_ZZ[i][0][0];
      if(r0==0)continue;

      r1=mas_ish_ZZ[i][1][0];

      b0=b1; // ïðàâûé ôðàêòàë
      b1=i;  // ëåâûé ôðàêòàë
             // çàïîìèíàåì ëåâûé ôðàêòàë:
      z0=z1;
      z1=r0;

      if(r1*z0>0) // îäèíàêîâûå ôðàêòàëû
         if(b1-b0>1)
            if(r1>0) // äâà ìàêñèìóìà
              {
               k=Main_iLowest(TF,b1-b0-1,b0+1);
               mas_ish_ZZ[k][0][0]=-1;
               mas_ish_ZZ[k][1][0]=-1;
              }
      else // äâà ìèíèìóìà
        {
         k=Main_iHighest(TF,b1-b0-1,b0+1);
         mas_ish_ZZ[k][0][0]=1;
         mas_ish_ZZ[k][1][0]=1;
        }
     }
  }
//---
void ubrat_iskagen_ZZ(int TF,int &mas_ish_ZZ[][][])
  {   // óáðàòü èñêàæåíèÿ ZZ: åñëè ìàêñèìóì íèæå ïðåä. ìèíèìóìà è íàîáîðîò
   int r0,r1,b0=0,b1=0,f0=0,f1=0;
   double p0,p1;

   for(int i=0;i<M_Bars;i++)
     {
      r0=mas_ish_ZZ[i][0][0];
      if(r0==0)continue;

      r1=mas_ish_ZZ[i][1][0];

      b0=b1;
      b1=i;

      f0=f1;
      f1=r0;

      p1=iLow (_Symbol,TF,b1);
      p0=iHigh(_Symbol,TF,b0);
      if(r0<0 && f0>0 && ND(p1)>=ND(p0))
        {
         mas_ish_ZZ[b0][0][0]=0;
         mas_ish_ZZ[b0][1][0]=0;
         mas_ish_ZZ[b1][0][0]=0;
         mas_ish_ZZ[b1][1][0]=0;
         continue;
        }
      p1=iHigh(_Symbol,TF,b1);
      p0=iLow (_Symbol,TF,b0);
      if(r0>0 && f0<0 && ND(p1)<=ND(p0))
        {
         mas_ish_ZZ[b0][0][0]=0;
         mas_ish_ZZ[b0][1][0]=0;
         mas_ish_ZZ[b1][0][0]=0;
         mas_ish_ZZ[b1][1][0]=0;
        }
     }
  }
//---
void Opred_Impuls_Wave(int TF,int &mas_ish_ZZ[][][])
  {   // âûäåëèòü èìïóëüñíûå âîëíû
   int r0,r1,z10=0,z00=0,z_10=0,z11=0,z01=0,z_11=0,b1=0,b0=0,b_1=0;
   double p1,p0L,p0H,p_1;

   for(int i=M_Bars-1;i>=0;i--)
     {
      r0=mas_ish_ZZ[i][0][0];
      if(r0==0)continue;

      r1=mas_ish_ZZ[i][1][0];

      // íîìåð áàðà
      b1=b0;  // ëåâûé   ôðàêòàë
      b0=b_1; // òåêóùèé ôðàêòàë
      b_1=i;  // ïðàâûé  ôðàêòàë
              // çía÷åíèå ôðàêòàëà
      z10=z00;
      z00=z_10;
      z_10=r0;

      z11=z01;
      z01=z_11;
      z_11=r1;
      if(z00==z01) // ñëåâà è ñïðàâà íàêëîííûå ëèíèè
         if(z_10>0) // ïðàâàÿ ëèíèÿ ââåðõ
           {
            p1 =iHigh(_Symbol,TF,b1);
            p_1=iHigh(_Symbol,TF,b_1);
            if(ND(p_1)>ND(p1))
               mas_ish_ZZ[b0][1][1]=1;
            else
               mas_ish_ZZ[b0][1][1]=2; // êîð. âîëíà
            mas_ish_ZZ[b0][0][1]=0;
           }
      else // ïðàâàÿ ëèíèÿ âíèç
        {
         p1 =iLow(_Symbol,TF,b1);
         p_1=iLow(_Symbol,TF,b_1);
         if(ND(p_1)<ND(p1))
            mas_ish_ZZ[b0][1][1]=-1;
         else
            mas_ish_ZZ[b0][1][1]=2;
         mas_ish_ZZ[b0][0][1]=0;
        }
      else
      if(z00<0) // âåðò. ëèíèÿ ââåðõ
        {
         p1 =iHigh(_Symbol,TF,b1);
         p0H=iHigh(_Symbol,TF,b0);
         if(ND(p0H)>ND(p1))
            mas_ish_ZZ[b0][0][1]=1;
         else
            mas_ish_ZZ[b0][0][1]=2;

         p1 =iLow(_Symbol,TF,b0);
         p_1=iLow(_Symbol,TF,b_1);
         if(ND(p_1)<ND(p1))
            mas_ish_ZZ[b0][1][1]=-1;
         else
            mas_ish_ZZ[b0][1][1]=2;
        }
      else  // âåðò. ëèíèÿ âíèç
        {
         p1 =iLow (_Symbol,TF,b1);
         p0L=iLow (_Symbol,TF,b0);
         if(ND(p0L)<ND(p1))
            mas_ish_ZZ[b0][0][1]=-1;
         else
            mas_ish_ZZ[b0][0][1]=2;

         p1 =iHigh(_Symbol,TF,b0);
         p_1=iHigh(_Symbol,TF,b_1);
         if(ND(p_1)>ND(p1))
            mas_ish_ZZ[b0][1][1]=1;
         else
            mas_ish_ZZ[b0][1][1]=2;
        }
      if(i==0)
         if(z_10<0) // âåðò. ëèíèÿ ââåðõ
           {
            p1 =iHigh(_Symbol,TF,b0);
            p0H=iHigh(_Symbol,TF,0);
            if(ND(p0H)>ND(p1))
               mas_ish_ZZ[0][0][1]=1;
            else
               mas_ish_ZZ[0][0][1]=2;
           }
      else  // âåðò. ëèíèÿ âíèç
      if(z_10>0) // âåðò. ëèíèÿ ââåðõ
        {
         p1 =iLow (_Symbol,TF,b0);
         p0L=iLow (_Symbol,TF,0);
         if(ND(p0L)<ND(p1))
            mas_ish_ZZ[0][0][1]=-1;
         else
            mas_ish_ZZ[0][0][1]=2;
        }
      else
         mas_ish_ZZ[0][0][1]=2;
     }
  }
//---
void Out_ZZ(int TF,int &mas_ish_ZZ[][][])
  {   // Âûâåñòè ZZ
   int r0=0,r1=0,z0=0,z1=0,z11=0,z10=0,b0=0,b1=0,m0=0,m1=0;
   double L0=0,H0=0,L1=0,H1=0;
   datetime t0=0,t1=0;

   for(int i=M_Bars-1;i>=0;i--)
      //   for (int i=0;i<M_Bars;i++)
     {
      r0=mas_ish_ZZ[i][0][0];
      if(r0==0)continue;

      r1=mas_ish_ZZ[i][1][0];

      b1=b0; // ëåâûé ôðàêòàë
      b0=i;  // òåêóùèé ôðàêòàë

      z1=z0;
      z0=r0;

      z11=z10;
      z10=r1;

      if(b1==0)continue;

      L1=iLow(_Symbol,TF,b1); // ëåâûé ôðàêòàë
      H1=iHigh(_Symbol,TF,b1);
      t1=iTime(_Symbol,TF,b1);


      L0=iLow(_Symbol,TF,b0); // òåêóùèé ôðàêòàë
      H0=iHigh(_Symbol,TF,b0);
      t0=iTime(_Symbol,TF,b0);
      //---
      if(z0<0) // ëèíèÿ âíèç
        {
         Out_TL(m0,t0,L0,t1,H1,"T_D",mas_ish_ZZ[b0][1][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b1][1][1]!=2,4);
         m0++;
        }
      else
      if(z0>0) // ëèíèÿ ââåðõ
        {
         Out_TL(m1,t0,H0,t1,L1,"T_U",mas_ish_ZZ[b0][1][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b1][1][1]!=2,4);
         m1++;
        }
      //---
      if(z1!=z11) // ñëåâà âåðò.ëèíèÿ
         if(z1<0) // ëèíèÿ ââåðõ
           {
            Out_TL(m1,t1,L1,t1,H1,"T_U",mas_ish_ZZ[b1][0][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b1][0][1]!=2,4);
            m1++;
           }
      else // ëèíèÿ âíèç
        {
         Out_TL(m0,t1,L1,t1,H1,"T_D",mas_ish_ZZ[b1][0][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b1][0][1]!=2,4);
         m0++;
        }
     }
//---
   if(r1 !=r0) // â êîíöå âåðò.ëèíèÿ
      if(r0<0) // ëèíèÿ ââåðõ
        {
         Out_TL(m1,t0,L0,t0,H0,"T_U",mas_ish_ZZ[b0][0][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b0][0][1]!=2,4);
         m1++;
        }
   else // ëèíèÿ âíèç
     {
      Out_TL(m0,t0,L0,t0,H0,"T_D",mas_ish_ZZ[b0][0][2]>0?clr_Series_Up:clr_Series_Dw,TF,mas_ish_ZZ[b0][0][1]!=2,4);
      m0++;
     }
   Del_extra_obj(TF,"T_U",m1);
   Del_extra_obj(TF,"T_D",m0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Del_extra_obj(int tf,string s,int n)
  {
   string name;
   bool F;
   do
     {
      name=pref+str_TF(tf)+"_"+s+(string)n;
      F=ObjectFind(name)>=0;
      if(F)ObjectDelete(name);
      n++;
     }
   while(F);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int Main_iHighest(int tf,int n,int beg)
  {
   double pr,pr_max=0.0;
   int n_max=beg;
   for(int i=beg;i<beg+n;i++)
     {
      pr=iHigh(_Symbol,tf,i);
      if(pr>pr_max)
        {
         pr_max=pr;
         n_max=i;
        }
     }
   return(n_max);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int Main_iLowest(int tf,int n,int beg)
  {
   double pr,pr_min=999999.0;
   int n_min=beg;
   for(int i=beg;i<beg+n;i++)
     {
      pr=iLow(_Symbol,tf,i);
      if(pr<pr_min)
        {
         pr_min=pr;
         n_min=i;
        }
     }
   return(n_min);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Out_Nom_Series(int TF,int &mas_ich[][][])
  {   // âûâåñòè ôðàêòàëû
   int z,m=0,n=0,b=0;
   color clr;

   for(int i=M_Bars-1;i>=0;i--)
     {
      z=mas_ich[i][0][0];
      if(z==0)continue;
        {
         if(b>=Bars)break;

         if(mas_ich[i][0][2]!=0) // âåðò.ëèíèÿ
           {
            clr=clr_txt(b,i,mas_ich[i][0][2]);
            if(z>0){Out_txt(m,iTime(_Symbol,TF,i),iLow (_Symbol,TF,i),"N_D",clr,TF,ANCHOR_UPPER, (string)mas_ich[i][0][2]);m++;}
            if(z<0){Out_txt(n,iTime(_Symbol,TF,i),iHigh(_Symbol,TF,i),"N_U",clr,TF,ANCHOR_LOWER, (string)mas_ich[i][0][2]);n++;}
           }
         if(mas_ich[i][1][2]!=0)
           {
            clr=clr_txt(b,i,mas_ich[i][1][2]);
            if(z>0){Out_txt(n,iTime(_Symbol,TF,i),iHigh(_Symbol,TF,i),"N_U",clr,TF,ANCHOR_LOWER, (string)mas_ich[i][1][2]);n++;}
            if(z<0){Out_txt(m,iTime(_Symbol,TF,i),iLow (_Symbol,TF,i),"N_D",clr,TF,ANCHOR_UPPER, (string)mas_ich[i][1][2]);m++;}
           }
        }
     }
   Del_extra_obj(TF,"N_U",n);
   Del_extra_obj(TF,"N_D",m);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
color clr_txt(int b,int i,int n)
  {
   color c=clr_Series_Dw;

//   if (b<=2 && i<=2)
//      c=clr_Tail_ZZ;
//   else
   if(n>0)
      c=clr_Series_Up;
   return(c);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
string str_TF(int n)
  {
   if(n==0)n=Period();
   switch(n)
     {
      case PERIOD_M1:  return ("M1 ");
      case PERIOD_M5:  return ("M5");
      case PERIOD_M15: return ("M15");
      case PERIOD_M30: return ("M30");
      case PERIOD_H1:  return ("H1");
      case PERIOD_H4:  return ("H4");
      case PERIOD_D1:  return ("D1");
      case PERIOD_W1:  return ("W1");
      case PERIOD_MN1: return ("MN1");
     }
   return("TF?");
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void remove_objects(string PreName)
  {
   string Obj_Name,Head;
   for(int k=ObjectsTotal()-1; k>=0; k--)
     {
      Obj_Name=ObjectName(k);
      Head=StringSubstr(Obj_Name,0,StringLen(PreName));
      if(Head==PreName)ObjectDelete(Obj_Name);
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
double ND(double n)
  {
   return(NormalizeDouble(n,Digits));
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Out_TL(int i,datetime t1,double pr1,datetime t2,double pr2,string s,color col,int TF,bool impuls,int width)
  {
   string name=pref+str_TF(TF)+"_"+s+(string)i;
   if(ObjectFind(name))ObjectCreate(name,OBJ_TREND,0,0,0,0,0);

   ObjectSet(name,OBJPROP_TIME1,t1);
   ObjectSet(name,OBJPROP_TIME2,t2);
   ObjectSet(name,OBJPROP_PRICE1,pr1);
   ObjectSet(name,OBJPROP_PRICE2,pr2);
   ObjectSet(name,OBJPROP_COLOR,col);
   ObjectSet(name,OBJPROP_RAY,0);
   if(impuls)
     {
      ObjectSet(name,OBJPROP_WIDTH,width);
      ObjectSet(name,OBJPROP_STYLE,STYLE_SOLID);
     }
   else
     {
      ObjectSet(name,OBJPROP_WIDTH,1);
      ObjectSet(name,OBJPROP_STYLE,STYLE_SOLID);
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Out_Arrow(int i,datetime t,double pr,string s,color col,int cod,int TF,int anchor)
  {
   string name=pref+str_TF(TF)+"_"+s+(string)i;
   if(ObjectFind(name))ObjectCreate(name,OBJ_ARROW,0,0,0);

   ObjectSet(name,OBJPROP_TIME1,t);
   ObjectSet(name,OBJPROP_PRICE1,pr);
   ObjectSet(name,OBJPROP_COLOR,col);
   ObjectSet(name,OBJPROP_WIDTH,1);
   ObjectSet(name,OBJPROP_ARROWCODE,cod);
   ObjectSetInteger(0,name,OBJPROP_ANCHOR,anchor);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void Out_txt(int i,datetime t,double pr,string s,color col,int TF,int anchor,string sn)
  {
   string name=pref+str_TF(TF)+"_"+s+(string)i;
   if(ObjectFind(name))ObjectCreate(name,OBJ_TEXT,0,0,0);

   ObjectSetText(name,sn,10,"Arial Black");
   ObjectSet(name,OBJPROP_TIME1,t);
   ObjectSet(name,OBJPROP_PRICE1,pr);
   ObjectSet(name,OBJPROP_COLOR,col);
   ObjectSet(name,OBJPROP_WIDTH,1);
   ObjectSetInteger(0,name,OBJPROP_ANCHOR,anchor);
  }
//+------------------------------------------------------------------+

Similar scripts

road_map_v01

This indicator maps market structure by identifying fractal extremes to delineate impulsive waves, correction patterns, and automated Fibonacci retracement levels.

Road_Map_expert_v04

Waddah_Attar_Pivot_Fibo_Second

This indicator calculates daily pivot points and projects multi-layered resistance and support levels (R4-R7, S4-S7) based on the previous day's price range and volatility coefficients.

Waddah_Attar_Weekly_Pivot_Fibo_Second

This indicator projects weekly price levels by calculating multi-tier support and resistance zones based on the previous week's range and pivot point.

pin

This indicator identifies potential trend reversals by detecting price candles that penetrate a specific percentage of their total range while maintaining proximity to daily high or low extremes.

Indikator

wajdyss_Indicator_V3

cm_manual_grid

Market_Capture_8_2

8_2_5

TrendMeLeaveMe

Comments
