StepChoppyBars_v1

Author: Copyright � 2006, Forex-TSD.com
StepChoppyBars_v1

This script is designed as a visual trading indicator that analyzes market trends by combining two primary types of data: trend direction (Moving Averages) and price momentum (Relative Strength Index). Instead of just providing a simple "up" or "down" signal, the logic categorizes the market into eight distinct states based on how strongly the price is moving or if it is experiencing a temporary pause.

Core Logic Components

The script works by cross-referencing three specific data points simultaneously:

  1. Trend Identification: It uses specialized Moving Averages to determine the fundamental direction of the market (Upward Trend vs. Downward Trend).
  2. Momentum Speed: It compares a "Fast" momentum reading against a "Slow" momentum reading to see how quickly the price is changing.
  3. Relative Strength: It uses a secondary momentum check to determine where the current price strength sits in relation to its recent history.

The Eight Market States

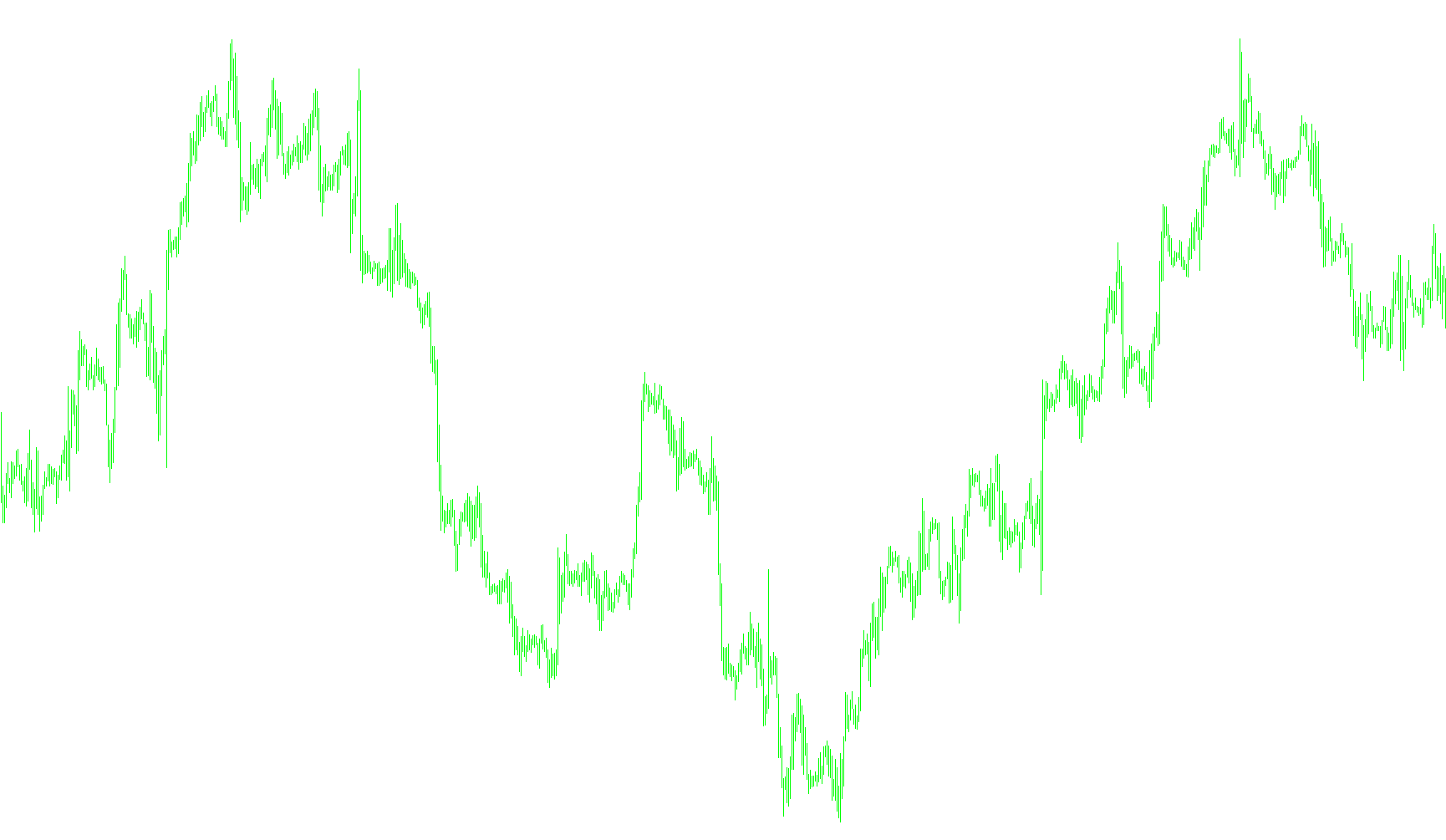

By combining these three components, the script classifies every candle into one of the following categories, which are then displayed on your chart as distinct colored histograms:

Upward Trend Scenarios:

  • Strong UpTrend: Indicates the market is moving strongly upward with high momentum.
  • Retrace UpTrend: Suggests the market is in an overall uptrend but is currently experiencing a minor pull-back or "breathing" period.
  • Choppy UpTrend: Signals that while the trend is technically up, the price action is inconsistent and lacks clear direction.
  • Ready to Change (Up): A warning signal suggesting that the current upward momentum is fading and a reversal might be approaching.

Downward Trend Scenarios:

  • Strong DownTrend: Indicates the market is moving aggressively downward with high momentum.
  • Retrace DownTrend: Suggests the market is in an overall downtrend but is currently seeing a temporary price increase or "relief" bounce.
  • Choppy DownTrend: Signals that while the trend is technically down, the price action is erratic and lacks a steady path.
  • Ready to Change (Down): A warning signal suggesting that the downward momentum is weakening and an upward move may be imminent.

Summary of Functionality

The primary goal of this script is to provide traders with "market context." Rather than just telling you which way to trade, it tells you how the market is behaving—distinguishing between a powerful, sustained move, a temporary rest in a trend, and a messy, undecided market environment. This allows for more nuanced decision-making by helping you identify when a trend is healthy or when it is becoming exhausted.

Miscellaneous
Implements a curve of type %1
17 Views
0 Downloads
0 Favorites
StepChoppyBars_v1
//+------------------------------------------------------------------+
//|                                            StepChoppyBars_v1.mq4 |
//|                                  Copyright © 2006, Forex-TSD.com |
//|                         Written by IgorAD,igorad2003@yahoo.co.uk |
//|            http://finance.groups.yahoo.com/group/TrendLaboratory |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Forex-TSD.com "
#property link      "http://www.forex-tsd.com/"

#property indicator_chart_window
#property indicator_buffers 8
#property indicator_color1 MediumBlue
#property indicator_color2 Crimson
#property indicator_color3 DodgerBlue
#property indicator_color4 Tomato
#property indicator_color5 LightBlue
#property indicator_color6 Orange
#property indicator_color7 Aqua
#property indicator_color8 Yellow
//---- input parameters
int Length=10;
double StepSizeFast=5;
double StepSizeSlow=15;
int MAPeriod=1;
int Price=0;
int Mode=2;
//---- buffers
double UpBuffer1[];
double DnBuffer1[];
double UpBuffer2[];
double DnBuffer2[];
double UpBuffer3[];
double DnBuffer3[];
double UpBuffer4[];
double DnBuffer4[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {

//----
   SetIndexStyle(0,DRAW_HISTOGRAM,0,2,MediumBlue);
   SetIndexBuffer(0,UpBuffer1);
   SetIndexStyle(1,DRAW_HISTOGRAM,0,2,Crimson);
   SetIndexBuffer(1,DnBuffer1);
   SetIndexStyle(2,DRAW_HISTOGRAM,0,2,DodgerBlue);
   SetIndexBuffer(2,UpBuffer2);
   SetIndexStyle(3,DRAW_HISTOGRAM,0,2,Tomato);
   SetIndexBuffer(3,DnBuffer2);
   SetIndexStyle(4,DRAW_HISTOGRAM,0,2,LightBlue);
   SetIndexBuffer(4,UpBuffer3);
   SetIndexStyle(5,DRAW_HISTOGRAM,0,2,Orange);
   SetIndexBuffer(5,DnBuffer3);
   SetIndexStyle(6,DRAW_HISTOGRAM,0,2,Aqua);
   SetIndexBuffer(6,UpBuffer4);
   SetIndexStyle(7,DRAW_HISTOGRAM,0,2,Yellow);
   SetIndexBuffer(7,DnBuffer4);

//----
   string short_name="StepChoppyBars_v1";
   IndicatorShortName(short_name);
   SetIndexLabel(0,"Strong UpTrend");
   SetIndexLabel(1,"Strong DownTrend");
   SetIndexLabel(2,"Retrace UpTrend");
   SetIndexLabel(3,"Retrace DownTrend");
   SetIndexLabel(4,"Choppy UpTrend");
   SetIndexLabel(5,"Choppy DownTrend");
   SetIndexLabel(6,"Be ready to change UpTrend");
   SetIndexLabel(7,"Be ready to change DownTrend");
//----

   SetIndexDrawBegin(0,Length);
   SetIndexDrawBegin(1,Length);
   SetIndexDrawBegin(2,Length);
   SetIndexDrawBegin(3,Length);
   SetIndexDrawBegin(4,Length);
   SetIndexDrawBegin(5,Length);
   SetIndexDrawBegin(6,Length);
   SetIndexDrawBegin(7,Length);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| StepChoppyBars_v1                                                |
//+------------------------------------------------------------------+
int start()
  {
   int  i,counted_bars=IndicatorCounted();
   double RSI, FastRSI, SlowRSI, StepMA, UpTrendMA, DnTrendMA;
//----
   if(Bars<=Length) return(0);
//---- initial zero
   if(counted_bars<1)
      for(i=1;i<=Length;i++)
      {
      UpBuffer1[Bars-i]=0.0;
      UpBuffer2[Bars-i]=0.0;
      UpBuffer3[Bars-i]=0.0;
      UpBuffer4[Bars-i]=0.0;

      DnBuffer1[Bars-i]=0.0;
      DnBuffer2[Bars-i]=0.0;
      DnBuffer3[Bars-i]=0.0;
      DnBuffer4[Bars-i]=0.0;
      }
//----
   if ( counted_bars > 0 )  int limit=Bars-counted_bars;
   if ( counted_bars ==0 )  limit=Bars-Length-1;

   for(i=limit;i>=0;i--)
   {

   UpTrendMA = iCustom(NULL,0,"StepMA_v7",Length,1.0,0,0,0,0,true,2,0,1,i);
   DnTrendMA = iCustom(NULL,0,"StepMA_v7",Length,1.0,0,0,0,0,true,2,0,2,i);

   RSI=iCustom(NULL,0,"StepRSI_v5.2",Length,StepSizeFast,MAPeriod,Price,Mode,0,i);
   FastRSI=iCustom(NULL,0,"StepRSI_v5.2",Length,StepSizeFast,MAPeriod,Price,Mode,1,i);
   SlowRSI=iCustom(NULL,0,"StepRSI_v5.2",Length,StepSizeSlow,MAPeriod,Price,Mode,1,i);

   //UpBuffer1[i] =UpBuffer1[i+1];
   //UpBuffer2[i] =UpBuffer2[i+1];
   //UpBuffer3[i] =UpBuffer3[i+1];
   //UpBuffer4[i] =UpBuffer4[i+1];

   //DnBuffer1[i] =DnBuffer1[i+1];
   //DnBuffer2[i] =DnBuffer2[i+1];
   //DnBuffer3[i] =DnBuffer3[i+1];
   //DnBuffer4[i] =DnBuffer4[i+1];

   UpBuffer1[i] =EMPTY;
   UpBuffer2[i] =EMPTY;
   UpBuffer3[i] =EMPTY;
   UpBuffer4[i] =EMPTY;

   DnBuffer1[i] =EMPTY;
   DnBuffer2[i] =EMPTY;
   DnBuffer3[i] =EMPTY;
   DnBuffer4[i] =EMPTY;

   if (FastRSI > SlowRSI && RSI > FastRSI && UpTrendMA!=EMPTY_VALUE)
   {UpBuffer1[i] = High[i];DnBuffer1[i] = Low[i] ;}
   //{UpBuffer1[i] = High[i];UpBuffer2[i] = -1.0;UpBuffer3[i] = -1.0;UpBuffer4[i] = -1.0;
   // DnBuffer1[i] = -1.0 ;DnBuffer2[i] = -1.0;DnBuffer3[i] = -1.0;DnBuffer4[i] = Low[i];}

   else if (FastRSI > SlowRSI && RSI < FastRSI && UpTrendMA!=EMPTY_VALUE)
   {UpBuffer2[i] = High[i];DnBuffer2[i] = Low[i] ;}
   //{UpBuffer1[i] = 0.0; UpBuffer2[i] = High[i]; UpBuffer3[i] = 0.0; UpBuffer4[i] = 0.0;
   // DnBuffer1[i] = 0.0; DnBuffer2[i] = Low[i];  DnBuffer3[i] = 0.0; DnBuffer4[i] = 0.0;}

   else if (FastRSI < SlowRSI && RSI > FastRSI && UpTrendMA!=EMPTY_VALUE)
   {UpBuffer3[i] = High[i];DnBuffer3[i] = Low[i] ;}
   //{UpBuffer1[i] = 0.0;UpBuffer2[i] = 0.0;UpBuffer3[i] = High[i];UpBuffer4[i] = 0.0;
   // DnBuffer1[i] = 0.0;DnBuffer2[i] = 0.0;DnBuffer3[i] = Low[i];DnBuffer4[i] = 0.0;}

   else if (FastRSI < SlowRSI && RSI < FastRSI && UpTrendMA!=EMPTY_VALUE)
   {UpBuffer4[i] = High[i];DnBuffer4[i] = Low[i] ;}
   //{UpBuffer1[i] = 0.0;UpBuffer2[i] = 0.0;UpBuffer3[i] = 0.0;UpBuffer4[i] = High[i];
   // DnBuffer1[i] = 0.0;DnBuffer2[i] = 0.0;DnBuffer3[i] = 0.0;DnBuffer4[i] = Low[i];}


   else if (FastRSI < SlowRSI && RSI < FastRSI && DnTrendMA!=EMPTY_VALUE)
   {DnBuffer1[i] = High[i];UpBuffer1[i] = Low[i];}
   //{DnBuffer1[i] = High[i];DnBuffer2[i] = 0.0;DnBuffer3[i] = 0.0;DnBuffer4[i] = 0.0;
   // UpBuffer1[i] = Low[i];UpBuffer2[i] = 0.0;UpBuffer3[i] = 0.0;UpBuffer4[i] = 0.0;}

   else if (FastRSI < SlowRSI && RSI > FastRSI && DnTrendMA!=EMPTY_VALUE)
   {DnBuffer2[i] = High[i];UpBuffer2[i] = Low[i];}
   //{DnBuffer1[i] = 0.0;DnBuffer2[i] = High[i];DnBuffer3[i] = 0.0;DnBuffer4[i] = 0.0;
   //UpBuffer1[i] = 0.0;UpBuffer2[i] = Low[i];UpBuffer3[i] = 0.0;UpBuffer4[i] = 0.0;}

   else if (FastRSI > SlowRSI && RSI < FastRSI && DnTrendMA!=EMPTY_VALUE)
   {DnBuffer3[i] = High[i];UpBuffer3[i] = Low[i];}
   //{DnBuffer1[i] = 0.0;DnBuffer2[i] = 0.0;DnBuffer3[i] = High[i];DnBuffer4[i] = 0.0;
   //UpBuffer1[i] = 0.0;UpBuffer2[i] = 0.0;UpBuffer3[i] = Low[i];UpBuffer4[i] = 0.0;}

   else if (FastRSI > SlowRSI && RSI > FastRSI && DnTrendMA!=EMPTY_VALUE)
   {DnBuffer4[i] = High[i];UpBuffer4[i] = Low[i];}
   //{DnBuffer1[i] = 0.0;DnBuffer2[i] = 0.0;DnBuffer3[i] = 0.0;DnBuffer4[i] = High[i];
   //UpBuffer1[i] = 0.0;UpBuffer2[i] = 0.0;UpBuffer3[i] = 0.0;UpBuffer4[i] = Low[i];}
   }

//----
   return(0);
  }
//+------------------------------------------------------------------+

Dependencies

StepMA_v7

This indicator calculates a quantized price trajectory by determining dynamic step sizes based on average range volatility and applying trend-dependent price boundaries.

StepRSI_v5.2

This indicator applies a staircase-style quantization to relative strength values, identifying significant structural shifts in price velocity while filtering out minor volatility noise.
