This tool is designed as a specialized technical analysis indicator for the MetaTrader platform. It combines two distinct mathematical concepts—the Commodity Channel Index (CCI) and the T3 Moving Average—to provide a smoothed, more responsive visual representation of market momentum.
Core Logic and Functionality
The primary objective of this script is to filter out "market noise" while maintaining high sensitivity to price movements. Here is how it achieves that:
1. The Foundation: Commodity Channel Index (CCI) The logic begins by looking at the CCI, which is a standard momentum oscillator. It measures where the current price sits in relation to its average price over a specific period. In simple terms, it helps determine if an asset is overbought, oversold, or trending strongly.
2. The Refinement: T3 Smoothing Technique Instead of displaying the raw, often erratic CCI line, this script passes the data through a "T3" moving average calculation. The T3 is unique because it is designed to be much smoother than standard moving averages without the typical "lag" (the delay in signal) that usually occurs when smoothing data. It achieves this using a weighted mathematical formula based on variables provided by the user.
3. Multi-Stage Processing The script processes the price data through several sequential layers:
- Weighting: It assigns different importance levels to recent data points compared to older ones.
- Recursive Calculation: It performs a series of "nested" calculations (moving through six distinct stages). This essentially creates a high-definition smoothing effect where each step refines the previous one.
- Final Output: The final result is a weighted sum of these refined stages, resulting in a single, clean line displayed on your chart.

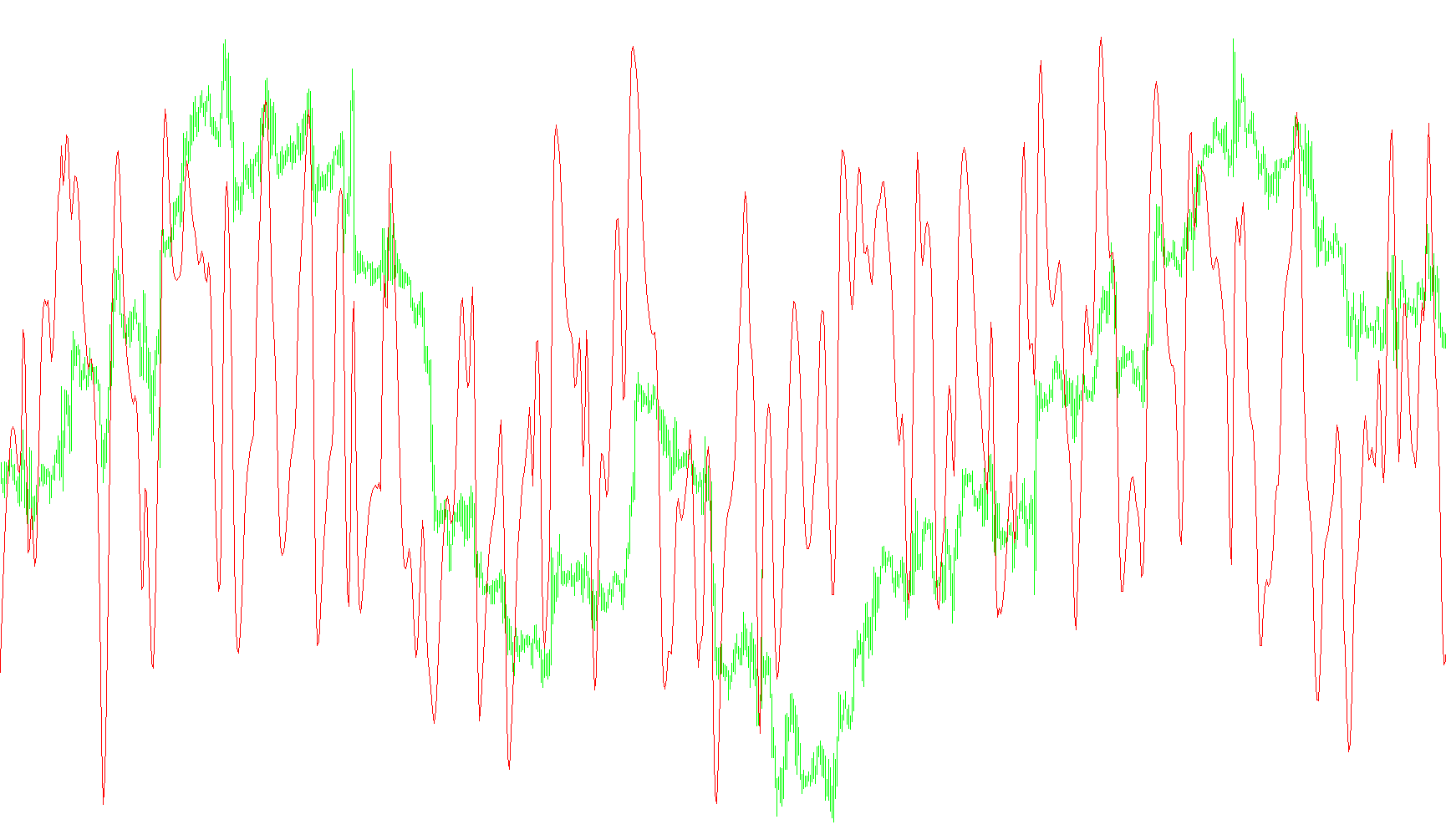

How it Behaves on a Chart
By combining these two methods, the indicator aims to provide a visual trend that follows the price closely but avoids the "jittery" movements of a standard oscillator. For a trader, this means seeing a clearer picture of the underlying momentum; the line will move more fluidly, helping to identify significant shifts in market direction while ignoring minor, insignificant price fluctuations.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| T3 CCI.mq4 |
//| adoleh2000 |
//| http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/ |
//+------------------------------------------------------------------+
#property copyright "Modification of T3 MACO. Thanks to Perky_z and Mojos Program"
#property link "http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/"
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Red
extern int CCI_Period = 15;
extern int T3_Period = 5;
extern double b = 0.7;
double MapBuffer[];
double e1,e2,e3,e4,e5,e6;
double c1,c2,c3,c4;
double n,w1,w2,b2,b3;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators setting
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,1,Red);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
IndicatorShortName("T3_ CCI "+CCI_Period);
SetIndexBuffer(0,MapBuffer);
//---- variable reset
e1=0; e2=0; e3=0; e4=0; e5=0; e6=0;
c1=0; c2=0; c3=0; c4=0;
n=0;
w1=0; w2=0;
b2=0; b3=0;
b2=b*b;
b3=b2*b;
c1=-b3;
c2=(3*(b2+b3));
c3=-3*(2*b2+b+b3);
c4=(1+3*b+b3+3*b2);
n=T3_Period;
if (n<1) n=1;
n = 1 + 0.5*(n-1);
w1 = 2 / (n + 1);
w2 = 1 - w1;
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit=Bars;
//---- indicator calculation
for(int i=limit; i>=0; i--)
{
e1 = w1*(iCCI(NULL,0,CCI_Period,PRICE_MEDIAN,i)) + w2*e1;
e2 = w1*e1 + w2*e2;
e3 = w1*e2 + w2*e3;
e4 = w1*e3 + w2*e4;
e5 = w1*e4 + w2*e5;
e6 = w1*e5 + w2*e6;
MapBuffer[i]=c1*e6 + c2*e5 + c3*e4 + c4*e3;
}
//----
return(0);
}
//+------------------------------------------------------------------+
