This tool is a custom technical analysis indicator designed for the MetaTrader platform. It functions by combining two well-known market analysis methods to provide a smoother, more refined view of price momentum than standard indicators might offer on their own.
Core Logic Overview
The indicator operates by taking the Relative Strength Index (RSI)—a common tool used to measure the speed and change of price movements—and processing it through a sophisticated mathematical filter known as a T3 moving average.
How It Works
To provide you with a clearer picture of the market, the script follows these logical steps:
- Data Collection: The tool first identifies the standard RSI values based on a user-defined period (the default is 14). This provides the foundation for understanding whether an asset is overbought or oversold.
- Smoothing Process: Instead of displaying the raw RSI directly, the script applies "T3" logic. The T3 moving average is specifically engineered to reduce "noise" and lag—common issues where standard indicators can be too jumpy or react too slowly to actual market changes.
- Multi-Stage Filtering: The logic uses a series of recursive calculations (weighted averages). It passes the RSI data through multiple layers of calculation to create a curve that follows the trend more closely while remaining significantly smoother than a traditional moving average.

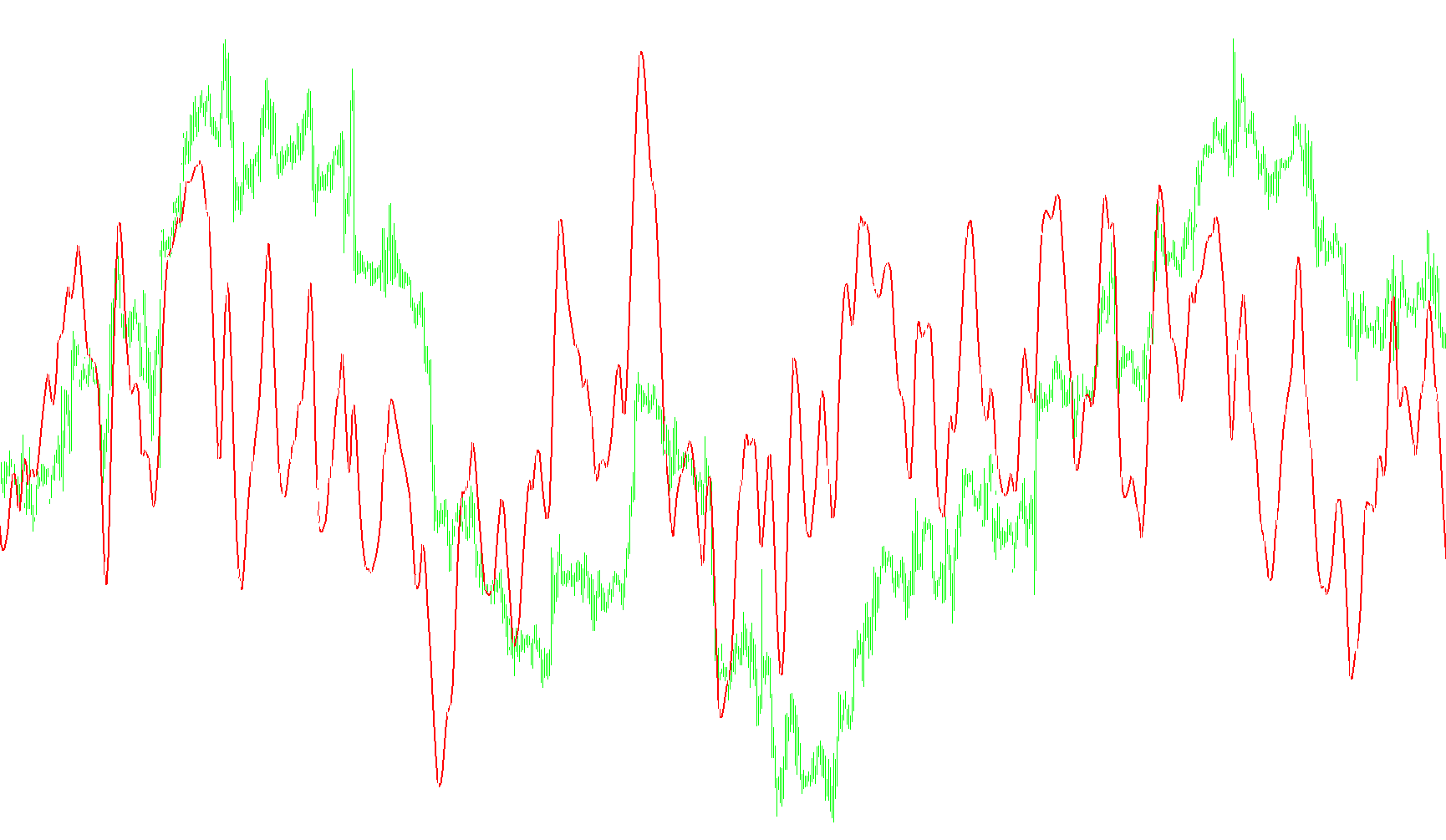

- Visual Output: The result is a dual-line visual representation. It allows you to see the smoothed momentum of the market, helping traders identify potential trend reversals or continuations with greater clarity by filtering out minor, insignificant price fluctuations.
Key Benefits
By blending the RSI's sensitivity with the T3’s advanced smoothing, this script aims to give users a more "stable" look at market momentum. It is designed for those who find standard indicators too erratic and prefer a refined signal that highlights the underlying trend of the price action.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| T3_RSI.mq4 |
//| MojoFX |
//| http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/ |
//+------------------------------------------------------------------+
#property copyright "MojoFX - Conversion only"
#property link "http://groups.yahoo.com/group/MetaTrader_Experts_and_Indicators/"
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_color2 White
extern int RSI_Period = 14;
extern int T3_Period = 8;
extern double T3_Curvature = 0.618;
double t3Array[];
double rsiArray[];
double e1,e2,e3,e4,e5,e6;
double c1,c2,c3,c4;
double n,w1,w2,b2,b3;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators setting
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2,Red);
SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,1,White);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
IndicatorShortName("T3 RSI "+T3_Period);
SetIndexBuffer(0,t3Array);
SetIndexLabel(0,"T3 "+T3_Period);
SetIndexBuffer(1,rsiArray);
SetIndexLabel(1,"RSI "+T3_Period);
//---- variable reset
e1=0; e2=0; e3=0; e4=0; e5=0; e6=0;
c1=0; c2=0; c3=0; c4=0;
n=0;
w1=0; w2=0;
b2=0; b3=0;
b2=T3_Curvature*T3_Curvature;
b3=b2*T3_Curvature;
c1=-b3;
c2=(3*(b2+b3));
c3=-3*(2*b2+T3_Curvature+b3);
c4=(1+3*T3_Curvature+b3+3*b2);
n=T3_Period;
if (n<1) n=1;
n = 1 + 0.5*(n-1);
w1 = 2 / (n + 1);
w2 = 1 - w1;
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit=Bars;
//---- indicator calculation
for(int i=limit; i>=0; i--)
{
rsiArray[i] = iRSI(NULL,0,T3_Period,PRICE_CLOSE,i);
e1 = w1*rsiArray[i] + w2*e1;
e2 = w1*e1 + w2*e2;
e3 = w1*e2 + w2*e3;
e4 = w1*e3 + w2*e4;
e5 = w1*e4 + w2*e5;
e6 = w1*e5 + w2*e6;
t3Array[i]=c1*e6 + c2*e5 + c3*e4 + c4*e3;
}
//----
return(0);
}
//+------------------------------------------------------------------+
