VM_Price_Action_1.2
Download scriptThis script is a sophisticated technical analysis tool designed for the MetaTrader platform. Its primary purpose is to automatically identify and visualize specific "Price Action" patterns on a trading chart. Rather than relying on standard mathematical oscillators, it analyzes the relationship between consecutive price candles to highlight significant structural shifts, reversals, and consolidation phases.
Core Functionality

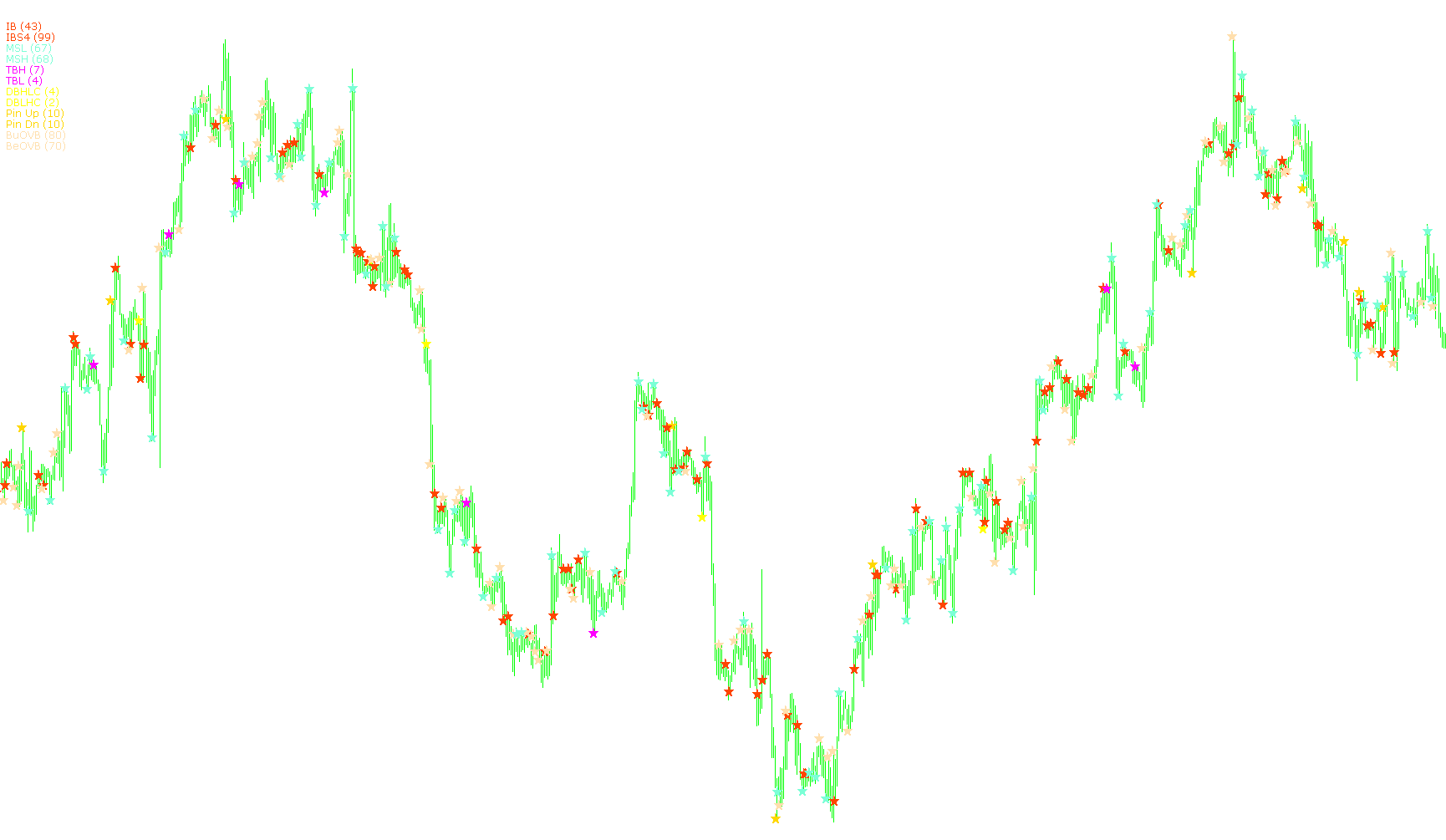

The script scans the historical price data and places visual markers (arrows) on the chart whenever it detects one of the following twelve specific market behaviors:
Structural & Trend Markers:
- Market Structure High/Low (MSH/MSL): Identifies key points where the market makes significant new structural peaks or troughs based on candle movement.
- Two Bars High/Low (TBH/TBL): Highlights instances where two consecutive bars reach similar highs or lows, often indicating a temporary pause in trend or a potential reversal zone.
Candlestick Patterns:
- Pin Up / Pin Down: Detects "hammer" or "shooting star" type candles, which signify that price was rejected from a certain level.
- Inside Bar (IB) & Smallest of 4 (IBS4): Identifies periods of low volatility and consolidation. The IBS4 specifically looks for the smallest price range within a four-candle window.
- Bullish/Bearish Outside Vertical Bars (BuOVB/BeOVB): Locates aggressive moves where one candle completely engulfs the range of the previous one with significant vertical expansion.
Specific Price Behavior:
- Double Bar High Lower Close / Double Bar Low Higher Close (DBHLC/DBLHC): These markers identify specific price action "traps" where two bars share a similar high or low, but the price closes significantly in the opposite direction.
Automated Intelligence & Alerts
Beyond just drawing icons on the screen, the script contains several advanced logical features:
- Dynamic Statistical Calculation: The script includes a unique logic to determine the minimum size of "Pin Bars." Instead of using a fixed value, it analyzes historical data to calculate what constitutes a significant pin bar for that specific asset based on a user-defined percentage of frequency.
- Real-Time Alerts: Whenever a new price action pattern is detected in real-time (specifically on the most recent candle), the script triggers an automated alert notification to inform the trader immediately.
- On-Screen Statistics: The script provides a live dashboard on the chart. This display counts how many times each specific pattern has occurred, allowing traders to see which price actions are most prevalent in the current market environment.
- Customizable Visibility: Every single marker can be toggled on or off individually via settings, allowing users to create a "clean" chart that only displays the specific patterns they find most reliable for their trading strategy.
//+------------------------------------------------------------------+
//| VM_Price_action v 1.2 |
//| Copyright © 2007, Victor Maranhão. |
//| vmaranhao@gmail.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, Victor Maranhão."
#property link "vmaranhao@gmail.com"
/*============================================================
==============================================================
HISTORY
v. 1.2
- TBL, TBH stars not showing fixed
v. 1.1
- OB changed to Bearish Outside Vertical Bar (BeOVB) and
Bullish Outside Vertical Bar (BuOVB)
- Market Structure High / Low included
==============================================================
============================================================*/
#property indicator_chart_window
#property indicator_buffers 6
#define cIX_BF_DBHLC 0
#define cIX_BF_PINUPDN 1
#define cIX_BF_IBIBS4 2
#define cIX_BF_BOVB 3
#define cIX_BF_MSHL 4
#define cIX_BF_TBHTBL 5
#define cINDICNUM 12
#define cIX_IB 0
#define cIX_IBS4 1
#define cIX_MSL 2
#define cIX_MSH 3
#define cIX_TBH 4
#define cIX_TBL 5
#define cIX_DBHLC 6
#define cIX_DBLHC 7
#define cIX_PINUP 8
#define cIX_PINDN 9
#define cIX_BuOVB 10
#define cIX_BeOVB 11
extern bool pDBHLC_Show = TRUE;
extern int pDBHLC_Max_Delta = 0; // pip
extern color pDBHLC_Color = Yellow;
extern int pDBHLC_Width = 2;
extern bool pDBLHC_Show = TRUE;
extern int pDBLHC_Max_Delta = 0; // pip
extern bool pPINUP_Show = TRUE;
extern int pPINUP_Min_Delta = 5; // pip
extern int pPINUP_Top_Precent = 10; // percent
extern color pPINUP_Color = Gold;
extern int pPINUP_Width = 2;
extern bool pPINDN_Show = TRUE;
extern int pPINDN_Min_Delta = 5; // pip
extern int pPINDN_Top_Precent = 10; // percent
extern bool pIBS4_Show = TRUE;
extern int pIBS4_Min_Delta = 0; // pip
extern color pIBS4_Color = OrangeRed;
extern int pIBS4_Width = 2;
extern bool pIB_Show = TRUE;
extern int pIB_Min_Delta = 0; // pip
extern bool pBuOVB_Show = TRUE;
extern int pBuOVB_Min_Delta = 0; // pip
extern color pBuOVB_Color = NavajoWhite;
extern int pBuOVB_Width = 2;
extern bool pBeOVB_Show = TRUE;
extern int pBeOVB_Min_Delta = 0; // pip
extern bool pMSH_Show = TRUE;
extern color pMSH_Color = Aquamarine;
extern int pMSH_Width = 2;
extern bool pMSL_Show = TRUE;
extern bool pTBH_Show = TRUE;
extern int pTBH_Max_Delta = 0; // pip
extern color pTBH_Color = Magenta;
extern int pTBH_Width = 2;
extern bool pTBL_Show = TRUE;
extern int pTBL_Max_Delta = 0; // pip
extern bool pStats_Show = TRUE;
extern int pStats_Pos = 13;
double buffBOVB [];
double buffMSHL [];
double buffDBHLC [];
double buffIBIBS4 [];
double buffTBHTBL [];
double buffPINUPDN[];
static string lblName [cINDICNUM];
static bool lblShow [cINDICNUM];
static string lblText [cINDICNUM];
static color lblColor[cINDICNUM];
static int lblCount[cINDICNUM];
static string alrtText[cINDICNUM];
static double gDistArrow = 0;
static bool gFirstTime = TRUE;
static int gTimeFrame = 0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string title = "Price Action 1";
gFirstTime = TRUE;
gDistArrow = Point * (0 + MathSqrt(Period()));
IndicatorBuffers(6);
IndicatorShortName(title);
SetIndexBuffer (cIX_BF_BOVB , buffBOVB );
SetIndexBuffer (cIX_BF_MSHL , buffMSHL );
SetIndexBuffer (cIX_BF_DBHLC , buffDBHLC );
SetIndexBuffer (cIX_BF_IBIBS4 , buffIBIBS4 );
SetIndexBuffer (cIX_BF_TBHTBL , buffTBHTBL );
SetIndexBuffer (cIX_BF_PINUPDN, buffPINUPDN);
SetIndexStyle (cIX_BF_BOVB , DRAW_ARROW, EMPTY, pBuOVB_Width, pBuOVB_Color);
SetIndexStyle (cIX_BF_MSHL , DRAW_ARROW, EMPTY, pMSH_Width , pMSH_Color );
SetIndexStyle (cIX_BF_DBHLC , DRAW_ARROW, EMPTY, pDBHLC_Width, pDBHLC_Color);
SetIndexStyle (cIX_BF_IBIBS4 , DRAW_ARROW, EMPTY, pIBS4_Width , pIBS4_Color );
SetIndexStyle (cIX_BF_TBHTBL , DRAW_ARROW, EMPTY, pTBH_Width , pTBH_Color );
SetIndexStyle (cIX_BF_PINUPDN, DRAW_ARROW, EMPTY, pPINUP_Width, pPINUP_Color);
SetIndexArrow (cIX_BF_BOVB , 171);
SetIndexArrow (cIX_BF_MSHL , 171);
SetIndexArrow (cIX_BF_DBHLC , 171);
SetIndexArrow (cIX_BF_IBIBS4 , 171);
SetIndexArrow (cIX_BF_TBHTBL , 171);
SetIndexArrow (cIX_BF_PINUPDN, 171);
SetIndexLabel (cIX_BF_BOVB , "Bullish/Bearish Outside V Bar");
SetIndexLabel (cIX_BF_MSHL , "Market Structure High / Low");
SetIndexLabel (cIX_BF_DBHLC , "DBHLC / DBLHC" );
SetIndexLabel (cIX_BF_IBIBS4 , "Inside Bar / IB Smallest of 4");
SetIndexLabel (cIX_BF_TBHTBL , "Two Bars High / Low" );
SetIndexLabel (cIX_BF_PINUPDN, "PIN Up / Down" );
SetIndexDrawBegin (cIX_BF_BOVB , 0);
SetIndexDrawBegin (cIX_BF_MSHL , 0);
SetIndexDrawBegin (cIX_BF_DBHLC , 0);
SetIndexDrawBegin (cIX_BF_IBIBS4 , 0);
SetIndexDrawBegin (cIX_BF_TBHTBL , 0);
SetIndexDrawBegin (cIX_BF_PINUPDN, 0);
Set_Label_Objects_Alerts();
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int deinit()
{
for (int ix = 0; ix < cINDICNUM; ix++)
if (ObjectFind(lblName[ix]) != -1)
ObjectDelete(lblName[ix]);
return(0);
}
//+------------------------------------------------------------------+
//| Start
//+------------------------------------------------------------------+
int start()
{
int limit;
int found;
int countedBars = IndicatorCounted();
static datetime prevTime = 0;
static double deltaIB = 0;
static double deltaTBH = 0;
static double deltaTBL = 0;
static double deltaIBS4 = 0;
static double deltaDBHLC = 0;
static double deltaDBLHC = 0;
static double deltaPINUP = 0;
static double deltaPINDN = 0;
static double deltaBuOVB = 0;
static double deltaBeOVB = 0;
if (countedBars < 0) return(-1);
if (countedBars > 0) countedBars--;
if (Period() != gTimeFrame)
{
gFirstTime = TRUE;
prevTime = 0;
}
if (prevTime == Time[0]) return (0);
prevTime = Time[0];
if (countedBars > 0) countedBars--;
if (gFirstTime)
{
Define_Min_PIN (deltaPINUP, deltaPINDN);
deltaIB = pIB_Min_Delta * Point;
deltaTBH = pTBH_Max_Delta * Point;
deltaTBL = pTBL_Max_Delta * Point;
deltaIBS4 = pIBS4_Min_Delta * Point;
deltaDBHLC = pDBHLC_Max_Delta * Point;
deltaDBLHC = pDBLHC_Max_Delta * Point;
deltaBuOVB = pBuOVB_Min_Delta * Point;
deltaBeOVB = pBeOVB_Min_Delta * Point;
}
limit = Bars - countedBars;
for (int ix1 = 1; ix1 <= limit; ix1++)
{
found = -1;
if ( pDBHLC_Show ) found = Find_DBHLC (ix1, deltaDBHLC);
if ((found == -1) && (pDBLHC_Show)) found = Find_DBLHC (ix1, deltaDBLHC);
if ((found == -1) && (pPINUP_Show)) found = Find_PINUp (ix1, deltaPINUP);
if ((found == -1) && (pPINDN_Show)) found = Find_PINDn (ix1, deltaPINDN);
if ((found == -1) && (pMSH_Show )) found = Find_MSH (ix1 );
if ((found == -1) && (pMSL_Show )) found = Find_MSL (ix1 );
if ((found == -1) && (pIBS4_Show )) found = Find_IBS4 (ix1, deltaIBS4 );
if ((found == -1) && (pIB_Show )) found = Find_IB (ix1, deltaIB );
if ((found == -1) && (pBuOVB_Show)) found = Find_BuOVB (ix1, deltaBuOVB);
if ((found == -1) && (pBeOVB_Show)) found = Find_BeOVB (ix1, deltaBeOVB);
if ((found == -1) && (pTBH_Show )) found = Find_TBH (ix1, deltaTBH );
if ((found == -1) && (pTBL_Show )) found = Find_TBL (ix1, deltaTBL );
if (found != -1) lblCount[found]++;
if (gFirstTime ) continue;
if ((found != -1) && (ix1 < 2 ))
Alert(Symbol()," (",Period(),") - ", alrtText[found]);
}
Set_Labels();
gFirstTime = FALSE;
gTimeFrame = Period();
return(0);
}
//+------------------------------------------------------------------+
//+ Find Double Bar High, Lower Close (DBHLC)
//+------------------------------------------------------------------+
int Find_DBHLC(int ix1, double delta)
{
double dif;
dif = MathAbs(iHigh (NULL,0,ix1) - iHigh(NULL,0,ix1+1));
if (dif > delta) return (-1);
if (iClose(NULL,0,ix1) >= iLow(NULL,0,ix1+1)) return (-1);
buffDBHLC[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_DBHLC);
}
//+------------------------------------------------------------------+
//+ Find Double Bar Low, Higher Close (DBLHC)
//+------------------------------------------------------------------+
int Find_DBLHC(int ix1, double delta)
{
double dif;
dif = MathAbs(iLow (NULL,0,ix1) - iLow(NULL,0,ix1+1));
if (dif > delta) return (-1);
if (iClose(NULL,0,ix1) <= iHigh(NULL,0,ix1+1)) return (-1);
buffDBHLC[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_DBLHC);
}
//+------------------------------------------------------------------+
//+ Find PIN Up (PinUp)
//+------------------------------------------------------------------+
int Find_PINUp (int ix1, double delta)
{
if (iOpen (NULL,0,ix1) > iHigh(NULL,0,ix1+1) ) return (-1);
if (iOpen (NULL,0,ix1) < iLow (NULL,0,ix1+1) ) return (-1);
if (iClose(NULL,0,ix1) > iHigh(NULL,0,ix1+1) ) return (-1);
if (iClose(NULL,0,ix1) < iLow (NULL,0,ix1+1) ) return (-1);
if (iLow (NULL,0,ix1) < iLow (NULL,0,ix1+1) ) return (-1);
if (iHigh (NULL,0,ix1) < iHigh(NULL,0,ix1+1) + delta) return (-1);
buffPINUPDN[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_PINUP);
}
//+------------------------------------------------------------------+
//+ Find PIN Up (PinDn)
//+------------------------------------------------------------------+
int Find_PINDn(int ix1, double delta)
{
if (iOpen (NULL,0,ix1) > iHigh(NULL,0,ix1+1) ) return (-1);
if (iOpen (NULL,0,ix1) < iLow (NULL,0,ix1+1) ) return (-1);
if (iClose(NULL,0,ix1) > iHigh(NULL,0,ix1+1) ) return (-1);
if (iClose(NULL,0,ix1) < iLow (NULL,0,ix1+1) ) return (-1);
if (iHigh (NULL,0,ix1) > iHigh(NULL,0,ix1+1) ) return (-1);
if (iLow (NULL,0,ix1) > iLow (NULL,0,ix1+1) - delta) return (-1);
buffPINUPDN[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_PINDN);
}
//+------------------------------------------------------------------+
//+ Find Inside Bar, Smallest of 4 (IBS4)
//+------------------------------------------------------------------+
int Find_IBS4(int ix1, double delta)
{
double range = iHigh(NULL,0,ix1) - iLow(NULL,0,ix1) + delta;
if (range > iHigh(NULL,0,ix1+3) - iLow(NULL,0,ix1+3)) return (-1);
if (range > iHigh(NULL,0,ix1+2) - iLow(NULL,0,ix1+2)) return (-1);
if (range > iHigh(NULL,0,ix1+1) - iLow(NULL,0,ix1+1)) return (-1);
if (iHigh(NULL,0,ix1) > iHigh(NULL,0,ix1+1)) return (-1);
if (iLow (NULL,0,ix1) < iLow (NULL,0,ix1+1)) return (-1);
buffIBIBS4[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_IBS4);
}
//+------------------------------------------------------------------+
//+ Find Inside Bar (IB)
//+------------------------------------------------------------------+
int Find_IB(int ix1, double delta)
{
if (iHigh(NULL,0,ix1) + delta >= iHigh(NULL,0,ix1+1)) return (-1);
if (iLow (NULL,0,ix1) - delta <= iLow (NULL,0,ix1+1)) return (-1);
buffIBIBS4[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_IB);
}
//+------------------------------------------------------------------+
//+ Find Bullish Outside Vertical Bar (BuOVB)
//+------------------------------------------------------------------+
int Find_BuOVB (int ix1, double delta)
{
if (iHigh (NULL,0,ix1) <= iHigh (NULL,0,ix1+1) + delta) return (-1);
if (iLow (NULL,0,ix1) >= iLow (NULL,0,ix1+1) - delta) return (-1);
if (iClose(NULL,0,ix1) <= iClose(NULL,0,ix1+1) ) return (-1);
buffBOVB[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_BuOVB);
}
//+------------------------------------------------------------------+
//+ Find Bearish Outside Vertical Bar (BeOVB)
//+------------------------------------------------------------------+
int Find_BeOVB (int ix1, double delta)
{
if (iHigh (NULL,0,ix1) <= iHigh (NULL,0,ix1+1) + delta) return (-1);
if (iLow (NULL,0,ix1) >= iLow (NULL,0,ix1+1) - delta) return (-1);
if (iClose(NULL,0,ix1) >= iClose(NULL,0,ix1+1) ) return (-1);
buffBOVB[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_BeOVB);
}
//+------------------------------------------------------------------+
//+ Find Market Structure High (MSH)
//+------------------------------------------------------------------+
int Find_MSH (int ix1)
{
if (iClose (NULL,0,ix1+2) <= iOpen (NULL,0,ix1+2)) return (-1);
if (iClose (NULL,0,ix1+1) <= iOpen (NULL,0,ix1+1)) return (-1);
if (iClose (NULL,0,ix1 ) >= iOpen (NULL,0,ix1 )) return (-1);
if (iHigh (NULL,0,ix1+2) >= iHigh (NULL,0,ix1+1)) return (-1);
if (iLow (NULL,0,ix1+2) >= iLow (NULL,0,ix1+1)) return (-1);
if (iHigh (NULL,0,ix1+1) <= iHigh (NULL,0,ix1 )) return (-1);
buffMSHL[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_MSH);
}
//+------------------------------------------------------------------+
//+ Find Market Structure High (MSL)
//+------------------------------------------------------------------+
int Find_MSL (int ix1)
{
if (iClose (NULL,0,ix1+2) >= iOpen (NULL,0,ix1+2)) return (-1);
if (iClose (NULL,0,ix1+1) >= iOpen (NULL,0,ix1+1)) return (-1);
if (iClose (NULL,0,ix1 ) <= iOpen (NULL,0,ix1 )) return (-1);
if (iHigh (NULL,0,ix1+2) <= iHigh (NULL,0,ix1+1)) return (-1);
if (iLow (NULL,0,ix1+2) <= iLow (NULL,0,ix1+1)) return (-1);
if (iLow (NULL,0,ix1+1) >= iLow (NULL,0,ix1 )) return (-1);
buffMSHL[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_MSL);
}
//+------------------------------------------------------------------+
//+ Find Two Bars High (TBH)
//+------------------------------------------------------------------+
int Find_TBH(int ix1, double delta)
{
double dif;
dif = MathAbs(iHigh(NULL,0,ix1) - iHigh(NULL,0,ix1+1));
if (dif > delta) return (-1);
buffTBHTBL[ix1] = iHigh(NULL,0,ix1) + gDistArrow;
return (cIX_TBH);
}
//+------------------------------------------------------------------+
//+ Find Two Bars Low (TBH)
//+------------------------------------------------------------------+
int Find_TBL(int ix1, double delta)
{
double dif;
dif = MathAbs(iLow(NULL,0,ix1) - iLow(NULL,0,ix1+1));
if (dif > delta) return (-1);
buffTBHTBL[ix1] = iLow(NULL,0,ix1) - gDistArrow;
return (cIX_TBL);
}
//+------------------------------------------------------------------+
//+ Define Minimum PIN Up and Down
//+------------------------------------------------------------------+
void Define_Min_PIN(double& resultUp, double& resultDn)
{
int contUp[500];
int contDn[500];
int contaUp;
int contaDn;
int totalUp;
int totalDn;
double deltaUp = pPINUP_Min_Delta * Point;
double deltaDn = pPINDN_Min_Delta * Point;
int fator = MathPow(10,Digits);
int contIx;
int limit;
int countedBars = IndicatorCounted();
ArrayInitialize(contUp,0);
limit = Bars - countedBars;
for (int ix1 = 0; ix1 < limit; ix1++)
{
if (iOpen (NULL,0,ix1) > iHigh(NULL,0,ix1+1)) continue;
if (iOpen (NULL,0,ix1) < iLow (NULL,0,ix1+1)) continue;
if (iClose(NULL,0,ix1) > iHigh(NULL,0,ix1+1)) continue;
if (iClose(NULL,0,ix1) < iLow (NULL,0,ix1+1)) continue;
if ((iLow (NULL,0,ix1) >= iLow (NULL,0,ix1+1)) &&
(iHigh (NULL,0,ix1) >= iHigh(NULL,0,ix1+1) + deltaUp))
{
contIx = (iHigh(NULL,0,ix1)-iHigh(NULL,0,ix1+1)) * fator;
contUp[contIx]++;
totalUp++;
continue;
}
if ((iHigh(NULL,0,ix1) <= iHigh(NULL,0,ix1+1)) &&
(iLow (NULL,0,ix1) <= iLow (NULL,0,ix1+1) - deltaDn))
{
contIx = (iLow(NULL,0,ix1+1)-iLow(NULL,0,ix1)) * fator;
contDn[contIx]++;
totalDn++;
}
}
totalUp = (totalUp / 100) * pPINUP_Top_Precent;
totalDn = (totalDn / 100) * pPINDN_Top_Precent;
for (int ix2 = ArrayRange(contUp,0); ix2 >= 0; ix2--)
{
contaUp = contaUp + contUp[ix2];
if (contaUp >= totalUp)
{
resultUp = ix2 * Point;
break;
}
}
for (int ix3 = ArrayRange(contDn,0); ix3 >= 0; ix3--)
{
contaDn = contaDn + contDn[ix3];
if (contaDn >= totalDn)
{
resultDn = ix3 * Point;
break;
}
}
}
//+------------------------------------------------------------------+
//+ Set Labels
//+------------------------------------------------------------------+
void Set_Labels ()
{
string txt;
for (int ix = 0; ix < cINDICNUM; ix++)
if (lblShow[ix])
{
txt = lblText[ix] + lblCount[ix] + ")";
ObjectSetText(lblName[ix],txt,9,"Verdana",lblColor[ix]);
}
}
//+------------------------------------------------------------------+
//+ Set Label Objects and Alert Texts
//+------------------------------------------------------------------+
void Set_Label_Objects_Alerts()
{
int ix;
int dst = pStats_Pos;
for (ix = 0; ix < cINDICNUM; ix++)
lblName[ix] = "VMPA" + ix;
for (ix = 0; ix < cINDICNUM; ix++)
if (ObjectFind(lblName[ix]) != -1)
ObjectDelete(lblName[ix]);
if (!pStats_Show) return;
lblShow[cIX_IB ] = pIB_Show;
lblShow[cIX_MSL ] = pMSL_Show;
lblShow[cIX_MSH ] = pMSH_Show;
lblShow[cIX_TBH ] = pTBH_Show;
lblShow[cIX_TBL ] = pTBL_Show;
lblShow[cIX_IBS4 ] = pIBS4_Show;
lblShow[cIX_BuOVB] = pBuOVB_Show;
lblShow[cIX_BeOVB] = pBeOVB_Show;
lblShow[cIX_DBHLC] = pDBHLC_Show;
lblShow[cIX_DBLHC] = pDBLHC_Show;
lblShow[cIX_PINUP] = pPINUP_Show;
lblShow[cIX_PINDN] = pPINDN_Show;
lblColor[cIX_IB ] = pIBS4_Color;
lblColor[cIX_MSL ] = pMSH_Color;
lblColor[cIX_MSH ] = pMSH_Color;
lblColor[cIX_TBH ] = pTBH_Color;
lblColor[cIX_TBL ] = pTBH_Color;
lblColor[cIX_IBS4 ] = pIBS4_Color;
lblColor[cIX_BuOVB] = pBuOVB_Color;
lblColor[cIX_BeOVB] = pBuOVB_Color;
lblColor[cIX_DBHLC] = pDBHLC_Color;
lblColor[cIX_DBLHC] = pDBHLC_Color;
lblColor[cIX_PINUP] = pPINUP_Color;
lblColor[cIX_PINDN] = pPINUP_Color;
lblText[cIX_IB ] = "IB (";
lblText[cIX_MSL ] = "MSL (";
lblText[cIX_MSH ] = "MSH (";
lblText[cIX_TBH ] = "TBH (";
lblText[cIX_TBL ] = "TBL (";
lblText[cIX_IBS4 ] = "IBS4 (";
lblText[cIX_BuOVB] = "BuOVB (";
lblText[cIX_BeOVB] = "BeOVB (";
lblText[cIX_DBHLC] = "DBHLC (";
lblText[cIX_DBLHC] = "DBLHC (";
lblText[cIX_PINUP] = "Pin Up (";
lblText[cIX_PINDN] = "Pin Dn (";
alrtText[cIX_IB ] = " Inside Bar.";
alrtText[cIX_MSL ] = " Market Structure Low.";
alrtText[cIX_MSH ] = " Market Structure High.";
alrtText[cIX_TBH ] = " Two Bar High.";
alrtText[cIX_TBL ] = " Two Bar low.";
alrtText[cIX_IBS4 ] = " Inside Bar Smallest of 4.";
alrtText[cIX_BuOVB] = " Bullish Outside Vertical Bar.";
alrtText[cIX_BeOVB] = " Bearish Outside Vertical Bar.";
alrtText[cIX_DBHLC] = " Double Bars High Lower Close.";
alrtText[cIX_DBLHC] = " Double Bars Low Higher Close.";
alrtText[cIX_PINUP] = " Pin Up.";
alrtText[cIX_PINDN] = " Pin Dn.";
for (ix = 0; ix < cINDICNUM; ix++)
if (lblShow[ix])
{
dst = dst + 13;
ObjectCreate (lblName[ix],OBJ_LABEL , 0,0,0);
ObjectSet (lblName[ix],OBJPROP_CORNER , 0);
ObjectSet (lblName[ix],OBJPROP_XDISTANCE, 10);
ObjectSet (lblName[ix],OBJPROP_YDISTANCE, dst);
ObjectSetText(lblName[ix],lblText[ix],9,"Verdana",lblColor[ix]);
}
}
Comments
