Z-Z1

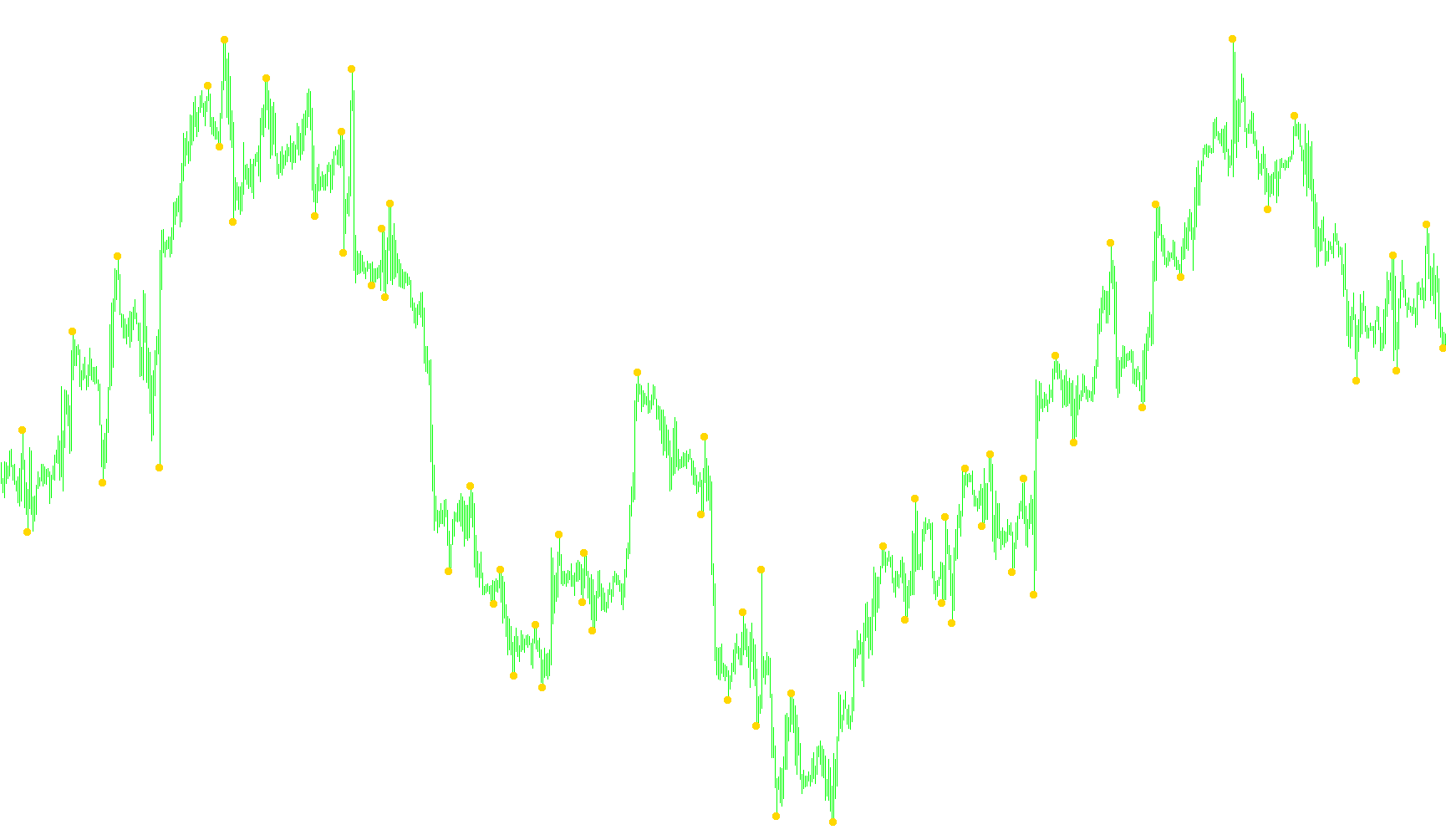

This script is designed as a technical analysis tool for trading platforms, specifically used to identify significant structural movements in price action. It functions by automatically tracing the "peaks" and "valleys" of a market trend, filtering out minor price fluctuations to highlight meaningful reversals.

Core Functionality

The primary logic of the script revolves around identifying local highs and lows over a specific period. Instead of reacting to every tiny movement in price, the tool uses three main parameters to determine what constitutes a "valid" turning point:

  • Depth: Defines the window of time or bars the script looks back at to find a high or low point.
  • Deviation: Acts as a buffer to ensure that the market has moved enough distance to be considered a significant change, preventing "noise" from being flagged as a trend reversal.
  • Backstep: A refining mechanism that ensures the identified points are distinct and not clustered too closely together.

How the Logic Processes Data

The script executes its logic in three distinct phases:

  1. Scanning and Filtering: The tool scans through historical price data to find candidate peaks and valleys. It compares each new potential high or low against the previous ones. If a new point is found that doesn't meet the minimum "Deviation" requirements, it is ignored. If multiple points are found in a very short sequence (the Backstep), it narrows them down to the most prominent one.
  2. Trend Refinement: Once the initial candidates are identified, the script performs a "cleaning" process. It looks at the sequence of peaks and valleys to ensure they form a logical path. If it finds two highs in a row where one is significantly higher than the other, it prioritizes the higher point as the true peak, effectively "drawing" a clean line through the price action.
  3. Signal Generation: After the trend lines are cleaned and established, the script monitors the most recent data points. When a new confirmed turning point appears that differs from the previous one, the script determines the direction of the move:
    • If the price moves from a valley to a higher peak (an upward movement), it recognizes a specific trend change.
    • If the price moves from a peak to a lower valley (a downward movement), it recognizes the opposite trend change.

User Interaction

The final result of this logic is an automated alert system. Whenever the script confirms a new structural reversal that meets all its criteria, it triggers a notification on the user's screen. This allows traders to identify potential entry or exit points based on major shifts in market structure rather than reacting to every minor price tick.

Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
11 Views
0 Downloads
0 Favorites
Z-Z1
//+------------------------------------------------------------------+
//|                                       Z1.mq4 |
//|                      Copyright © 2005, MetaQuotes Software Corp. |
//|                                       http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net/"

#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Blue
//---- indicator parameters
extern int ExtDepth=12;
extern int ExtDeviation=5;
extern int ExtBackstep=3;
extern int barn=1500;
extern int from=0;
//---- indicator buffers
double ExtMapBuffer[];
double ExtMapBuffer2[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(2);
//---- drawing settings
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,108);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexEmptyValue(0,0.0);
   ArraySetAsSeries(ExtMapBuffer,true);
   ArraySetAsSeries(ExtMapBuffer2,true);
//---- indicator short name
   IndicatorShortName("ZigZag("+ExtDepth+","+ExtDeviation+","+ExtBackstep+")");
//---- initialization done
   return(0);
  }

datetime last_time = 0;
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   int    shift=barn, back,lasthighpos,lastlowpos;
   double val,res;
   double curlow,curhigh,lasthigh,lastlow;

   for(shift=barn-ExtDepth; shift>from; shift--){
      val=Low[Lowest(NULL,0,MODE_LOW,ExtDepth,shift)];
      if(val==lastlow)
         val=0.0;
      else {
         lastlow=val;
         if((Low[shift]-val)>(ExtDeviation*Point))
            val=0.0;
         else{
            for(back=1; back<=ExtBackstep; back++){
               res=ExtMapBuffer[shift+back];
               if((res!=0)&&(res>val)) ExtMapBuffer[shift+back]=0.0;
               }
            }
         }
      ExtMapBuffer[shift]=val;
      //--- high
      val=High[Highest(NULL,0,MODE_HIGH,ExtDepth,shift)];
      if(val==lasthigh)
         val=0.0;
      else{
         lasthigh=val;
         if((val-High[shift])>(ExtDeviation*Point))
            val=0.0;
         else{
            for(back=1; back<=ExtBackstep; back++){
               res=ExtMapBuffer2[shift+back];
               if((res!=0)&&(res<val)) ExtMapBuffer2[shift+back]=0.0;
               }
            }
         }
      ExtMapBuffer2[shift]=val;
      }

   // final cutting
   lasthigh=-1; lasthighpos=-1;
   lastlow=-1;  lastlowpos=-1;

   for(shift=barn-ExtDepth; shift>from; shift--){
      curlow=ExtMapBuffer[shift];
      curhigh=ExtMapBuffer2[shift];
      if((curlow==0)&&(curhigh==0)) continue;
      //---
      if(curhigh!=0){
         if(lasthigh>0){
            if(lasthigh<curhigh) ExtMapBuffer2[lasthighpos]=0;
            else ExtMapBuffer2[shift]=0;
            }
         //---
         if(lasthigh<curhigh || lasthigh<0){
            lasthigh=curhigh;
            lasthighpos=shift;
            }
         lastlow=-1;
         }
      //----
      if(curlow!=0){
         if(lastlow>0){
            if(lastlow>curlow) ExtMapBuffer[lastlowpos]=0;
            else ExtMapBuffer[shift]=0;
            }
         //---
         if((curlow<lastlow)||(lastlow<0)){
            lastlow=curlow;
            lastlowpos=shift;
            }
         lasthigh=-1;
         }
      }

   for(shift=barn-1; shift>from; shift--){
      if(shift>=barn-ExtDepth) ExtMapBuffer[shift]=0.0;
      else{
         res=ExtMapBuffer2[shift];
         if(res!=0.0) ExtMapBuffer[shift]=res;
         }
      }
   int last_found[2],f = 0;
   for(shift=from+1; f<2 && shift<barn; shift++){
      if(ExtMapBuffer[shift]!=0){
         last_found[f] = shift;
         f++;
         }
      }
   if(f>0){
      if(last_time != Time[last_found[0]]){
         last_time = Time[last_found[0]];
         double dir = ExtMapBuffer[last_found[0]]-ExtMapBuffer[last_found[1]];
         if(dir>0){
            Alert("Found SELL signal Z-Z1["+Period()+"] at "+Symbol()+",bar = "+last_found[0]);
            }
         else if(dir<0){
            Alert("Found BUY signal Z-Z1["+Period()+"] at "+Symbol()+",bar = "+last_found[0]);
            }
         else if(f==1){
            Alert("Found signal Z-Z1["+Period()+"] at "+Symbol()+",bar = "+last_found[0]);
            }
         }
      }
}
