2MA CrossoverWithPrice

Download script
Author: Copyright � 2005-07, Jason Robinson (jnrtrading)
2MA CrossoverWithPrice

This script is designed for traders who use moving averages to identify trends. Its primary purpose is to visually signal and notify the user exactly when two different moving averages cross paths on a price chart.

Core Functionality

The tool monitors two separate moving averages simultaneously. When one moving average moves from below the other to above it (an "Upward Cross"), or vice versa (a "Downward Cross"), the script identifies these specific moments as potential trend shifts.

Key Features and Logic

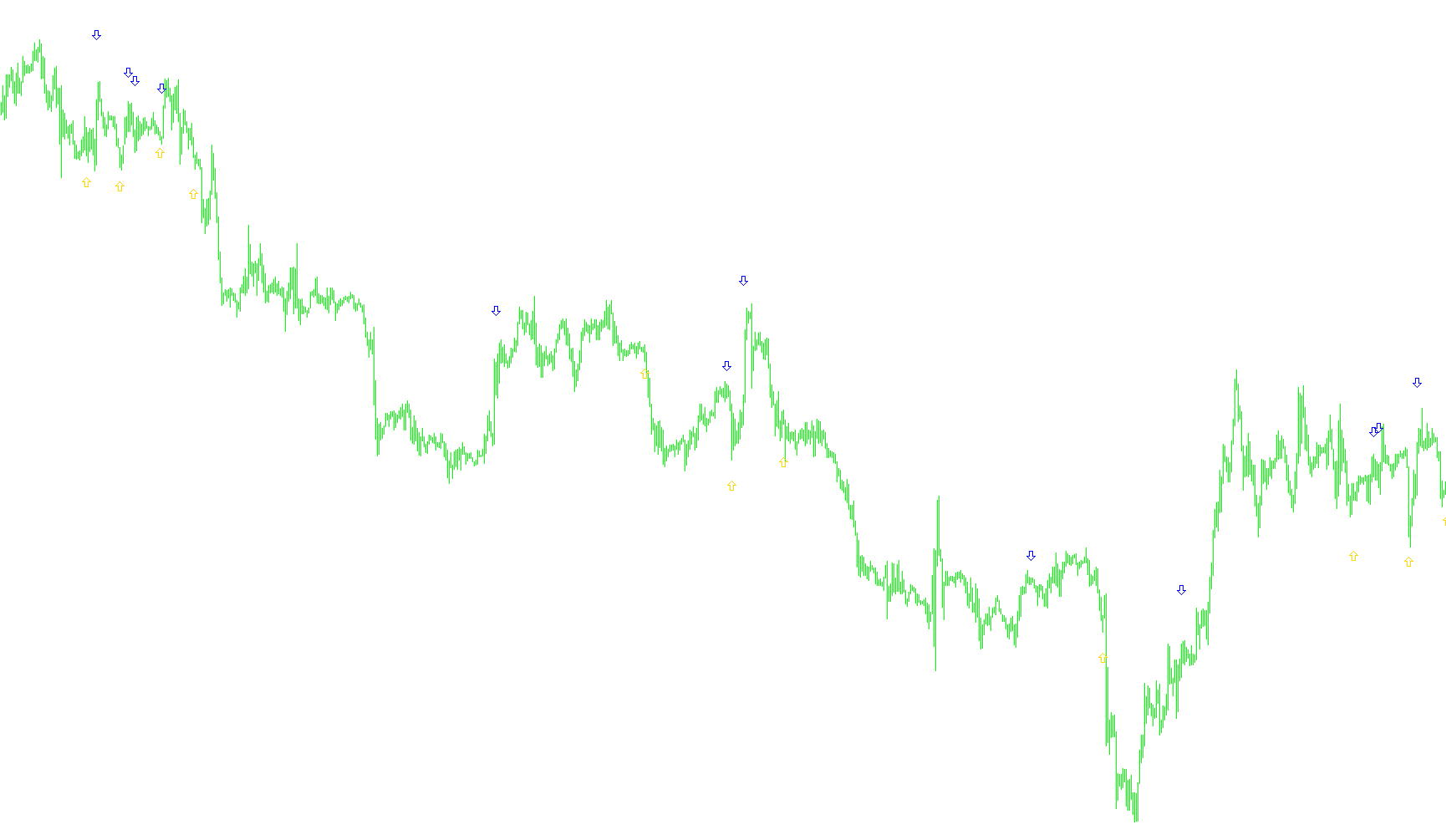

  • Visual Signals: Instead of forcing the user to constantly watch the lines, the script automatically places symbols (arrows) on the chart at the exact point of a crossover.

    • Upward Crosses: These appear below the price candles.
    • Downward Crosses: These appear above the price candles.
    • Dynamic Positioning: The script calculates the recent price range to ensure the arrows are placed at a consistent distance from the candles, keeping the chart clean and readable.

  • Customizable Moving Averages: Users have full control over the behavior of both moving averages, including:

    • Type: You can choose between different calculation methods such as Simple (SMA), Exponential (EMA), Smoothed (SMMA), or Linear Weighted (LWMA).
    • Source Price: You can define whether the average is calculated based on the Close, Open, High, Low, Median, Typical, or Weighted price of a candle.
    • Periods: You can set the specific length (e.g., a "short" fast line and a "long" slow line) to suit different trading styles.

  • Visual Customization: The tool includes several options for the appearance of the signals, allowing users to choose between different arrow styles (such as thick, thin, hollow, or various diagonal shapes) to best fit their visual preference.

  • Automated Notifications: To ensure traders don't miss a signal while away from their screens, the script includes a notification system:

    • Pop-up Alerts: Triggers an instant on-screen alert within the trading platform.
    • Email Notifications: Can send an automated email containing the specific details of the crossover (including the moving average types and periods used).

How it Works in Practice

The script constantly scans the historical and current price data. It looks for a specific three-point check: it verifies that the first moving average was below the second in the previous bar, is above it in the current bar, and remains above it in the following calculation. This ensures that only "confirmed" crossovers are flagged, reducing false signals from minor fluctuations.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emails
13 Views
0 Downloads
0 Favorites
2MA CrossoverWithPrice
//+------------------------------------------------------------------+
//|                                  2MA Crossover.mq4 modified from |
//|                                         EMA-Crossover_Signal.mq4 |
//|         Copyright © 2005-07, Jason Robinson (jnrtrading)         |
//|                   http://www.jnrtading.co.uk                     |
//+------------------------------------------------------------------+

/*
  +------------------------------------------------------------------+
  | Allows you to enter two ema periods and it will then show you at |
  | Which point they crossed over. It is more usful on the shorter   |
  | periods that get obscured by the bars / candlesticks and when    |
  | the zoom level is out. Also allows you then to remove the emas   |
  | from the chart. (emas are initially set at 5 and 6)              |
  +------------------------------------------------------------------+
*/
#property copyright "Copyright © 2005-07, Jason Robinson (jnrtrading)"
#property link      "http://www.jnrtrading.co.uk"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 DodgerBlue
#property indicator_width1 3
#property indicator_color2 Magenta
#property indicator_width2 3

extern string note1 = "First Moving Average";
extern int MA1 =   3;
extern string note2 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA1Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note2b = " 0=close, 1=open, 2=high, 3=low,";
extern string note2c = " 4=median(high+low)/2,";
extern string note2d = " 5=typical(high+low+close)/3,";
extern string note2e = " 6=weighted(high+low+close+close)/4";
extern int MA1Price = 1;//0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2, 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4
extern string note3 = "--------------------------------------------";
extern string note4 = "Second Moving Average";
extern int MA2 =   7;
extern string note5 = "0=sma, 1=ema, 2=smma, 3=lwma";
extern int MA2Mode = 1; //0=sma, 1=ema, 2=smma, 3=lwma
extern string note5b = " 0=close, 1=open, 2=high, 3=low,";
extern string note5c = " 4=median(high+low)/2,";
extern string note5d = " 5=typical(high+low+close)/3,";
extern string note5e = " 6=weighted(high+low+close+close)/4";
extern int MA2Price = 0;//0=close, 1=open, 2=high, 3=low, 4=median(high+low)/2, 5=typical(high+low+close)/3, 6=weighted(high+low+close+close)/4
extern string note6 = "--------------------------------------------";
extern string note7 = "Arrow Type";
extern string note8 = "0=Thick, 1=Thin, 2=Hollow, 3=Round";
extern string note9 = "4=Fractal, 5=Diagonal Thin";
extern string note10 = "6=Diagonal Thick, 7=Diagonal Hollow";
extern string note11 = "8=Thumb, 9=Finger";
extern int ArrowType=2;
extern string note12 = "--------------------------------------------";
extern string note13 = "turn on Alert = true; turn off = false";
extern bool AlertOn = true;
extern string note14 = "--------------------------------------------";
extern string note15 = "send Email Alert = true; turn off = false";
extern bool SendAnEmail=false;

double CrossUp[];
double CrossDown[];
string AlertPrefix, MA1short_name, MA2short_name;
string GetTimeFrameStr() {
   switch(Period())
   {
      case 1 : string TimeFrameStr="M1"; break;
      case 5 : TimeFrameStr="M5"; break;
      case 15 : TimeFrameStr="M15"; break;
      case 30 : TimeFrameStr="M30"; break;
      case 60 : TimeFrameStr="H1"; break;
      case 240 : TimeFrameStr="H4"; break;
      case 1440 : TimeFrameStr="D1"; break;
      case 10080 : TimeFrameStr="W1"; break;
      case 43200 : TimeFrameStr="MN1"; break;
      default : TimeFrameStr=Period();
   }
   return (TimeFrameStr);
   }

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   if (ArrowType == 0) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 233);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 234);
   }
   else if (ArrowType == 1) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 225);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 226);
   }
   else if (ArrowType == 2) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 241);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 242);
   }
   else if (ArrowType == 3) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 221);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 222);
   }
   else if (ArrowType == 4) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 217);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 218);
   }
   else if (ArrowType == 5) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 228);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 230);
   }
   else if (ArrowType == 6) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 236);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 238);
   }
   else if (ArrowType == 7) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 246);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 248);
   }
   else if (ArrowType == 8) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 67);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 68);
   }
   else if (ArrowType == 9) {
      SetIndexStyle(0,DRAW_ARROW);
      SetIndexArrow(0, 71);
      SetIndexStyle(1,DRAW_ARROW);
      SetIndexArrow(1, 72);
   }

   SetIndexBuffer(0, CrossUp);
   SetIndexBuffer(1, CrossDown);

//---- indicator short name
   switch(MA1Mode)
     {
      case 1 : MA1short_name="EMA";  break;
      case 2 : MA1short_name="SMMA"; break;
      case 3 : MA1short_name="LWMA"; break;
      default :
         MA1Mode=0;
         MA1short_name="SMA";
     }
   switch(MA2Mode)
     {
      case 1 : MA2short_name="EMA";  break;
      case 2 : MA2short_name="SMMA"; break;
      case 3 : MA2short_name="LWMA"; break;
      default :
         MA2Mode=0;
         MA2short_name="SMA";
     }

   AlertPrefix=Symbol()+" ("+GetTimeFrameStr()+"):  ";
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
bool NewBar()
{
   static datetime lastbar;
   datetime curbar = Time[0];
   if(lastbar!=curbar)
   {
      lastbar=curbar;
      return (true);
   }
   else
   {
      return(false);
   }
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int limit, i, counter;
   double MA1now, MA2now, MA1previous, MA2previous, MA1after, MA2after;
   double Range, AvgRange;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;

   limit=Bars-counted_bars;

   for(i = 0; i <= limit; i++) {

      counter=i;
      Range=0;
      AvgRange=0;
      for (counter=i ;counter<=i+9;counter++)
      {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
      }
      Range=AvgRange/10;

      MA1now = iMA(NULL, 0, MA1, 0, MA1Mode, MA1Price, i);
      MA1previous = iMA(NULL, 0, MA1, 0, MA1Mode, MA1Price, i+1);
      MA1after = iMA(NULL, 0, MA1, 0, MA1Mode, MA1Price, i-1);

      MA2now = iMA(NULL, 0, MA2, 0, MA2Mode, MA2Price, i);
      MA2previous = iMA(NULL, 0, MA2, 0, MA2Mode, MA2Price, i+1);
      MA2after = iMA(NULL, 0, MA2, 0, MA2Mode, MA2Price, i-1);

      if ((MA1now > MA2now) && (MA1previous < MA2previous) && (MA1after > MA2after)) {
                   CrossUp[i] = Low[i] - Range*1.5;
                   if (NewBar())
                   {

                     if (AlertOn) {
                      Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
                     }
              	      if (SendAnEmail) {
                      SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses UP " + MA2short_name+" ("+MA2+")");
              	      }
              	    }
      }
      else if ((MA1now < MA2now) && (MA1previous > MA2previous) && (MA1after < MA2after)) {
                   CrossDown[i] = High[i] + Range*1.5;
                   if (NewBar())
                   {
                     if (AlertOn) {
                      Alert(AlertPrefix+MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
                     }
              	      if (SendAnEmail) {
                      SendMail(AlertPrefix,MA1short_name+" ("+MA1+") "+"crosses DOWN " + MA2short_name+" ("+MA2+")");
              	      }
              	    }
      }
   }
   return(0);
}
