The Accelerator_4c_mtf is a sophisticated technical analysis tool designed to measure the momentum and speed of price movements across different timeframes. Rather than just looking at where the price is currently moving, this script analyzes how fast that movement is accelerating or decelerating, helping traders identify shifts in market strength before they become obvious.
Core Logic Overview
The script functions by calculating three distinct layers of data to provide a comprehensive view of market dynamics:
1. Multi-Timeframe Analysis One of the primary features of this tool is its "Multi-Timeframe" (MTF) capability. It allows users to view data from higher timeframes (such as Daily or Weekly trends) while looking at a lower timeframe chart (like 5-minute or Hourly charts). This helps ensure that a trader isn't just seeing a small "blip" in price, but understands how that move fits into the larger market trend.
2. Momentum Difference (The Accelerator) The script calculates moving averages of varying lengths to determine the "velocity" of the price. By subtracting one moving average from another, it creates an oscillator.
- When this difference increases, it suggests the market is gaining momentum.
- When the difference decreases, it suggests the market is losing steam (decelerating), even if the price is still technically moving in the same direction.
3. Signal Smoothing To filter out "market noise" and prevent false signals caused by minor price fluctuations, the script applies a secondary smoothing calculation to its primary momentum data. This creates a "Signal Line." By comparing the raw momentum against this smoothed signal line, the tool can more accurately pinpoint when a trend is truly starting or ending.

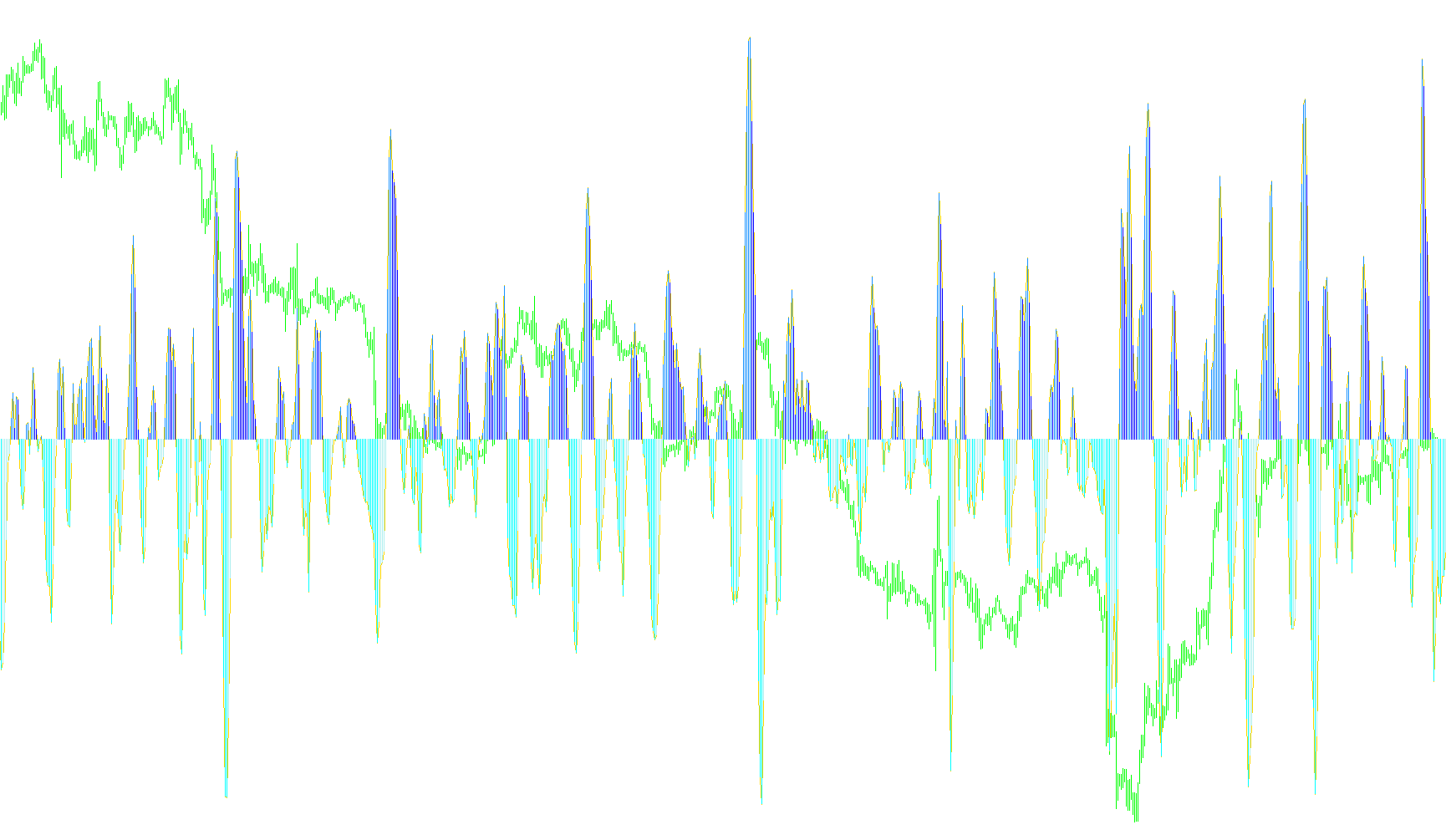

Visual Interpretation
The logic translates into several visual components on the chart:
- The Main Oscillator: This represents the raw difference between the momentum and the signal line. It tells you the net strength of the current move.
- Dynamic Histograms: The script uses a series of colored bars (histograms) to categorize the market state based on two factors: Direction (Up or Down) and Momentum State (Accelerating or Decelerating).
- It highlights specific conditions where the trend is still moving in one direction but has begun to lose its "push" (deceleration), which often serves as an early warning sign for a potential reversal.
- Conversely, it identifies when a trend is gaining strength, confirming that the current move has "fuel" behind it.
Summary for Traders
In simple terms, this tool acts as a speedometer andtachometer for the market. It tells you not only how fast the price is going (Momentum) but also whether the "engine" is speeding up or slowing down (Acceleration). By combining these factors across multiple timeframes, it provides a clearer picture of where the market's energy is heading.
//+------------------------------------------------------------------+
//| Accelerator_4c_mtf Accelerator.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| mtf 2007_ForexTSD keris ki http://www.metaquotes.net/ ki|
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
//---- indicator settings
#property indicator_separate_window
#property indicator_buffers 5
#property indicator_color1 CLR_NONE
#property indicator_color2 LimeGreen
#property indicator_color3 Red
#property indicator_color4 Lime
#property indicator_color5 Red
#property indicator_width3 2
#property indicator_width4 2
extern int TimeFrame = 30;
extern int MA1_Period =7;
extern int MA2_Period =14;
extern int MA3_Period =3;
extern int MA_Mode = MODE_SMA;
extern int MA_Price = PRICE_MEDIAN;
extern int SigLineShift =0;
extern int MaxBarsToCount = 15000;
extern string TimeFrames = "M1;5,15,30,60H1;240H4;1440D1;10080W1;43200MN|0-CurrentTF";
extern string note_MA_Method_Price = "SMA0 EMA1 SMMA2 LWMA3||0O,1C 2H3L,4Md 5Tp 6WghC: Md(HL/2)4,Tp(HLC/3)5,Wgh(HLCC/4)6";
extern string defaults = "5,34,5; SMA,PRICE_MEDIAN";
//---- indicator buffers
double ExtBuffer0[];
double ExtBuffer1[];
double ExtBuffer2[];
double ExtBuffer3[];
double ExtBuffer4[];
double ExtBuffer11[];
double ExtBuffer21[];
double ExtBuffer5[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- 2 additional buffers are used for counting.
IndicatorBuffers(8);
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexShift(0,SigLineShift);
SetIndexStyle(1,DRAW_HISTOGRAM);
SetIndexStyle(2,DRAW_HISTOGRAM);
SetIndexStyle(3,DRAW_HISTOGRAM);
SetIndexStyle(4,DRAW_HISTOGRAM);
IndicatorDigits(Digits+2);
SetIndexDrawBegin(0,38);
SetIndexDrawBegin(1,38);
SetIndexDrawBegin(2,38);
SetIndexDrawBegin(3,38);
SetIndexDrawBegin(4,38);
SetIndexDrawBegin(5,38);
SetIndexDrawBegin(6,38);
//---- 4 indicator buffers mapping
SetIndexBuffer(0,ExtBuffer0);
SetIndexBuffer(1,ExtBuffer1);
SetIndexBuffer(2,ExtBuffer2);
SetIndexBuffer(3,ExtBuffer11);
SetIndexBuffer(4,ExtBuffer21);
SetIndexBuffer(5,ExtBuffer3);
SetIndexBuffer(6,ExtBuffer4);
SetIndexBuffer(7,ExtBuffer5);
//---- name for DataWindow and indicator subwindow label
SetIndexLabel(0,NULL);
SetIndexLabel(1,NULL);
SetIndexLabel(2,NULL);
SetIndexLabel(3,NULL);
SetIndexLabel(4,NULL);
SetIndexLabel(5,NULL);
SetIndexLabel(6,NULL);
switch(TimeFrame)
{
case 1: string TimeFrameStr = "M1"; break;
case 5 : TimeFrameStr = "M5"; break;
case 15 : TimeFrameStr = "M15"; break;
case 30 : TimeFrameStr = "M30"; break;
case 60 : TimeFrameStr = "H1"; break;
case 240 : TimeFrameStr = "H4"; break;
case 1440 : TimeFrameStr = "D1"; break;
case 10080 : TimeFrameStr = "W1"; break;
case 43200 : TimeFrameStr = "MN1"; break;
default : TimeFrameStr = "TF 0";
}
IndicatorShortName("ACC ["+TimeFrameStr+"]");
if (TimeFrame<Period()) TimeFrame=Period();
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| Accelerator/Decelerator Oscillator |
//+------------------------------------------------------------------+
int start()
{
double prev,current;
datetime TimeArray[],TimeArray1[];
int i,limit,y=0,counted_bars=IndicatorCounted();
// Plot defined time frame on to current time frame
ArrayCopySeries(TimeArray, MODE_TIME,Symbol(),TimeFrame);
ArrayCopySeries(TimeArray1,MODE_TIME,Symbol(),TimeFrame);
limit= Bars-counted_bars;
limit= MathMax(limit,TimeFrame/Period());
limit= MathMin(limit,MaxBarsToCount);
for(i=0,y=0;i<limit;i++)
{
if (Time[i]<TimeArray[y]) y++;
ExtBuffer3[i]=iMA(NULL,TimeFrame,MA1_Period,0,MA_Mode,MA_Price,y)
- iMA(NULL,TimeFrame,MA2_Period,0,MA_Mode,MA_Price,y);
ExtBuffer5[y]=ExtBuffer3[i];
}
//---- signal line counted in the 2-nd additional buffer
for(y=0,i=0; i<limit; i++)
{
if (Time[i]<TimeArray1[y]) y++;
ExtBuffer4[i]=iMAOnArray(ExtBuffer5,0,MA3_Period,0,MA_Mode,y);
}
//---- dispatch values between 2 buffers
bool up=true;
for(i=limit-1; i>=0; i--)
{
current=ExtBuffer3[i]-ExtBuffer4[i];
prev=ExtBuffer3[i+1]-ExtBuffer4[i+1];
if(current>prev) up=true;
if(current<prev) up=false;
if(!up)
{
if(current>0)
{
ExtBuffer1 [i]=current;
ExtBuffer11[i]=0.0;
ExtBuffer2 [i]=0.0;
ExtBuffer21[i]=0.0;
}
else
{
ExtBuffer21[i]=current;
ExtBuffer1 [i]=0.0;
ExtBuffer2 [i]=0.0;
ExtBuffer11[i]=0.0;
}
}
else
{
if (current>0)
{
ExtBuffer11[i]=current;
ExtBuffer2 [i]=0.0;
ExtBuffer1 [i]=0.0;
ExtBuffer21[i]=0.0;
}
else
{
ExtBuffer2 [i]=current;
ExtBuffer11[i]=0.0;
ExtBuffer1 [i]=0.0;
ExtBuffer21[i]=0.0;
}
}
ExtBuffer0[i]=current;
}
//---- done
return(0);
}
//+------------------------------------------------------------------+
