DayImpuls_T3_v3

Download script
Author:
DayImpuls_T3_v3

This script is designed for the MetaTrader platform to help traders visualize market momentum and volatility through a custom technical indicator. It combines specific mathematical smoothing techniques with price movement analysis to identify trends and potential trading boundaries.

Core Logic Overview

The indicator functions by calculating two primary data streams: a Momentum Pulse and a Smoothed Signal Line.

1. Momentum Calculation (DayImp)

The script first looks at the relationship between the opening and closing prices over a specific number of bars. By calculating the difference between these prices, it determines the "pulse" of the market. This value is then adjusted to ensure it reflects meaningful movement, providing a raw look at the immediate price direction.

2. The T3 Smoothing Algorithm

The script applies a sophisticated mathematical filter known as the "T3" method to the momentum data. Unlike standard moving averages that can be laggy or too jumpy, the T3 algorithm uses a series of weighted calculations (coefficients) to create a very smooth line. This helps traders see the "true" direction of the market momentum by filtering out minor noise while staying responsive to significant moves.

3. Channel and Range Analysis

Beyond the lines, the script analyzes price extremes over various timeframes:

  • Highs and Lows: It identifies the maximum and minimum momentum values over a set period (the lookback window).
  • Dynamic Channels: It establishes boundaries based on these highs and lows. These act as visual "lanes" or channels, helping users see where the current momentum sits relative to its recent history.

User Customization & Visuals

The script is designed with a flexible display system that allows you to choose what information is most important for your trading style:

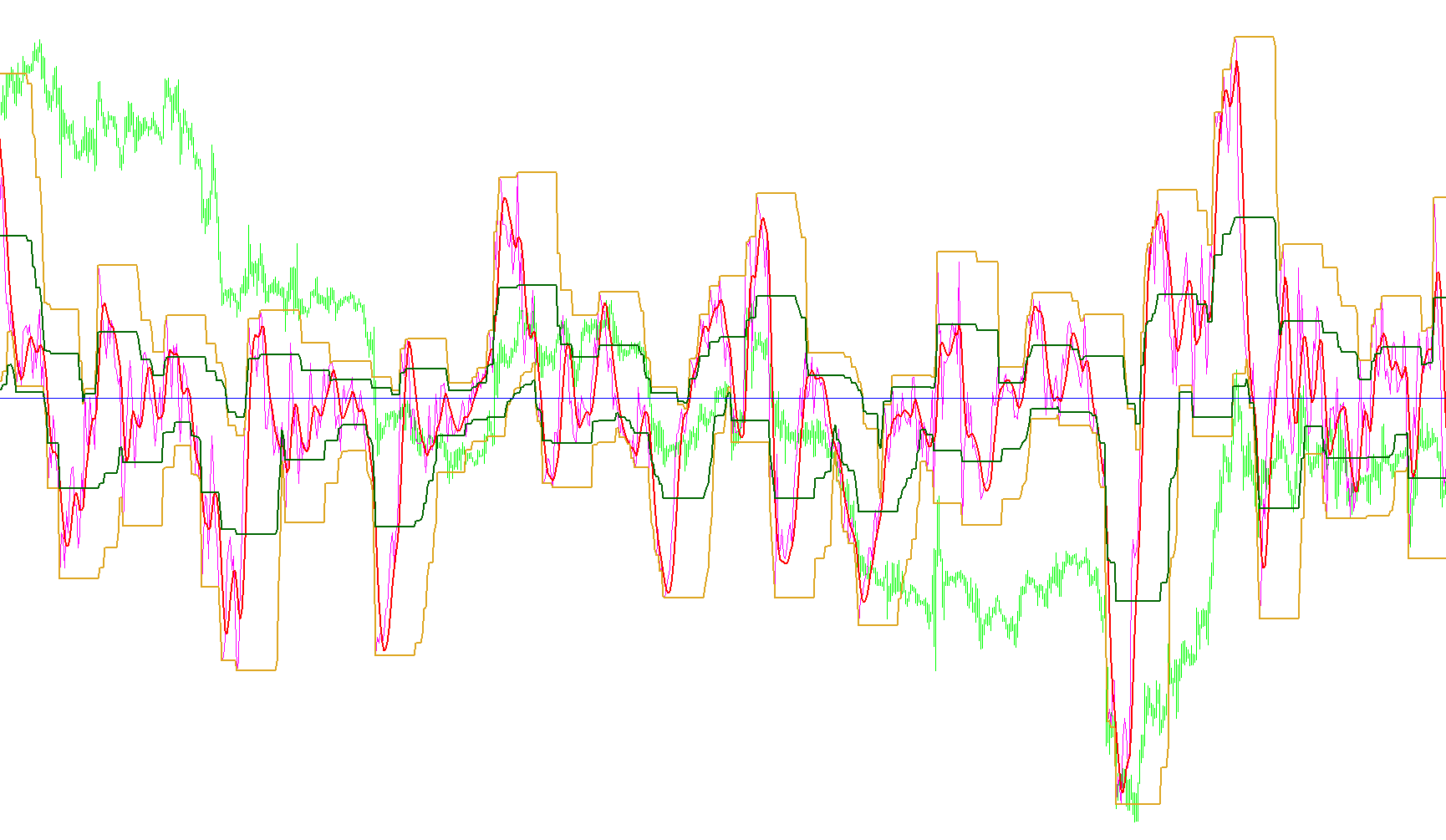

  • Full View: Displays both the raw Momentum Pulse and the smoothed T3 Signal line.
  • Momentum Only: Hides the signal line to focus purely on the pulse.
  • Signal Only: Hides the pulse to focus strictly on the smoothed trend.

Operational Requirements

To ensure accuracy, the script is specifically calibrated for mid-range timeframes (such as 15-minute, 30-minute, or 60-minute charts). It uses these specific intervals to correctly calculate the lookback windows required for its channel and boundary logic.

Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
12 Views
0 Downloads
0 Favorites
DayImpuls_T3_v3
//+------------------------------------------------------------------+
//| DayImpuls_T3_v2.mq4.mq4
//|
//| http://www.arkworldmarket.ru/forum/showthread.php?t=966&page=2&pp=10
//+------------------------------------------------------------------+
// Modest äîáàâèë ñãëàæèâàíèå ïî ìåòîäó t3. Äîáàâèë êàíàëû.
// Ñëåãêà èçìåíèë àëãîðèòì, ÷òîáû ïîíÿòíåå âîñïðèíèìàëñÿ êîä. Íà ñóòü îðèãèíàëà íå âëèÿåò ÍÈÊÀÊ.
// Óáèðàåì ëèøíþþ ãðàôèêó, ââîäèì óïðàâëåíèå ðåæèìîì îòîáðàæåíèÿ
// DisplayMode=0 DayImpl & Sig MAÎ   òîáðàæàþòñÿ DayImpuls è ñëàæåííàÿ êðèâàÿ
// DisplayMode=1 only DI     Îòîáðàæàþòñÿ òîëüêî DayImpuls
// DisplayMode=2 OnlySigMA  Îòîáðàæàþòñÿ òîëüêî ñëàæåííàÿ êðèâàÿ
#property copyright ""
#property link      "http://www.arkworldmarket.ru/forum/showthread.php?t=966&page=2&pp=10"
//----
#property indicator_separate_window
#property indicator_buffers 7
#property indicator_color1 Indigo
#property indicator_level1 0.0
//---- input parameters
extern int       per=14;
extern int       d=100;
extern int t3_period=8;
extern double b=0.7;
//extern  ChanPercent=70;
extern int DisplayMode=0;
//---- buffers
double  DayImp[];
double  t3[];
//double  MaxH[];
//double  MinH[];
double  MaxLine[];
double  MinLine[];
double  ChanLineMax[];
double  ChanLineMin[];
double Level[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   if (DisplayMode>2 || DisplayMode<0)  DisplayMode=0;
   switch( DisplayMode )
     {
      case 0:
         SetIndexStyle(0,DRAW_LINE,EMPTY,1,Magenta);
         SetIndexBuffer(0,DayImp);
         SetIndexStyle(1,DRAW_LINE,EMPTY,2,Red);
         SetIndexBuffer(1,t3);
         break;
      case 1:
         SetIndexStyle(0,DRAW_LINE,EMPTY,1,Magenta);
         SetIndexBuffer(0,DayImp);
         SetIndexStyle(1,DRAW_NONE,EMPTY,2,Red);
         SetIndexBuffer(1,t3);
         break;
      case 2:
         SetIndexStyle(0,DRAW_NONE);
         SetIndexBuffer(0,DayImp);
         SetIndexStyle(1,DRAW_LINE,EMPTY,2,Red);
         SetIndexBuffer(1,t3);
         break;

      default:
         SetIndexStyle(0,DRAW_LINE,EMPTY,1,Magenta);
         SetIndexBuffer(0,DayImp);
         SetIndexStyle(1,DRAW_LINE,EMPTY,2,Red);
         SetIndexBuffer(1,t3);
         break;
     }
   /*
   SetIndexStyle(0,DRAW_LINE);
   SetIndexBuffer(0,DayImp);
   SetIndexStyle(1,DRAW_LINE,EMPTY,2,Red);
   SetIndexBuffer(1,t3);
   */
   SetIndexStyle(2,DRAW_LINE,EMPTY,2,Goldenrod);
   SetIndexBuffer(2,MaxLine);
   SetIndexStyle(3,DRAW_LINE,EMPTY,2,Goldenrod);
   SetIndexBuffer(3,MinLine);
   SetIndexLabel(0,NULL); SetIndexLabel(1,NULL);SetIndexLabel(2,NULL);SetIndexLabel(3,NULL);
   SetIndexLabel(4,NULL);SetIndexLabel(5,NULL);
//----
   SetIndexStyle(4,DRAW_LINE,EMPTY,2,DarkGreen);
   SetIndexBuffer(4,ChanLineMax);
   SetIndexStyle(5,DRAW_LINE,EMPTY,2,DarkGreen);
   SetIndexBuffer(5,ChanLineMin);
   SetIndexStyle(6,DRAW_LINE,EMPTY,1,Blue);
   SetIndexBuffer(6,Level);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int    counted_bars=IndicatorCounted();
   int  shift,i,N;
   double imp,mBar,Max,Min;
   double e1,e2,e3,e4,e5,e6,c1,c2,c3,c4,n,w1,w2, b2,b3,dpo,Prise,k;
   //SetLoopCount(0);
   // loop from first bar to current bar (with shift=0)
//----
   if(Bars<=t3_period) return(0);
//---- initial zero
   if(counted_bars<t3_period)
     {
      // for(i=1;i<=t3_period;i++) prise[Bars-i]=0.0;
      for(i=1;i<=t3_period;i++) t3[Bars-i]=0.0;
     }
//----
   b2=b*b;
   b3=b2*b;
   c1=-b3;
   c2=(3*(b2+b3));
   c3=-3*(2*b2+b+b3);
   c4=(1+3*b+b3+3*b2);
   n=t3_period;
//----
   if (n<1) n=1;
   n=1 + 0.5*(n-1);
   w1=2/(n + 1);
   w2=1 - w1;
//----
   int limit;
   counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;
//----
   limit=Bars-counted_bars;
//---- main loop
   for(shift=0; shift<limit; shift++)
      //for shift=Bars-1 Downto 0
     {
      DayImp[shift]=1;
      t3[shift]=0;
      //SetIndexValue(shift,0);
      //SetIndexValue2(shift,0);
     }
   mBar=d*per;
   //for shift=mBar downto per
   for( shift=Bars-96-1; shift>=0; shift--)
     {
      imp=0;
      Level[shift]=0.0;
      for( i=shift ;i<=shift+per; i++)
        {
         imp=imp+(Open[i]-Close[i]);
        }
      imp=MathRound(imp/Point);
//----
      if (imp==0 )imp=0.0001;
      if (imp!=0 )
        {
         imp=-imp;
         DayImp[shift]=imp;
        }
      //for( i=shift ;i<=shift+per; i++)
      // DayImp[shift]=iMA(NULL,0,14,0,MODE_SMMA,PRICE_HIGH,i);
      dpo=DayImp[shift];
      e1=w1*dpo + w2*e1;
      e2=w1*e1 + w2*e2;
      e3=w1*e2 + w2*e3;
      e4=w1*e3 + w2*e4;
      e5=w1*e4 + w2*e5;
      e6=w1*e5 + w2*e6;
      t3[shift]=c1*e6 + c2*e5 + c3*e4 + c4*e3;
//----
      switch( Period() )
        {
         case 5: N=288; break;
         case 15: N=96; break;
         case 30: N=48; break;
         case 60: N=24; break;
         default: N=0; break;
        }
      if (N==0) {Alert("Work only in M15,M30,M60 timeframes");return(0);}
      Max=DayImp[shift+N-1];
      Min=DayImp[shift+N-1];
      for( i=shift ;i<=shift+N-1; i++)
        {
         if (Max<DayImp[i]) Max=DayImp[i];
         if (Min>DayImp[i]) Min=DayImp[i];
        }
      //MaxH[shift]=Max;//+(Max-Min)*(1-kChannel);
      //MinH[shift]=Min;//+(Max-Min)*(kChannel);
      MaxLine[shift]=Max;//+(Max-Min)*(1-kChannel);
      MinLine[shift]=Min;//+(Max-Min)*(kChannel);
      //k=((100-ChanPercent)/2)/100;
      ChanLineMax[shift]=Max/2; // Min+(Max-Min)*(1-k);
      ChanLineMin[shift]=Min/2; //Min+(Max-Min)*(k);
     }
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
