This tool is designed to analyze price movement by calculating the cumulative momentum of a specific number of previous trading candles. Instead of looking at just the current price, it examines the "body" of each candle—the distance between where the price opened and where it closed—to determine the strength and direction of the market's trend over a set period.
Core Logic and Components

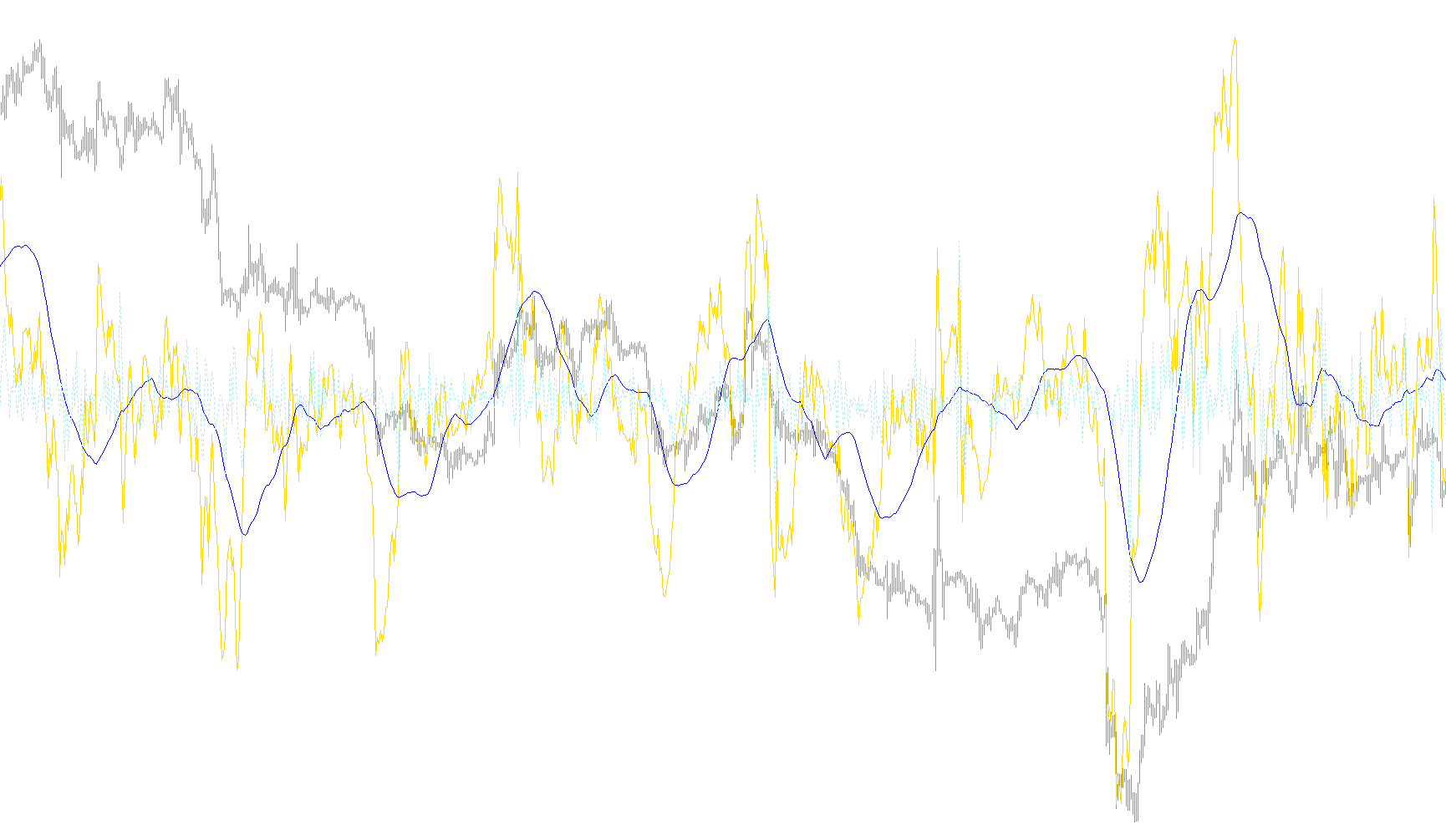

The script processes data to provide three distinct visual layers on your chart:
1. The Momentum Signal (Main Line) The primary logic works by totaling the results of the "Close minus Open" calculation for a specific number of bars (the Period). For example, if the period is set to 14, the script adds up the price movements of the last 14 candles. This total is then projected forward on the chart. By shifting this data forward, the tool aims to provide a visual representation of where the trend momentum might be heading based on recent historical behavior.
2. The Moving Average (Trend Smoothing) When enabled, the script calculates a Simple Moving Average based specifically on the Momentum Signal mentioned above, rather than the raw price. This acts as a smoothing mechanism. It helps filter out "noise" or minor fluctuations in the data, allowing you to see the broader direction of the momentum more clearly.
3. Signal 2 (Immediate Comparison) This provides a secondary reference point. It captures the movement of only the most recent candle (Close minus Open) and projects it forward alongside the main signal. By comparing this "instant" movement against the "cumulative" momentum of the main signal, users can see if the very latest price action is accelerating or slowing down compared to the recent past.
Key Technical Behavior
- Forward Projection: A unique feature of this script is that it "shifts" the data points forward. This creates a visual layout where the indicator occupies space ahead of the current live candle, intended to help visualize potential trend paths.
- Dynamic Recalculation: The logic is designed to constantly update. As every new price tick occurs, the script recalculates the history and the projection. It is important to note that while the visual line shows a path forward, this is a mathematical projection of past behavior; it represents the "momentum" of the market rather than a guaranteed prediction of future price action.
- Point Scaling: The script automatically scales the calculations based on the specific asset's "Point" value (the smallest price change), ensuring that the signals remain consistent whether you are trading highly volatile pairs or more stable ones.
/*
* Filename: DayImpulse2DD.mq4
* Author: DriverDan, based on the original by Tartan at the link below
* Date: Nov 3, 2005
*
* Description: Sums the close - open for the past "per" bars and shifts it forward
* "drawShift" bars. Works very well at predicting movement.
*
* Signal2 is just the current bar's close - open shifted "drawShift"
* periods forward. This is what you see as the main signal draws. It
* isn't updated as time moves forward so that you have something to look
* back on.
*
* WARNING: Looking at past bars will be deceiving. It may look like it
* predicts perfectly on some pairs but remember that it is constantly
* updated. The most accurate live bar is the current one.
*
* The future is not set.
*
* Version: 2DD
* Released by DriverDan
* Almost all of the code has been changed or rewritten.
* Added Signal2.
*
* 1.1
* Released by DriverDan
* Fix horrible style, removed extra buffer, changed to draw from the
* beginning, added MA, and fixed gaps in signal.
*
* 1.0
* Initial release
* http://www.arkworldmarket.ru/forum/showthread.php?t=966&page=2&pp=10
*/
#property indicator_separate_window
#property indicator_buffers 3
#property indicator_color1 Gold
#property indicator_color2 White
#property indicator_color3 DodgerBlue
extern int per = 14; // Period for signal
extern int drawShift = 14; // Forward shift
extern int useMA = 1; // 1 = use MA
extern int maPeriod = 34; // Moving average period
extern int useSignal2 = 1; // Show current close - open shifted forward
// Buffers for signals
double ExtMapBuffer[];
double maBuffer[];
double closeBuffer[];
int init() {
string title = "DayImplus(" + per + ")";
// Signal and MA are normal lines
SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(0, ExtMapBuffer);
SetIndexStyle(1, DRAW_LINE);
SetIndexBuffer(1, maBuffer);
// Signal2 is a dotted line
SetIndexStyle(2, DRAW_LINE, 2, 1);
SetIndexBuffer(2, closeBuffer);
// Shift everything forward
SetIndexShift(0, drawShift);
SetIndexShift(1, drawShift);
SetIndexShift(2, drawShift);
// Titles for each line
SetIndexLabel(0, "Signal(" + per + ")");
SetIndexLabel(1, "MA(" + maPeriod + ")");
SetIndexLabel(2, "Signal2(" + per + ")");
if(useMA == 1) {
title = title + " MA(" + maPeriod + ")";
}
IndicatorShortName(title);
return(0);
}
int start() {
int counted_bars = IndicatorCounted();
int shift, i, imp, limit, lim;
// This is to make sure we go back and update bars that have already been drawn.
// This was missing in the original release. If it's not done the live signal line
// will be the same as Signal2.
if(counted_bars > per) {
limit = Bars - counted_bars + 13;
} else {
limit = Bars - 1;
}
// Loop through and calculate the signals. Everytime this runs we recalculate the
// current and all future signals. The future is not set :)
for(shift = limit; shift >= 0; shift--) {
imp = 0;
// This isn't really needed but makes sure we don't look for future,
// non-existant open and close points. It's just proper coding. You never know
// how a program will handle variables that don't exist. MT4 currently sets them
// to zero but you don't know if that will change.
if(shift - per < 0) {
lim = 0;
} else {
lim = shift - per;
}
// Calculate the signal
for(i = shift; i >= lim; i--) {
imp = imp + (Close[i] - Open[i]) / Point;
}
ExtMapBuffer[shift] = imp;
// If Signal2 is being used set it.
if(useSignal2 == 1) {
closeBuffer[i] = (Close[i] - Open[i]) / Point;
}
}
// If we're using the MA calculate it.
if(useMA == 1) {
for(shift = Bars - counted_bars - 1; shift >= 0; shift--) {
if(shift < Bars - maPeriod && shift < Bars - per) {
maBuffer[shift] = iMAOnArray(ExtMapBuffer, 0, maPeriod, 0, MODE_SMA, shift);
}
}
}
return(0);
}
