Ichimoku THV
Download script
This script functions as a comprehensive technical analysis tool known as the Ichimoku Kinko Hyo. Its primary purpose is to provide traders with a visual representation of market momentum, support/resistance levels, and potential price trends by calculating several different moving averages and price boundaries simultaneously.
The logic behind the script can be broken down into five key components:
1. Short-Term Momentum (Tenkan Sen)
The script first identifies very recent price action to establish a fast-moving average. It looks back over a short period (defined by the "Tenkan" parameter) and calculates the midpoint between the highest high and the lowest low within that timeframe. This serves as a baseline for immediate momentum.
2. Medium-Term Trend (Kijun Sen)
Similar to the first component, the script calculates a second moving average but over a longer duration (defined by the "Kijun" parameter). By finding the midpoint of the highest high and lowest low over this extended period, it provides a clearer picture of the prevailing trend. The relationship between the short-term and medium-term lines is often used to identify potential shifts in market direction.
3. Price Projection (Senkou Span A & B)
These components are used to create a "cloud" on the chart, which helps traders visualize future price territory and current equilibrium:
- Span A: This is calculated by taking the average of the two previously mentioned lines (Tenkan Sen and Kijun Sen). It represents the balance between short and medium-term trends.
- Span B: This identifies a broader price boundary by finding the midpoint of the highest high and lowest low over an even longer period (defined by the "Senkou" parameter).
4. Delayed Price Action (Chinkou Span)
The script also tracks the "Chinkou Span," which is essentially a displaced version of the current closing price. By shifting the current price backward on the chart, it allows traders to compare past price action with current values to confirm if a trend is strengthening or weakening without the visual clutter of overlapping lines.
5. Visual Presentation

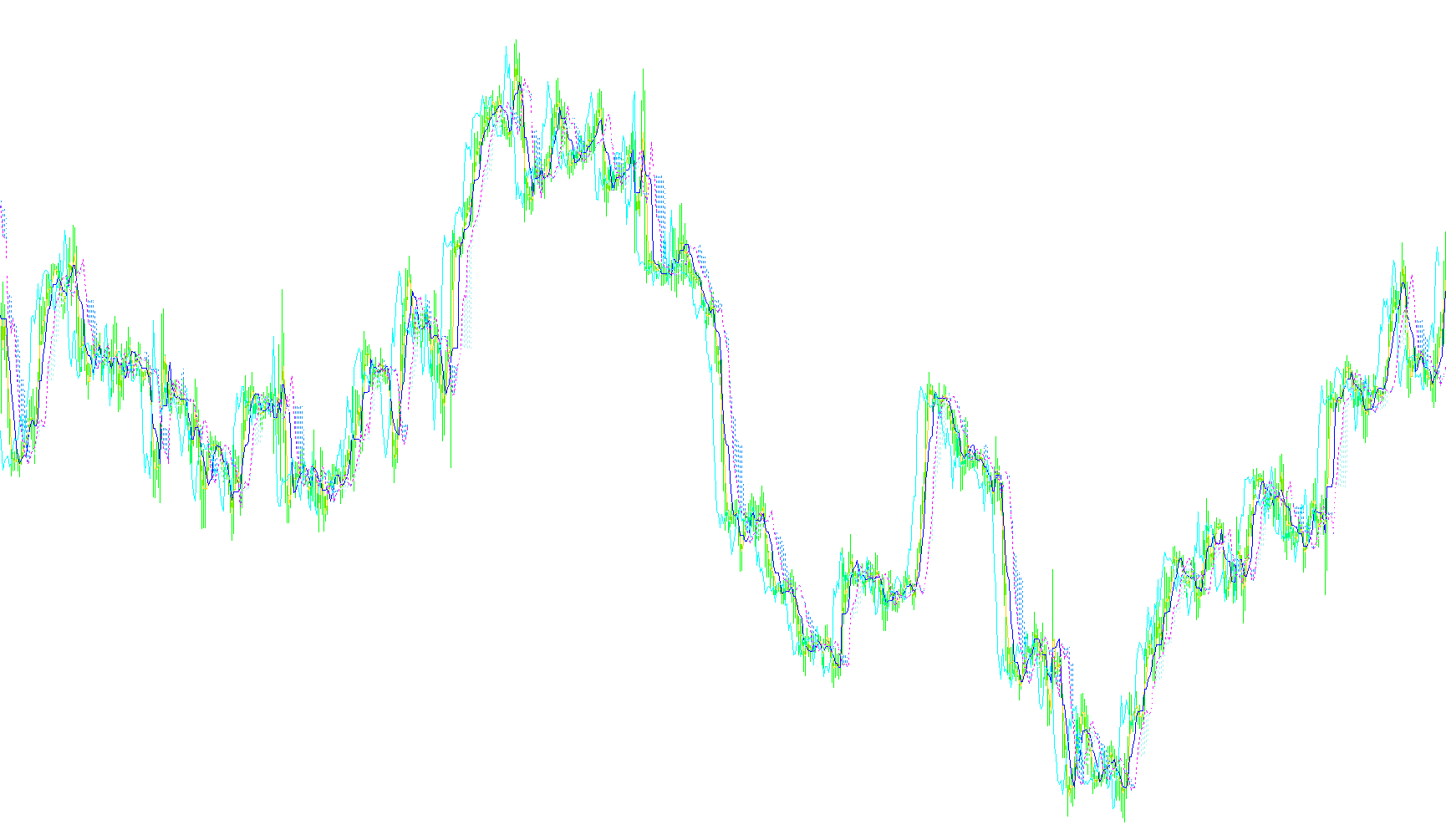

To ensure the data is readable for the user, the script automatically handles the "shifting" of these values. Some components are displayed in real-time at the current price, while others are projected forward or backward. This allows a trader to see a "map" of where the price has been, where it is currently resting, and where the boundaries of future price movement may lie based on historical extremes.
//+------------------------------------------------------------------+
//| Ichimoku.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| Modified by Cobraforex for THV System, www.cobraforex.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 7
#property indicator_color1 Black
#property indicator_color2 Black
#property indicator_color3 LawnGreen
#property indicator_color4 Chocolate
#property indicator_color5 Black
#property indicator_color6 OrangeRed
#property indicator_color7 MediumSeaGreen
//---- input parameters
extern int Tenkan=2;
extern int Kijun=5;
extern int Senkou=8;
//---- buffers
double Tenkan_Buffer[];
double Kijun_Buffer[];
double SpanA_Buffer[];
double SpanB_Buffer[];
double Chinkou_Buffer[];
double SpanA2_Buffer[];
double SpanB2_Buffer[];
//----
int a_begin;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//----
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,Tenkan_Buffer);
SetIndexDrawBegin(0,Tenkan-1);
SetIndexLabel(0,"Tenkan Sen");
//----
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,Kijun_Buffer);
SetIndexDrawBegin(1,Kijun-1);
SetIndexLabel(1,"Kijun Sen");
//----
a_begin=Kijun; if(a_begin<Tenkan) a_begin=Tenkan;
SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_DOT);
SetIndexBuffer(2,SpanA_Buffer);
SetIndexDrawBegin(2,Kijun+a_begin-1);
SetIndexShift(2,Kijun);
SetIndexLabel(2,NULL);
SetIndexStyle(5,DRAW_LINE,STYLE_DOT);
SetIndexBuffer(5,SpanA2_Buffer);
SetIndexDrawBegin(5,Kijun+a_begin-1);
SetIndexShift(5,Kijun);
SetIndexLabel(5,"Senkou Span A");
//----
SetIndexStyle(3,DRAW_HISTOGRAM,STYLE_DOT);
SetIndexBuffer(3,SpanB_Buffer);
SetIndexDrawBegin(3,Kijun+Senkou-1);
SetIndexShift(3,Kijun);
SetIndexLabel(3,NULL);
SetIndexStyle(6,DRAW_LINE,STYLE_DOT);
SetIndexBuffer(6,SpanB2_Buffer);
SetIndexDrawBegin(6,Kijun+Senkou-1);
SetIndexShift(6,Kijun);
SetIndexLabel(6,"Senkou Span B");
//----
SetIndexStyle(4,DRAW_LINE);
SetIndexBuffer(4,Chinkou_Buffer);
SetIndexShift(4,-Kijun);
SetIndexLabel(4,"Chinkou Span");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Ichimoku Kinko Hyo |
//+------------------------------------------------------------------+
int start()
{
int i,k;
int counted_bars=IndicatorCounted();
double high,low,price;
//----
if(Bars<=Tenkan || Bars<=Kijun || Bars<=Senkou) return(0);
//---- initial zero
if(counted_bars<1)
{
for(i=1;i<=Tenkan;i++) Tenkan_Buffer[Bars-i]=0;
for(i=1;i<=Kijun;i++) Kijun_Buffer[Bars-i]=0;
for(i=1;i<=a_begin;i++) { SpanA_Buffer[Bars-i]=0; SpanA2_Buffer[Bars-i]=0; }
for(i=1;i<=Senkou;i++) { SpanB_Buffer[Bars-i]=0; SpanB2_Buffer[Bars-i]=0; }
}
//---- Tenkan Sen
i=Bars-Tenkan;
if(counted_bars>Tenkan) i=Bars-counted_bars-1;
while(i>=0)
{
high=High[i]; low=Low[i]; k=i-1+Tenkan;
while(k>=i)
{
price=High[k];
if(high<price) high=price;
price=Low[k];
if(low>price) low=price;
k--;
}
Tenkan_Buffer[i]=(high+low)/2;
i--;
}
//---- Kijun Sen
i=Bars-Kijun;
if(counted_bars>Kijun) i=Bars-counted_bars-1;
while(i>=0)
{
high=High[i]; low=Low[i]; k=i-1+Kijun;
while(k>=i)
{
price=High[k];
if(high<price) high=price;
price=Low[k];
if(low>price) low=price;
k--;
}
Kijun_Buffer[i]=(high+low)/2;
i--;
}
//---- Senkou Span A
i=Bars-a_begin+1;
if(counted_bars>a_begin-1) i=Bars-counted_bars-1;
while(i>=0)
{
price=(Kijun_Buffer[i]+Tenkan_Buffer[i])/2;
SpanA_Buffer[i]=price;
SpanA2_Buffer[i]=price;
i--;
}
//---- Senkou Span B
i=Bars-Senkou;
if(counted_bars>Senkou) i=Bars-counted_bars-1;
while(i>=0)
{
high=High[i]; low=Low[i]; k=i-1+Senkou;
while(k>=i)
{
price=High[k];
if(high<price) high=price;
price=Low[k];
if(low>price) low=price;
k--;
}
price=(high+low)/2;
SpanB_Buffer[i]=price;
SpanB2_Buffer[i]=price;
i--;
}
//---- Chinkou Span
i=Bars-1;
if(counted_bars>1) i=Bars-counted_bars-1;
while(i>=0) { Chinkou_Buffer[i]=Close[i]; i--; }
//----
return(0);
}
//+------------------------------------------------------------------+
