Moving Averages   Lower Window_v1

This tool is designed as a versatile technical analysis indicator for the MetaTrader platform. Its primary purpose is to calculate and display different types of "Moving Averages"—mathematical indicators used by traders to smooth out price fluctuations and identify the underlying trend of a financial asset.

Core Functionality

The script allows users to visualize market trends by transforming volatile price action into a smoother, more readable line. It automatically calculates these averages based on historical closing prices, providing a clearer picture of whether an asset is moving upward, downward, or remainingsideways.

Key Features & Customization

The logic within the script is modular, allowing you to switch between four distinct mathematical methodologies depending on your trading style:

  • Simple Moving Average (SMA): The standard approach that calculates the arithmetic mean of a set period. It treats every price point in the timeframe equally.
  • Exponential Moving Average (EMA): A more reactive version that applies more weight to the most recent prices. This makes it quicker to respond to sudden market shifts compared to the SMA.
  • Smoothed Moving Average (SMMA): Designed to reduce "noise" even further by using a method of weighted averages, resulting in a much flatter and steadier line for long-term trend analysis.
  • Linear Weighted Moving Average (LWMA): Similar to the EMA but uses a linear weighting system, placing significantly higher importance on the most recent data points.

Technical Behavior

  • Dynamic Adaptation: The script automatically adjusts its labels and calculations based on the user-defined period (how many past candles to look back) and the specific method selected.

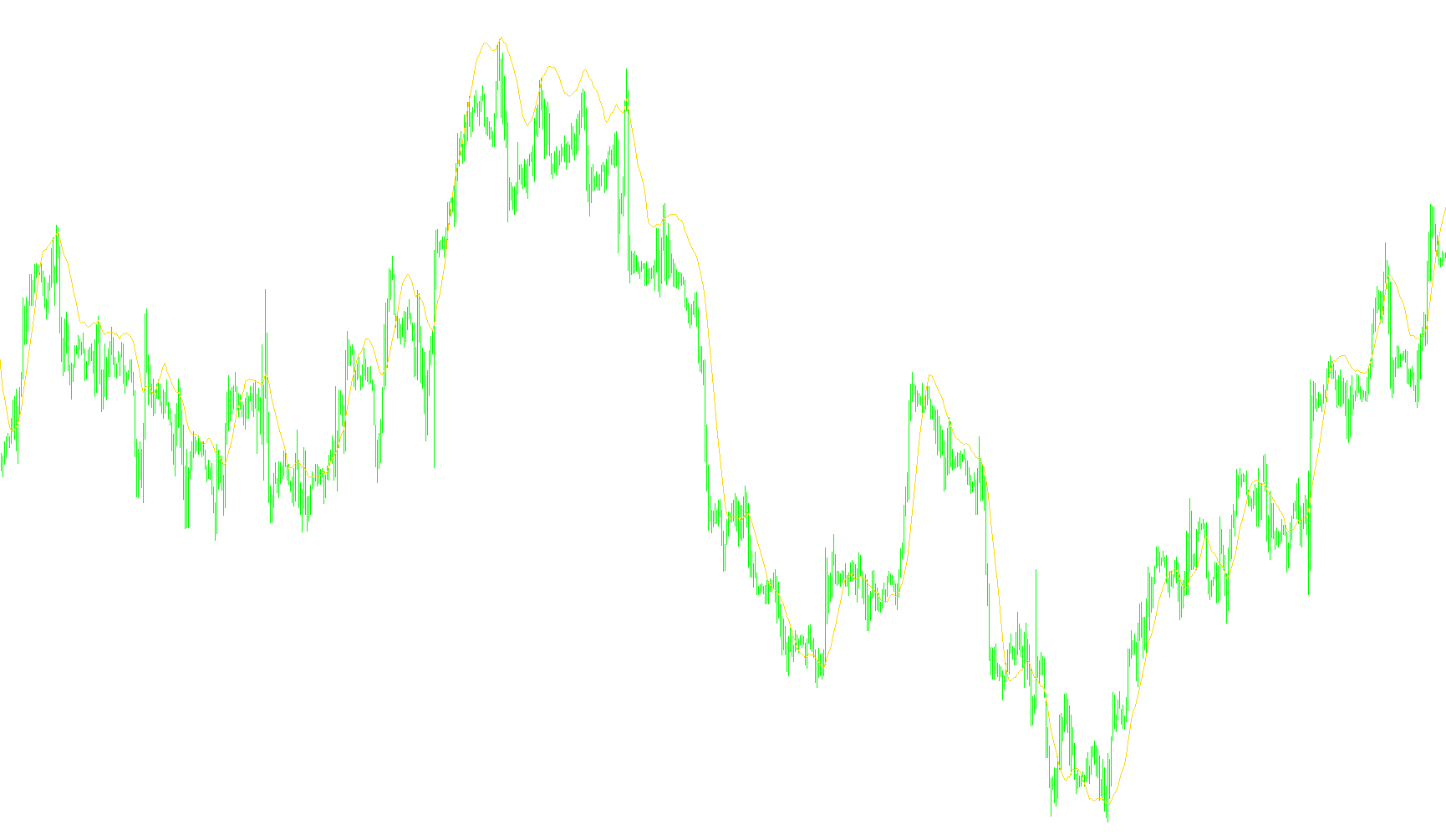

  • Visual Representation: The resulting data is plotted as a continuous line in a separate window, ensuring that it does not clutter the main price chart while remaining easily accessible for analysis.
  • Data Integrity: The logic includes internal checks to ensure that calculations only begin once enough historical data is available, preventing inaccurate "jumpy" lines at the beginning of a chart.
Miscellaneous
Implements a curve of type %1
8 Views
0 Downloads
0 Favorites
Moving Averages Lower Window_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                        Custom Moving Average.mq4 |
//|                      Copyright © 2004, MetaQuotes Software Corp. |
//|                                       http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net/"

#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- indicator parameters
extern int MA_Period=13;
extern int MA_Shift=0;
extern int MA_Method=0;
//---- indicator buffers
double ExtMapBuffer[];
//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   int    draw_begin;
   string short_name;
//---- drawing settings
   SetIndexStyle(0,DRAW_LINE);
   SetIndexShift(0,MA_Shift);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   if(MA_Period<2) MA_Period=13;
   draw_begin=MA_Period-1;
//---- indicator short name
   switch(MA_Method)
     {
      case 1 : short_name="EMA(";  draw_begin=0; break;
      case 2 : short_name="SMMA("; break;
      case 3 : short_name="LWMA("; break;
      default :
         MA_Method=0;
         short_name="SMA(";
     }
   IndicatorShortName(short_name+MA_Period+")");
   SetIndexDrawBegin(0,draw_begin);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer);
//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   if(Bars<=MA_Period) return(0);
   ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   if (ExtCountedBars>0) ExtCountedBars--;
//----
   switch(MA_Method)
     {
      case 0 : sma();  break;
      case 1 : ema();  break;
      case 2 : smma(); break;
      case 3 : lwma();
     }
//---- done
   return(0);
  }
//+------------------------------------------------------------------+
//| Simple Moving Average                                            |
//+------------------------------------------------------------------+
void sma()
  {
   double sum=0;
   int    i,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<MA_Period;i++,pos--)
      sum+=Close[pos];
//---- main calculation loop
   while(pos>=0)
     {
      sum+=Close[pos];
      ExtMapBuffer[pos]=sum/MA_Period;
	   sum-=Close[pos+MA_Period-1];
 	   pos--;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
  }
//+------------------------------------------------------------------+
//| Exponential Moving Average                                       |
//+------------------------------------------------------------------+
void ema()
  {
   double pr=2.0/(MA_Period+1);
   int    pos=Bars-2;
   if(ExtCountedBars>2) pos=Bars-ExtCountedBars-1;
//---- main calculation loop
   while(pos>=0)
     {
      if(pos==Bars-2) ExtMapBuffer[pos+1]=Close[pos+1];
      ExtMapBuffer[pos]=Close[pos]*pr+ExtMapBuffer[pos+1]*(1-pr);
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Smoothed Moving Average                                          |
//+------------------------------------------------------------------+
void smma()
  {
   double sum=0;
   int    i,k,pos=Bars-ExtCountedBars+1;
//---- main calculation loop
   pos=Bars-MA_Period;
   if(pos>Bars-ExtCountedBars) pos=Bars-ExtCountedBars;
   while(pos>=0)
     {
      if(pos==Bars-MA_Period)
        {
         //---- initial accumulation
         for(i=0,k=pos;i<MA_Period;i++,k++)
           {
            sum+=Close[k];
            //---- zero initial bars
            ExtMapBuffer[k]=0;
           }
        }
      else sum=ExtMapBuffer[pos+1]*(MA_Period-1)+Close[pos];
      ExtMapBuffer[pos]=sum/MA_Period;
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average                                   |
//+------------------------------------------------------------------+
void lwma()
  {
   double sum=0.0,lsum=0.0;
   double price;
   int    i,weight=0,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<=MA_Period;i++,pos--)
     {
      price=Close[pos];
      sum+=price*i;
      lsum+=price;
      weight+=i;
     }
//---- main calculation loop
   pos++;
   i=pos+MA_Period;
   while(pos>=0)
     {
      ExtMapBuffer[pos]=sum/weight;
      if(pos==0) break;
      pos--;
      i--;
      price=Close[pos];
      sum=sum-lsum+price*MA_Period;
      lsum-=Close[i];
      lsum+=price;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
  }
//+------------------------------------------------------------------+
