This tool is designed to provide traders with a specialized way to view price trends by analyzing "Moving Averages." While standard moving averages typically look at the data immediately in front of you on your current screen, this specific script introduces a multi-timeframe perspective.
Core Functionality
The primary purpose of this logic is to pull data from a different time frame than the one you are currently viewing and project it onto your active chart. For example, if you are looking at a 5-minute chart but want to see the trend based on hourly data, this script performs that "bridge" automatically.
How the Logic Works
The script follows a systematic process to generate the visual line on your chart:
- Time Synchronization: The logic identifies the exact time of each price candle on your current chart. It then looks back into a different, higher time frame (defined by the user) to find the corresponding data point for that specific moment in history.
- Calculation Types: The tool is versatile in how it calculates averages. Depending on the settings, it can calculate the average using four different mathematical models:
- Simple Moving Average (SMA)
- Exponential Moving Average (EMA)
- Smoothed Moving Average (SMMA)
- Linear Weighted Moving Average (LWMA)
- Dynamic Mapping: Instead of just calculating the average for the current moment, the script runs a continuous loop. It scans through your chart's history, calculates the required average for every past candle based on the chosen time frame, and maps those values back onto your screen.
- Visual Adjustment: The script includes "Shift" capabilities, allowing you to move the resulting line forward or backward on the chart to better align with your visual analysis.
Summary for the User

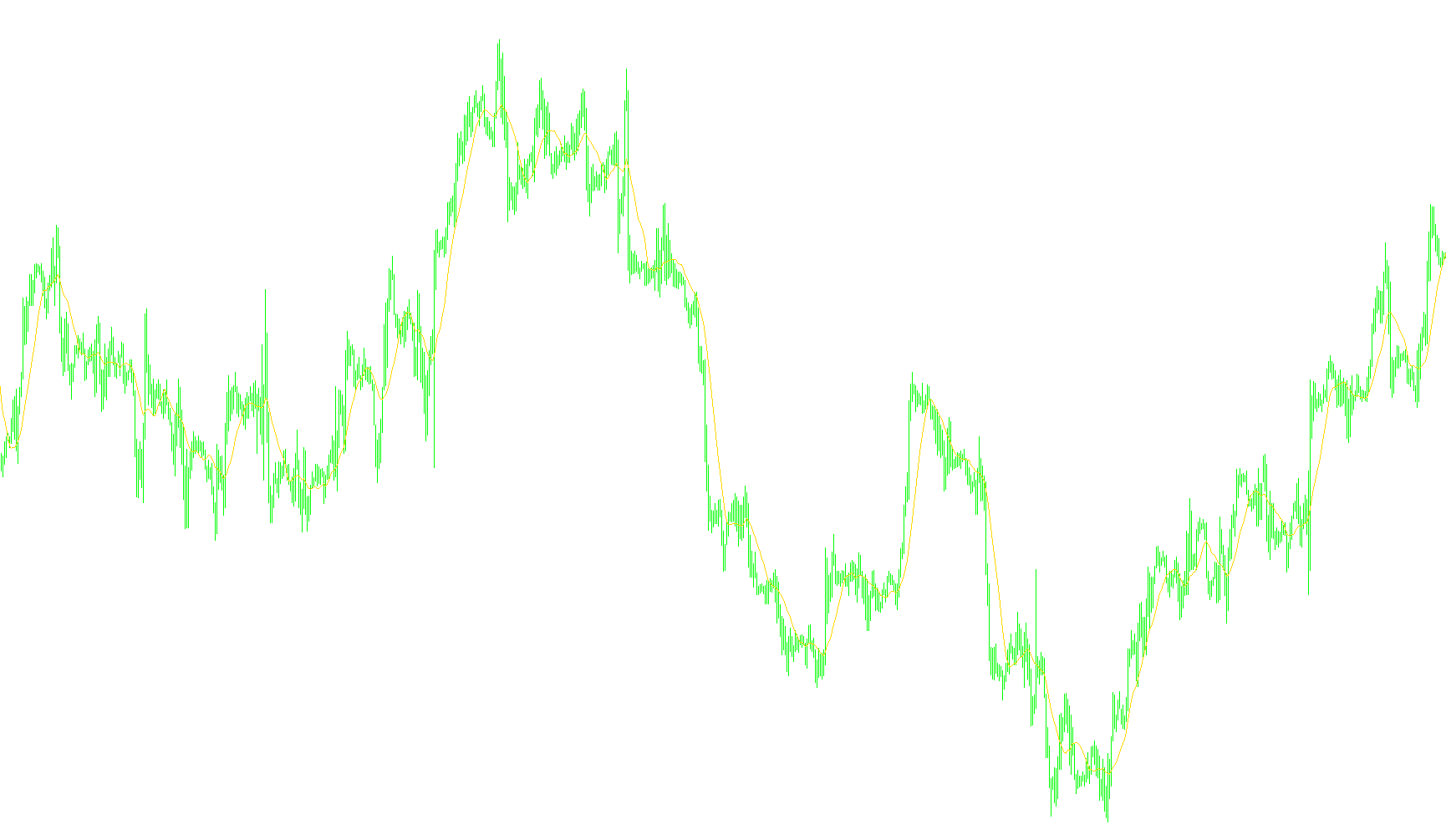

Essentially, this tool acts as a "time-traveling" average. It allows you to see how the market is behaving on a larger scale (like a 60-minute hourly trend) without having to constantly switch back and forth between different tabs or windows. It provides a smoother, broader context of market movement overlaid directly onto your immediate trading view.
//+------------------------------------------------------------------+
//| Custom Moving Average.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| Modified 2006, Matt Kennel, Metatrader Yahoo group |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Metatrader Yahoo group!"
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- indicator parameters
extern int MA_Period=13;
extern int MA_Shift=0;
extern int MA_Method=0;
extern int MA_time_frame=60; // The time frame you want in minutes
// M5 = 5
// M15 = 15
// M30 = 30
// H1 = 60
// H4 = 240
// D1 = 1440, etc
//---- indicator buffers
double ExtMapBuffer[];
//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int draw_begin;
string short_name;
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexShift(0,MA_Shift);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
if(MA_Period<2) MA_Period=13;
draw_begin=MA_Period-1;
//---- indicator short name
switch(MA_Method)
{
case 1 : short_name="EMA("; draw_begin=0; break;
case 2 : short_name="SMMA("; break;
case 3 : short_name="LWMA("; break;
default :
MA_Method=0;
short_name="SMA(";
}
IndicatorShortName(short_name+MA_Period+"); TF="+MA_time_frame);
SetIndexDrawBegin(0,draw_begin);
//---- indicator buffers mapping
SetIndexBuffer(0,ExtMapBuffer);
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int start()
{
if(Bars<=MA_Period) return(0);
ExtCountedBars=IndicatorCounted();
//---- check for possible errors
if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
if (ExtCountedBars>0) ExtCountedBars--;
//----
for (int i=Bars-ExtCountedBars-1; i >= 0; i--) {
datetime tofnow = Time[i];
int ibar_on_tf = iBarShift(Symbol(),MA_time_frame,tofnow,false);
ExtMapBuffer[i] = iMA(Symbol(),MA_time_frame,MA_Period,MA_Shift,MA_Method,PRICE_CLOSE,ibar_on_tf);
}
//---- done
return(0);
}
