This script is designed as a versatile technical analysis tool for the MetaTrader platform, specifically created to calculate and display various types of Moving Averages (MA) on a price chart. In trading, moving averages help smooth out price fluctuations to identify the underlying trend of an asset more clearly.
The logic of this script is built around four distinct calculation methods, allowing users to choose the specific "flavor" of smoothing that best fits their trading strategy:
1. Simple Moving Average (SMA) This is the most straightforward calculation. It takes the closing prices of a specific number of past periods and calculates the simple arithmetic average. Every data point in the selected timeframe is given equal importance.
2. Exponential Moving Average (EMA) Unlike the simple average, this method places a higher weight on the most recent price data. This makes it more responsive to sudden market changes while still maintaining a smooth line. It uses a mathematical multiplier to ensure that older data points have a diminishing impact on the current value.
3. Smoothed Moving Average (SMMA) This version is designed to reduce "noise" even further than a standard SMA. It calculates the average by taking a portion of the previous average and adding it to the most recent price. Because it carries over a large amount of historical data into its current calculation, it produces a very smooth line that is less reactive to minor price spikes.
4. Linear Weighted Moving Average (LWMA) This method assigns a weighted value to each price point based on its age. The most recent prices are given the highest weight, while the oldest prices in the set are given the lowest. This creates a balance between the responsiveness of an Exponential average and the stability of a Simple average, highlighting the immediate momentum of the market.
Operational Logic:
- Customization: The script allows users to define the length of the moving average (the "Period"), how far to shift the visual line on the chart, and which of the four calculation methods to display.
- Dynamic Updates: The script automatically identifies the total number of bars on your chart and processes the data in real-time, ensuring that the moving average line updates as new price information becomes available.

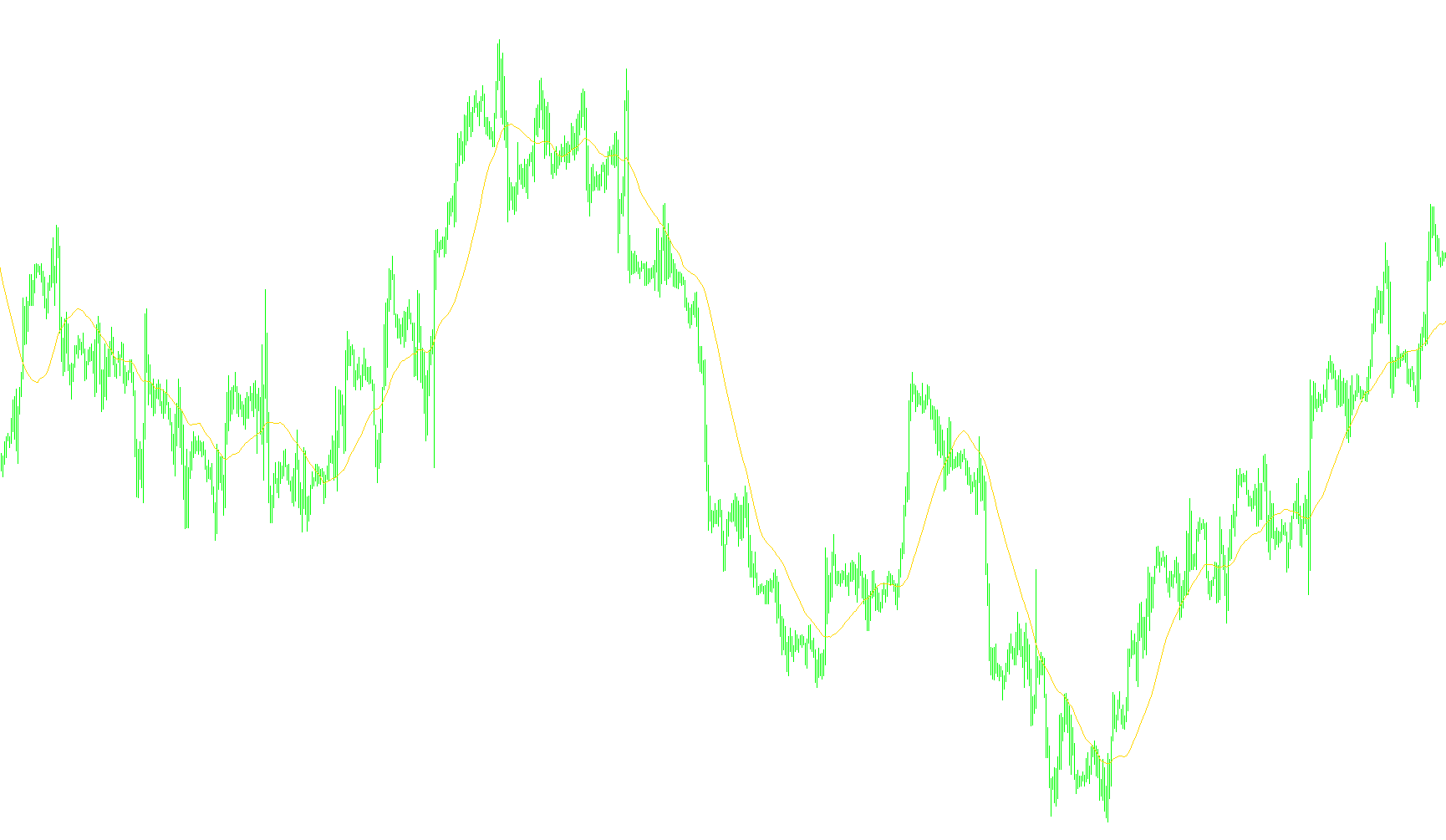

- Visual Output: Once calculated, the script renders a red line on the chart window, providing a clear visual representation of the trend based on the user's chosen parameters.
//+------------------------------------------------------------------+
//| Custom Moving Average.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- indicator parameters
extern int MA_Period=34;
extern int MA_Shift=0;
extern int MA_Method=0;
//---- indicator buffers
double ExtMapBuffer[];
//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int draw_begin;
string short_name;
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexShift(0,MA_Shift);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
if(MA_Period<2) MA_Period=34;
draw_begin=MA_Period-1;
//---- indicator short name
switch(MA_Method)
{
case 1 : short_name="EMA("; draw_begin=0; break;
case 2 : short_name="SMMA("; break;
case 3 : short_name="LWMA("; break;
default :
MA_Method=0;
short_name="SMA(";
}
IndicatorShortName(short_name+MA_Period+")");
SetIndexDrawBegin(0,draw_begin);
//---- indicator buffers mapping
SetIndexBuffer(0,ExtMapBuffer);
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int start()
{
if(Bars<=MA_Period) return(0);
ExtCountedBars=IndicatorCounted();
//---- check for possible errors
if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
if (ExtCountedBars>0) ExtCountedBars--;
//----
switch(MA_Method)
{
case 0 : sma(); break;
case 1 : ema(); break;
case 2 : smma(); break;
case 3 : lwma();
}
//---- done
return(0);
}
//+------------------------------------------------------------------+
//| Simple Moving Average |
//+------------------------------------------------------------------+
void sma()
{
double sum=0;
int i,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
if(pos<MA_Period) pos=MA_Period;
for(i=1;i<MA_Period;i++,pos--)
sum+=Close[pos];
//---- main calculation loop
while(pos>=0)
{
sum+=Close[pos];
ExtMapBuffer[pos]=sum/MA_Period;
sum-=Close[pos+MA_Period-1];
pos--;
}
//---- zero initial bars
if(ExtCountedBars<1)
for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
}
//+------------------------------------------------------------------+
//| Exponential Moving Average |
//+------------------------------------------------------------------+
void ema()
{
double pr=2.0/(MA_Period+1);
int pos=Bars-2;
if(ExtCountedBars>2) pos=Bars-ExtCountedBars-1;
//---- main calculation loop
while(pos>=0)
{
if(pos==Bars-2) ExtMapBuffer[pos+1]=Close[pos+1];
ExtMapBuffer[pos]=Close[pos]*pr+ExtMapBuffer[pos+1]*(1-pr);
pos--;
}
}
//+------------------------------------------------------------------+
//| Smoothed Moving Average |
//+------------------------------------------------------------------+
void smma()
{
double sum=0;
int i,k,pos=Bars-ExtCountedBars+1;
//---- main calculation loop
pos=Bars-MA_Period;
if(pos>Bars-ExtCountedBars) pos=Bars-ExtCountedBars;
while(pos>=0)
{
if(pos==Bars-MA_Period)
{
//---- initial accumulation
for(i=0,k=pos;i<MA_Period;i++,k++)
{
sum+=Close[k];
//---- zero initial bars
ExtMapBuffer[k]=0;
}
}
else sum=ExtMapBuffer[pos+1]*(MA_Period-1)+Close[pos];
ExtMapBuffer[pos]=sum/MA_Period;
pos--;
}
}
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average |
//+------------------------------------------------------------------+
void lwma()
{
double sum=0.0,lsum=0.0;
double price;
int i,weight=0,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
if(pos<MA_Period) pos=MA_Period;
for(i=1;i<=MA_Period;i++,pos--)
{
price=Close[pos];
sum+=price*i;
lsum+=price;
weight+=i;
}
//---- main calculation loop
pos++;
i=pos+MA_Period;
while(pos>=0)
{
ExtMapBuffer[pos]=sum/weight;
if(pos==0) break;
pos--;
i--;
price=Close[pos];
sum=sum-lsum+price*MA_Period;
lsum-=Close[i];
lsum+=price;
}
//---- zero initial bars
if(ExtCountedBars<1)
for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
}
//+------------------------------------------------------------------+
