Moving Averages
Download script

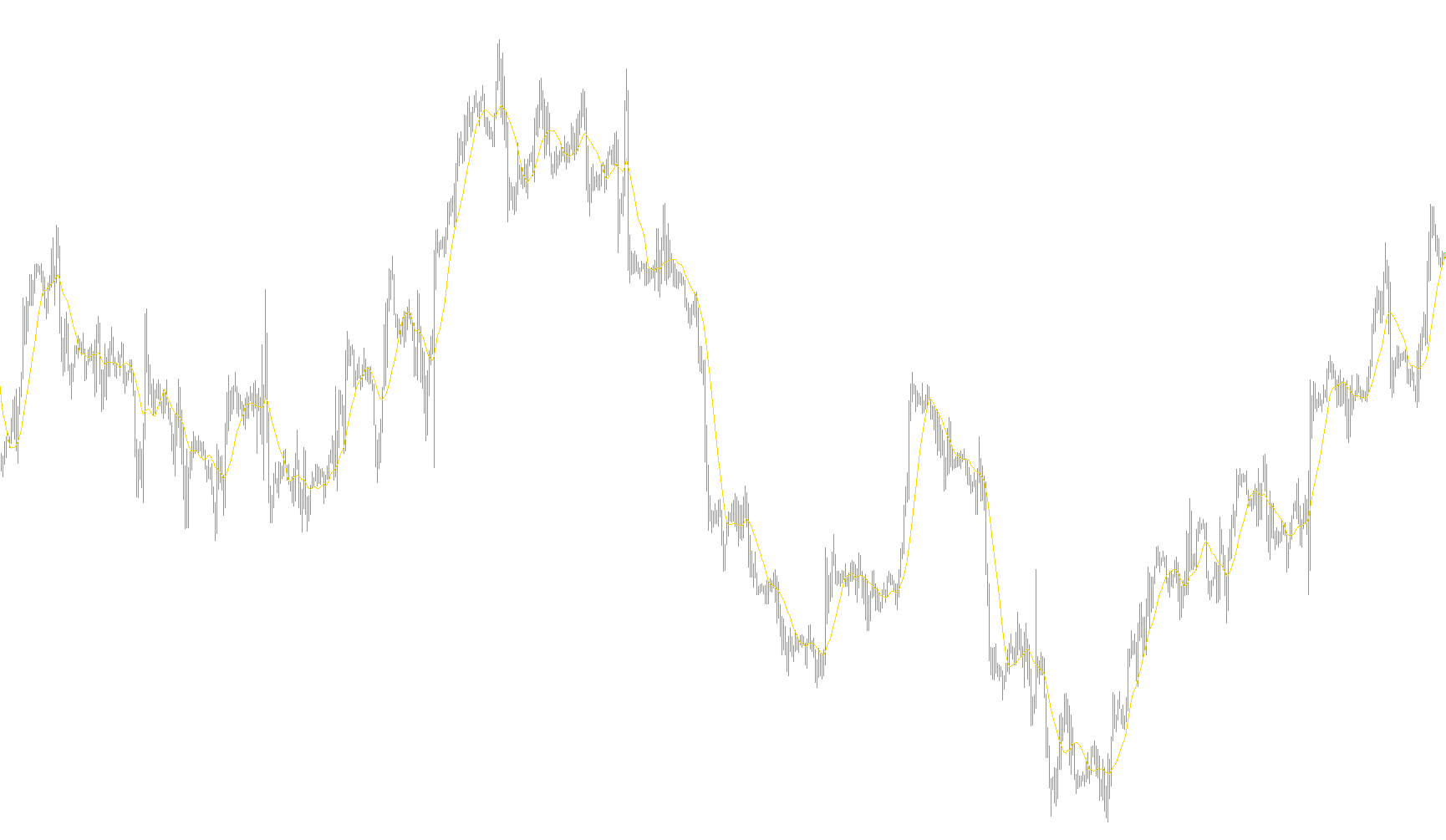

This script is designed as a versatile technical analysis tool for trading platforms. Its primary purpose is to calculate and display various types of "Moving Averages" on a price chart, which help traders smooth out market fluctuations to identify trends more clearly.
Instead of providing just one type of calculation, this tool acts as a multi-functional engine that allows you to switch between four distinct mathematical methods for determining average prices:
Core Functionalities
1. Dynamic Calculation Modes The script is programmed to handle four different types of Moving Averages depending on your preference:
- Simple Moving Average (SMA): The standard approach where it calculates the basic average of price over a specific timeframe.
- Exponential Moving Average (EMA): A variation that places more significance on recent price action, allowing the indicator to react faster to new market changes.
- Smoothed Moving Average (SMMA): A "weighted" approach that reduces the impact of sudden price spikes to provide a much smoother trend line.
- Linear Weighted Moving Average (LWMA): A method that applies a linear weight to prices, giving the most recent data point the highest importance in the calculation.
2. Customization Options The logic includes several user-defined parameters that allow you to tailor the visual output:
- Period Setting: You can define exactly how many past bars of data should be used to calculate the average (e.g., looking at the last 13 price points).
- Visual Shift: The script allows you to move the resulting line forward or backward on the chart to align it with specific trading strategies.
- Color and Style: It is pre-configured to display as a solid red line, making it easy to distinguish from other chart elements.
How the Logic Works Internally
When you load this script onto a chart, it performs a series of background tasks:
- Initialization: It checks your settings and prepares the "buffer" (the space on the chart where the line will be drawn). It ensures that if a user chooses an invalid period, it defaults to a safe standard.
- Data Processing: The script constantly scans the closing prices of candles. Depending on which method you selected, it performs specific arithmetic—either summing the prices equally (SMA), applying a multiplier to recent data (EMA), or calculating a weighted sum (LWMA).
- Real-Time Updates: The logic is designed to automatically recalculate as new price data arrives, ensuring that the moving average line moves dynamically with the live market.
Miscellaneous
13
Views
0
Downloads
0
Favorites
Moving Averages
//+------------------------------------------------------------------+
//| Custom Moving Average.mq4 |
//| Copyright © 2004, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net/"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Red
//---- indicator parameters
extern int MA_Period=13;
extern int MA_Shift=0;
extern int MA_Method=0;
//---- indicator buffers
double ExtMapBuffer[];
//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int draw_begin;
string short_name;
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexShift(0,MA_Shift);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
if(MA_Period<2) MA_Period=13;
draw_begin=MA_Period-1;
//---- indicator short name
switch(MA_Method)
{
case 1 : short_name="EMA("; draw_begin=0; break;
case 2 : short_name="SMMA("; break;
case 3 : short_name="LWMA("; break;
default :
MA_Method=0;
short_name="SMA(";
}
IndicatorShortName(short_name+MA_Period+")");
SetIndexDrawBegin(0,draw_begin);
//---- indicator buffers mapping
SetIndexBuffer(0,ExtMapBuffer);
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int start()
{
if(Bars<=MA_Period) return(0);
ExtCountedBars=IndicatorCounted();
//---- check for possible errors
if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
if (ExtCountedBars>0) ExtCountedBars--;
//----
switch(MA_Method)
{
case 0 : sma(); break;
case 1 : ema(); break;
case 2 : smma(); break;
case 3 : lwma();
}
//---- done
return(0);
}
//+------------------------------------------------------------------+
//| Simple Moving Average |
//+------------------------------------------------------------------+
void sma()
{
double sum=0;
int i,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
if(pos<MA_Period) pos=MA_Period;
for(i=1;i<MA_Period;i++,pos--)
sum+=Close[pos];
//---- main calculation loop
while(pos>=0)
{
sum+=Close[pos];
ExtMapBuffer[pos]=sum/MA_Period;
sum-=Close[pos+MA_Period-1];
pos--;
}
//---- zero initial bars
if(ExtCountedBars<1)
for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
}
//+------------------------------------------------------------------+
//| Exponential Moving Average |
//+------------------------------------------------------------------+
void ema()
{
double pr=2.0/(MA_Period+1);
int pos=Bars-2;
if(ExtCountedBars>2) pos=Bars-ExtCountedBars-1;
//---- main calculation loop
while(pos>=0)
{
if(pos==Bars-2) ExtMapBuffer[pos+1]=Close[pos+1];
ExtMapBuffer[pos]=Close[pos]*pr+ExtMapBuffer[pos+1]*(1-pr);
pos--;
}
}
//+------------------------------------------------------------------+
//| Smoothed Moving Average |
//+------------------------------------------------------------------+
void smma()
{
double sum=0;
int i,k,pos=Bars-ExtCountedBars+1;
//---- main calculation loop
pos=Bars-MA_Period;
if(pos>Bars-ExtCountedBars) pos=Bars-ExtCountedBars;
while(pos>=0)
{
if(pos==Bars-MA_Period)
{
//---- initial accumulation
for(i=0,k=pos;i<MA_Period;i++,k++)
{
sum+=Close[k];
//---- zero initial bars
ExtMapBuffer[k]=0;
}
}
else sum=ExtMapBuffer[pos+1]*(MA_Period-1)+Close[pos];
ExtMapBuffer[pos]=sum/MA_Period;
pos--;
}
}
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average |
//+------------------------------------------------------------------+
void lwma()
{
double sum=0.0,lsum=0.0;
double price;
int i,weight=0,pos=Bars-ExtCountedBars-1;
//---- initial accumulation
if(pos<MA_Period) pos=MA_Period;
for(i=1;i<=MA_Period;i++,pos--)
{
price=Close[pos];
sum+=price*i;
lsum+=price;
weight+=i;
}
//---- main calculation loop
pos++;
i=pos+MA_Period;
while(pos>=0)
{
ExtMapBuffer[pos]=sum/weight;
if(pos==0) break;
pos--;
i--;
price=Close[pos];
sum=sum-lsum+price*MA_Period;
lsum-=Close[i];
lsum+=price;
}
//---- zero initial bars
if(ExtCountedBars<1)
for(i=1;i<MA_Period;i++) ExtMapBuffer[Bars-i]=0;
}
//+------------------------------------------------------------------+
