OverLayChart -Point

Author: Copyright� 2006 S.B.T.
OverLayChart -Point

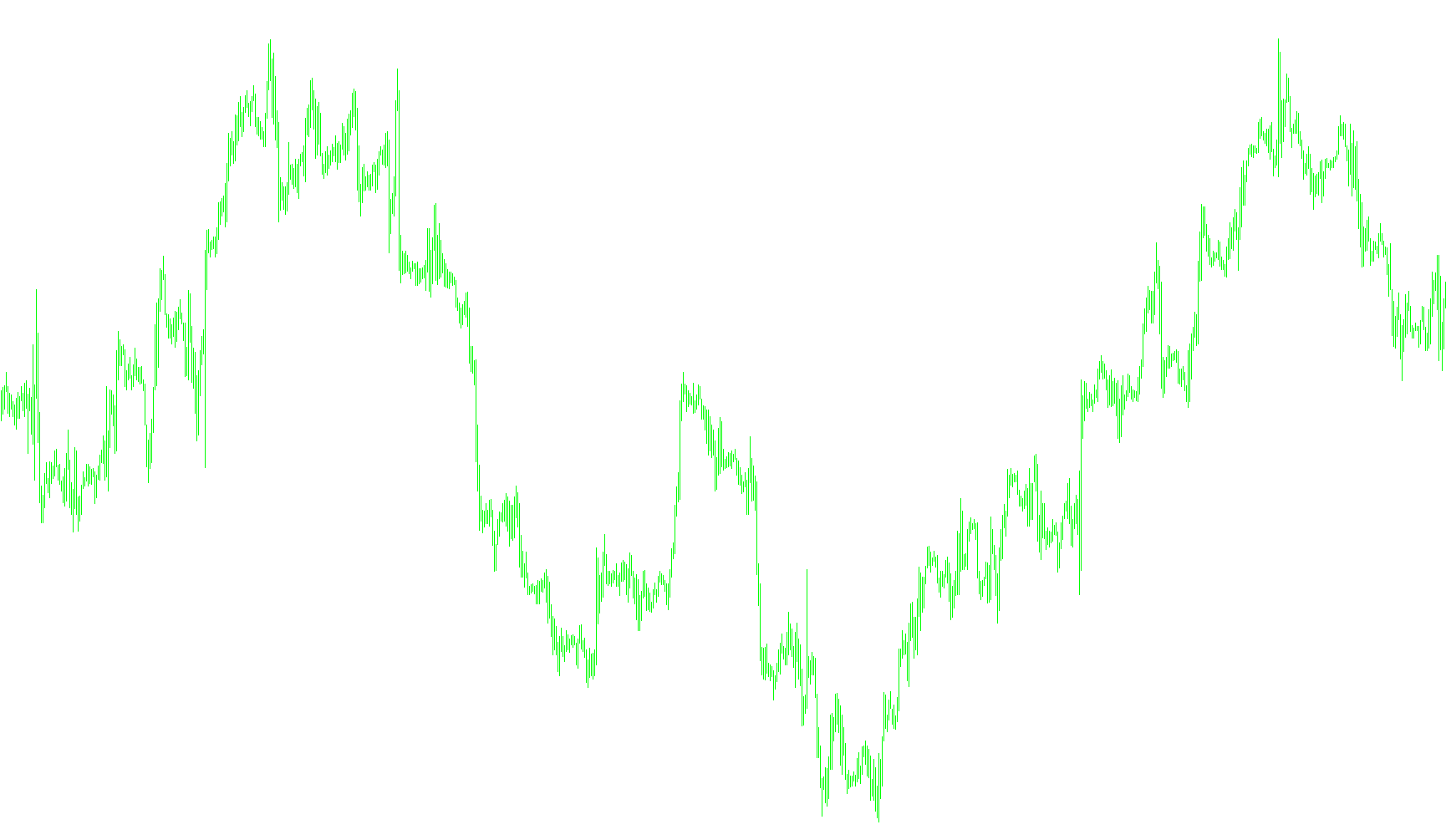

This script is designed to overlay price action from a secondary currency pair or asset directly onto your current trading chart. Instead of switching back and forth between different windows, it allows you to visualize how another market is moving in relation to the one you are currently viewing.

Core Functionality

Dual-Market Visualization The primary purpose of this tool is to "map" a secondary symbol (such as USDCHF) onto your active chart. It calculates the price range of both the current chart and the secondary symbol, then scales them proportionally so they can be viewed simultaneously.

Dynamic Scaling and Alignment Because different assets have different price values (for example, one might trade at 1.1000 while another trades at 150.00), the script performs several automated calculations:

  • Range Synchronization: It identifies the highest and lowest prices of both assets within your current screen view.
  • Proportional Scaling: It calculates a "Ratio" to ensure that the price movements of the secondary asset fit perfectly within the visual boundaries of your main chart.
  • Centering: It aligns the midpoint of the secondary asset's price action with the midpoint of your current chart, ensuring the data remains balanced and readable.

Visual Elements To make the overlay easy to interpret, the script generates several visual components:

  • Simulated Candlesticks: It draws bars representing the open, high, low, and close prices of the secondary symbol.
  • Mirroring Options: You can choose whether to mirror the price action. This is useful for identifying inverse correlations (where one asset goes up while the other goes down).
  • Price Grid: The script automatically draws a horizontal grid across the chart. Each line on this grid represents a specific price level of the secondary asset, complete with text labels showing the exact price values.

On-Screen Information To help you keep track of the data at a glance, the script provides a live status label. This displays the real-time Open, High, Low, and Close prices of the secondary symbol directly on your screen, updating as the market moves.

Summary for the User

In simple terms, this tool acts like a "picture-in-picture" mode for trading. It takes the price movements of a different currency or asset and stretches/shrinks them to fit on your current screen. This allows you to observe correlations, leading indicators, and broader market context without ever having to open a second chart window.

Price Data Components
Series array that contains the lowest prices of each barSeries array that contains the highest prices of each barSeries array that contains open prices of each barSeries array that contains close prices for each bar
Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
OverLayChart -Point
//+------------------------------------------------------------------+
//|                                       OverLay Chart.mq4 Ver.1.10 |
//|                                      Copyright© 2006-2007 S.B.T. |
//|                                     http://sufx.core.t3-ism.net/ |
//+------------------- DO NOT REMOVE THIS HEADER --------------------+
//|  This script is free to use/distribute/modify and re-distribute. |
//|                                  (Limited to noncommercial use.) |
//+------------------------------------------------------------------+

//Indicator Properties
#property copyright "Copyright© 2006 S.B.T."
#property link      "http://sufx.core.t3-ism.net/"
#property indicator_chart_window
#property indicator_buffers 4


//Indicator Parameters
extern string SubSymbol = "USDCHF";
extern color BullBarColor = MediumSeaGreen;
extern color BearBarColor = Red;
extern color GridColor = Gray;
extern bool Mirroring = true;

//Global Variables
string Prefix; //Indicator Prefix
int Grid = 20; //Grid Lines
int SnapPips = 40
;  //Snap Pips For Grid Lines


//Indicator Buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];



//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init() {

   //Initialize Indexes
   Prefix = "OverLayChart" + SubSymbol;

   IndicatorShortName( "OverLay Chart( " + SubSymbol + " )" );

   SetIndexBuffer( 0, ExtMapBuffer1 );
   SetIndexBuffer( 1, ExtMapBuffer2 );
   SetIndexBuffer( 2, ExtMapBuffer3 );
   SetIndexBuffer( 3, ExtMapBuffer4 );

   SetIndexStyle( 0, DRAW_NONE, DRAW_LINE, 1, BullBarColor );
   SetIndexStyle( 1, DRAW_NONE, DRAW_LINE, 1, BearBarColor );
   SetIndexStyle ( 2, DRAW_LINE, DRAW_LINE, 1, BullBarColor );
   SetIndexStyle(3,DRAW_ARROW,0,1,BearBarColor);
   SetIndexArrow(0,158);

   SetIndexEmptyValue( 0, 0.0 );
   SetIndexEmptyValue( 1, 0.0 );
   SetIndexEmptyValue( 2, 0.0 );
   SetIndexEmptyValue( 3, 0.0 );


   return( 0 );
}



//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit() {
   int _i;



   //Delete Objects
	ObjectDelete( Prefix + "Status" );
	ObjectDelete( Prefix + "Copyright" );

	for ( _i = 1; _i <= Grid ; _i ++ ) {
   	ObjectDelete( Prefix + "Grid" + _i );
   	ObjectDelete( Prefix + "Price" + _i );
   }


   return( 0 );
}



//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int _BarsCount;
   double _CurRangeHigh, _CurRangeLow, _CurRangeCenter;
   double _SubRangeHigh, _SubRangeLow, _SubRangeCenter;
   double _SubPoint, _SubDigit;
   double _SubOpen, _SubHigh, _SubLow, _SubClose;
   double _PipsRatio;
   double _GridPips, _GridPrice;
   int _i;



   //Initialize Buffers
	RefreshRates();

   ArrayInitialize( ExtMapBuffer1, 0.0 );
   ArrayInitialize( ExtMapBuffer2, 0.0 );
   ArrayInitialize( ExtMapBuffer3, 0.0 );
   ArrayInitialize( ExtMapBuffer4, 0.0 );


   //Calculate Visible Bars
   _BarsCount = BarsPerWindow() + 1;
   int _FirstBar = FirstVisibleBar();
   int _LastBar = _FirstBar - _BarsCount + 1;
   if ( _LastBar < 0 ) {
      _LastBar = 0;
      _BarsCount = _FirstBar + 1;
   }


   //Calculate Chart Ratio
   _CurRangeHigh = High[Highest(NULL, 0, MODE_HIGH, _BarsCount, _LastBar)];
   _CurRangeLow = Low[Lowest(NULL, 0, MODE_LOW, _BarsCount, _LastBar)];
   _CurRangeCenter = ( _CurRangeHigh + _CurRangeLow ) / 2;

   if ( Mirroring ) {
      _SubRangeHigh = iLow( SubSymbol, 0, Lowest( SubSymbol, 0, MODE_LOW, _BarsCount, _LastBar ) );
      _SubRangeLow = iHigh( SubSymbol, 0, Highest( SubSymbol, 0, MODE_HIGH, _BarsCount, _LastBar ) );
   } else {
      _SubRangeHigh = iHigh( SubSymbol, 0, Highest( SubSymbol, 0, MODE_HIGH, _BarsCount, _LastBar ) );
      _SubRangeLow = iLow( SubSymbol, 0, Lowest( SubSymbol, 0, MODE_LOW, _BarsCount, _LastBar ) );
   }

   _SubRangeCenter = ( _SubRangeHigh + _SubRangeLow ) / 2;
   _SubPoint = MarketInfo( SubSymbol, MODE_POINT );
   _SubDigit = MarketInfo( SubSymbol, MODE_DIGITS );

   _PipsRatio = ( _CurRangeHigh - _CurRangeLow )  / ( _SubRangeHigh - _SubRangeLow );

   _GridPips = ( _SubRangeHigh - _SubRangeLow ) / Grid;
   _GridPips = MathRound( ( _SubRangeHigh - _SubRangeLow ) / Grid / ( _SubPoint * SnapPips ) ) * ( _SubPoint * SnapPips );


   //Draw Candlesticks
	for ( _i = _LastBar; _i < _LastBar + _BarsCount; _i ++ ) {
      _SubOpen = iOpen( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubHigh = iHigh( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubLow = iLow( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubClose = iClose( SubSymbol, 0, _i ) - _SubRangeCenter;

      if ( Mirroring ) {
         if ( _SubOpen < _SubClose ) {
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
         } else {
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
         }

         ExtMapBuffer4[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
         ExtMapBuffer3[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
      } else {
         if ( _SubOpen < _SubClose ) {
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
         } else {
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
         }
         ExtMapBuffer3[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
         ExtMapBuffer4[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
      }
   }


   //Draw Objects
   ObjectCreate( Prefix + "Copyright", OBJ_LABEL, 0, 0, 0 );
	ObjectSet( Prefix + "Copyright", OBJPROP_COLOR, GridColor );
   ObjectSet( Prefix + "Copyright", OBJPROP_CORNER, 3 );
   ObjectSet( Prefix + "Copyright", OBJPROP_XDISTANCE, 4 );
   ObjectSet( Prefix + "Copyright", OBJPROP_YDISTANCE, 4 );
   ObjectSetText( Prefix + "Copyright", "OverLay Chart by S.B.T.", 8 );

   ObjectCreate( Prefix + "Status", OBJ_LABEL, 0, 0, 0 );
	ObjectSet( Prefix + "Status", OBJPROP_COLOR, GridColor );
   ObjectSet( Prefix + "Status", OBJPROP_CORNER, 0 );
   ObjectSet( Prefix + "Status", OBJPROP_XDISTANCE, 4 );
   ObjectSet( Prefix + "Status", OBJPROP_YDISTANCE, 16 );
   ObjectSetText( Prefix + "Status",
                  SubSymbol + " O = " + DoubleToStr( iOpen( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", H = " + DoubleToStr( iHigh( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", L = " + DoubleToStr( iLow( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", C = " + DoubleToStr( iClose( SubSymbol, 0, _LastBar ), _SubDigit ),
                  8 );

	for ( _i = 1; _i <= Grid ; _i ++ ) {
      _GridPrice = MathRound( _SubRangeCenter / ( _SubPoint * SnapPips ) ) * ( _SubPoint * SnapPips );
      _GridPrice = ( ( _GridPrice + _GridPips / 2 ) + _GridPips * ( Grid / 2 - 1 ) ) - ( _GridPips * ( _i - 1 ) );

		ObjectCreate( Prefix + "Grid" + _i, OBJ_TREND, 0, 0, 0 );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_TIME1, Time[_FirstBar] );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_PRICE1, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_TIME2, Time[_LastBar] );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_PRICE2, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_COLOR, GridColor );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_STYLE, STYLE_DOT );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_WIDTH, 1 );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_RAY, true );

		ObjectCreate( Prefix + "Price" + _i, OBJ_TEXT, 0, 0, 0 );
      ObjectSet( Prefix + "Price" + _i, OBJPROP_TIME1, Time[_FirstBar - _BarsCount / 10] );
      ObjectSet( Prefix + "Price" + _i, OBJPROP_PRICE1, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
		ObjectSet( Prefix + "Price" + _i, OBJPROP_COLOR, GridColor );
      ObjectSetText( Prefix + "Price" + _i, DoubleToStr( _GridPrice, _SubDigit ), 8 );
   }


   return( 0 );
}
//+------------------------------------------------------------------+
