Author: emsjoflo
Stop_reversal_mod1

This tool is designed to identify specific price action patterns known as "stop reversals." It functions by monitoring the flow of market prices to detect moments where a trend might be exhausted or where "stops" (protective orders placed by other traders) are likely to be triggered, potentially leading to a sudden change in direction.

Core Logic and Market Monitoring

The script works by constantly tracking the relationship between the current market price and a calculated "Stop Level." It continuously evaluates whether the market is moving in a consistent direction or if it is behaving in a way that suggests a reversal.

To determine these movements, the logic follows these primary rules:

  • Dynamic Stop Level Calculation: The script automatically updates a reference level based on previous prices. If the price moves consistently downward, the tool calculates a new threshold. If it moves upward, it adjusts the threshold in the opposite direction. It also includes a small buffer (defined by the "nPips" setting) to ensure that minor market "noise" doesn't trigger false signals.
  • Trend Persistence: By remembering the previous price levels, the script can distinguish between a standard market fluctuation and a significant move that is pushing toward a potential reversal point.

Signal Identification

The indicator looks for two specific scenarios where a reversal is likely:

  1. Buying Opportunities: If the current price rises above the calculated Stop Level, but the previous bar showed a downward move, the script identifies this as a potential "Buy" setup. This suggests that sellers may be exhausted and the price is ready to head upward.
  2. Selling Opportunities: Conversely, if the current price drops below the Stop Level after a previous upward move, the script identifies a potential "Sell" setup, suggesting that buyers are exhausted and the price may fall.

Notifications and Visuals

To keep the user informed in real-time without requiring constant manual monitoring, the script includes several automated features:

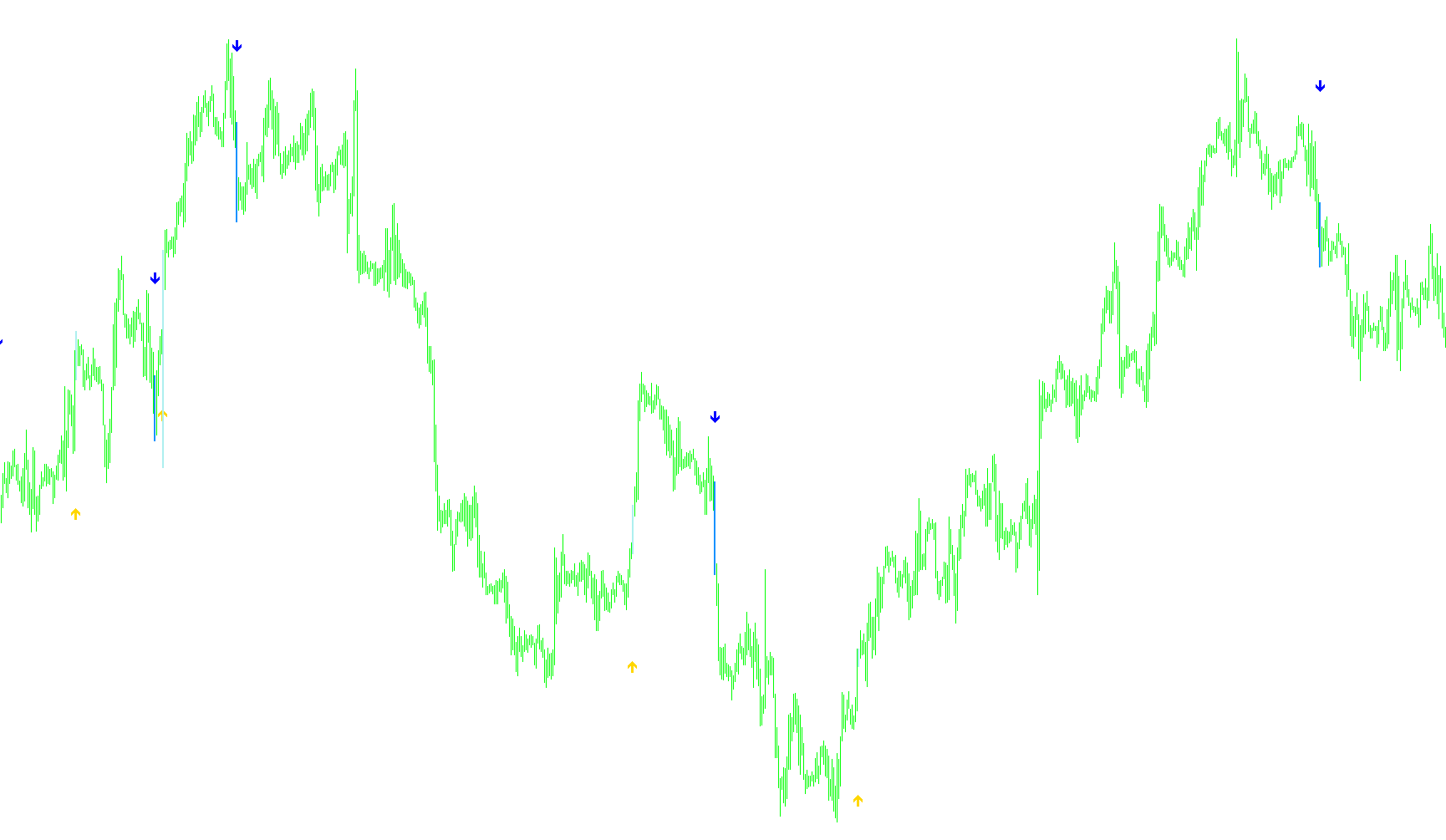

  • Visual Cues: It plots specific markers (histograms) on your chart to highlight where these reversal levels are occurring.
  • Smart Alerts: The script can trigger an immediate pop-up alert on your screen when a signal is detected.
  • Email Notifications: It can send automated emails providing details on the potential setup, including which currency pair or asset is being monitored and what type of trade (Buy or Sell) it is anticipating.
  • Time-Based Filtering: There is a specific logic integrated to manage alerts based on how much time remains before a candle closes, helping to ensure you are notified at the most relevant moments for your trading timeframe.
Miscellaneous
Implements a curve of type %1It sends emails
13 Views
0 Downloads
0 Favorites
Stop_reversal_mod1
//+------------------------------------------------------------------
//|                                            Stopreversal Mt4.mq4
//|
//|
//|                                 Conversion only Dr. Gaines
//|                                 dr_richard_gaines@yahoo.com
//|                                 modifications by Emsjoflo joel@emsjoflo.com
//|
//+------------------------------------------------------------------


#property copyright " emsjoflo"
#property link      "automaticforec.invisionzone.com"
#property indicator_chart_window
#include <stdlib.mqh>
#property indicator_buffers 4
#property indicator_color1 Lime
#property indicator_width1 2
#property indicator_color2 Red
#property indicator_width2 2
#property indicator_color3 DodgerBlue
#property indicator_color4 Tomato



extern double nPips = 0.004;
extern bool SendAlert = true;
extern bool SendEmail = true;
extern int AlertMinutesB4Close =30;


int LastTradeTime;
double ExtHistoBuffer[];
double ExtHistoBuffer2[];
double BlueBar[],RedBar[];

void SetLoopCount(int loops)
{
}

void SetIndexValue(int shift, double value)
{
  ExtHistoBuffer[shift] = value;
}

void SetIndexValue2(int shift, double value)
{
  ExtHistoBuffer2[shift] = value;
}

int init()
{
   SetIndexStyle(0, DRAW_ARROW, STYLE_SOLID);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, ExtHistoBuffer);
   SetIndexStyle(1, DRAW_ARROW, STYLE_SOLID);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, ExtHistoBuffer2);
   SetIndexStyle(2,DRAW_HISTOGRAM,0,2);
   SetIndexBuffer(2,BlueBar);
   SetIndexStyle(3,DRAW_HISTOGRAM,0,2);
   SetIndexBuffer(3,RedBar);



   return(0);
}
int start()
{
//+------------------------------------------------------------------

//| Local variables

//+------------------------------------------------------------------

int shift = 0;
double cnt = 0;
double TrStopLevel = 0;
double PREV = 0;
double pass = 0;

SetLoopCount(0);
// loop from first bar to current bar (with shift=0)
for(shift=Bars-2;shift>=0 ;shift--){


if( (Close[shift] == PREV) )
{
TrStopLevel=PREV;

}
else
{
if( (Close[shift+1])<PREV && (Close[shift]<PREV)  )
{
TrStopLevel=MathMin(PREV,Close[shift]*(1+nPips));
}
      else
      {
            if( ((Close[shift+1])>PREV) && (Close[shift]>PREV) )
            {
            TrStopLevel=MathMax(PREV,Close[shift]*(1-nPips));
            }

           else
                  {
                  if( (Close[shift]>PREV) )
                  {
                  TrStopLevel=Close[shift]*(1-nPips);
                  }

                        else TrStopLevel=Close[shift]*
(1+nPips);
                  }
      }
}


if( Close[shift] > TrStopLevel &&  Close[shift+1]<PREV && PREV !=0 )
{
if (CurTime() -iTime(NULL,0,1)==(iTime(NULL,0,1)-iTime(NULL,0,2)-AlertMinutesB4Close*60)
&& CurTime() -iTime(NULL,0,1)>=(iTime(NULL,0,2)-iTime(NULL,0,3)-AlertMinutesB4Close*60)
&& CurTime() -iTime(NULL,0,2)>=(iTime(NULL,0,1)-iTime(NULL,0,3)-AlertMinutesB4Close*60))
   {
   if(SendAlert) Alert("Look for Buying opportunity soon");
   if(SendEmail) SendMail("Possible Buy setup on "+Symbol(),"Stop Reversal Indicator is anticipating a Buy setup on "+Symbol()+Period()+"in "+AlertMinutesB4Close+" minutes");
   }
   RedBar[shift]=Low[shift];
   BlueBar[shift]=High[shift];
//SetOrder(OP_BUY,1,ask,2,0,ask+TakeProfit*Point,blue);
//Alert("buy");
SetIndexValue(shift, TrStopLevel);
}


if( Close[shift] < TrStopLevel &&  Close[shift+1]>PREV  && PREV !=0)
{
if ((CurTime() -iTime(NULL,0,1))==(iTime(NULL,0,1)-iTime(NULL,0,2)-AlertMinutesB4Close*60)
&& (CurTime() -iTime(NULL,0,1))>=(iTime(NULL,0,2)-iTime(NULL,0,3)-AlertMinutesB4Close*60)
&& (CurTime() -iTime(NULL,0,2))>=(iTime(NULL,0,1)-iTime(NULL,0,3)-AlertMinutesB4Close*60))
   {
   if (SendAlert)Alert("Look for Selling opportunity soon");
   if(SendEmail) SendMail("Possible Sell setup on "+Symbol(),"Stop Reversal Indicator is anticipating a Sellz setup on "+Symbol()+Period()+"in "+AlertMinutesB4Close+" minutes");

   }


   BlueBar[shift]=Low[shift];
   RedBar[shift]=High[shift];
//SetOrder(OP_SELL,1,bid,2,0,bid-TakeProfit*Point,Red);
SetIndexValue2(shift, TrStopLevel);
//Alert("Sell");
}


PREV=TrStopLevel;
//Alert(TrStopLevel);
}

  return(0);
}
