t3-TRIX signals_v1

Download script
t3-TRIX signals_v1

This tool is designed to analyze price movements by identifying specific "crossing" moments between two different trend indicators. Instead of just looking at the raw price, it evaluates the momentum and direction of the market to pinpoint potential turning points for traders.

How the Logic Works

The script operates by comparing two separate data streams derived from a specialized technical indicator (the T3 Trix). It looks for specific behaviors in these two streams to determine when a trend might be shifting:

  • Monitoring Trends: The system continuously tracks two different signals simultaneously. Think of these as two different "measuring tapes" observing the same market movement at slightly different scales.
  • Identifying Crosses: The core logic triggers an action when one signal line crosses over the other. Specifically, it looks for the moment a signal moves from being "below" to "above" (or vice versa) its counterpart.

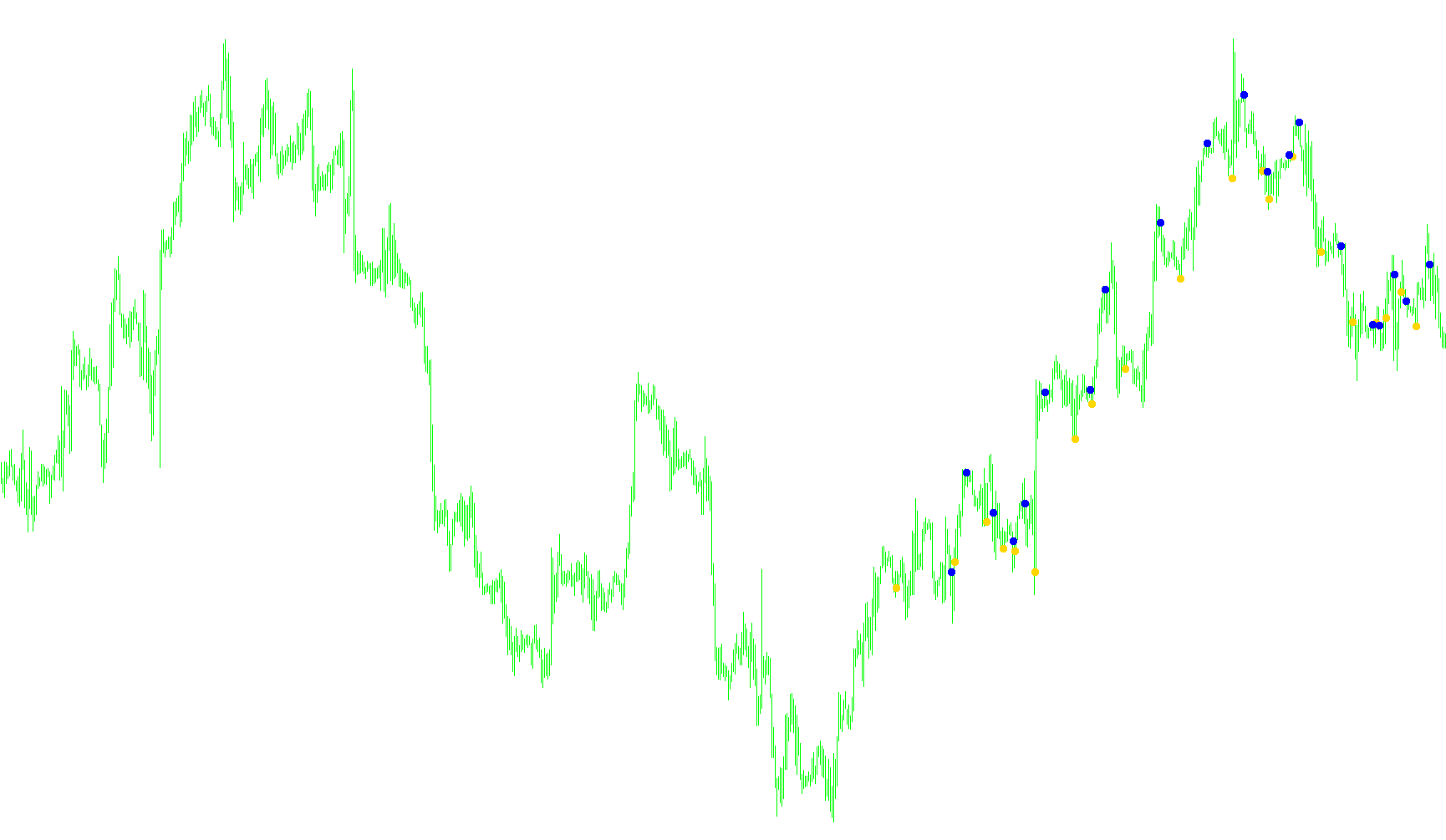

  • Visual Signals: When these crossings occur, the script places visual markers on your chart:
    • An Upward Signal appears below the price candle when the logic detects a bullish momentum shift.
    • A Downward Signal appears above the price candle when the logic detects a bearish momentum shift.

Key Features for the User

  • Automated Alerts: To ensure you don't have to watch the charts constantly, the script includes an alert system. When a crossing occurs on a new candle, it will send a notification directly to your platform, telling you whether the signal is "UP" or "DOWN."
  • Visual Filtering: By using specific indicators (T3 Trix), the tool aims to filter out minor market "noise," focusing instead on more significant directional changes.
  • Customizable Parameters: The logic allows for adjustments in how many previous bars are analyzed and the sensitivity of the underlying signals, letting you tailor the tool to different trading styles or timeframes.

In summary, this script acts as an automated scout that watches for momentum shifts between two trend lines and alerts you immediately when they cross paths, marking these points on your chart as potential areas of interest.

Miscellaneous
Implements a curve of type %1
8 Views
0 Downloads
0 Favorites
t3-TRIX signals_v1
//+---------------------------------------------------------+
//| T3 Trix crossing  signals.mq4
//|
//| Perky..
//+------------------------------------------------------------------+
#property  copyright "Author - Perky Aint no Porky"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 LightBlue
#property indicator_width1 3
#property indicator_color2 Red
#property indicator_width2 3

//---- input parameters

extern int       A_t3_period=18;
extern int       num_bars=350;
extern int       is_A_open_price=0;
extern int       B_t3_period_ac=10;
extern int       diferential=0;
extern double    hot=0.7;
extern int CountBars=350;
extern bool UseAlert=True;

//---- buffers
double val1[];
double val2[];
double mtfstochs,mtfstochsb4;
double mtfstochs1,mtfstochs1b4;
int Timer;
string UD="";
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(2);
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,108);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,108);
   SetIndexBuffer(0,val1);
   SetIndexBuffer(1,val2);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| AltrTrend_Signal_v2_2                                            |
//+------------------------------------------------------------------+
int start()
  {
  // if (CountBars>=500) CountBars=500;
  // SetIndexDrawBegin(0,500-CountBars);
  // SetIndexDrawBegin(1,500-CountBars);
  int i,shift,counted_bars=IndicatorCounted();


   //---- check for possible errors
  // if(counted_bars<0) return(-1);

   //---- initial zero
  // if(counted_bars<1)
   //  {
    //  for(i=1;i<=CountBars;i++) val1[CountBars-i]=0.0;
    //  for(i=1;i<=CountBars;i++) val2[CountBars-i]=0.0;
    // }

for ( shift = CountBars; shift>=0; shift--)
{


     mtfstochs=
     iCustom(Symbol(),Period(),"T3 -trix",A_t3_period,num_bars,is_A_open_price,B_t3_period_ac,diferential,hot,0,shift+0);
     mtfstochsb4=
     iCustom(Symbol(),Period(),"T3 -trix",A_t3_period,num_bars,is_A_open_price,B_t3_period_ac,diferential,hot,0,shift+1);

     mtfstochs1=
          iCustom(Symbol(),Period(),"T3 -trix",A_t3_period,num_bars,is_A_open_price,B_t3_period_ac,diferential,hot,1,shift+0);

     mtfstochs1b4=
         iCustom(Symbol(),Period(),"T3 -trix",A_t3_period,num_bars,is_A_open_price,B_t3_period_ac,diferential,hot,1,shift+1);

//Comment ( "mtfstochs=",mtfstochs,"mtfstochsb4=",mtfstochsb4,"\nmtfstochs1=",mtfstochs1,"mtfstochs1b4=",mtfstochs1b4);
 	   val1[shift]=0;
		val2[shift]=0;

//if ( TTb4>TT1b4 && TT<TT1 )
 if ( mtfstochsb4<mtfstochs1b4 && mtfstochs>mtfstochs1)

{
	val2[shift]=High[shift]+6*Point;
	if (shift < 2 )

	{
	   UD="DOWN.";
		DoAlert(UD);
	}

}
// if ( TTb4<TT1b4 && TT>TT1)
if  (mtfstochsb4>mtfstochs1b4 && mtfstochs<mtfstochs1)

{
		val1[shift]=Low[shift]-6*Point;

	 if (shift < 2 )
  {
  UD=" UP.";
  DoAlert(UD);
  }
}



}
   //return(0);
  }

void DoAlert(string UD)
{
   if (!NewBar() || !UseAlert)
      return;
     Alert (Symbol()," ",Period(),"MTF STOCHS cross ",UD);

}


  bool NewBar()
{
   static datetime dt  = 0;
   if (dt != Time[0])
   {
      dt = Time[0];
      return(true);
   }

}

//+------------------------------------------------------------------+
