TrendManagerOpen2 seperate window2_v1
Download script
The Trend Manager is a technical analysis tool designed to help traders identify the prevailing direction of the market by analyzing price momentum across two different timeframes simultaneously. Rather than looking at just one moving average or price point, this script compares short-term and long-term trends to filter out "noise" and highlight clear directional movements.
Core Logic Overview
The script functions by calculating a specific "Middle Price" for two distinct periods. It identifies the highest and lowest prices within those periods and finds the exact midpoint between them. By comparing these midpoints against their previous values (using a slight time offset), the tool determines if the market is moving upward, downward, or remainingsideways.
How the Analysis Works
The logic follows a three-step process to generate the visual data:
1. Dual-Trend Identification The tool looks at two different settings at once:
- Short-Term Trend: A fast-moving calculation that reacts quickly to recent price changes.
- Long-Term Trend: A slower-moving calculation that identifies the broader market structure.
2. The Alignment Filter This is the most critical part of the script’s intelligence. Before showing any data, it checks if the short-term and long-term trends are in agreement:
- Conflict: If the short-term trend is moving up while the long-term trend is moving down (or vice versa), the indicator remains neutral (flat). This helps prevent traders from entering a trade against the major market flow.
- Alignment: The indicator only activates when both trends are moving in the same direction. This ensures that the signals provided have "confluence," meaning both fast and slow data points agree on the direction.

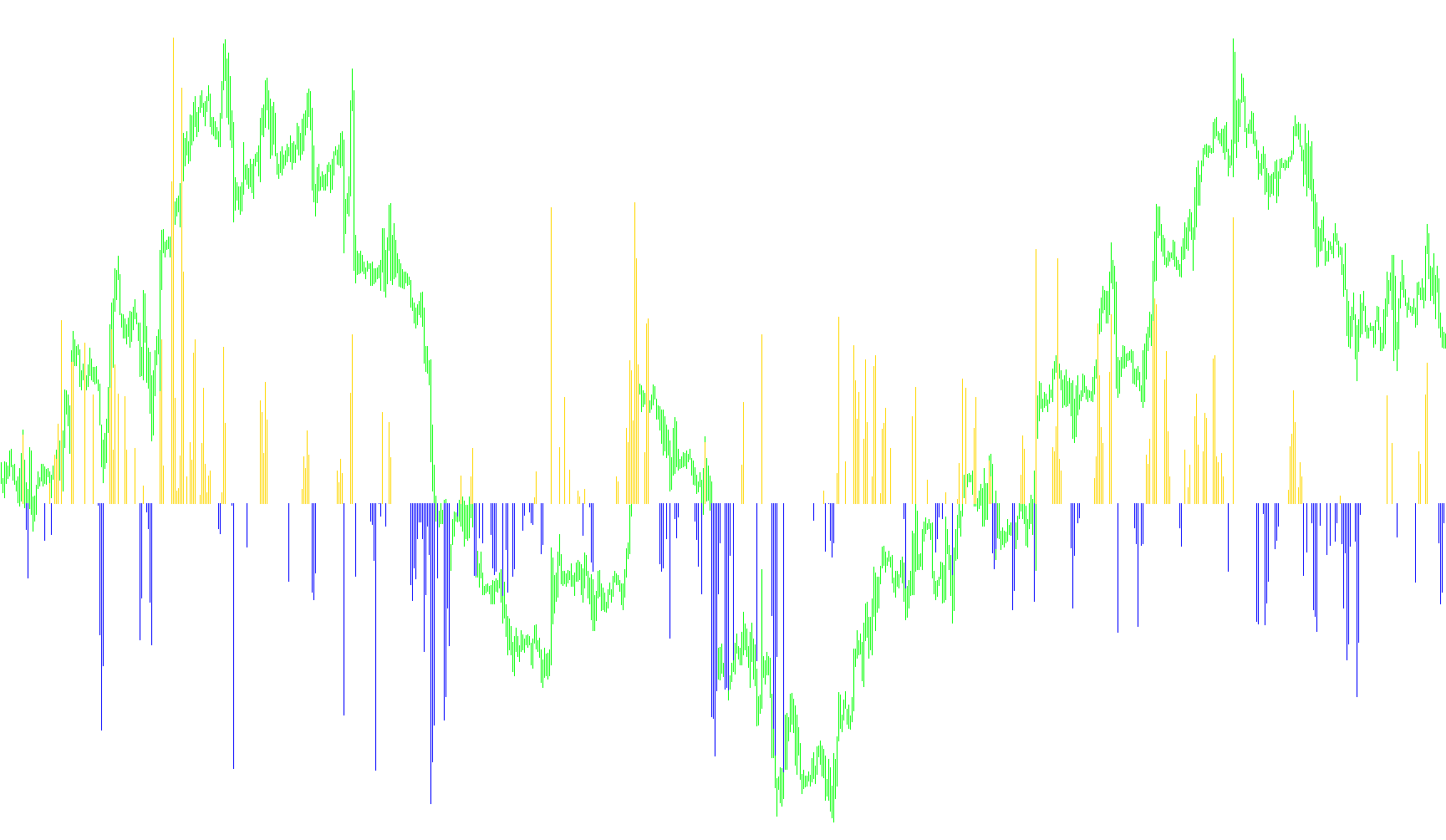

3. Visual Representation (The Histogram) Once the trends are confirmed to be aligned, the script calculates the strength of the movement:
- Upward Momentum: If both trends are moving up, it calculates the magnitude of that rise and displays it as a positive bar in the upper histogram.
- Downward Momentum: If both trends are moving down, it calculates the magnitude of that drop and displays it as a negative bar in the lower histogram.
Summary for the Trader
Instead of cluttered lines on your main chart, this script provides a clean histogram in a separate window. It acts as a momentum gauge: when you see bars appearing, it indicates that both the immediate and broader market trends have synchronized in one direction. If the histogram is flat, it suggests that the markets are either indecisive or that the different timeframes are giving conflicting signals, signaling a period of caution.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
// Trend Manager Open2 separate window.mq4
//
// Look & Feel of original based on indicator sold at traderstradingsystem.com
// this one plots in lower histogram window.
// No representation it is identical.
// This file is licensed under the terms of the GNU General Public License V2.
//
// (c) 2006 Matt Kennel (mbkennel@gmail.com)
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_color2 Blue
extern int TM_Period_1 = 7;
extern int TM_Shift_1 = 2;
extern int TM_Period_2 = 13; // Put TM_Period_2 params equal to first to get orig TrendManager system
extern int TM_Shift_2 = 1;
int Max_Period;
int Max_Shift;
double Up_Histogram[];
double Down_Histogram[];
int a_begin;
int init()
{
Max_Shift = MathMax(TM_Shift_1,TM_Shift_2);
Max_Period = MathMax(TM_Period_1,TM_Period_2);
int b_begin = Max_Period+Max_Shift-1;
SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID);
SetIndexBuffer(1,Down_Histogram);
SetIndexDrawBegin(1,b_begin);
SetIndexLabel(1,"Down Pips");
SetIndexStyle(0,DRAW_HISTOGRAM,STYLE_SOLID);
SetIndexBuffer(0,Up_Histogram);
SetIndexDrawBegin(0,b_begin);
SetIndexLabel(0,"Up Pips");
return(0);
}
int start()
{
int i,k;
int counted_bars=IndicatorCounted();
double high,low,price;
if(Bars<=Max_Period) return(0);
i=Bars-Max_Period;
if(counted_bars>Max_Period) i=Bars-counted_bars-1;
while(i>=0)
{
double M1, M1b;
double M2, M2b;
M1 = MiddlePrice(TM_Period_1,i);
M1b = MiddlePrice(TM_Period_1,i+TM_Shift_1);
M2 = MiddlePrice(TM_Period_2,i);
M2b = MiddlePrice(TM_Period_2,i+TM_Shift_2);
//
double diff1 = (M1-M1b); // up or down on short term;
double diff2 = (M2-M2b); // up or down on longer term.
// each has three choices, hence six possibilities.
if (diff1*diff2 <= 0.0) { // opposite signs
Down_Histogram[i] = 0.0;
Up_Histogram[i] = 0.0;
} else {
double diff = 0.5* (M1+M2 - M1b-M2b) / Point;
if (diff >= 0) {
Up_Histogram[i]=diff;
Down_Histogram[i]=0.0;
} else {
Up_Histogram[i] = 0.0;
Down_Histogram[i]=diff;
}
}
i--;
}
return(0);
}
double MiddlePrice(int nback, int shift) {
double H = High[Highest(NULL,0,MODE_HIGH,nback,shift)];
double L = Low[Lowest(NULL,0,MODE_LOW,nback,shift)];
return( 0.5*(H+L));
}
