wajdyss_MA_indicator_v2

Download script
Author: Copyright 2008 Wajdyss
wajdyss_MA_indicator_v2

This tool is designed as a visual trading indicator for the MetaTrader platform. It primary functions by identifying specific momentum shifts in the market through "Moving Average" crossovers and provides automated alerts to help traders identify potential entry or exit points.

Core Technical Logic

1. Moving Average Crossings The logic centers on the relationship between two different moving averages: a "Fast" one (which reacts quickly to price changes) and a "Slow" one (which represents the broader trend).

  • Buy Signal: When the Fast Moving Average crosses above the Slow Moving Average, it suggests upward momentum. The script places a visual marker on the chart below the candle.
  • Sell Signal: When the Fast Moving Average crosses below the Slow Moving Average, it suggests downward momentum. The script places a visual marker on the chart above the candle.

2. Historical Signal Analysis Beyond just showing current signals, the script performs a comprehensive back-scan of historical data. It calculates:

  • The total number of "Up" and "Down" signals over a specific period.
  • A "Good Signal" percentage, which evaluates whether the price action following a crossover was successful (based on whether the subsequent candle closed in the expected direction).
  • This helps provide a statistical overview of how reliable the moving average crossovers have been on that specific asset.

3. Automated Alerts and Notifications The script is equipped with an active notification system. When a new crossover occurs in real-time:

  • It triggers a visual alert message on your screen.
  • It plays an audible sound file (e.g., "alert.wav").
  • The alerts are designed to tell the user to close opposite positions and enter a new trade at the current price.

User Interface & Safety Features

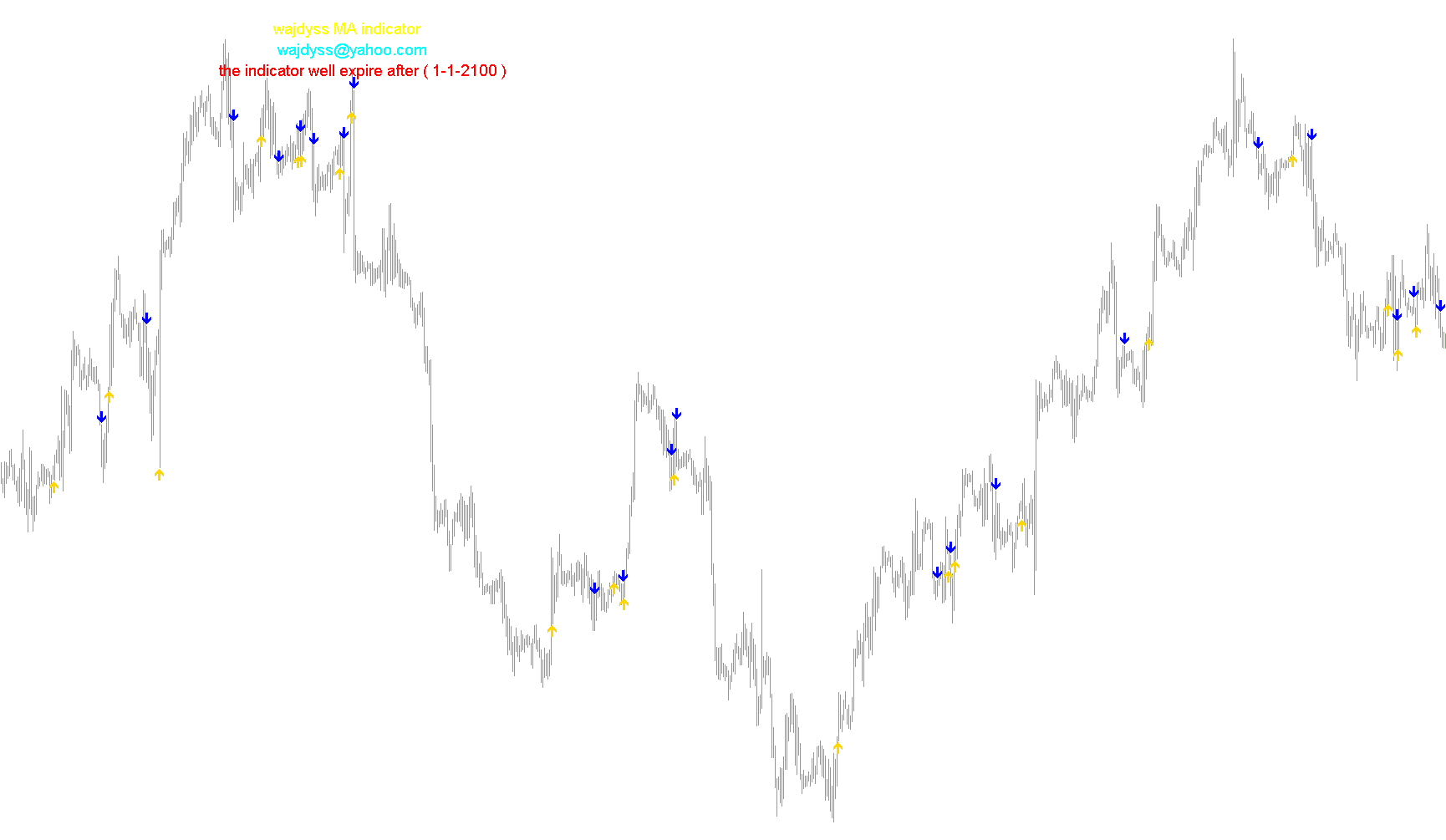

  • On-Screen Labels: The script automatically generates text labels on your chart. These display the name of the indicator, contact information, and specific trading status messages.
  • Expiration System: The tool includes a built-in "time lock." It checks the current date against a hardcoded deadline. If the current date passes the set limit, the indicator will display an expiration notice and stop performing its calculations until contacted by the author.
  • Customizable Parameters: Users can adjust the periods (how many bars are used to calculate averages), the type of moving average (Simple, Exponential, Smoothed, or Linear Weighted), and which price data (Close, Open, High, Low, etc.) should be used for the calculations.
Price Data Components
Series array that contains open prices of each barSeries array that contains close prices for each bar
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It plays sound alerts
17 Views
0 Downloads
0 Favorites
wajdyss_MA_indicator_v2
//+------------------------------------------------------------------+
//|                                             wajdyss_MA_indicator |
//|                                           Copyright 2007 Wajdyss |
//|                                                wajdyss@yahoo.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2008 Wajdyss"
#property link      "wajdyss@yahoo.com"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 LawnGreen
#property indicator_color2 Red
#property indicator_width1  2
#property indicator_width2  2

int days=350;
int candle=350;
extern string MA_Method = "0 = Simple, 1 = Exponential, 2 = Smoothed, 3 = Linear Weighted";
extern string Apply_to = "0=Close, 1=Open, 2=High, 3=Low, 4=Median, 5=Typical,6=Weighted Close ";
extern int Fast_MA_Period = 10;
extern int Fast_MA_Shift  = 0;
extern int Fast_MA_method  = 1;
extern int Fast_MA_Apply_to = 0;
extern int Slow_MA_Period = 20;
extern int Slow_MA_Shift  = 0;
extern int Slow_MA_method  = 1;
extern int Slow_MA_Apply_to  = 0;
extern bool alert = true;
extern string file="alert.wav";
extern int TextSize=14;
extern color TextColor1=White;
extern color TextColor2=Yellow;
extern color TextColor3=Aqua;
extern color TextColor4=Red;
extern color TextColor5=Chartreuse;
bool manual=true;
int w=0,ww=0;
double CrossUp[];
double CrossDown[];
int eyear=2100;
int emonth=1;
int eday=1;
bool al1=false;
bool al2=false;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW, EMPTY);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp);
   SetIndexStyle(1, DRAW_ARROW, EMPTY);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown);
//----

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
  Comment("");
 ObjectDelete("a label");
 ObjectDelete("b label");
 ObjectDelete("c label");
 ObjectDelete("d label");
 ObjectDelete("e label");


   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
  //a
          if(ObjectFind("a label") != 0)
   {
      ObjectCreate("a label", OBJ_LABEL, 0,0,0);
      ObjectSetText("a label","ÈÓã Çááå ÇáÑÍãä ÇáÑÍíã" , TextSize, "Arial", TextColor1);
      ObjectSet("a label", OBJPROP_XDISTANCE,350);
     ObjectSet("a label", OBJPROP_YDISTANCE,0);
   }
   else
   {
   ObjectMove("a label", 0,  0,0);
   }

   //b
      if(ObjectFind("b label") != 0)
   {
      ObjectCreate("b label", OBJ_LABEL, 0,0,0);
      ObjectSetText("b label","wajdyss MA indicator"  , TextSize, "Arial", TextColor2);
      ObjectSet("b label", OBJPROP_XDISTANCE,330);
     ObjectSet("b label", OBJPROP_YDISTANCE,25);
   }
   else
   {
   ObjectMove("b label", 0,  0,0);
   }

   // c


      if(ObjectFind("c label") != 0)
   {
      ObjectCreate("c label", OBJ_LABEL, 0,0,0);
      ObjectSetText("c label","wajdyss@yahoo.com"  , TextSize, "Arial", TextColor3);
      ObjectSet("c label", OBJPROP_XDISTANCE,335);
     ObjectSet("c label", OBJPROP_YDISTANCE,50);
   }
   else
   {
   ObjectMove("c label", 0,  0,0);
   }

    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }

   int  same , notsame, samef, notsamef, samer, notsamer, samecandle, notsamecandle ;
   double  GSignalUP=0 , SignalUP=0 , GSignalDOWN=0, SignalDOWN=0 , AllSignal=0 , BSignalUP=0
    , BSignalDOWN=0 ,a=High[0]+50*Point ;

   double samep,notsamep,all,GSignals,GSignalsP, GSignalUPP,GSignalDOWNP,FMA1,FMA2,SMA1,SMA2,FMA11,FMA22,SMA11,SMA22;
   string sameforecast,notsameforecast, wajdyssforecast , status ;


//   if (manual ==true) status="manual"; else status="auto";
 {samecandle=w; notsamecandle=ww;}
   all=days;
   samep=(samer/all);
   notsamep=(notsamer/all);

   samecandle=w;
   notsamecandle=ww;
   if (iClose(Symbol(),NULL,samecandle)>iOpen(Symbol(),NULL,samecandle)) sameforecast="up trend"; else sameforecast="down trend";
   if (iClose(Symbol(),NULL,notsamecandle)<iOpen(Symbol(),NULL,notsamecandle)) notsameforecast="up trend"; else notsameforecast="down trend";
   if (sameforecast==notsameforecast) wajdyssforecast=sameforecast;
   else wajdyssforecast="no trading today";

   for (int j=Bars;j>=1;j--)
   {
    FMA1=iMA(Symbol(), 0, Fast_MA_Period, Fast_MA_Shift, Fast_MA_method, Fast_MA_Apply_to, j);
    FMA2=iMA(Symbol(), 0, Fast_MA_Period, Fast_MA_Shift, Fast_MA_method, Fast_MA_Apply_to, j+1);

    SMA1=iMA(Symbol(), 0, Slow_MA_Period, Slow_MA_Shift, Slow_MA_method, Slow_MA_Apply_to, j);
    SMA2=iMA(Symbol(), 0, Slow_MA_Period, Slow_MA_Shift, Slow_MA_method, Slow_MA_Apply_to, j+1);

    if (FMA1>SMA1 && FMA2<SMA2)

   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }
   CrossUp[j] = Low[j]-20*Point;
   AllSignal++;
   SignalUP++;
   if (iClose(Symbol(),NULL,j-1)>iOpen(Symbol(),NULL,j-1))
   GSignalUP++;
   else BSignalUP++;
   }


      if (FMA1<SMA1 && FMA2>SMA2)

   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
   else
   {
   ObjectMove("d label", 0,  0,0);
   }

    CrossDown[j] = High[j]+20*Point;
      AllSignal++;
      SignalDOWN++;
   if (iClose(Symbol(),NULL,j-1)<iOpen(Symbol(),NULL,j-1))
    GSignalDOWN++;
   else BSignalDOWN++;
   }
}

GSignals=GSignalUP+GSignalDOWN;
GSignalsP=GSignals/AllSignal;
GSignalUPP=(GSignalUP/SignalUP);
GSignalDOWNP=(GSignalDOWN/SignalDOWN);

 //   Comment ("\n" , "ÈÓã Çááå Ç áÑÍãä ÇáÑÍíã" ,"\n" ,"\n","wajdyss@yahoo.com", "\n" ,"\n" , "wajdyss MA indicator", "\n","\n",
   //"all signals=",AllSignal, "\n", "\n","Up Signals =",SignalUP, "\n","Good Up Signals =",
   //GSignalUP,"\n","Bad Up Signals =",BSignalUP,"\n", "\n","Down Signals=",SignalDOWN,"\n",
   //"Good Down Signals =",GSignalDOWN,"\n","Bad Down Signals =",BSignalDOWN, "\n","\n",
   //"Good Signals =",GSignals,"\n","Good Signals percent=",GSignalsP);
              //       ObjectCreate("up label", OBJ_LABEL, 0,0,0);

                //     ObjectSetText("up label", text, 15, "Arial", clr);
                     //bool ObjectSetText( string name, string text, int font_size, string font=NULL, color text_color=CLR_NONE)
                  //   ObjectSet("up label", OBJPROP_XDISTANCE,430);
                    // ObjectSet("up label", OBJPROP_YDISTANCE,0);
                  // }
                    // else
                      //{
                        //ObjectMove("up label", 0, 0, 0);
                      //}

                      //a


   int www=GSignalsP*100 ;
   //e
    FMA11=iMA(Symbol(), 0, Fast_MA_Period, Fast_MA_Shift, Fast_MA_method, Fast_MA_Apply_to, 1);
    FMA22=iMA(Symbol(), 0, Fast_MA_Period, Fast_MA_Shift, Fast_MA_method, Fast_MA_Apply_to, 2);

    SMA11=iMA(Symbol(), 0, Slow_MA_Period, Slow_MA_Shift, Slow_MA_method, Slow_MA_Apply_to, 1);
    SMA22=iMA(Symbol(), 0, Slow_MA_Period, Slow_MA_Shift, Slow_MA_method, Slow_MA_Apply_to, 2);

  if (FMA11>SMA11 && FMA22<SMA22 && alert==true) {al1=false; if (al2==false) { Alert ("Close Sell Orders And Buy AT ",Close[1]); PlaySound(file); al2=true;}}

  if (FMA11<SMA11 && FMA22>SMA22 && alert==true) {al2=false; if (al1==false) { Alert ("Close Buy Orders And Sell AT ",Close[1]); PlaySound(file); al1=true;}}

   return(0);
  }
