ichimoku-alert

Download script
Author: Copyright 2009 Wajdyss
ichimoku-alert

This software tool is designed as a technical analysis indicator for the MetaTrader trading platform. Its primary purpose is to identify specific trend shifts in market price action by analyzing the relationship between current prices and a calculated moving average line.

Core Functionality

The logic operates by monitoring the Kijun Sen (a core component of the Ichimoku Cloud system). It automatically calculates a dynamic baseline based on historical high and low prices over a specific timeframe.

By tracking this baseline, the script looks for "crosses"—moments where the price moves from below the line to above it, or vice versa. These crossings serve as signals for potential changes in market momentum.

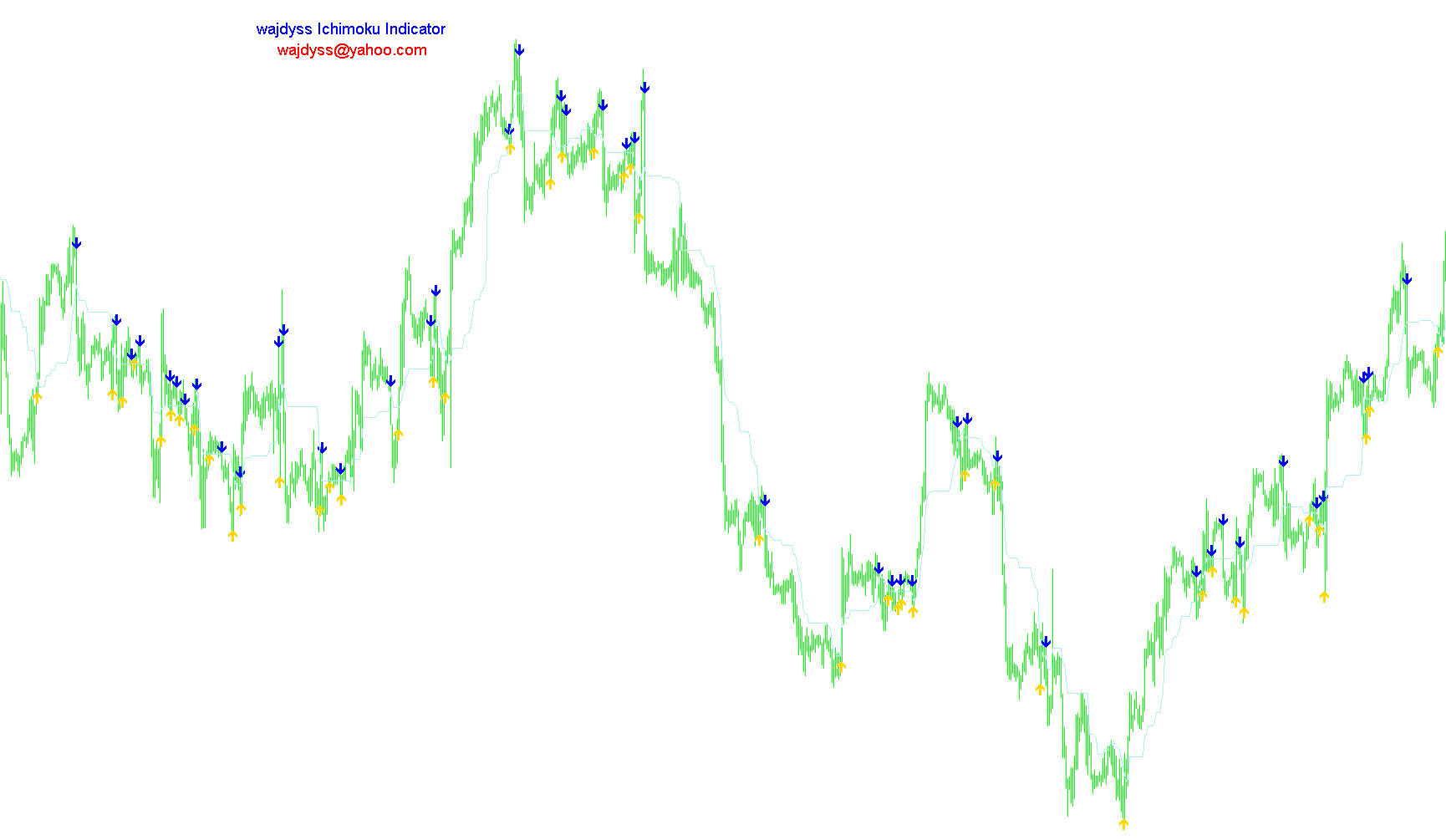

Visual Elements and Alerts

To make these movements easy for a user to identify on a chart, the script provides several visual cues:

  • Trend Indicators: It places specific markers (arrows) on the chart at the exact point where a price cross occurs.
    • An upward cross signals a potential shift toward buying momentum.
    • A downward cross signals a potential shift toward selling momentum.
  • Dynamic Baseline: It draws a continuous line on the chart representing the calculated average, allowing users to see the "fair value" or equilibrium of the market at any given time.
  • Real-Time Notifications: When a crossover occurs, the script can trigger an audible sound and a pop-up alert on the screen. These alerts provide specific instructions, such as prompts to close existing positions and enter new ones based on the new trend direction.

Security and Usage Limits

The script includes a built-in "expiration" logic. It is programmed with a specific calendar date; if the current date exceeds this limit, the tool will display a notification message on the chart and stop functioning until it is updated or renewed by the developer.

Summary for the User

In simple terms, this tool acts as a visual assistant. Instead of you having to manually calculate complex averages and watch every candle for a trend change, the script does the heavy lifting. It "watches" the market for you and highlights exactly when the price breaks through key levels, alerting you in real-time so you can make faster trading decisions.

Price Data Components
Series array that contains open prices of each barSeries array that contains close prices for each barSeries array that contains close prices for each bar
Miscellaneous
Implements a curve of type %1It plays sound alerts
13 Views
0 Downloads
0 Favorites
ichimoku-alert
//+------------------------------------------------------------------+
//|                                                   wajdyss        |
//|                                           Copyright 2009 Wajdyss |
//|                                              wajdyss@yahoo.com   |
//+------------------------------------------------------------------+
#property copyright "Copyright 2009 Wajdyss"
#property link      "wajdyss@yahoo.com"

#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 LawnGreen
#property indicator_color2 Red
#property indicator_color3 Blue
#property indicator_width1  2
#property indicator_width2  2
#property indicator_width3  2

extern int Tenkan=7;
extern int Kijun=22;
extern int Senkou=44;
 extern bool alert = true;
 string file="alert.wav";
 int TextSize=14;
 color TextColor1=Black;
 color TextColor2=Blue;
 color TextColor3=Red;
 color TextColor4=Black;

double CrossUp[];
double CrossDown[];
int eyear=9999;
int emonth=9;
int eday=9;
bool al1=false;
bool al2=false;
    int date1=999;
    int date2=999;
    int date6=999;
 int second=20;
string Name="wajdyss Ichimoku Indicator";

double Kijun_Buffer[];
//----
int a_begin;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW, EMPTY);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp);
   SetIndexStyle(1, DRAW_ARROW, EMPTY);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown);
//----
   SetIndexStyle(2,DRAW_LINE);
   SetIndexBuffer(2,Kijun_Buffer);
   SetIndexDrawBegin(2,Kijun-1);
   SetIndexLabel(2,"Kijun Sen");
//----
   a_begin=Kijun; if(a_begin<Tenkan) a_begin=Tenkan;


   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
  Comment("");
 ObjectDelete("a label");
 ObjectDelete("b label");
 ObjectDelete("c label");
 ObjectDelete("d label");
 ObjectDelete("e label");


   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
  //a
          if(ObjectFind("a label") != 0)
   {
      ObjectCreate("a label", OBJ_LABEL, 0,0,0);
      ObjectSetText("a label","ÈÓã Çááå ÇáÑÍãä ÇáÑÍíã" , TextSize, "Arial", TextColor1);
      ObjectSet("a label", OBJPROP_XDISTANCE,350);
     ObjectSet("a label", OBJPROP_YDISTANCE,0);
   }

   //b
      if(ObjectFind("b label") != 0)
   {
      ObjectCreate("b label", OBJ_LABEL, 0,0,0);
      ObjectSetText("b label",Name  , TextSize, "Arial", TextColor2);
      ObjectSet("b label", OBJPROP_XDISTANCE,310);
     ObjectSet("b label", OBJPROP_YDISTANCE,25);
   }

   // c


      if(ObjectFind("c label") != 0)
   {
      ObjectCreate("c label", OBJ_LABEL, 0,0,0);
      ObjectSetText("c label","wajdyss@yahoo.com"  , TextSize, "Arial", TextColor3);
      ObjectSet("c label", OBJPROP_XDISTANCE,335);
     ObjectSet("c label", OBJPROP_YDISTANCE,50);
   }

// if (Period() != 1440) return(0);

    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

// if (Period()!=1440 || Symbol()!="GBPJPY") return(0);
   int  same , notsame, samef, notsamef, samer, notsamer, samecandle, notsamecandle ;
   double  GSignalUP=0 , SignalUP=0 , GSignalDOWN=0, SignalDOWN=0 , AllSignal=0 , BSignalUP=0
    , BSignalDOWN=0 ;

   double samep,notsamep,all,GSignals,GSignalsP, GSignalUPP,GSignalDOWNP,fastMAnow,fastMAprevious,slowMAnow,slowMAprevious;
   double FMA1,FMA2,SMA1,SMA2;
   string sameforecast,notsameforecast, wajdyssforecast , status ;
   double high,low,price;
   int k;

   if(Bars<=Tenkan || Bars<=Kijun || Bars<=Senkou) return(0);

   for (int i=Bars;i>=1;i--)
   {
      high=High[i]; low=Low[i]; k=i-1+Kijun;
      while(k>=i)
        {
         price=High[k];
         if(high<price) high=price;
         price=Low[k];
         if(low>price)  low=price;
         k--;
        }
      Kijun_Buffer[i]=(high+low)/2;

 if (Close[i]>=Kijun_Buffer[i] && Close[i+1]<Kijun_Buffer[i+1])

   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

   CrossUp[i] = Low[i]-5*Point;
   AllSignal++;
   SignalUP++;
   if (iClose(Symbol(),NULL,i-1)>iOpen(Symbol(),NULL,i-1))
   GSignalUP++;
   else BSignalUP++;
   }


else  if (Close[i]<=Kijun_Buffer[i] && Close[i+1]>Kijun_Buffer[i+1])


   {
    if ((Year()>eyear) || (Year()==eyear && Month()>emonth) || (Year()==eyear && Month()==emonth && Day()>eday))
    {
       //d
   if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator has expired , contact us by E-mail" ,TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,250);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }
      return(0);
    }
   else
       if(ObjectFind("d label") != 0)
   {
      ObjectCreate("d label", OBJ_LABEL, 0,0,0);
      ObjectSetText("d label","the indicator well expire after ( " + eday+"-"+emonth+"-"+eyear+" )",TextSize, "Arial", TextColor4);
      ObjectSet("d label", OBJPROP_XDISTANCE,265);
     ObjectSet("d label", OBJPROP_YDISTANCE,75);
   }

    CrossDown[i] = High[i]+5*Point;
      AllSignal++;
      SignalDOWN++;
   if (iClose(Symbol(),NULL,i-1)<iOpen(Symbol(),NULL,i-1))
    GSignalDOWN++;
   else BSignalDOWN++;
   }
}
int j=1;
i=1;
    int date3=TimeHour(Time[j]);
    int date4=TimeMinute(Time[j]);
    int date5=TimeDay(Time[j]);
 if (Close[i]>=Kijun_Buffer[i] && Close[i+1]<Kijun_Buffer[i+1] && alert==true && date1!=date3 && date2!=date4 && date5!=date6 && Seconds()<second)
   {date1=date3; date2=date4; date6=date5; Alert (Name," Close Sell Orders And Buy  ",Symbol()," AT ",iClose(Symbol(),0,i)); PlaySound(file); }

 if (Close[i]<=Kijun_Buffer[i] && Close[i+1]>Kijun_Buffer[i+1] && alert==true && date1!=date3 && date2!=date4 &&  date5!=date6 && Seconds()<second)

 {date1=date3; date2=date4; date6=date5; Alert (Name," Close Buy Orders And Sell  ",Symbol()," AT ",iClose(Symbol(),0,i)); PlaySound(file); }



   return(0);
  }
