The XP Moving Average is a versatile technical analysis tool designed to help traders identify market trends and potential entry or exit points by smoothing out price fluctuations. It functions by calculating various types of moving averages and layering logic on top of them to generate visual signals.
Core Functionality
At its heart, the script allows you to choose from several different mathematical methods for calculating a moving average (MA). Depending on your preference, you can use standard calculations like Simple, Exponential, Smoothed, or Linear Weighted averages. It also includes more advanced and specialized variations, such as:
- DEMA & TEMA: Designed to reduce the "lag" typically found in standard moving averages.
- T3MA & Jurik Moving Average (JMA): Sophisticated models used for smoother trend tracking with high sensitivity.
Trend Analysis Logic
Once you select a calculation method and apply it to a specific price point (such as the Closing price, High, Low, or Median), the script performs the following logic:
- Baseline Calculation: It determines the primary moving average line based on your chosen period and type.
- Dynamic Comparison: The script looks at the current value of that moving average and compares it against a secondary "Step Period" average. This acts as a filter to determine the strength and direction of the current trend.
- Signal Generation:
- If the primary average rises above this filtered baseline, it identifies an upward trend.
- If it falls below, it identifies a downward trend.
Visual Indicators and Alerts

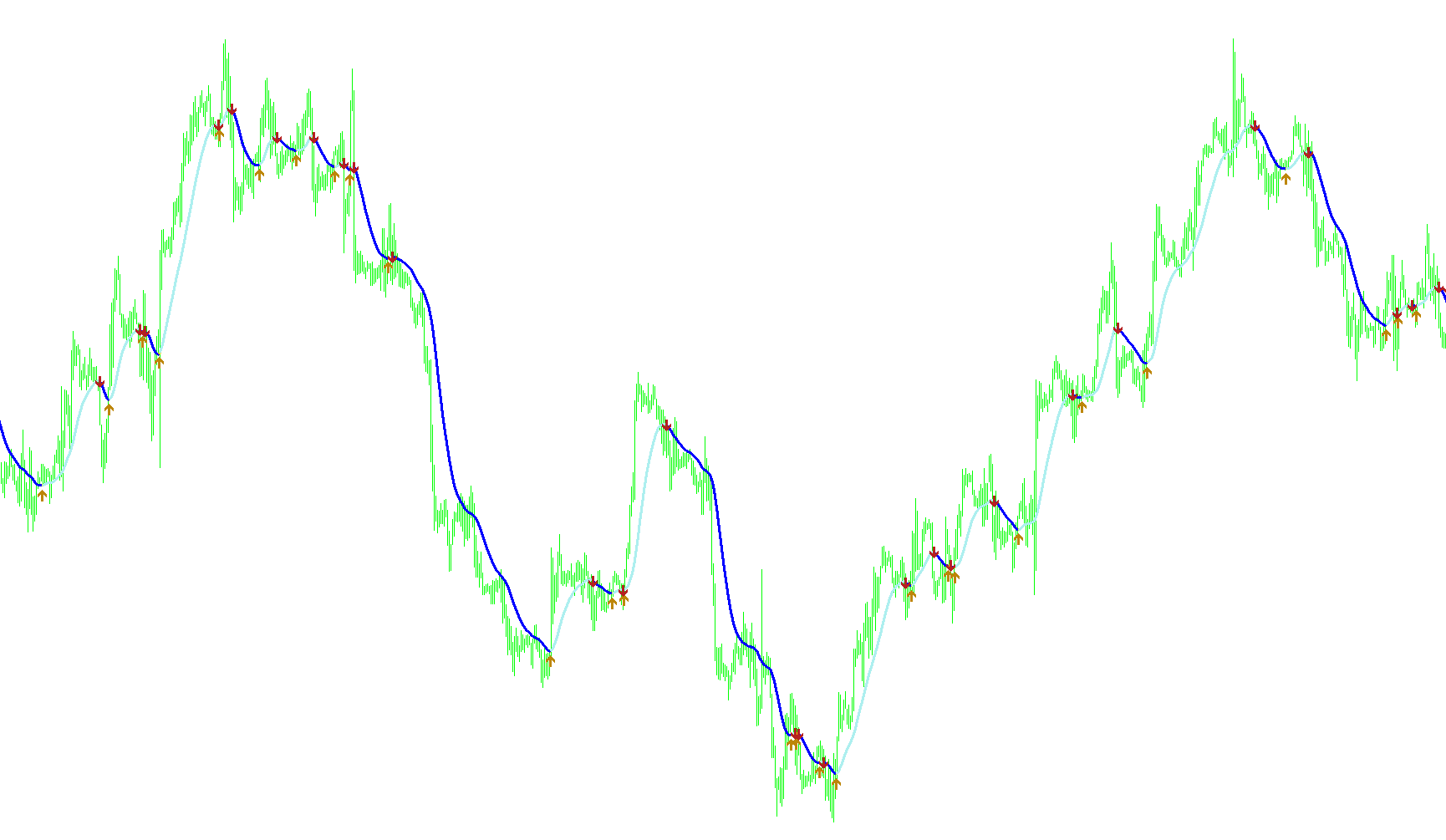

To make the data actionable for the user, the script automatically generates visual cues on the chart:
- Trend Arrows: The script places colored arrows (Up or Down) on the chart precisely when the trend changes from neutral to active.
- Real-time Notifications: It includes an alert system that sends a notification to your trading platform whenever a new "Up" or "Down" signal is detected. This ensures you don't have to watch the screen constantly to spot trend shifts.
- Visual Cleanup: The script is designed to manage chart objects efficiently, ensuring that only relevant signals are displayed and that old drawing objects are handled correctly to keep your workspace clean.
Summary for Traders
This tool essentially takes complex mathematical moving averages and translates them into simple "Buy/Sell" context. By filtering the noise of the market through various MA types and comparing them against a secondary step average, it provides a clearer picture of whether the momentum is shifting upward or downward, highlighting those shifts with automated arrows and alerts.
Indicators Used
Miscellaneous
13
Views
0
Downloads
0
Favorites
xpMA
//Version: 4
//Time: Sunday, November 13, 2006
//+------------------------------------------------------------------+
//| XP Moving Average |
//| xpMA.mq4 |
//| Developed by Coders Guru |
//| http://www.xpworx.com |
//+------------------------------------------------------------------+
#property link "http://www.xpworx.com"
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Maroon
#property indicator_color3 DarkBlue
#define MODE_DEMA 4
#define MODE_TEMA 5
#define MODE_T3MA 6
#define MODE_JMA 7
/* Moving average types constants:
------------------------------------
MODE_SMA 0 Simple moving average,
MODE_EMA 1 Exponential moving average,
MODE_SMMA 2 Smoothed moving average,
MODE_LWMA 3 Linear weighted moving average.
MODE_DEMA 4 Double Exponential Moving Average.
MODE_TEMA 5 Triple Exponential Moving Average.
MODE_T3MA 6 T3 Moving Average.
MODE_JMA 7 Jurik Moving Average.
------------------------------------*/
/* Applied price constants:
-------------------------------
PRICE_CLOSE 0 Close price.
PRICE_OPEN 1 Open price.
PRICE_HIGH 2 High price.
PRICE_LOW 3 Low price.
PRICE_MEDIAN 4 Median price, (high+low)/2.
PRICE_TYPICAL 5 Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6 Weighted close price, (high+low+close+close)/4.
--------------------------------- */
extern int MA_Period = 10;
extern int MA_Type = MODE_TEMA;
extern int MA_Applied = PRICE_CLOSE;
extern double T3MA_VolumeFactor = 0.8;
extern double JMA_Phase = 0;
extern int Step_Period = 1;
extern bool DebugMode = false;
bool Alert_On = false;
bool Arrows_On = false;
int UpArrowCode = 233;
int DownArrowCode = 234;
color UpArrowColor = DarkGoldenrod;
color DownArrowColor = FireBrick;
int UpArrowSize = 1;
int DownArrowSize = 1;
double UpBuffer[];
double DownBuffer[];
double Buffer3[];
double buffer[];
double tempbuffer[];
double matriple[];
double signal[];
int init()
{
DeleteAllObjects();
IndicatorBuffers(7);
SetIndexStyle(2,DRAW_LINE,STYLE_DOT,3);
SetIndexBuffer(2,UpBuffer);
SetIndexStyle(1,DRAW_LINE,STYLE_DOT,3);
SetIndexBuffer(1,DownBuffer);
SetIndexStyle(0,DRAW_LINE,STYLE_DOT,3);
SetIndexBuffer(0,Buffer3);
SetIndexBuffer(3,signal);
SetIndexBuffer(4,buffer);
SetIndexBuffer(5,tempbuffer);
SetIndexBuffer(6,matriple);
SetIndexLabel(0,"XP Moving Average");
SetIndexLabel(1,"UpBuffer");
SetIndexLabel(2,"DownBuffer");
SetIndexLabel(3,"Signal");
return(0);
}
int deinit()
{
DeleteAllObjects();
return(0);
}
void start()
{
int limit;
int i = 0;
int counted_bars=IndicatorCounted();
if(counted_bars<0) return(-1);
//if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars-1;
switch (MA_Type)
{
case 0:
case 1:
case 2:
case 3:
{
for(i=0; i<limit; i++)
{
buffer[i] = iMA(NULL,0,MA_Period,0,MA_Type,MA_Applied,i);
}
}
break;
case 4:
{
for(i=0; i<limit; i++)
{
tempbuffer[i] = iMA(NULL,0,MA_Period,0,MODE_EMA,MA_Applied,i);
}
for(i=0; i<limit; i++)
{
matriple[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
}
for(i=0; i<limit; i++)
{
buffer[i] = iMAOnArray(matriple,0,MA_Period,0,MODE_EMA,i);
}
}
break;
case 5:
{
for(i=0; i<limit; i++)
{
tempbuffer[i] = iMA(NULL,0,MA_Period,0,MODE_EMA,MA_Applied,i);
}
for(i=0; i<limit; i++)
{
buffer[i] = iMAOnArray(tempbuffer,0,MA_Period,0,MODE_EMA,i);
}
}
break;
case 6:
{
for(i=0; i<limit; i++)
{
buffer[i] = iCustom(NULL,0,"T3MA",MA_Period,T3MA_VolumeFactor,0,i);
}
}
break;
case 7:
{
for(i=0; i<limit; i++)
{
buffer[i] = iCustom(NULL,0,"JMA",MA_Period,JMA_Phase,0,i);
}
}
break;
}
for(int shift=0; shift<limit; shift++)
{
UpBuffer[shift] = buffer[shift];
DownBuffer[shift] = buffer[shift];
Buffer3[shift] = buffer[shift];
}
/*for(shift=0; shift<limit; shift++)
{
if (buffer[shift]<buffer[shift+1])
{
UpBuffer[shift] = EMPTY_VALUE;
}
else if (buffer[shift]>buffer[shift+1] )
{
DownBuffer[shift] = EMPTY_VALUE;
}
else
{
UpBuffer[shift] = CLR_NONE;
DownBuffer[shift] = CLR_NONE;
}
}*/
for(shift=0; shift<limit; shift++)
{
double dMA = 0;
for(int k = shift+1; k <= shift+Step_Period; k++){
dMA += buffer[k];
}
dMA = dMA / Step_Period;
if (buffer[shift] < dMA)
{
UpBuffer[shift] = EMPTY_VALUE;
}
else if (buffer[shift]>dMA)
{
DownBuffer[shift] = EMPTY_VALUE;
}
else
{
UpBuffer[shift] = EMPTY_VALUE;
DownBuffer[shift] = EMPTY_VALUE;
}
}
for(shift=0; shift<limit; shift++)
{
signal[shift]=0;
if(UpBuffer[shift+1] == EMPTY_VALUE && UpBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != UpBuffer[shift] )
{
DrawObject(1,shift,buffer[shift] - (10*Point));
signal[shift]=1;
}
if(DownBuffer[shift+1] == EMPTY_VALUE && DownBuffer[shift] != EMPTY_VALUE && Buffer3[shift+1] != DownBuffer[shift])
{
DrawObject(2,shift,buffer[shift] + (15*Point));
signal[shift]=-1;
}
}
if(UpBuffer[1] == EMPTY_VALUE && UpBuffer[0] != EMPTY_VALUE && Buffer3[1] != UpBuffer[0])
AlertOnce(Symbol()+ ":" + PeriodToText() + " - Up Signal",1);
if(DownBuffer[1] == EMPTY_VALUE && DownBuffer[0] != EMPTY_VALUE && Buffer3[1] != DownBuffer[0])
AlertOnce(Symbol()+ ":" + PeriodToText() + " - Down Signal",2);
if(DebugMode)
{
TakeScreenShot(40);
}
return(0);
}
void DrawObject(int direction, int bar , double price)
{
static int count = 0;
count++;
string Obj = "";
if (direction==1) //up arrow
{
Obj = "xpMA_up_" + DoubleToStr(count,0);
ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
ObjectSet(Obj,OBJPROP_COLOR,UpArrowColor);
ObjectSet(Obj,OBJPROP_ARROWCODE,UpArrowCode);
ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
}
if (direction==2) //down arrow
{
Obj = "xpMA_down_" + DoubleToStr(count,0);
ObjectCreate(Obj,OBJ_ARROW,0,Time[bar],price);
ObjectSet(Obj,OBJPROP_COLOR,DownArrowColor);
ObjectSet(Obj,OBJPROP_ARROWCODE,DownArrowCode);
ObjectSet(Obj,OBJPROP_WIDTH,DownArrowSize);
}
ObjectsRedraw();
}
void DeleteAllObjects()
{
int objs = ObjectsTotal();
string name;
for(int cnt=ObjectsTotal()-1;cnt>=0;cnt--)
{
name=ObjectName(cnt);
if (StringFind(name,"xpMA",0)>-1) ObjectDelete(name);
ObjectsRedraw();
}
}
bool AlertOnce(string alert_msg, int ref)
{
static int LastAlert_1 = 0;
static int LastAlert_2 = 0;
static int LastAlert_3 = 0;
static int LastAlert_4 = 0;
switch(ref)
{
case 1:
if( LastAlert_1 == 0 || LastAlert_1 < Bars )
{
Alert(alert_msg);
LastAlert_1 = Bars;
return (1);
}
break;
case 2:
if( LastAlert_2 == 0 || LastAlert_2 < Bars )
{
Alert(alert_msg);
LastAlert_2 = Bars;
return (1);
}
break;
case 3:
if( LastAlert_3 == 0 || LastAlert_3 < Bars )
{
Alert(alert_msg);
LastAlert_3 = Bars;
return (1);
}
break;
case 4:
if( LastAlert_4 == 0 || LastAlert_4 < Bars )
{
Alert(alert_msg);
LastAlert_4 = Bars;
return (1);
}
break;
}
}
void TakeScreenShot(int exit_on = -1)
{
int count = 1;
if(!GlobalVariableCheck("ssc"))
{
GlobalVariableSet("ssc",1);
count = 1;
}
else
{
count = GlobalVariableGet("ssc") + 1;
GlobalVariableSet("ssc",count);
}
if ( exit_on > 0 && count > exit_on ) return(0);
string filename = "xpMA\\" + "xpMA_" + Symbol() + "_" + DoubleToStr(count,0) + ".jpg";
ScreenShot(filename,320,480);
}
string PeriodToText()
{
switch (Period())
{
case 1:
return("M1");
break;
case 5:
return("M5");
break;
case 15:
return("M15");
break;
case 30:
return("M30");
break;
case 60:
return("H1");
break;
case 240:
return("H4");
break;
case 1440:
return("D1");
break;
case 10080:
return("W1");
break;
case 43200:
return("MN1");
break;
}
}
